Enhance production efficiency and wood product quality with the high-speed 5-spindle 4-sided planer (230mm). The machine is designed to simultaneously plane, shape, and process all four sides of the wooden workpiece in a single run. This shortens processing time and yields a uniformly flat surface with high consistency. Thanks to its stable operation and simple handling, the machine helps woodworking shops accelerate production and optimize costs while ensuring the highest standards of precision and surface quality.
Features of the 230mm High Speed 5 Spindles 4 Side Planer

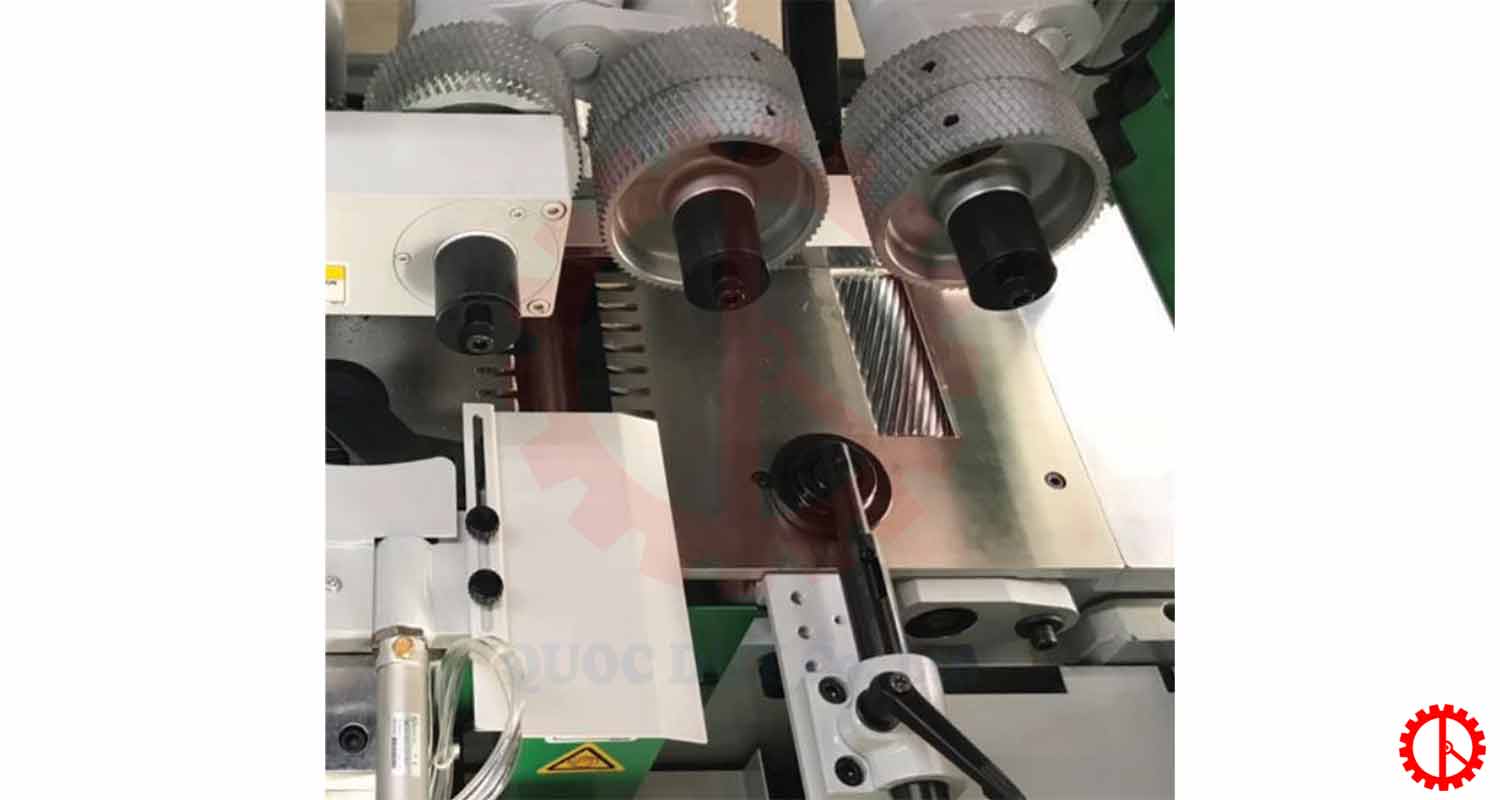

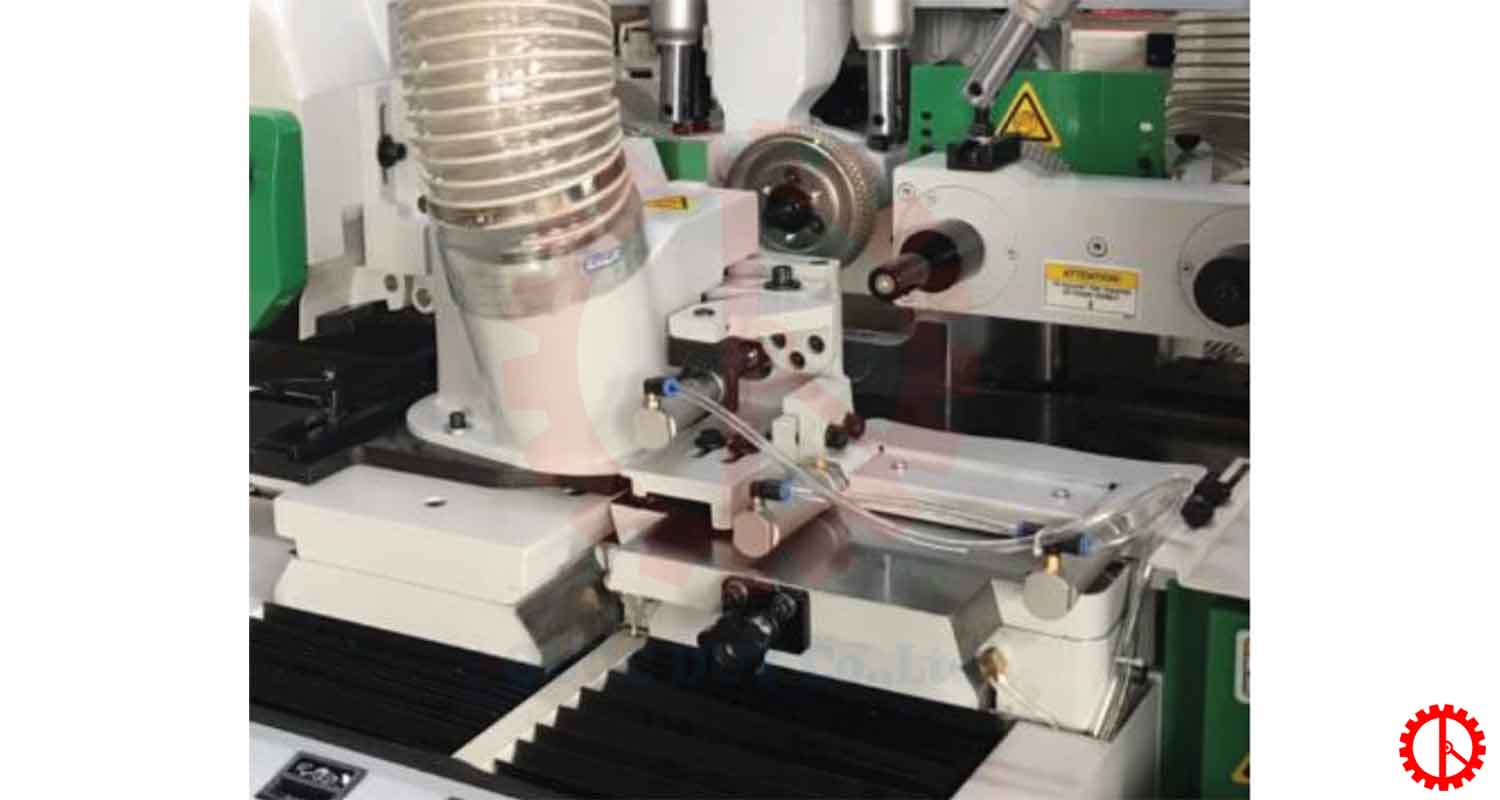

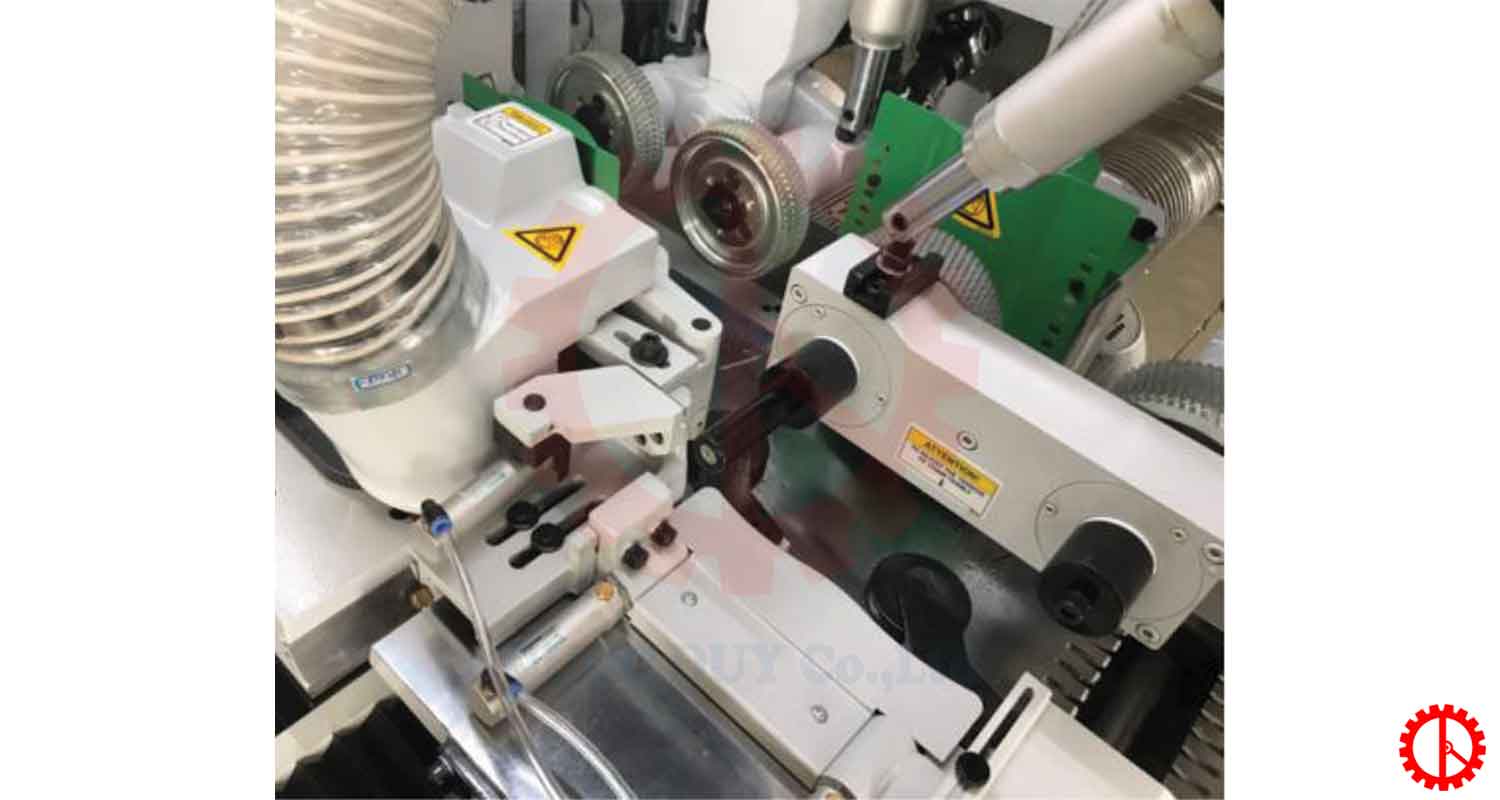

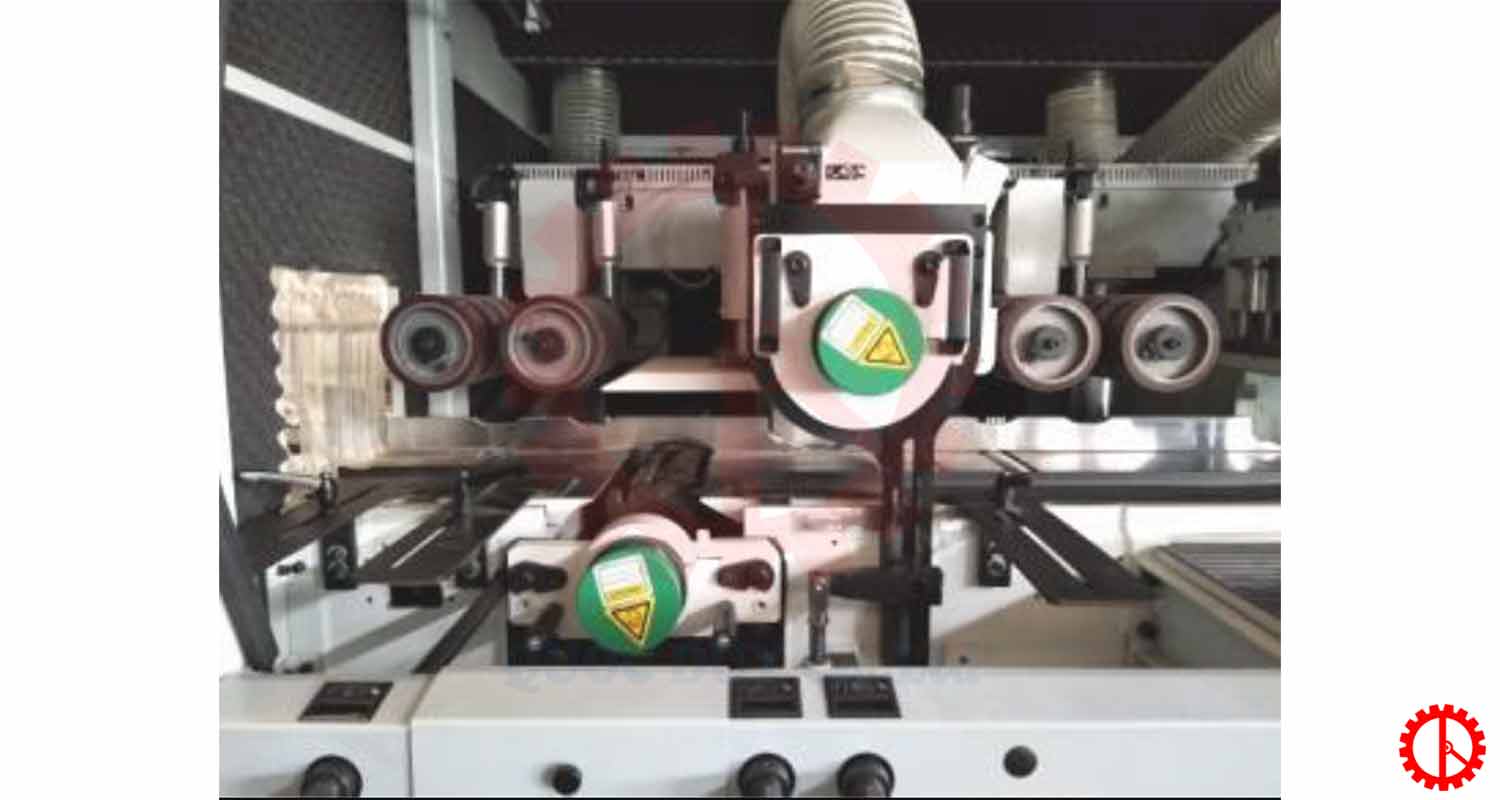

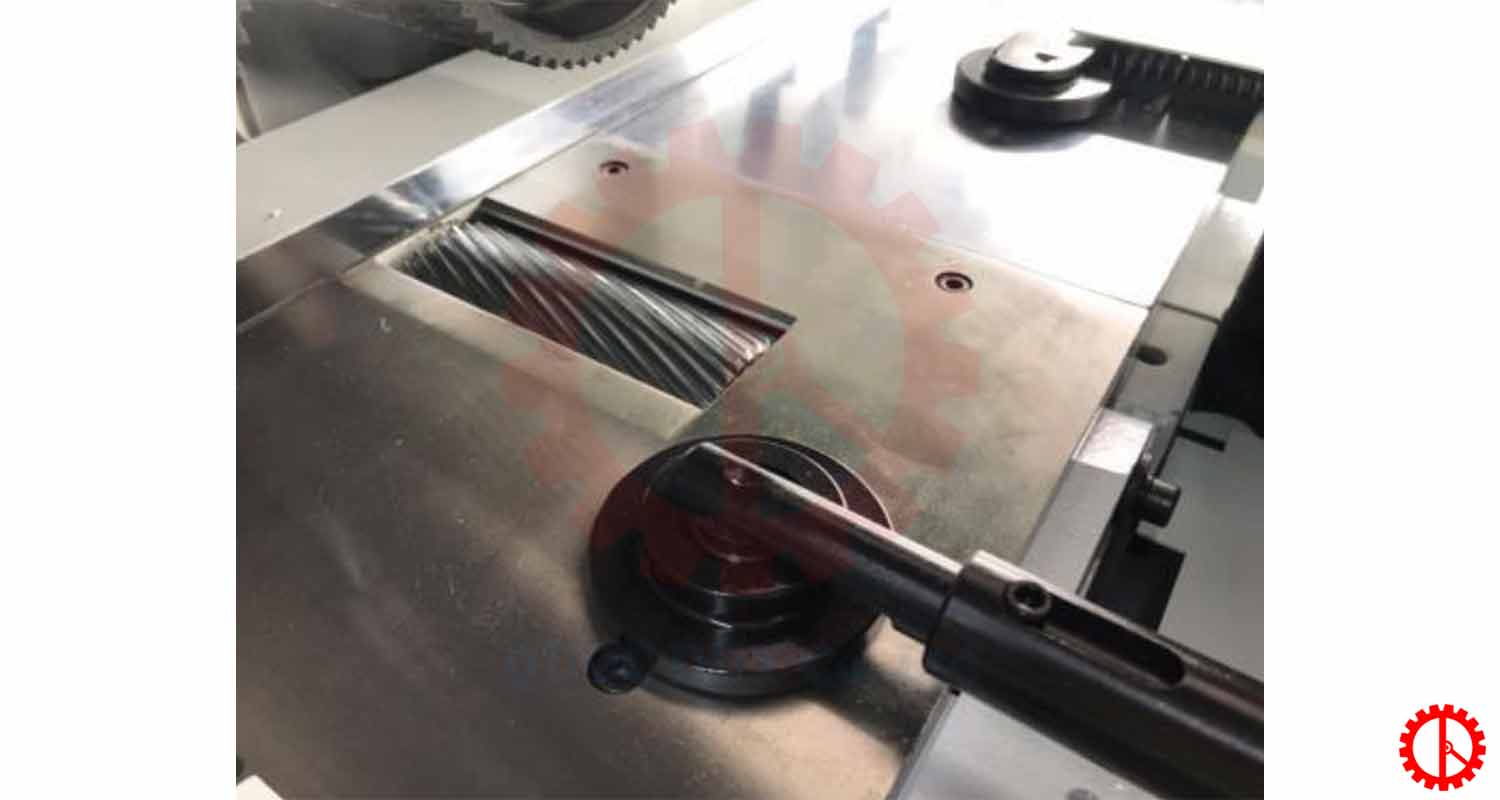

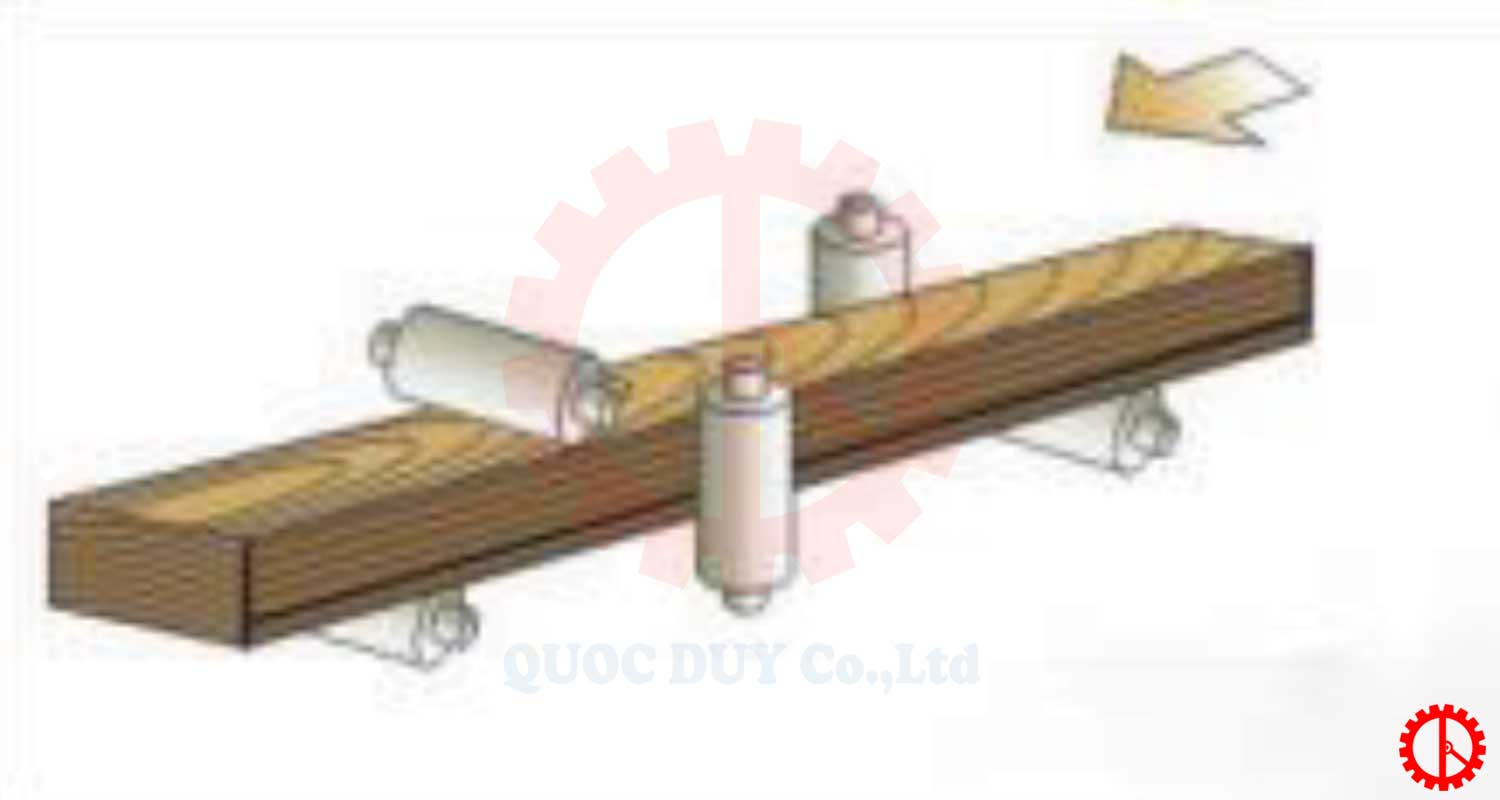

Intelligent Spindle Configuration: The 5 cleverly arranged spindles (top, 2 bottom, left, right) ensure the wood surface becomes perfectly flat and uniform, minimizing manual effort and eliminating the need for workers to flip the workpiece repeatedly.
Sharp Knives & High Speed: Sharp planer knives combined with spindle speeds of 6,000 – 8,000 revolutions per minute (RPM) ensure precise cuts and a scratch-free wood surface, which saves time and labor on subsequent sanding and finishing.

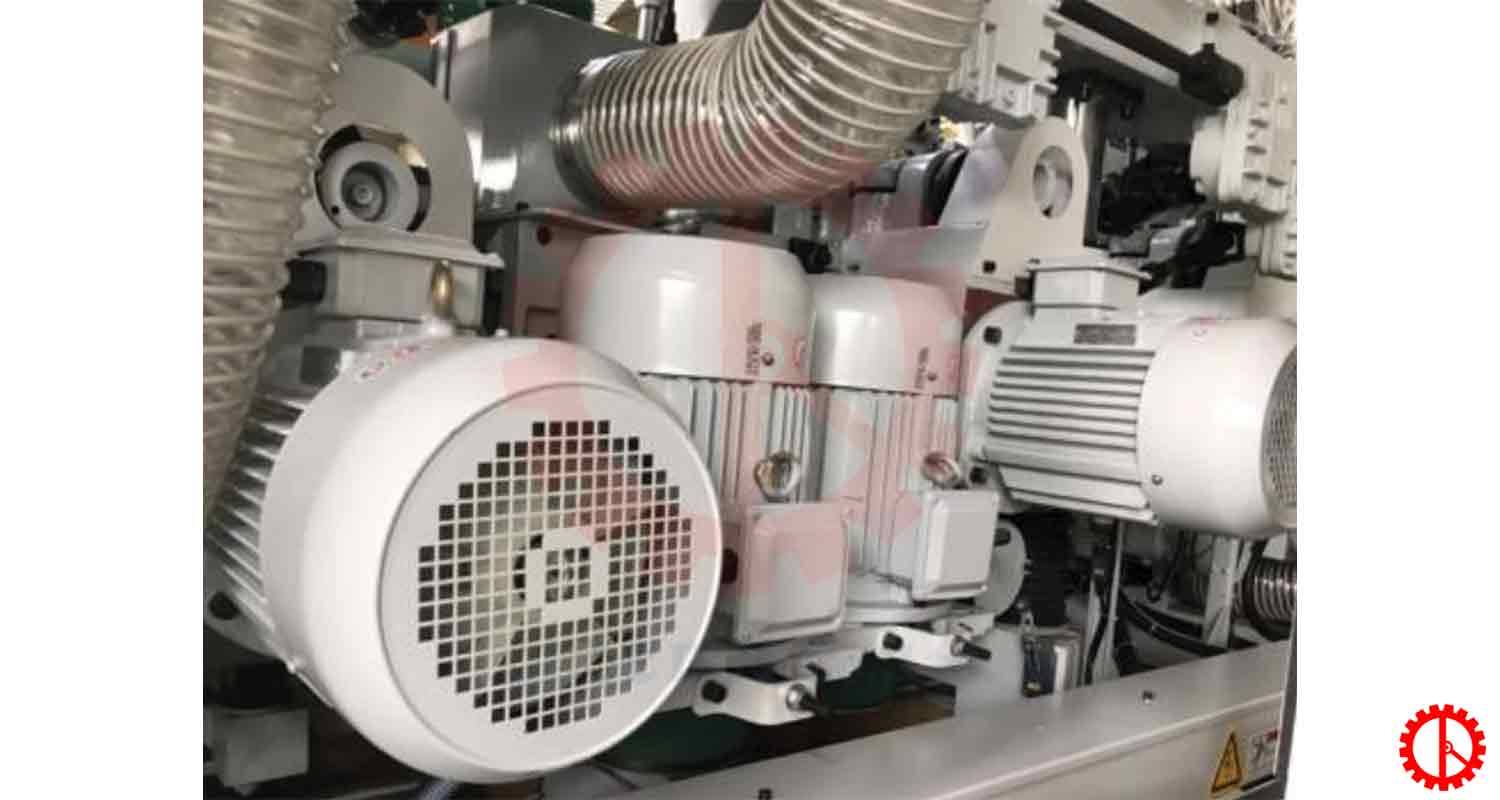

Powerful Motor System: The planer is equipped with a powerful total motor output of 50.75 kW (68.5 HP). Individual spindle motors, ranging from 7.5 kW – 11 kW, allow for the smooth planing of large or hard wood without vibration, thus increasing the machine’s durability.

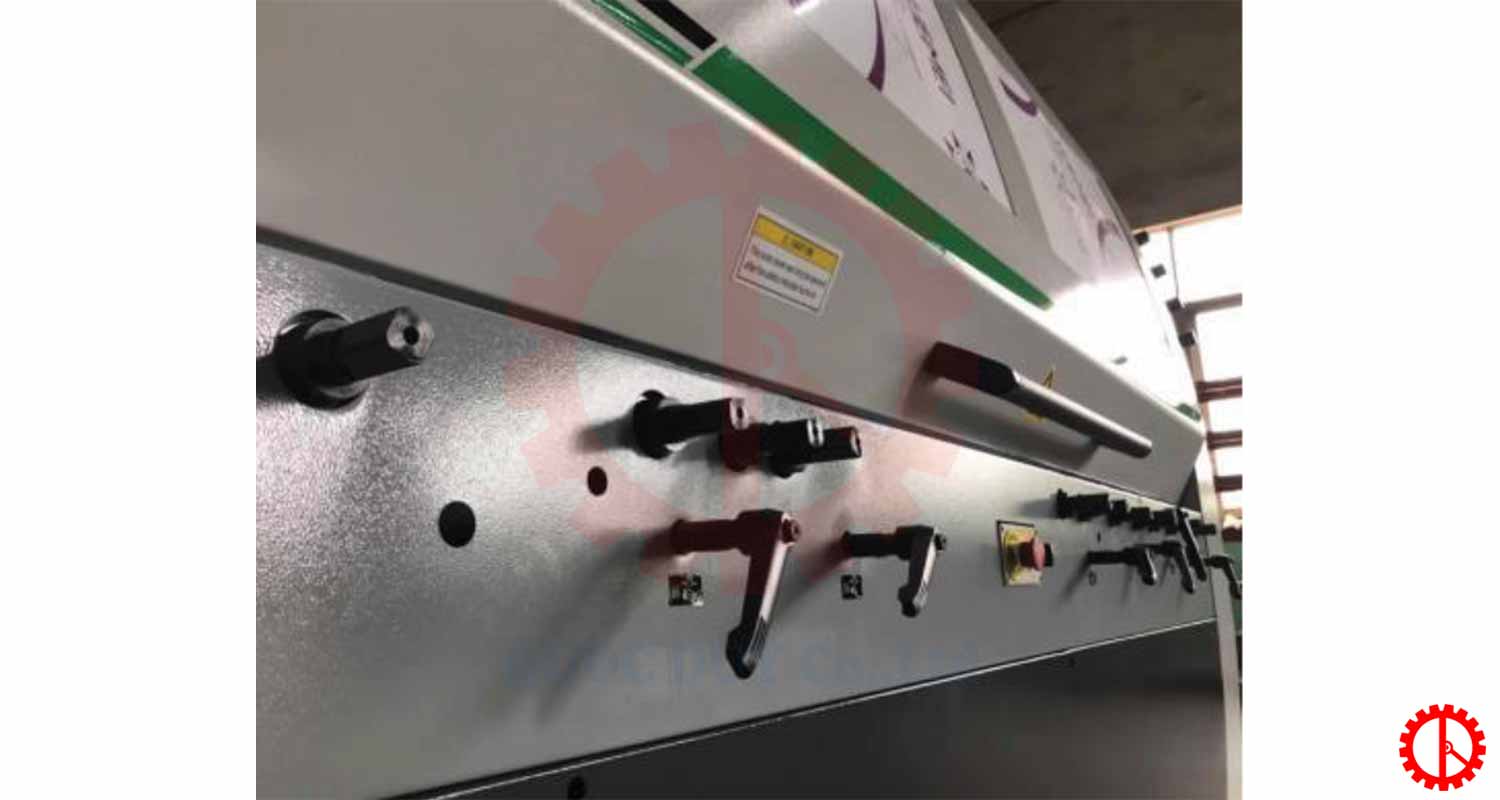

User-Friendly Control: The scientifically designed control panel allows for easy adjustment of spindle speed, feeding speed, and spindle height. With just a few simple operations, new workers can quickly familiarize themselves with the machine.

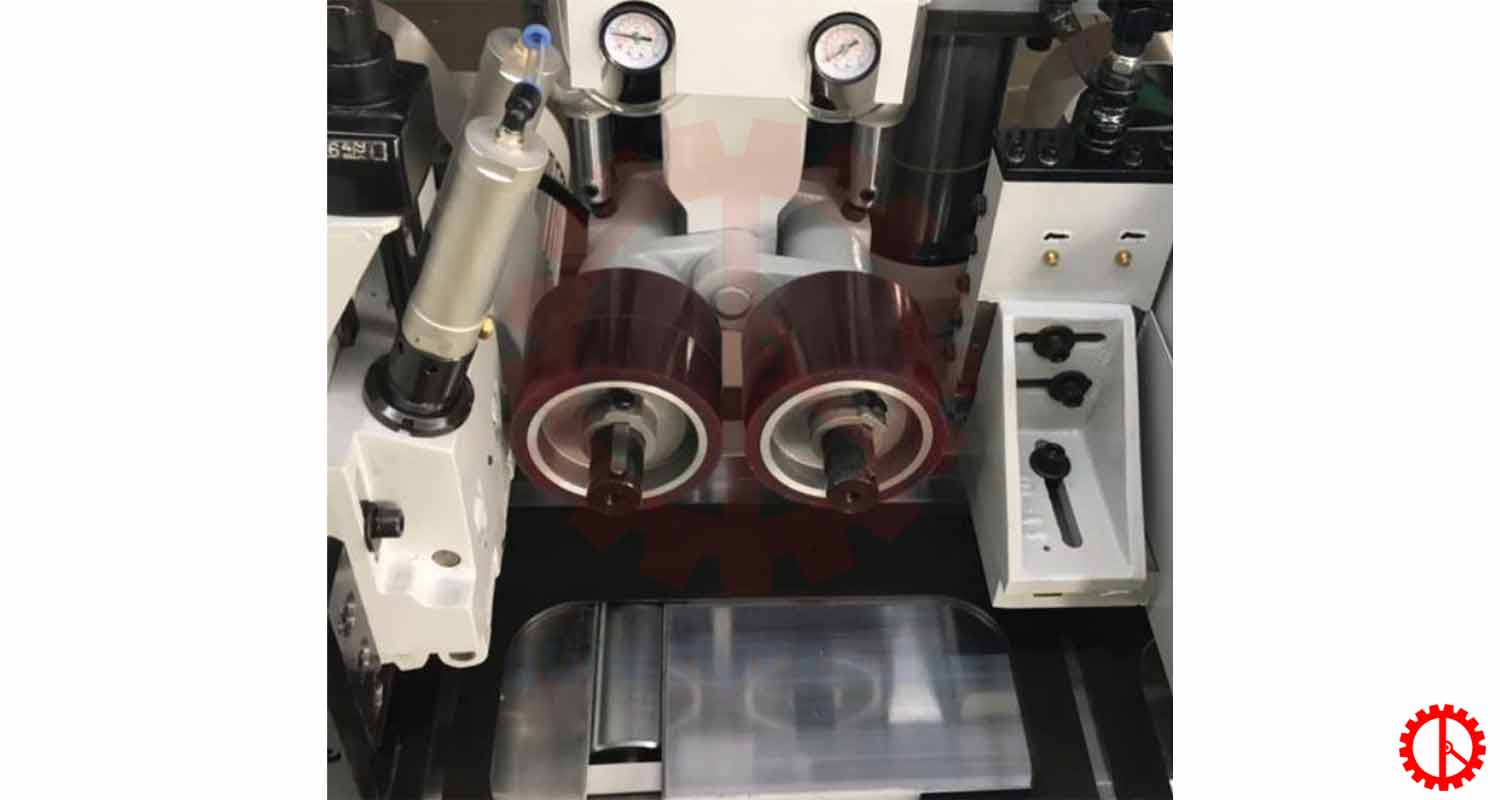

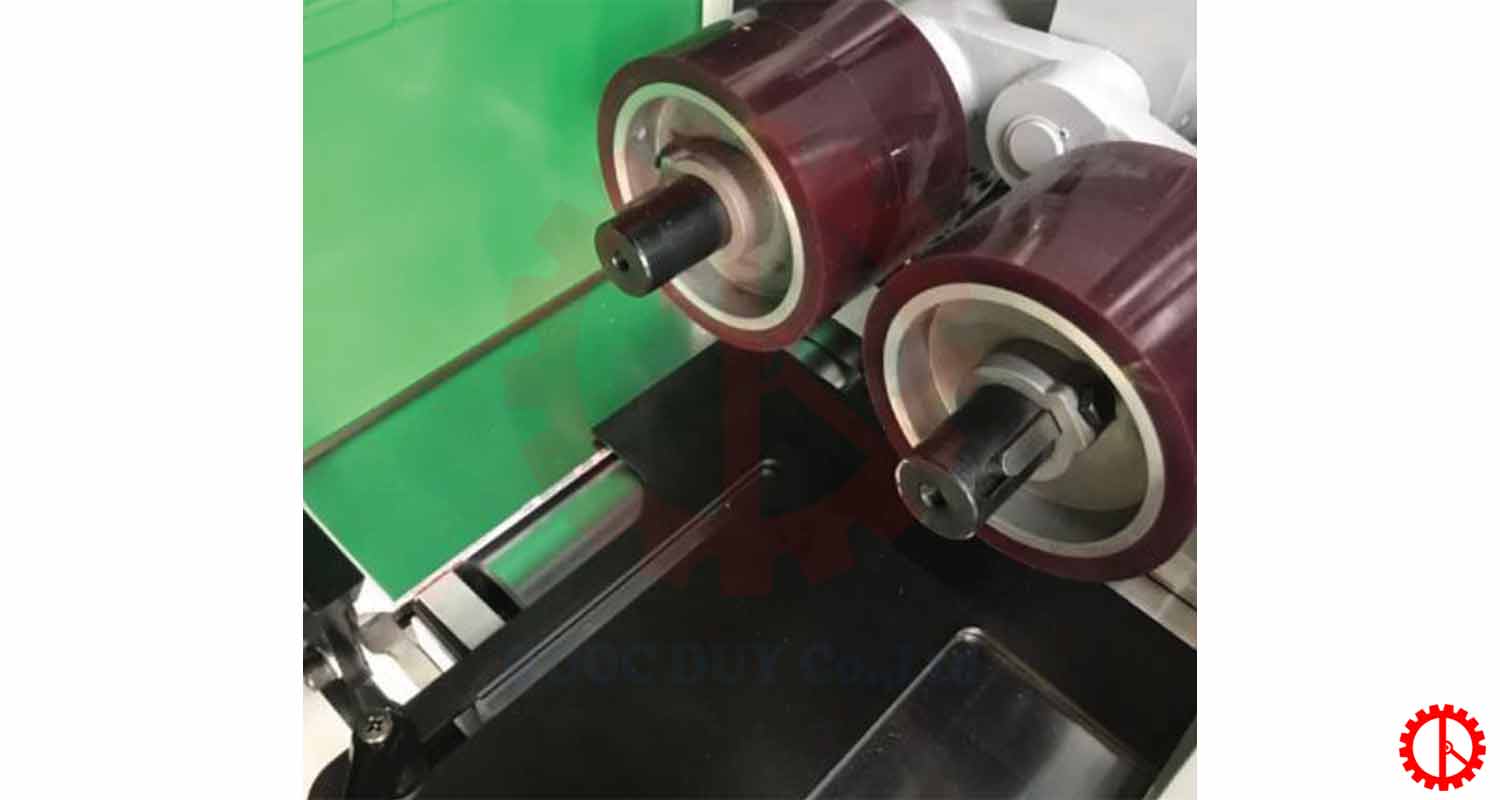

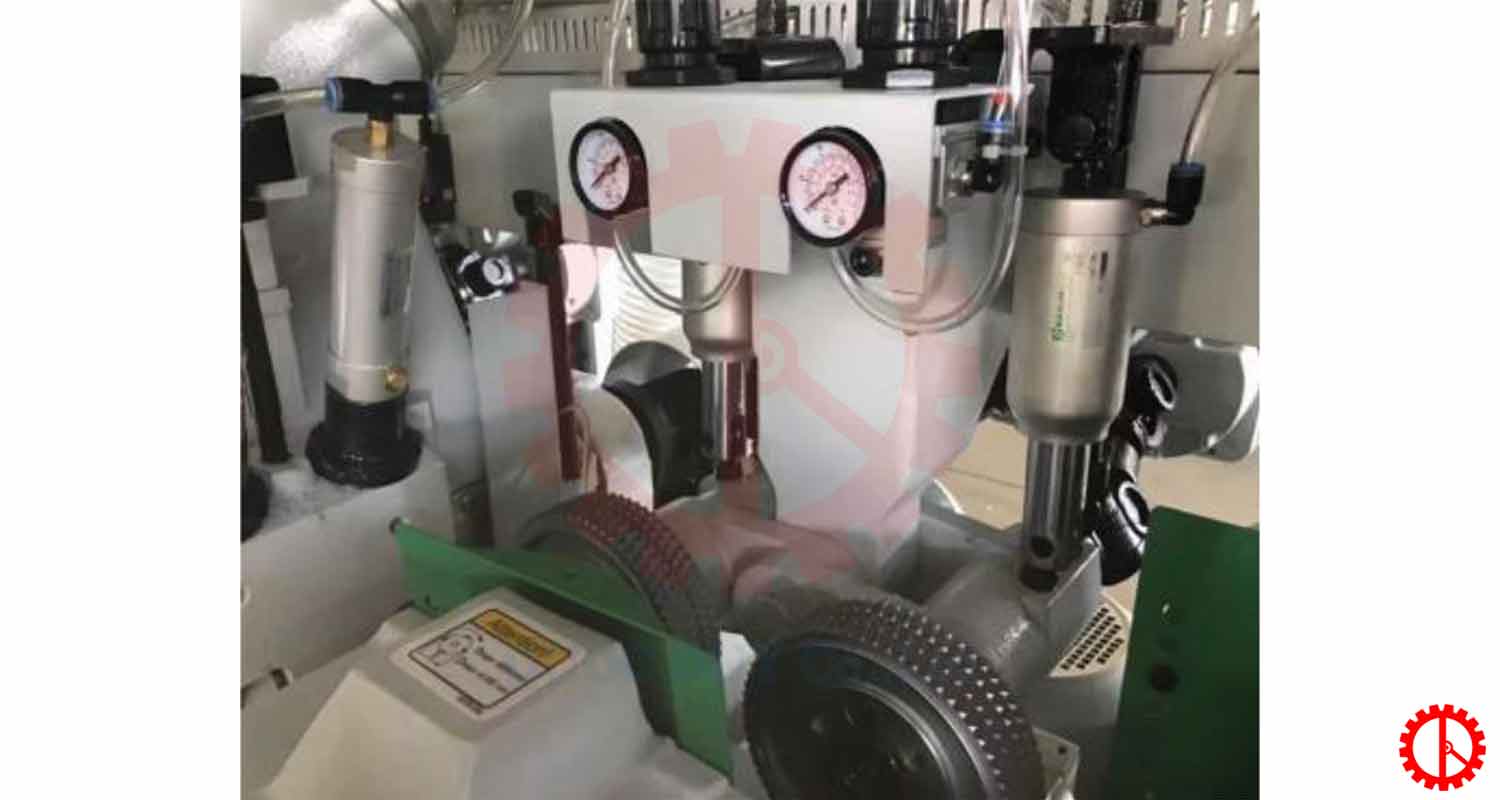

Stable Feeding & Clean Operation: The Ø140/Ø35 mm roller pressure system keeps the workpiece stable during planing. This, combined with a Ø150 mm dust extraction port, ensures a clean working environment and reduces wear on the spindles and knives.
Versatile Capacity: A working width of 20 – 230 mm, a thickness of 8 – 160 mm, and diverse cutter head diameters of Ø110 – Ø200 mm allow the machine to process various wood types while achieving high flatness and superior surface quality.
230mm High Speed 5 Spindles 4 Side Planer Technical Specifications
| Working width | : 20 – 230mm |
| Working thickness | : 8 – 160mm |
| Spindle QTY | : 5 |
| Spindle rotation speed | |
| 1st bottom spindle | : 6000 rpm |
| Right spindle | : 8000 rpm |
| Left spindle | : 8000 rpm |
| Top spindle | : 8000 rpm |
| 2nd bottom spindle | : 8000 rpm |
| Cutting diameter | |
| 1st bottom spindle | : Ø110 ~ Ø145mm |
| Right spindle | : Ø110 ~ Ø200mm |
| Left spindle | : Ø110 ~ Ø200mm |
| Top spindle | : Ø110 ~ Ø200mm |
| 2nd bottom spindle | : Ø110 ~ Ø200mm |
| Dia of shaft | : Ø50mm |
| Motor power | |
| 1st bottom spindle | : 7.5kW/10HP |
| Right spindle | : 7.5kW/10HP |
| Left spindle | : 7.5kW/10HP |
| Top spindle | : 11kW/15HP |
| 2nd bottom spindle | : 11kW/15HP |
| Feed | : 5.5kW/7.5HP |
| Feed beam lift | : 0.75kW/1HP |
| Total motor power | : 50.75kW/68.5HP |
| Feeding speed | : 10 – 50 m/min |
| Top pressure roller diameter (OD/ID) | : Ø140/Ø35mm |
| Dust suction pipe diameter | : Ø150mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice, but will not alter the machine’s function or operating capabilities.
Ensure production efficiency with the Quoc Duy high-speed 5-spindle 4-sided planer (230mm):
The high-speed 5-spindle 4-sided planer (230mm) not only enhances productivity but also delivers a smooth, safe, and easy operating experience. From the very first run, you will feel the difference: precise cuts, stable workpiece feeding, and a clean working environment.
