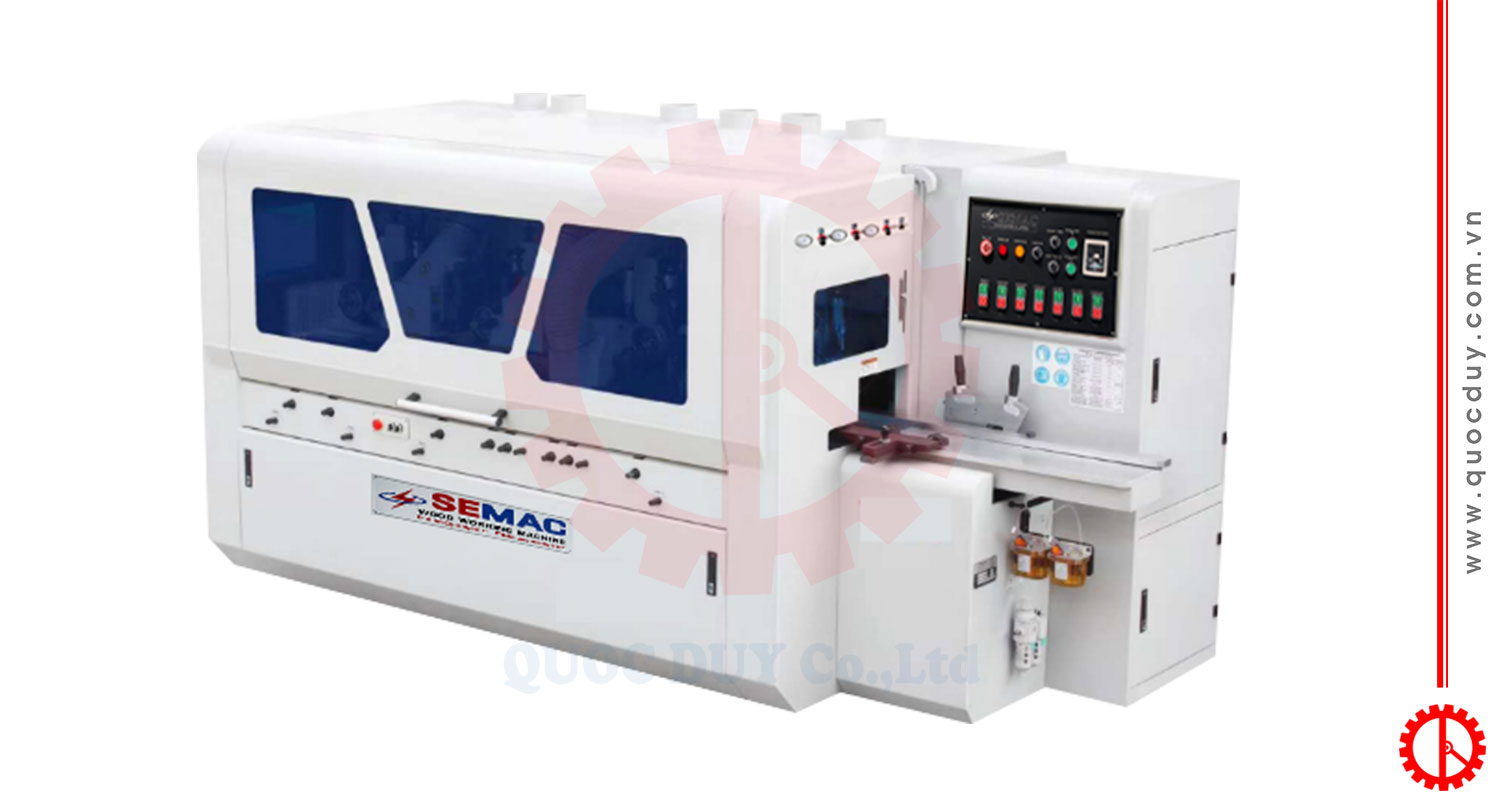

Four sided 6 axis planer machine SMVK 623D is an improved 4 side planer line, providing high smooth planing efficiency. 4-sided smooth planing with only 1 workpiece loading is outstandingly effective. This is a multi-purpose wood planer line, widely used, mass processed with large capacity.
Introduction of four sided 6 axis planer machine
Features of four sided 6 axis planer machine
- Smoothly plan all four sides of the product in just one pass

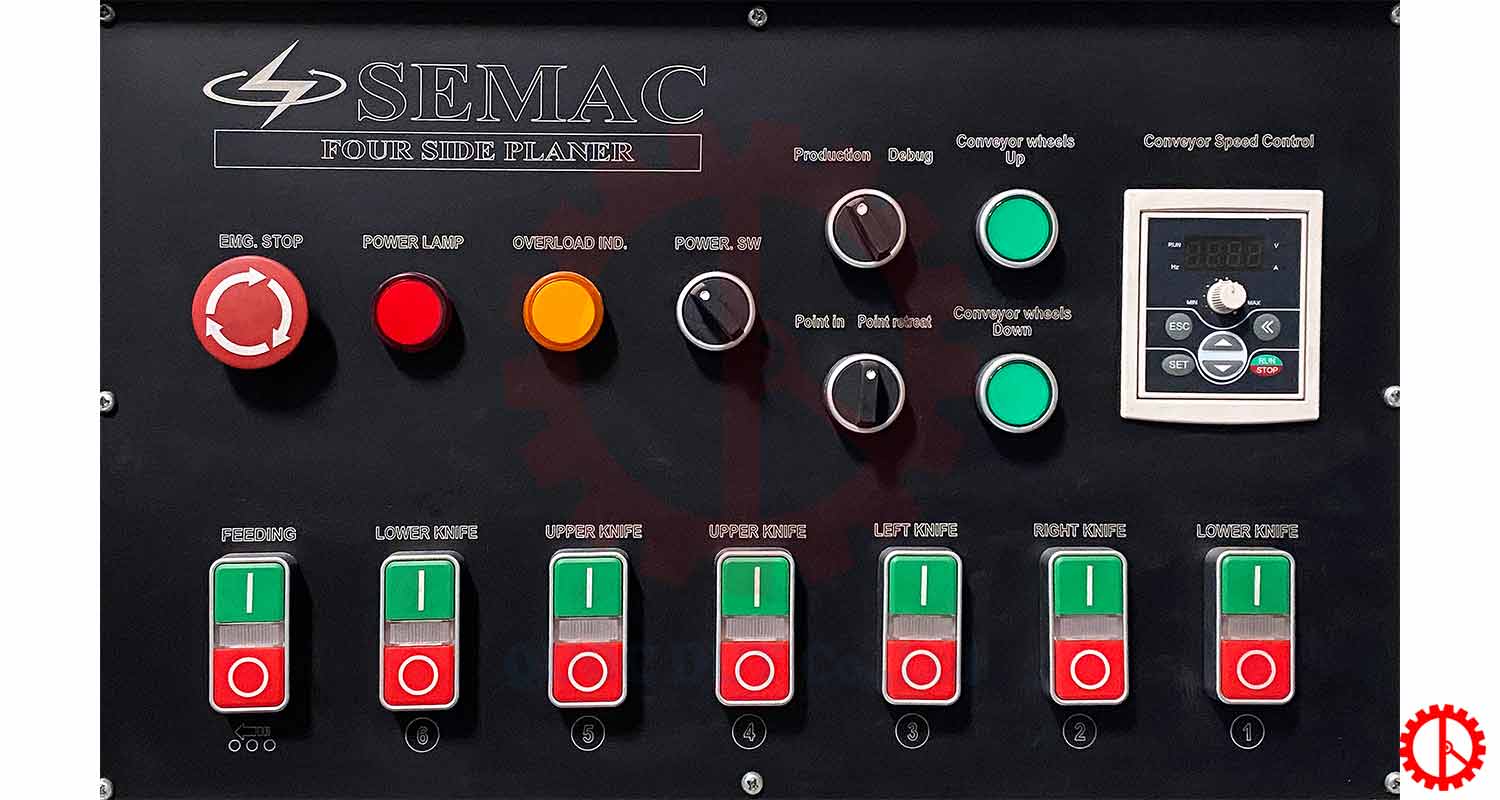

- The 4 side planer machine has a button control panel, simple and easy to operate

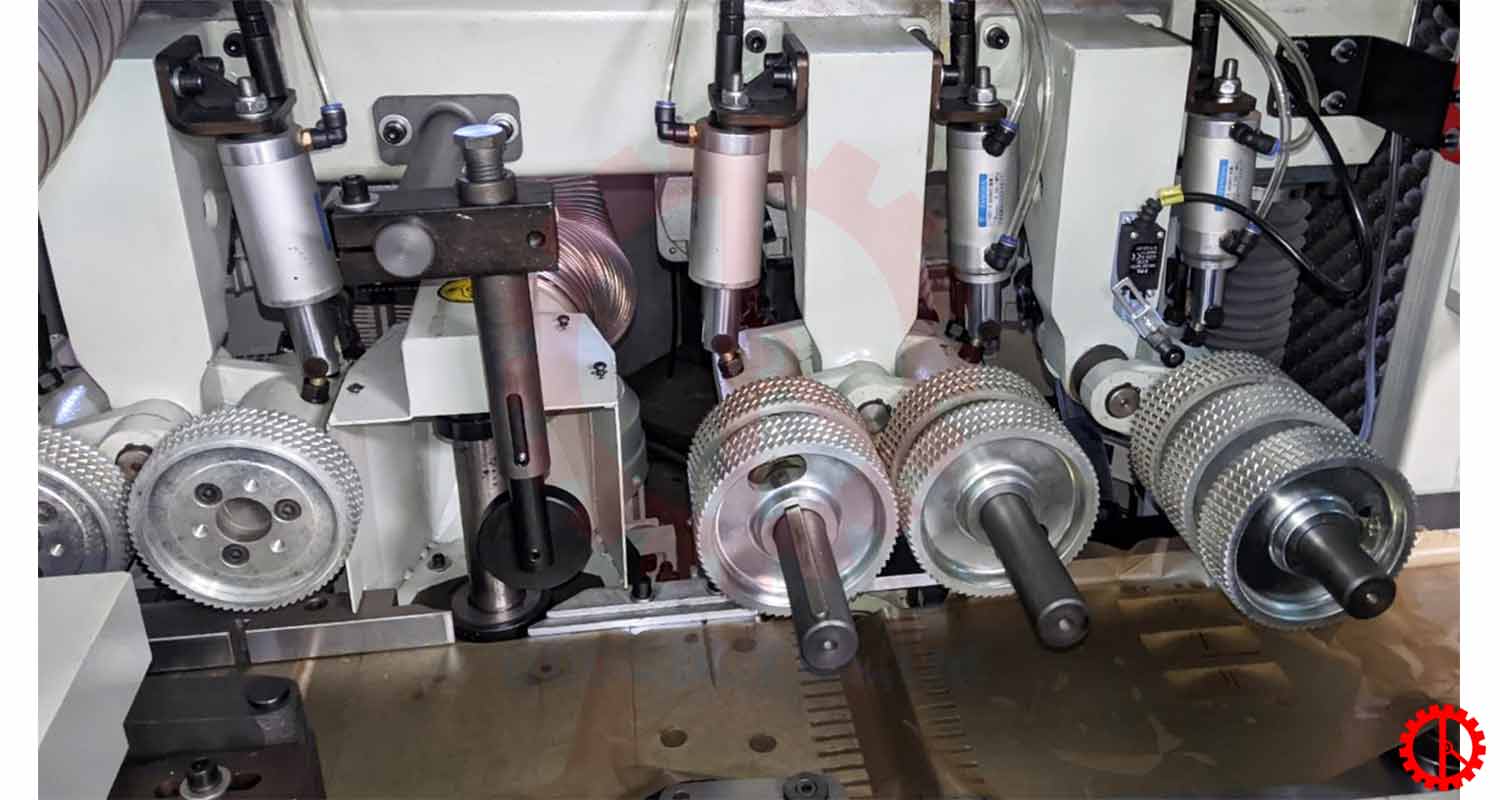

- Equipped with a roller system to continuously roll blanks, speeding up production progress
- Planing knife made from high quality alloy, ensuring sharpness, smooth and effective planing
- Mass processing, saving time and labor costs
Specifications of four sided 6 axis planer machine
| Working width | : 25-230 mm |
| Working thickness | : 8-160 mm |
| Working table length | : 580/300 mm |
| Feeding speed | : 5-40 m/min |
| Spindle diameter | : Ø40 mm |
| Main spindle speed | : 7000 r/min |
| Knife diameter | : Ø 125 – Ø 230 mm |
| 1st lower shaft power | : 7.5 kw |
| 2nd lower shaft power | : 7.5 kw |
| Left/Right shaft power | : 7.5 kw |
| 1st upper shaft power | : 11 kw |
| Left vertical shaft power | : 7.5 kw |
| Right vertical shaft power | : 5.5 kw |
| Feeding power | : 5.5 kw |
| Table hoist motor | : 1.5 kw |
| Overall power | : 54.75 kw |
| Pneumatic source pressure | : 0.6 mpa |

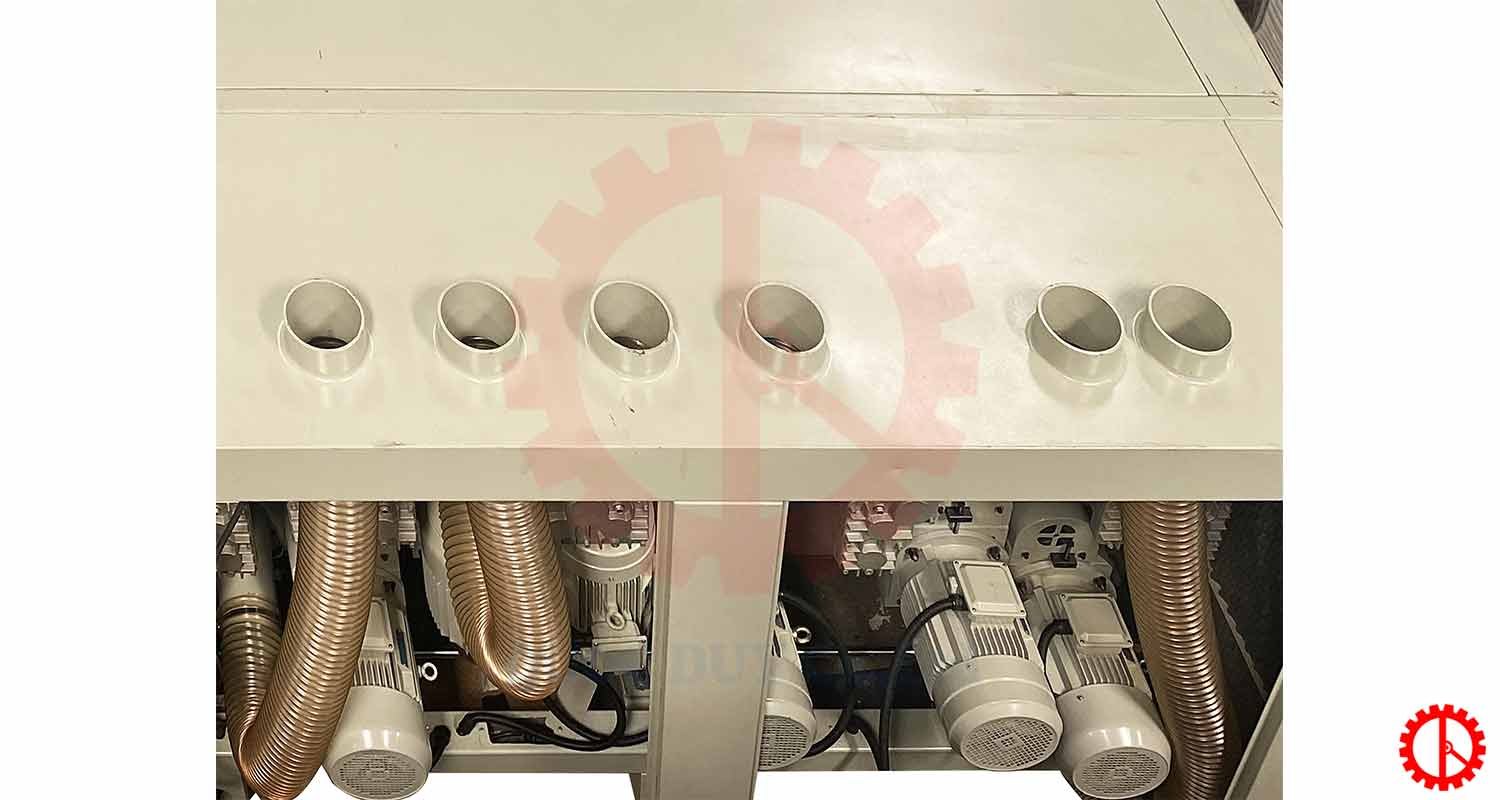

| Dust collector diameter | : Ø 150mm*6 |
Structures of four sided 6 axis planer machine

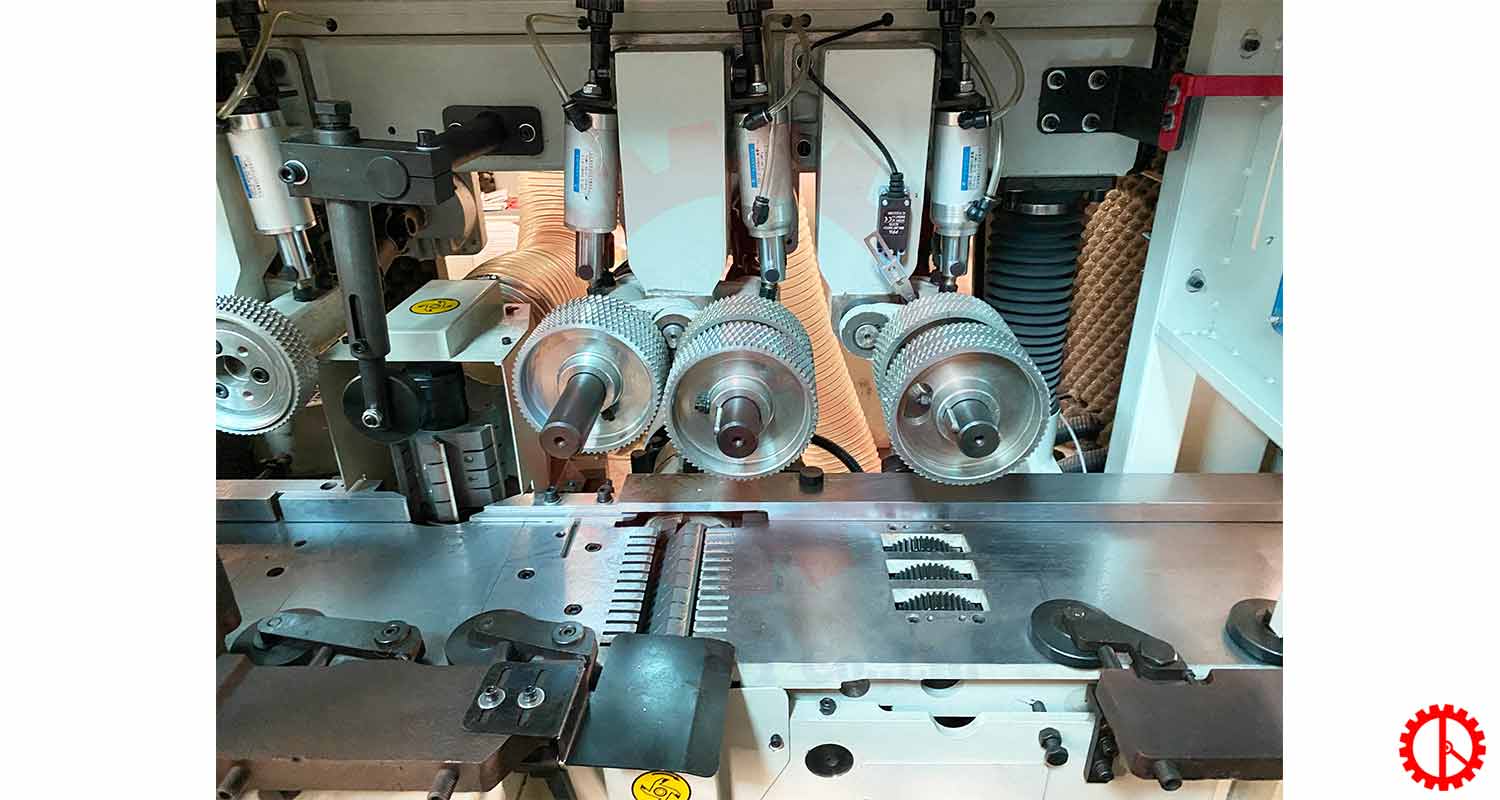

Planing shaft 1

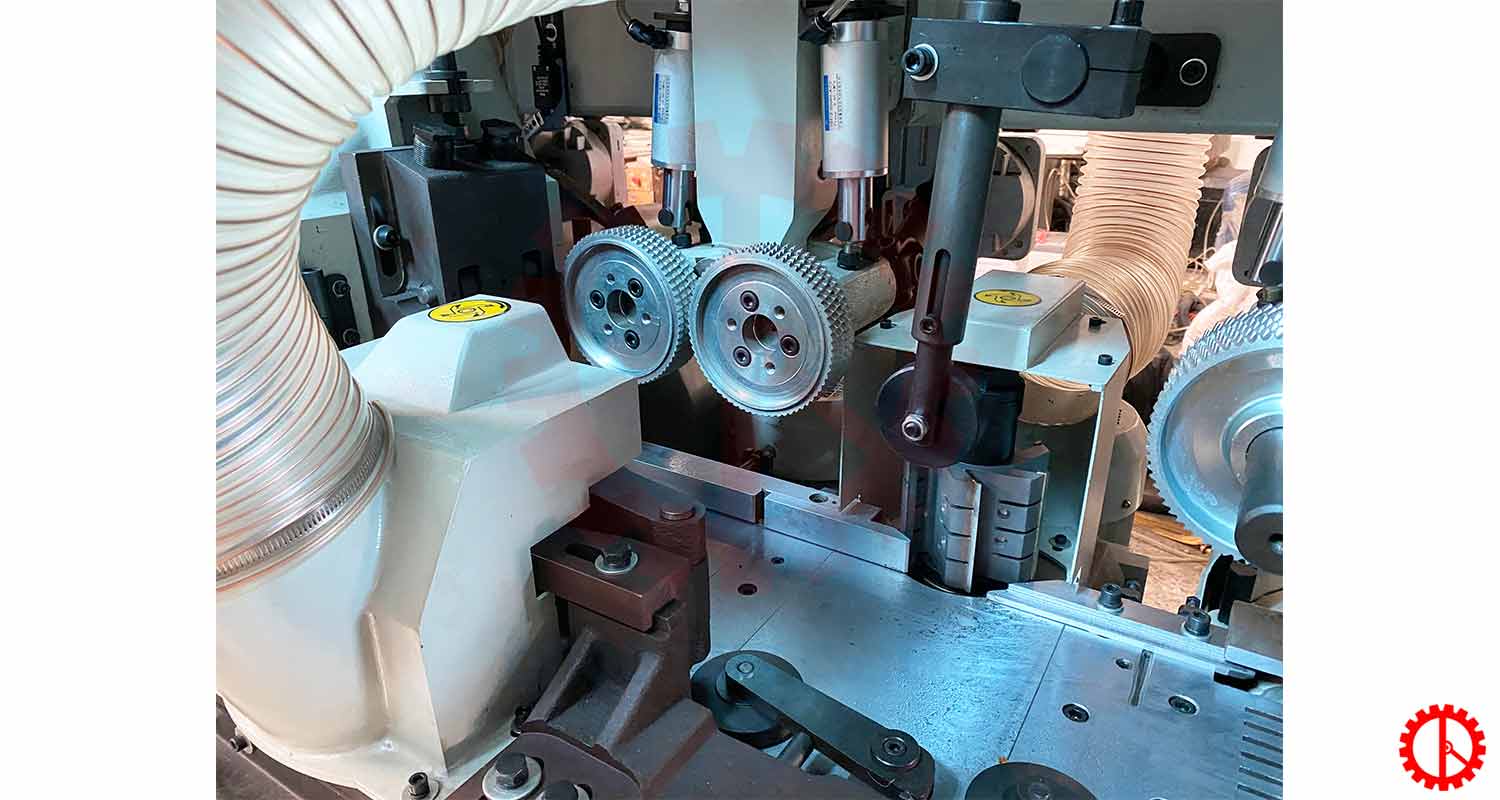

Planing shaft 2&3

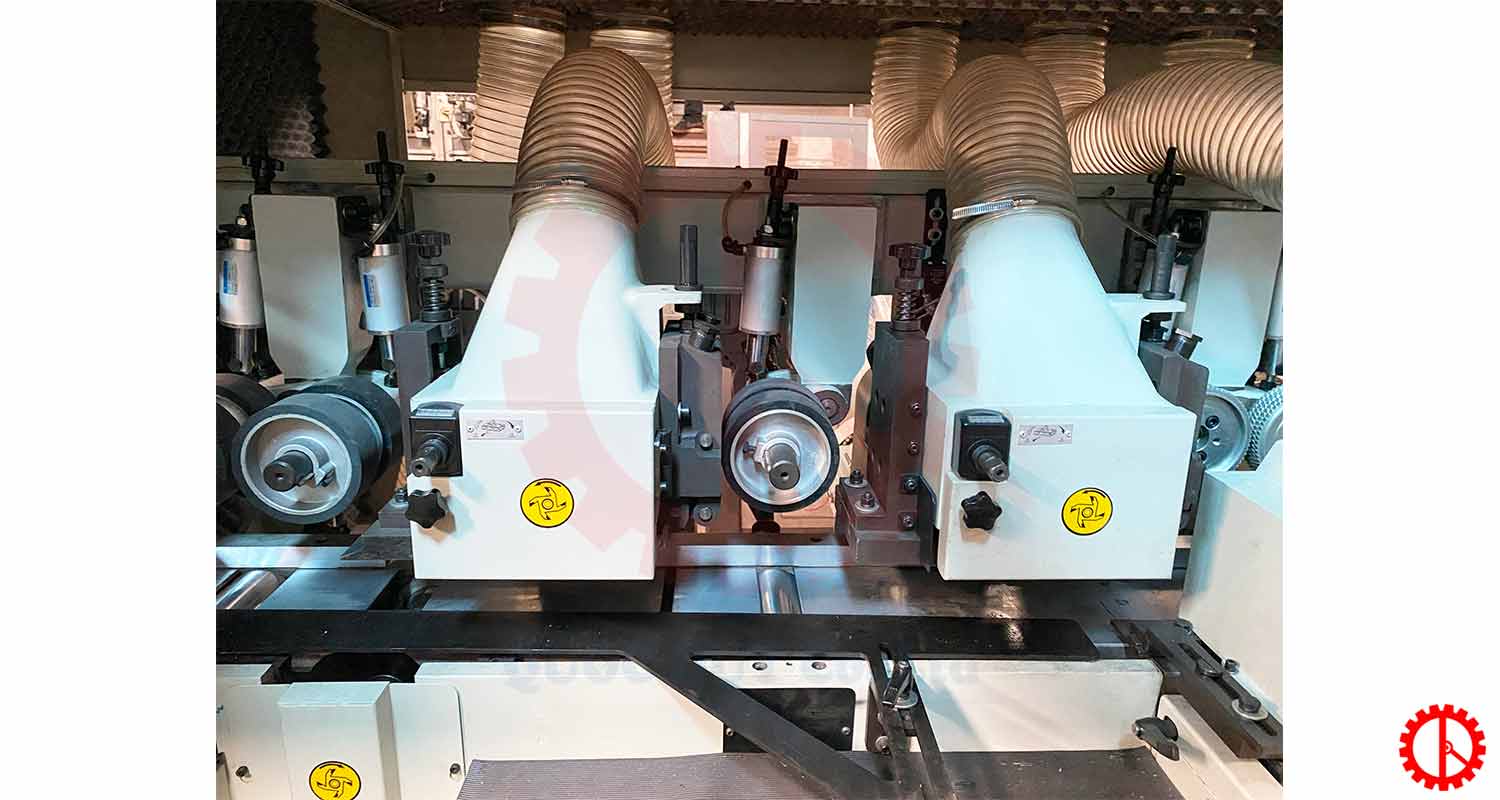

Planing shaft 4&5

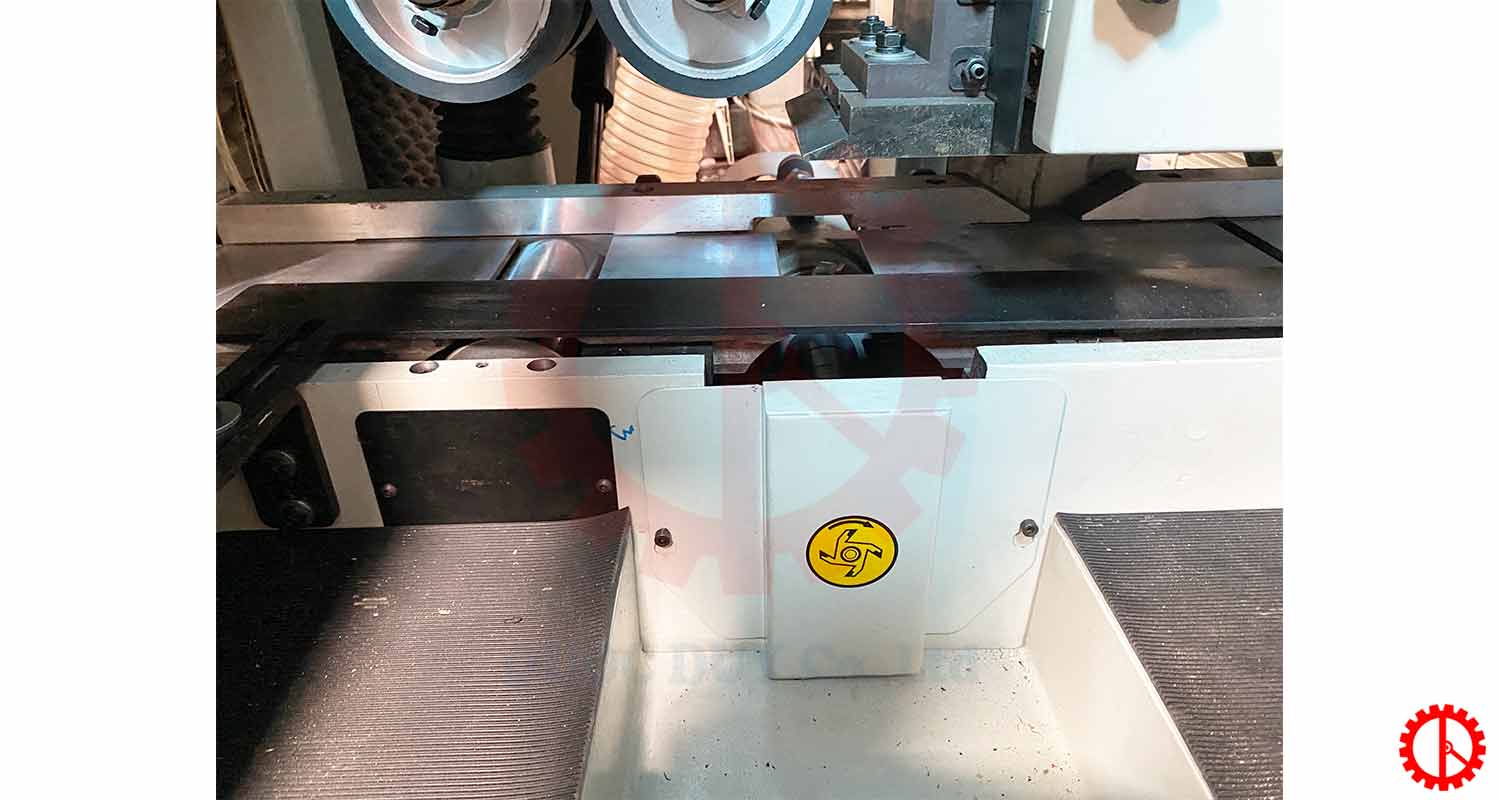

Planing shaft 6
video of four sided 6 axis planer machine
Some of 4-sided planers machine at Quoc Duy
At Quoc Duy wood planer system, we always regularly update new – diverse lines of wood planers suitable for each factory and different production needs. Some lines of Quoc Duy wood planers Duy introduces to customers
- FOUR SIDED 8-AXIS PLANER – SMVK 823D
Each line of wood planers will be suitable for each factory and different production scale. We provide a wide range of woodworking machines from basic to most advanced. Consulting – installing smart and modern production line systems to improve productivity and quality
DELIVERED four sided 6 axis planer AT CUSTOMER'S FACTORY
Address providing high speed 4-sided 6 axis wood planer
Four sided 6 axis planer machine is one of the machines in the planer system, which will be a smart choice for wood processing factories. Industrial wood planer is the perfect solution to maximize productivity. Continuously improve product quality – enthusiastic service attitude. Timely update the most advanced and modern new technologies. Any questions about woodworking machines – production lines – smart investment – Please contact Quoc Duy – we will provide solutions. The smartest production method.
