DOUBLE SIDED OSCILLATING MORTISER – MOD

PADE

may khoan tao mong am 2 dau tu dong

SKU: https://quocduy.com.vn/may-tao-mong-am-2-dau/ Category: PADE tenon and mortise machine

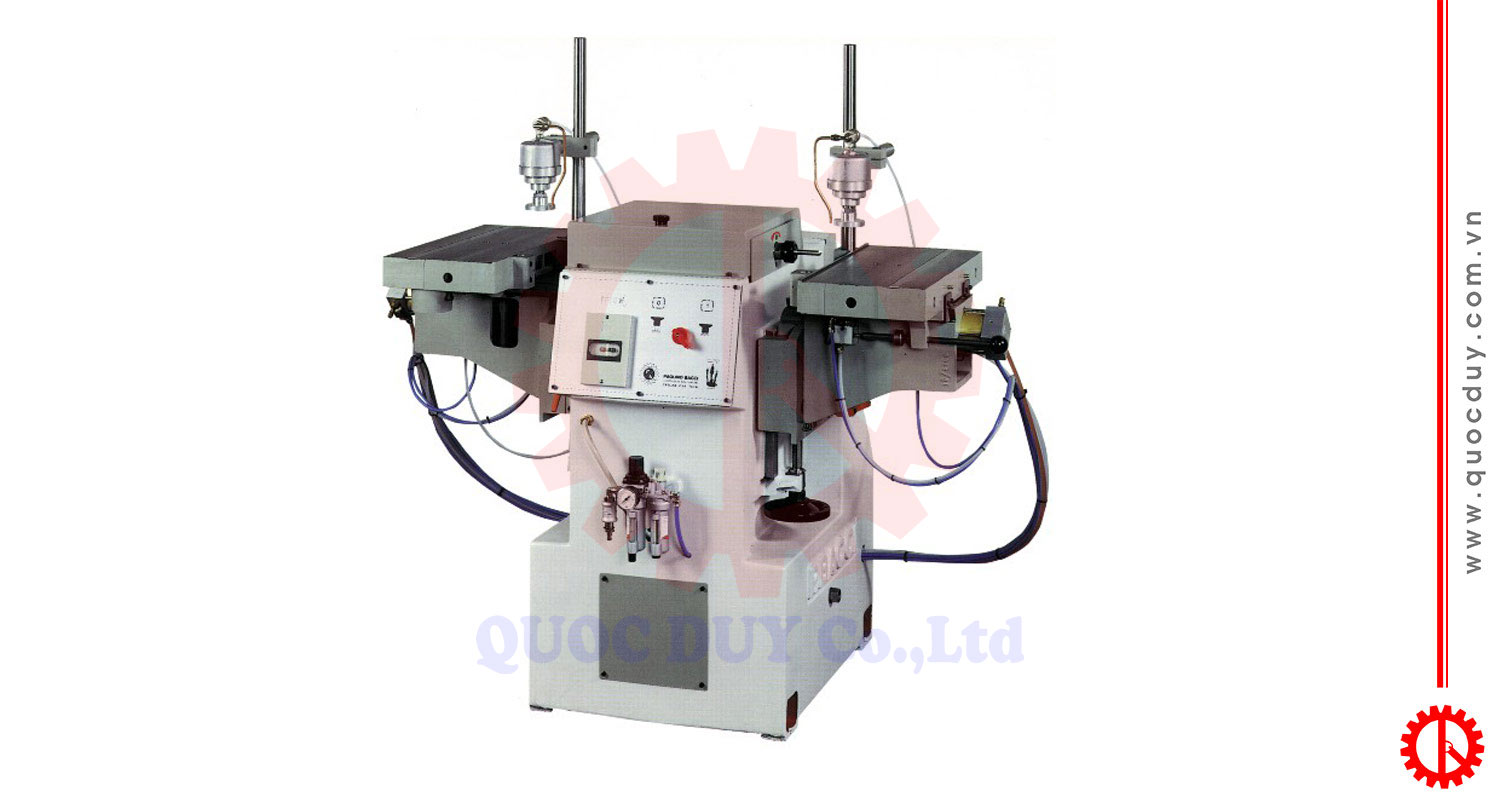

Double sided oscillating mortiser MOD

Introduction of double sided oscillating mortiser

Spindle	9500 rpm
Max length of slots	120 mm
Max depth of slot	80 mm
Radial tilting of tables	20⁰
Max tool diameter	16 mm
Diameter blades	51 mm
Vertical displacement of the table	100 mm
The main motor	3 hp
Net weight	530 kgs
Overrall dimensions	1400 x 800 x 1210 mm
