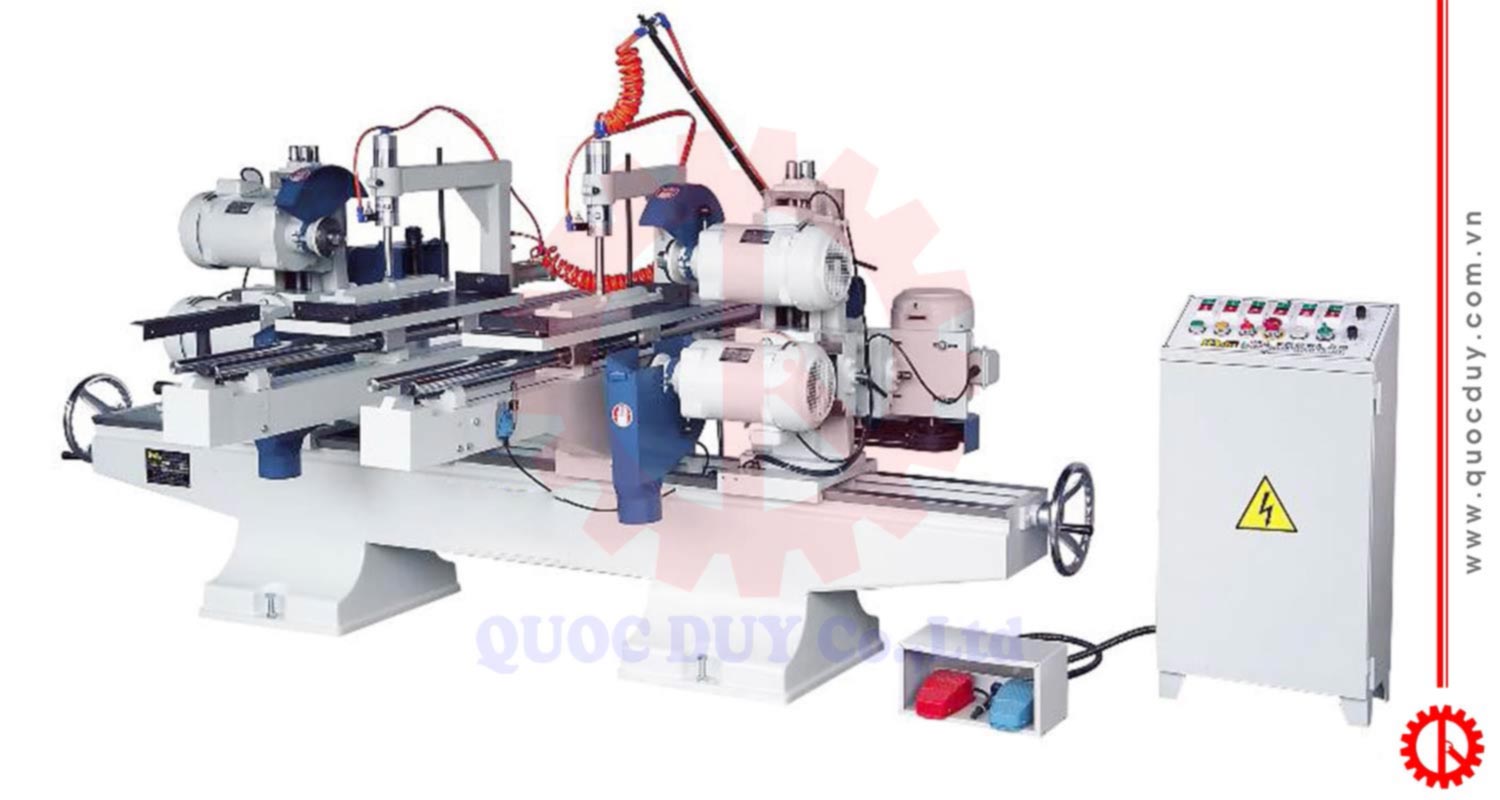

Double ended upper and lower with shaper RH 426AR is designed with a separate independent control cabinet, making machine operation simpler.
Introduction of double ended upper and lower with shaper
Features of double ended upper and lower with shaper
- RH 426AR two-head sliding ball milling and cutting wood sawing machine is specialized for cutting and milling mortises, and milling grooves at both ends of boards,…
- Cutting machine with high precision, quality products, beautiful saw blade cutting lines, sliding table on ball rails with high precision.
- Equipped with a workpiece clamping system to help hold the workpiece tightly during machining.
Specifications of double ended upper and lower with shaper
| Processing Length | 230~1220 mm |
| Processing Width | 580 mm |
| Sawblade diameter (optional) | 10”~14” (φ25.4mm) |
| Tilting degree of sawblade and moulding spindle | 360° |
| Turning speed of circular sawing blade | 3000 ~ 3300 R.P.M, 50~60 Hz |
| No. of rails | 1 set |
| Motor of circular sawing blande | 2 HP x 4 |
| Vertical shaft motor | 3 HP x 2 |
| Turning speed vertical shaft | 6600 ~ 7200 R.P.M, 50 ~ 60 Hz |
| Net weight | 820 kg |
| Machine size | 2230 x 1920 x 1200 mm |
VIDEO OF OPERATION OF TWO SLIDING BALL HEAD MILLING CUTTING MACHINE
Latest double ended upper and lower with shaper price
If you need consultation and installation services for your woodworking machinery or painting production, Quoc Duy and his experienced team, with over 20 years of industry experience, can guarantee the highest quality for your products.
For any inquiries regarding the Double ended circular sawing with shaper machine, please feel free to contact us via the following channels for a quick consultation and quote:
- Email : info@quocduy.com.vn
- Hotline : 0903 600 113
- Website : www.quocduy.com.vn – www.semac.com.vn
You can also visit our factory located at 401 To Ngoc Van, Thanh Xuan Ward, District 12, Ho Chi Minh City to witness the operating process of the most modern machines firsthand.
