Computer panel saw machine TPS 12SH

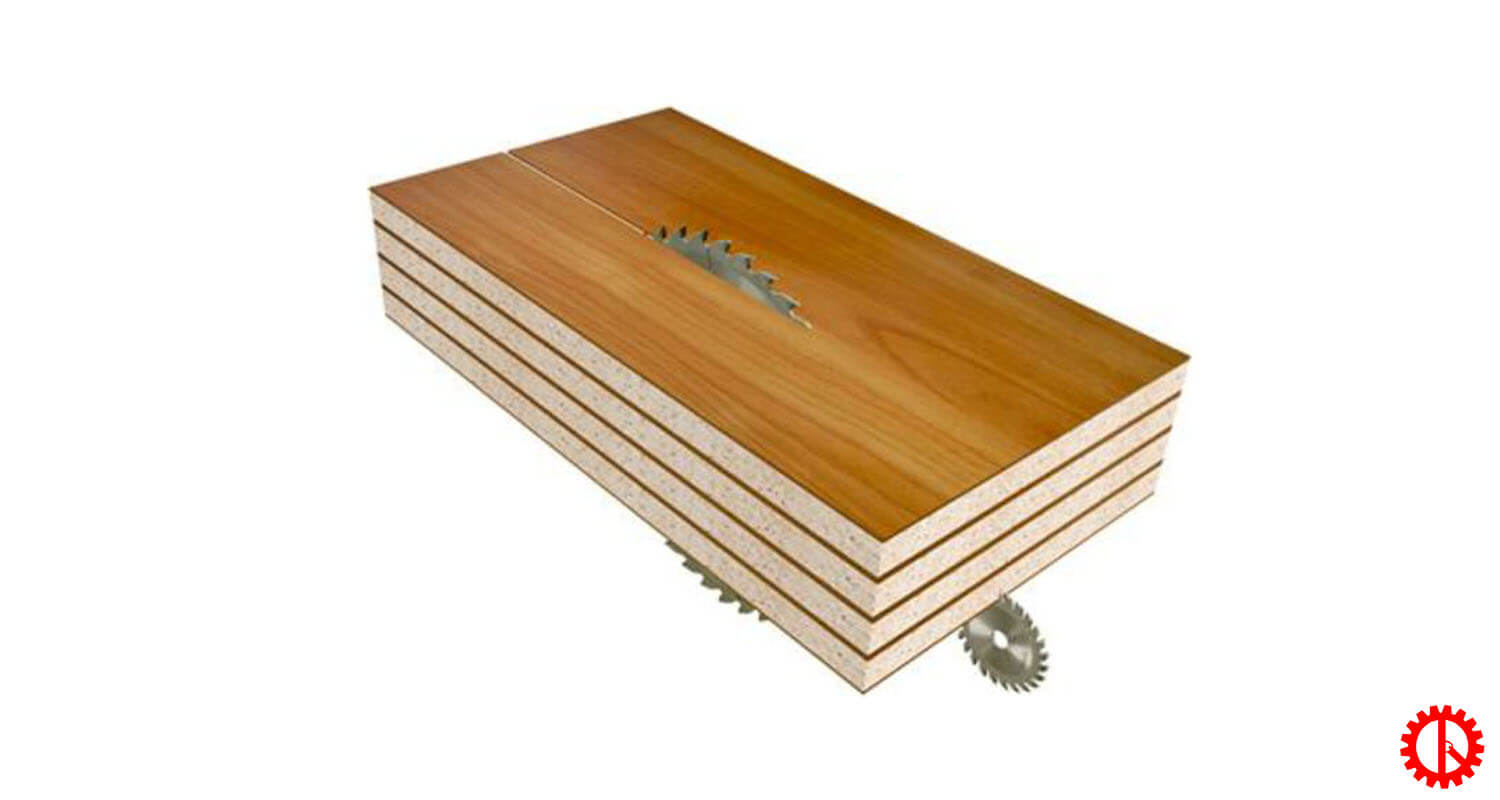

Introduction of computer panel saw machine
Specifications
| Max. cutting length | 3800 mm |
| Max. cutting depth | Max. 100 mm |
| Main blade diameter | Ø 405 mm |
| Arbor diameter | Ø 25.4 mm |
| Main blade speed | 4800 rpm/min |
| Scoring blade diameter | Ø 180 mm |
| Arbor diameter | Ø 25.4 mm |
| Scoring blade speed | 6500 rpm/min |
| Feed speed | 5-40 (m/min |
| Return speed | 70 (m/min |
| Main sawblade motor | 15 HP |
| Saw carriage drive motor | 2 HP |
| High pressure blower motor | 3 HP |
| Automatic feed motor | 1 kw (AC servo motor) |
| Number of clamps | 9 pcs |
| Number of floating tables | 4 pcs |
| Clampers system pull speed | 5-70 (m/min |
| Clampers system push speed | 5-60 m/min |
| Working air pressure | 7 kg/cm² |
| Table high from floor | 850 mm |
