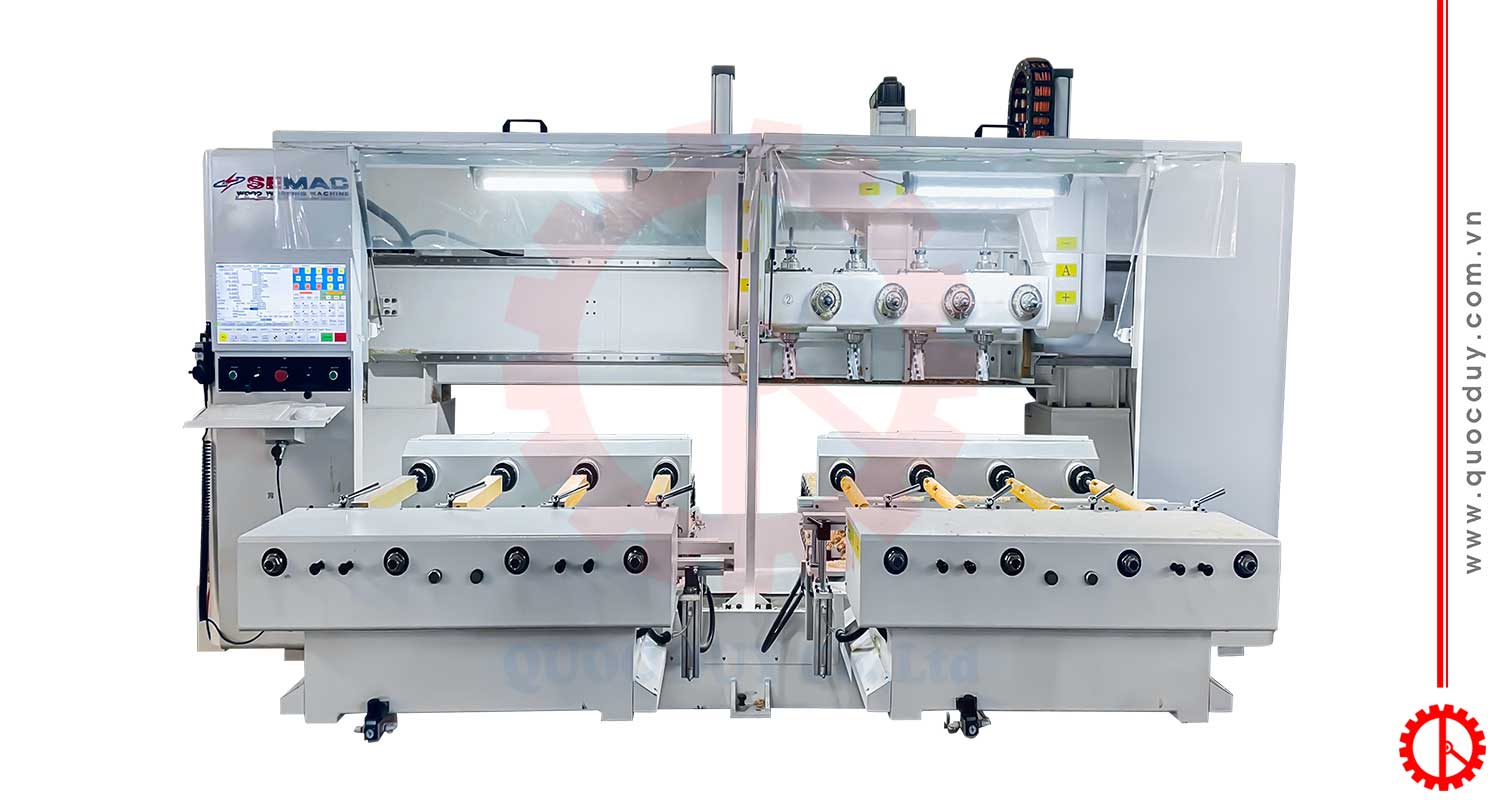

CNC milling machine – MR4S D1200
Introduction of CNC milling machine
Specifications of CNC milling machine
Working length | : 1200 mm |
X axis travel | : 2000 mm |
Y axis travel | : 1400 mm |
Z axis travel | : 550 mm |
A axis travel | : ± 180° |
B axis travel | : unlimited |

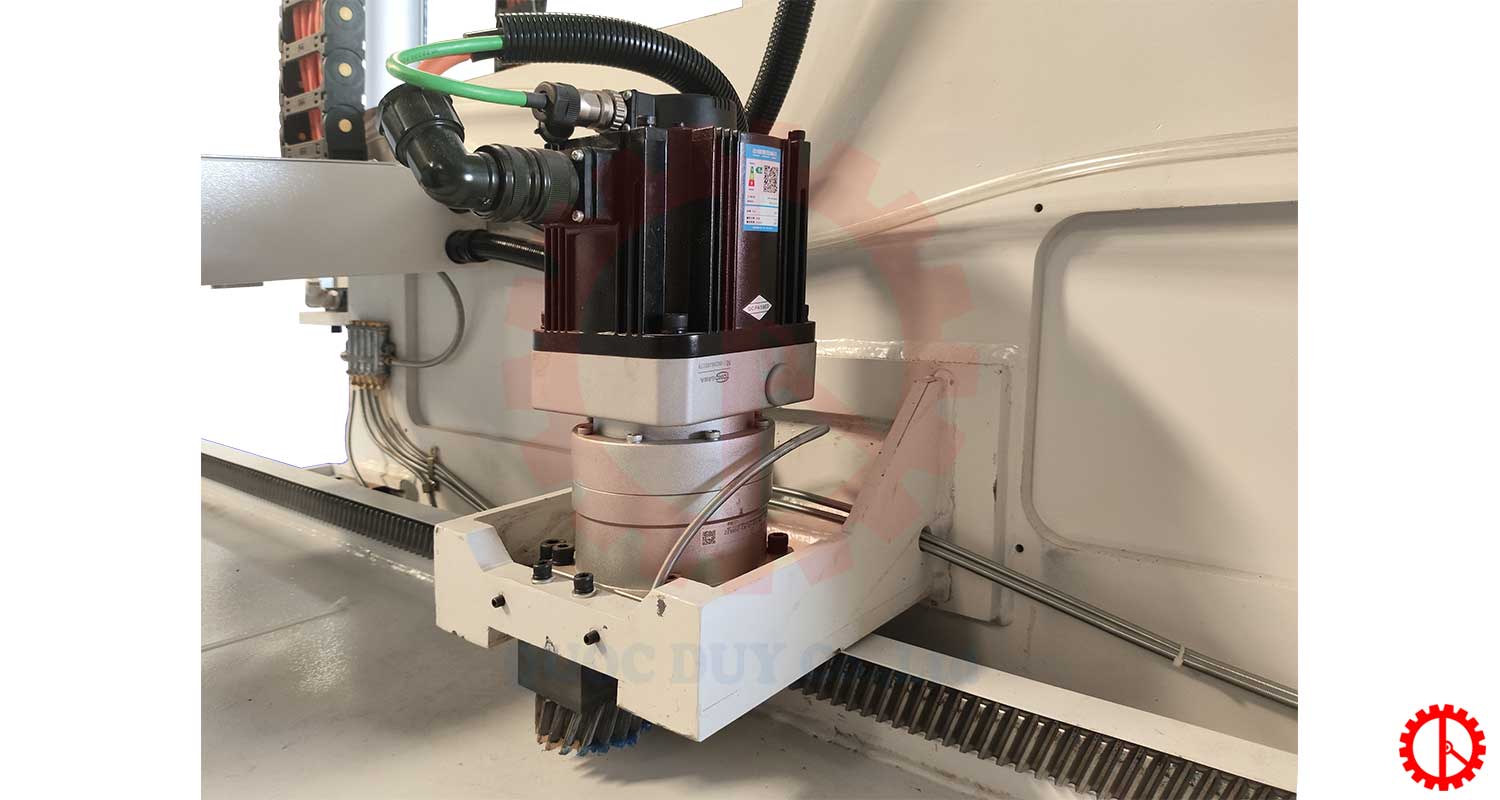

X servo motor | : 1.8 kW |

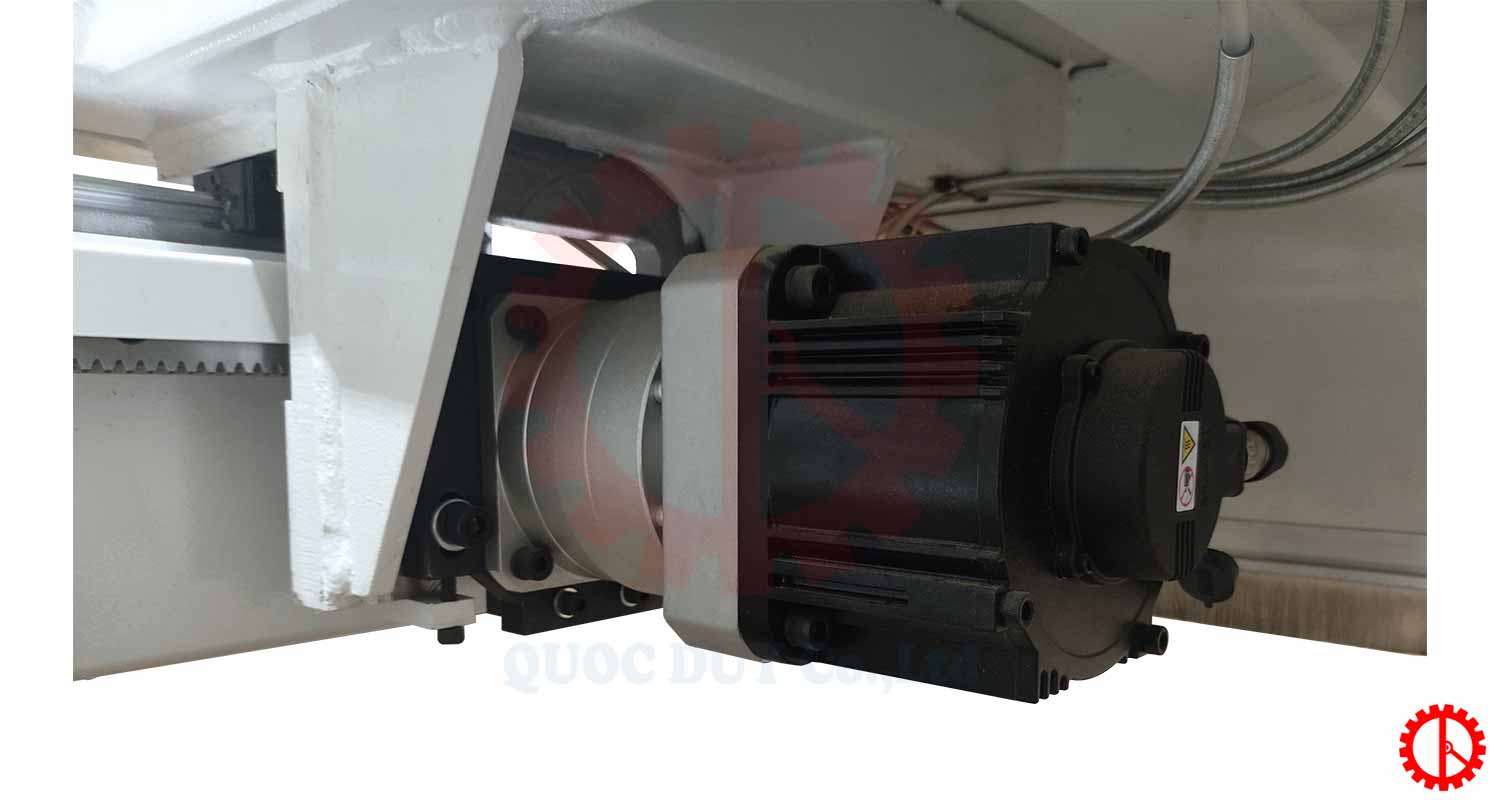

Y servo motor | : 0.85 kW x 2 |

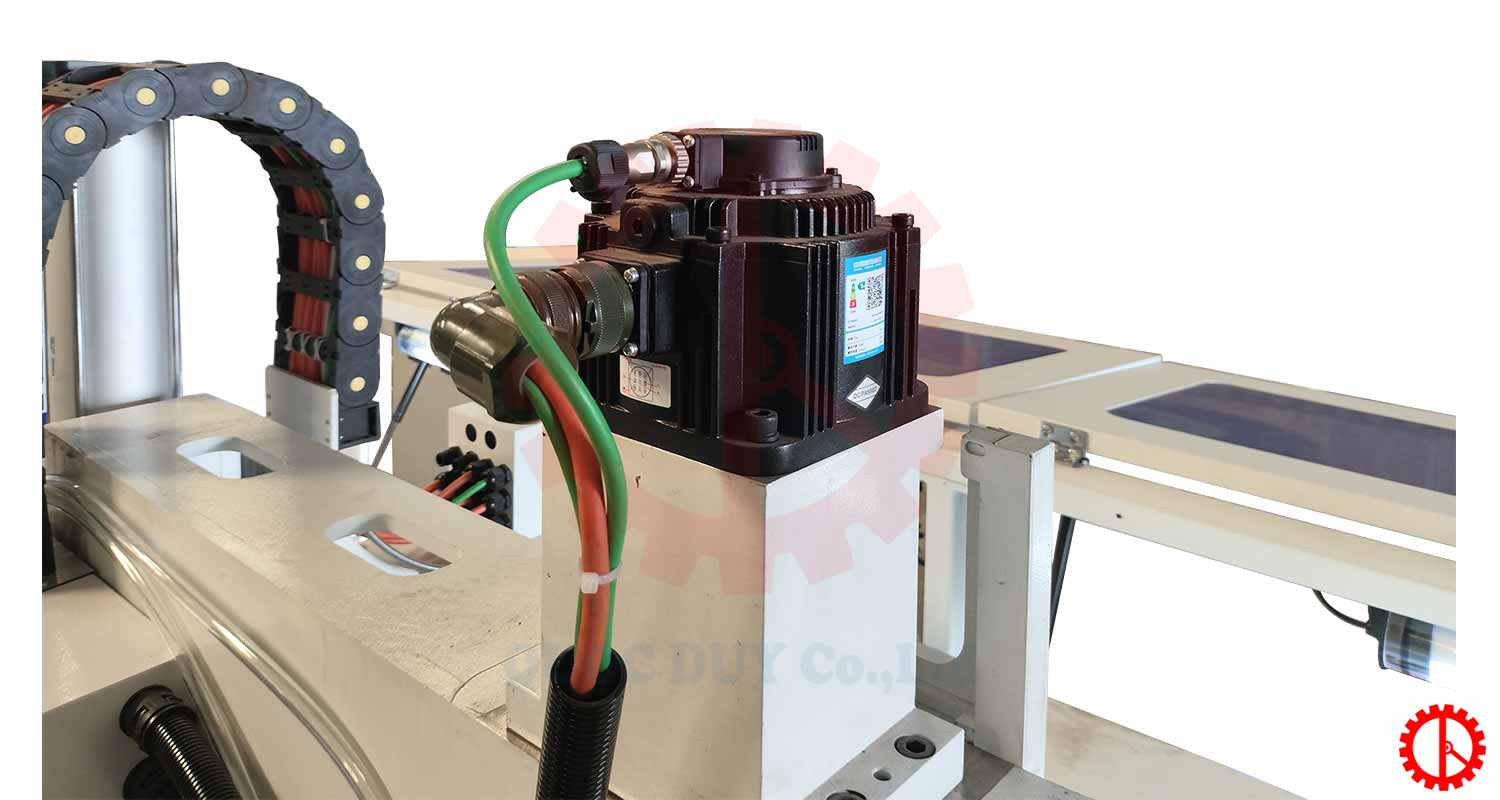

Z servo motor | : 0.85 kW |

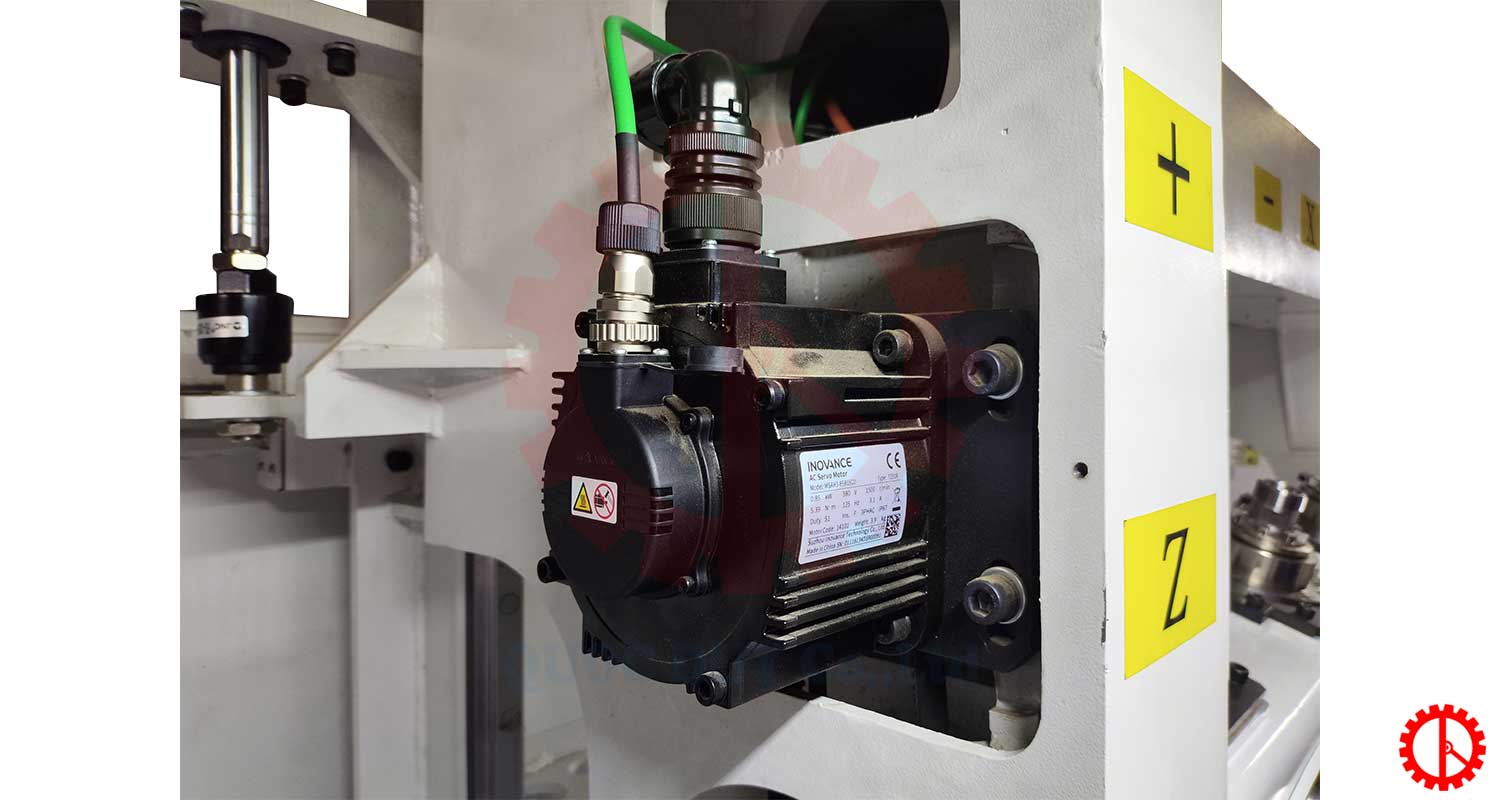

A servo motor | : 0.85 kW |
B1, B2 servo motor | : 0.75 kW x 2 |
Discharging dust motor | : 0.12 kW |

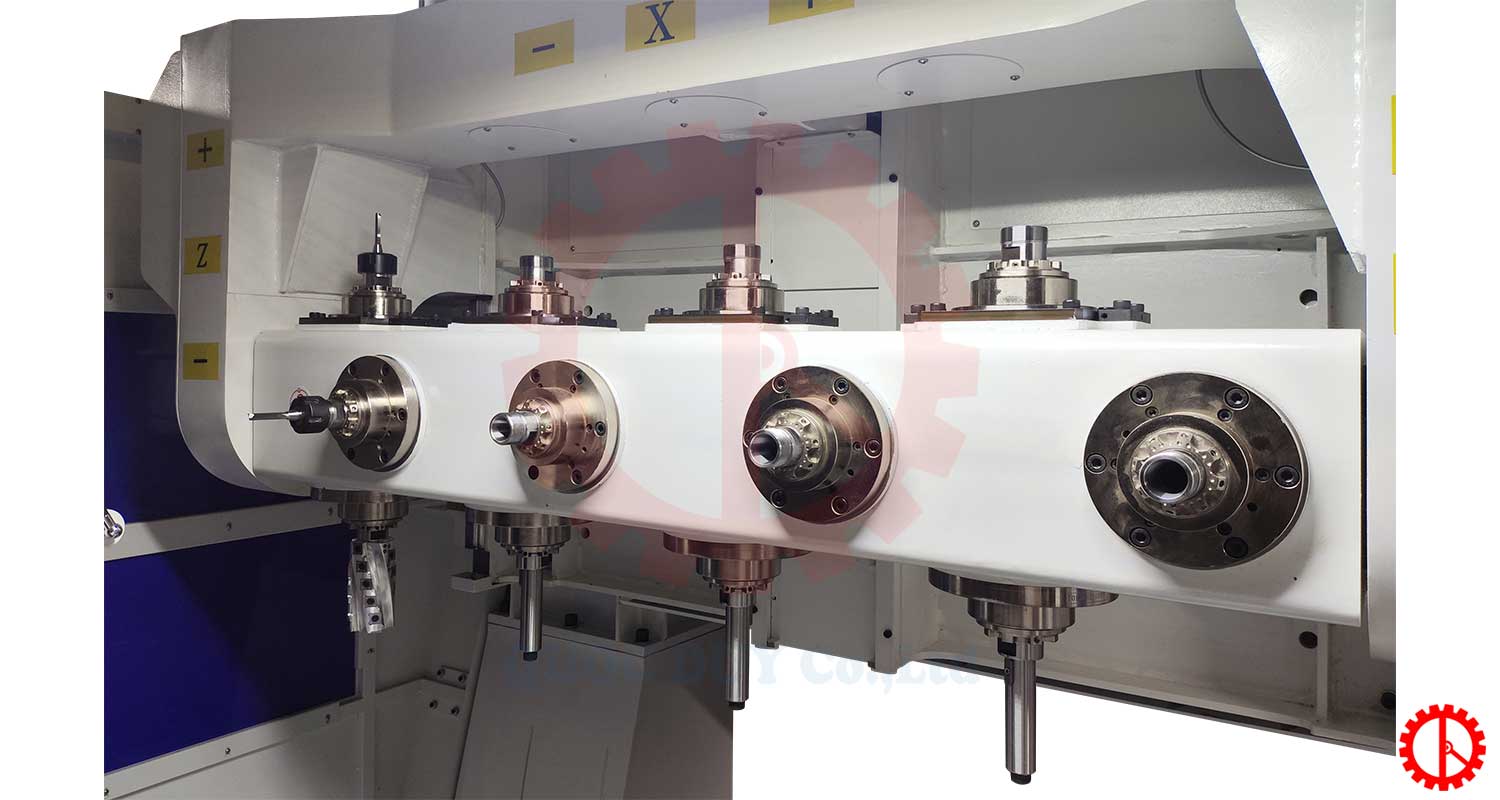

Spindle motor | : 5.5 kW (ER32) x 4; speed 12000rpm |
: 3.7 kW (ER24) x 4; speed 18000 rpm | |
Spindle distance | : 190mm |
Voltage | : 380V/50Hz |
Air pressure | : 0.6MPa |
Dust outlet diameter | : Ø180mm x 2 |
NET weight | : 5500 kg |
Machine dimension | : 3100 x 4600 x 2400mm |
Note: Specifications, design features and colors of the machine are subject to change without prior notice, but will not affect the function and operation of the machine.
