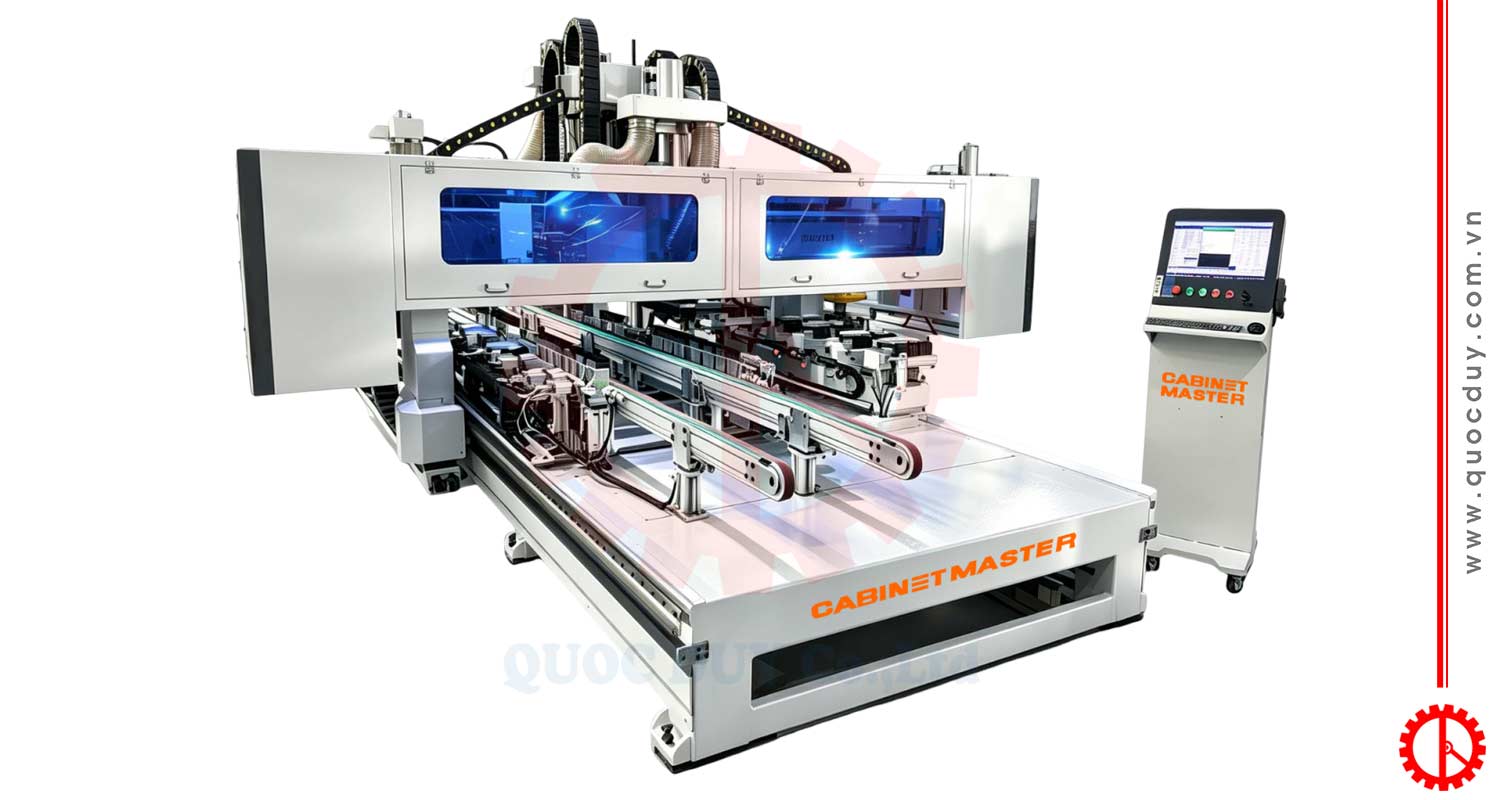

CNC Door Frame Cutting And Drilling Machine - KW 3000TH

CNC door frame cutting and drilling machine – KW 3000TH is a modern solution designed to optimize the door frame manufacturing process. Featuring an automated cutting and drilling system, the machine ensures superior precision, boosts productivity, and minimizes production errors.

Features of the CNC door frame cutting and drilling machine

Large saw motor capacity, fast processing speed, 45 degree angle processing.
Using servo motor ensures high precision during processing, helping to increase work productivity.
The sturdy machine frame design helps the machine operate stably
Easy to operate control
PEK slide rail, TBI screw – Taiwan
Electrical components of SIEMENS, DELTA, CHINT

Technical specifications of the CNC door frame cutting and drilling machine

Working length	: 700 – 3000mm
Working width	: 80 – 400mm
Working thickness	: 15 – 40mm
Saw motor	: 7.5 Kw
Drilling motor power	: 3.5 Kw
Fastest moving speed	: 60m/min
Repeat position accuracy	: ±0.05mm
Working speed	: 6 – 20 m/min
Dust suction pipe diameter	: φ125mm x 2
Air presure	: 0.6 – 0.8 Mpa
Voltage	: 380V/50 Hz
Total power	: 19Kw
Machine dimensions	: 5500x2800x1800mm

Note: Technical specifications, design features, and machine color are subject to change without prior notice, but this will not affect the machine’s functions and operational capabilities.

The Most Reliable & High-Quality Supplier of CNC door frame cutting and drilling machine

Are you looking for a high-speed CNC drilling solution to optimize your productivity and manufacturing workflow?

Quoc Duy – with over 20 years of experience in providing woodworking machinery – is committed to delivering the most tailored solutions for every workshop. We provide comprehensive support, including expert consultation, installation, and full technology transfer, ensuring businesses can invest with long-term peace of mind.

For expert consultation and the best quotes on the KW 3000TH, please contact us:
