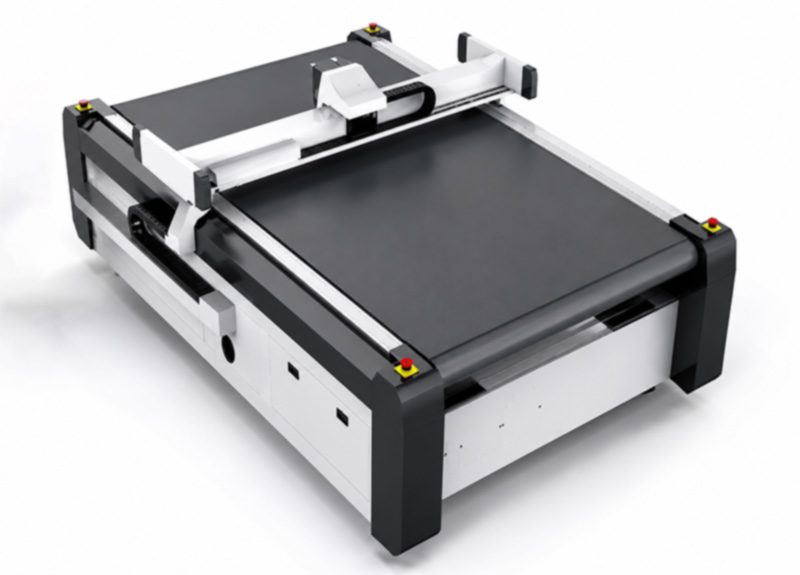

Features of cnc carton, foam & sponge cutting machine
INTELLIGENT AI TYPESETTING SOFTWARE

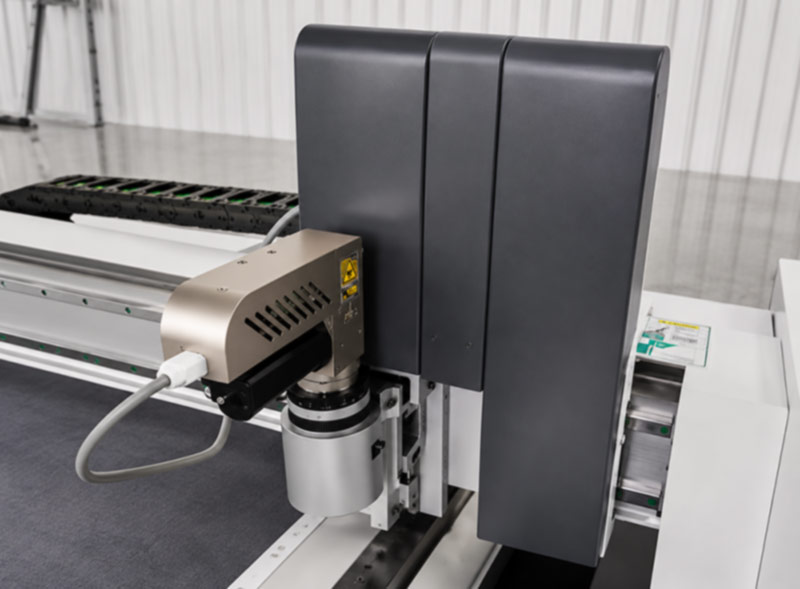

CUSTOMIZABLE MACHINE HEAD CUTTING TOOLS

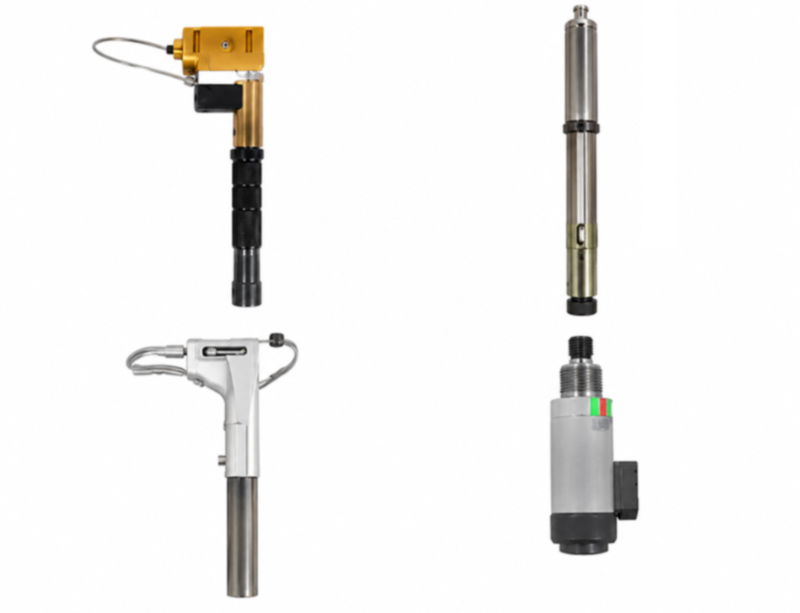

Vibration knife / pneumatic knife / round knife / punching knife and various combinations
INTELLIGENT ADSORPTION
Head following intelligent partition adsorption

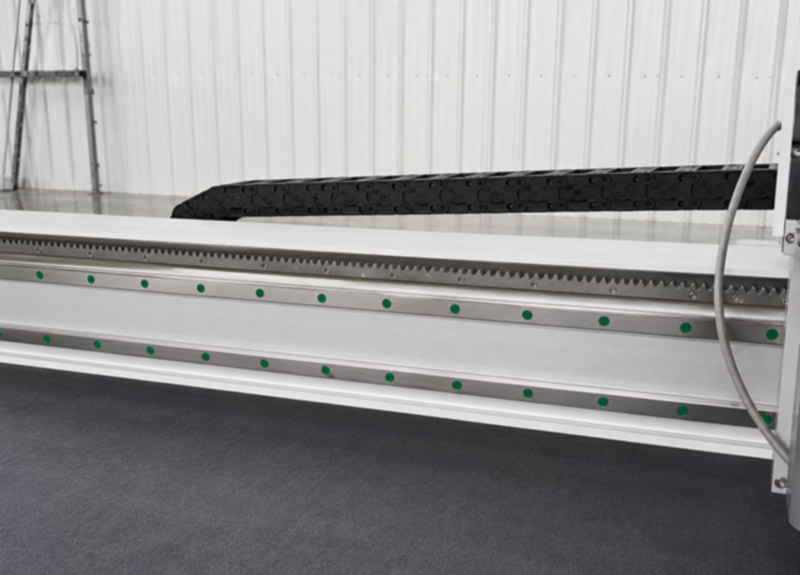

HIGH PRECISION GUIDE RAIL
Adopting linear guide transmission, accurate cutting precision

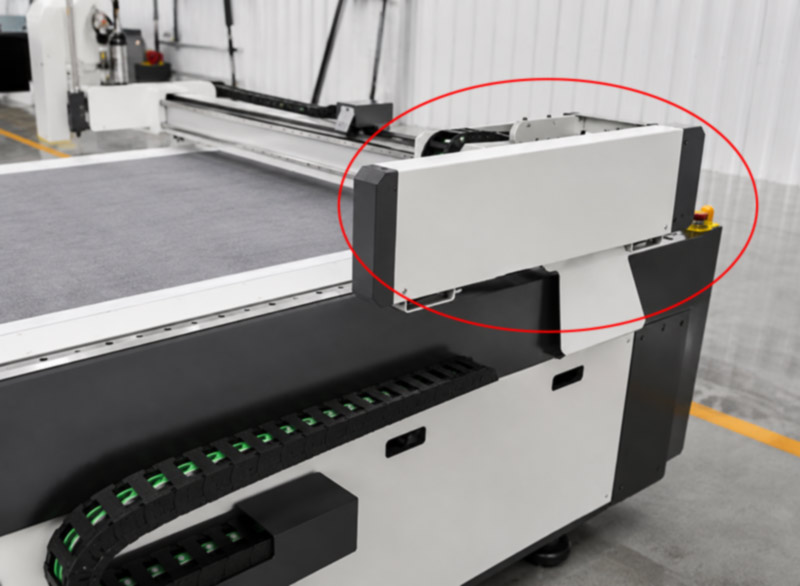

INTELLIGENT SAFETY DEVICE
Infrared radiation sensing automatic four corner emergency stop switch (signal linkage)
IMPORTED ELECTRICAL COMPONENTS
Adopting imported electrical components to ensure long-term stable operation of the equipment
Specifications of cnc carton, foam & sponge cutting machine
| Maximum Cutting Thickness | : ≤ 100 mm (depending on the material) |
| Cutting Speed | : 200–1800 mm/s (depending on the material) |
| Cutting Accuracy | : ±0.1 mm |
| Total Installed Power | : 9 kW |
| Main Components | : Servo motors, bearings, gear reducers, motors, air pressure tank, gears, vacuum pump |
| Multi-functional Cutting Head | : Pneumatic Oscillating Knife |
| Drive System | : Servo motors with direct-coupled gear reducers and dual linear rack-and-pinion transmission |
| Material Holding Method | : Zoned vacuum suction table |
| Communication Interface | : Ethernet port |
| Safety System | : Infrared safety protection sensors |
| Production Capacity | : 50 sets/month |
| Power Supply | : 380V / 220V, 50 Hz |

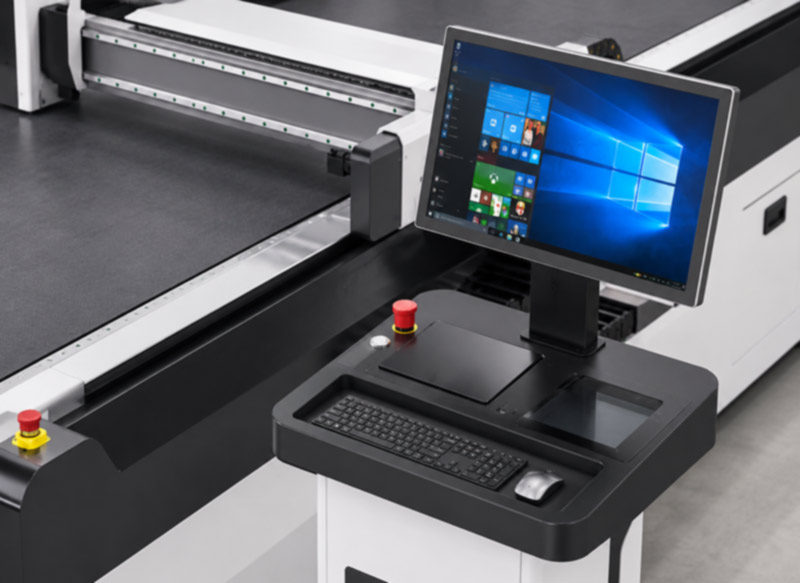

| Control System | : LCD touchscreen with Chinese and English interface |
| Supported File Formats | : PLT, DXF |
Note: Specifications, design features and colors of the machine are subject to change without prior notice, but will not affect the function and operation of the machine.
