CNC CARTON BOX CUTTING AND FORMING MACHINE – EC 2300-4

CNC carton box cutting and forming machine – EC 2300-4

Introduction of CNC carton box cutting and forming machine – EC 2300-4

Features

Cuts 5 to 13 sheets of heavy cardboard per minute (depending on material size and quality).
Optimizes cutting paths to maximize material savings.
Offers multiple feeding options: roll-fed, single-sheet, and continuous-sheet feeding.

Specifications

Minimum Carton Box Size	80 × 60 × 13 mm
Maximum Working Width	1650 mm
Corrugated Board Thickness	3 – 6.5 mm
Conveyor Speed	60 – 100 m/min
Working Table Height	850 mm

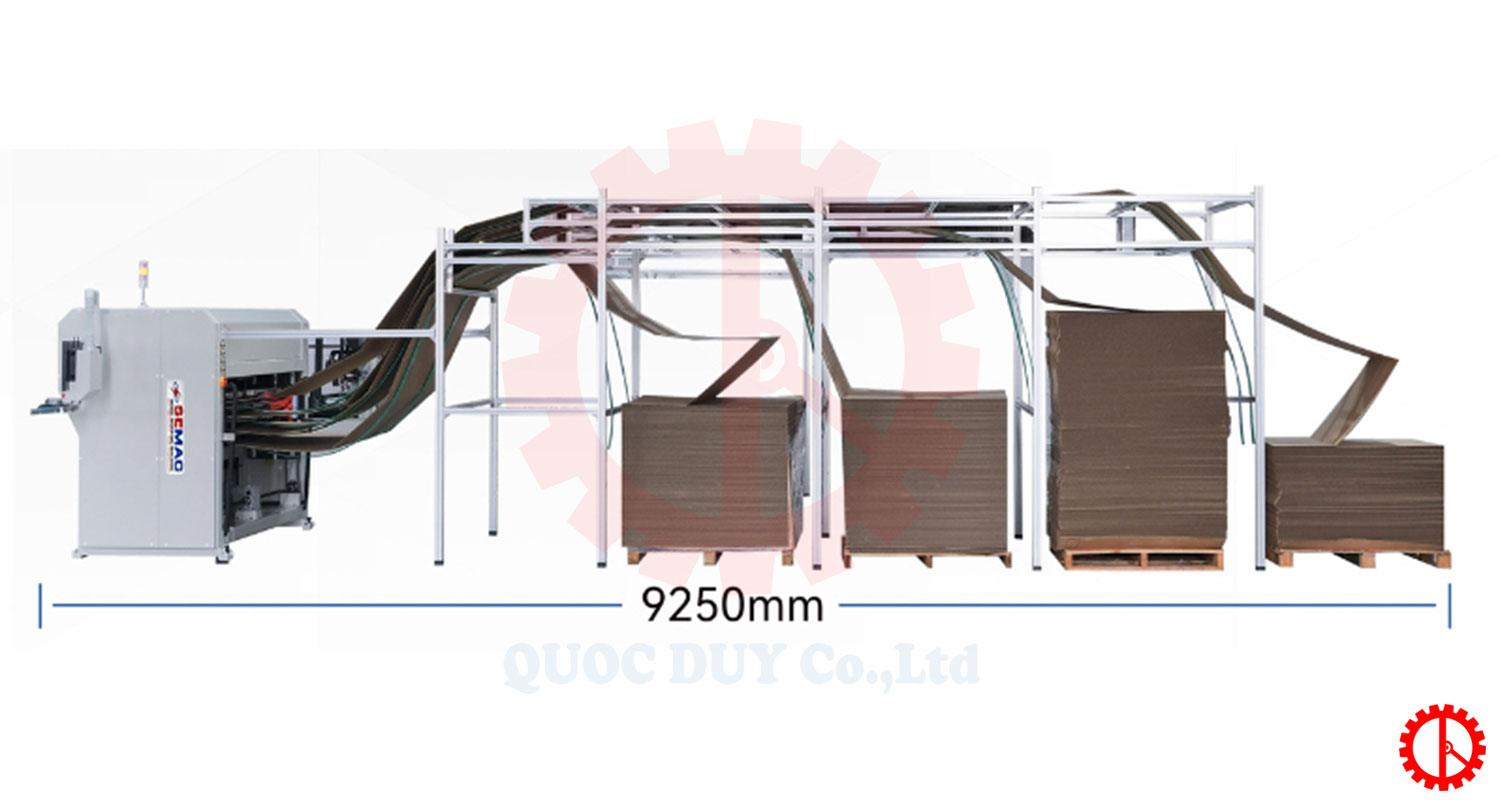

Dimensions (L × W × H)	9250 × 2300 × 2500 mm

Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.

Operation video CNC carton box cutting and forming machine – EC 2300-4

video
