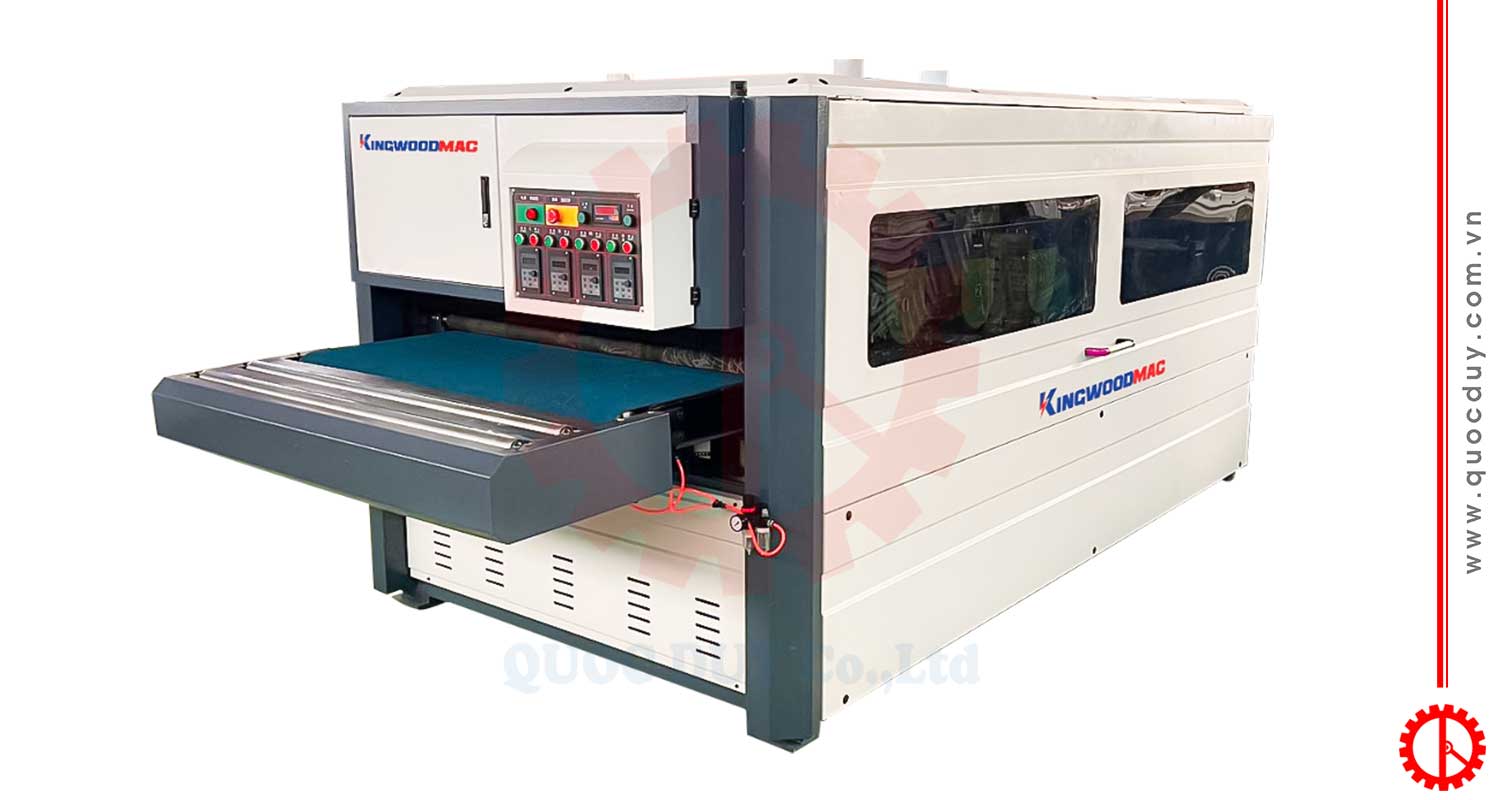

BOTTOM SANDING MACHINE 1M
Specification
| Max. Working width | 1000 | mm |
| Min. Working length | 330 | mm |
| Working thinkness | 2 – 160 | mm |
| Dimension of abrasive belt | 1030 x 2000 | mm |
| Feeding speed | 5 – 30 | m/min |
| Motor #1 | 22 | kw |
| Motor #2 | 18.5 | kw |
| Air pressure | 0.6 | Mpa |
| Exhaust volume requirement | 11700 | m3/h |
| Total power | 45.47 | Kw |
| Net weight | 4500 | kg |
| Machine size | 2020 x 2270 x 2110 | mm |
