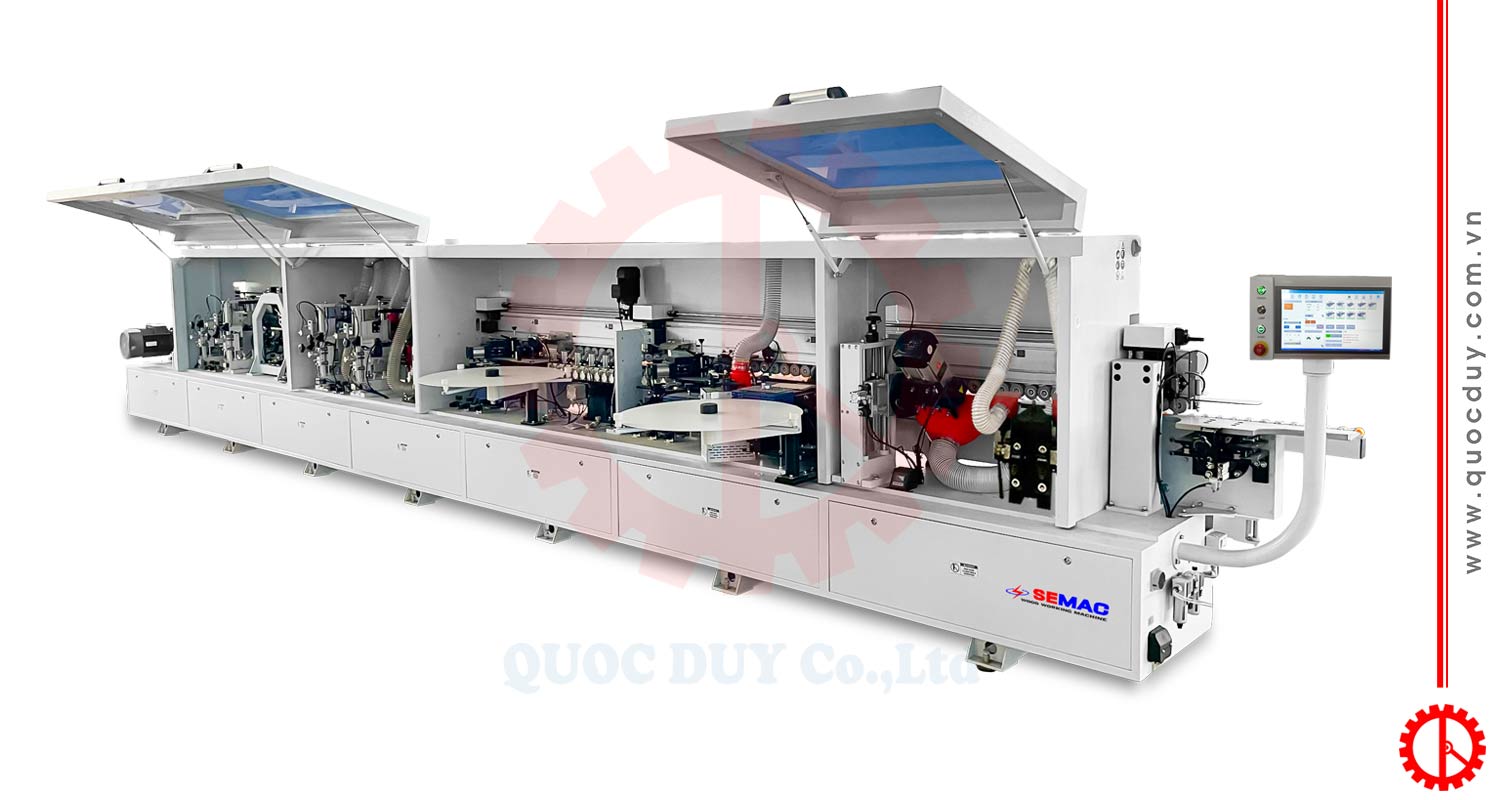

Automatic straight and bevel edge banding machine, the COMBINE 12M provides flexible processing for both straight and bevel edges with high precision. Optimized for modern furniture workshops, this machine enhances edge-banding quality, improves aesthetic appeal, and optimizes production speed across various industrial panel materials. Equipped with an integrated pre-milling unit (supporting both straight and bevel profiles), it significantly elevates machining accuracy and overall efficiency.
Features of the automatic straight and bevel edge banding machine
Supports a wide range of edge banding materials, including PVC, veneer and acrylic, meeting various aesthetic and functional requirements for modern interior design.
Dual-mode operation: Seamlessly switch between Straight and 45° bevel banding, adjustable directly via the control screen.
The 45° beveling unit is equipped with a high-precision digital indicator for accurate adjustments.
Enhanced flexible workpiece fence for smooth transitions between straight and bevel modes, ensuring absolute machining precision.
Includes a pre-milling unit for edge grooving prior to 45° bevel banding.
Ideal for specialized components such as handle-less kitchen cabinets (J-pull/G-pull), flat cabinet doors, wardrobes, bed frames, and tables—enhancing aesthetics with a seamless, minimalist look.
User-friendly design featuring an intuitive touchscreen control system for easy parameter adjustments and mode switching.
Machine Functions & Working Units
- Straight & Bevel Pre-milling
- Bevel Gluing Unit
- Bevel Edge Grooving
- Bevel Pressure Roller System
- Straight Gluing Unit
- Straight Pressure Roller System
- End Trimming (Front & Rear)
- Bevel Fine Trimming (Top & Bottom)
- Straight Fine Trimming (Top & Bottom)
- Corner Rounding
- Straight & Bevel Glue Scraping
- Cleaning Agent Spraying System
- Buffing Unit
Technical specifications of the automatic straight and bevel edge banding machine
| Workpiece thickness of inclined | : 17 – 25 mm |
| Workpiece thickness of straight | : 10 – 60 mm |
| Edge banding tape thickness | : 0.6 ~ 2mm |
| Panel width | : ≥80 mm |
| Banding angle | : 45/90° |
| Pressing roller lifting motor | : 0.37kW |
| Straight pre-milling motor | : 1.8kW x 2 |
| Inclined pre-milling motor | : 4kW |
| Gluing roller motor | : 0.75kW x 3 |
| Banding tape grooving milling motor | : 0.75kW |
| End trimming motor | : 0.37kW x 2 |
| Inclined fine trimming motor | : 0.75kW x 2 |
| Straight fine trimming motor | : 0.75kW x 2 |
| Conner rounding motor | : 0.3kW x 2 |
| Polishing motor | : 0.37kW x 2 |
| Working air pressure | : 0.6 – 0.8 MPa |
| Voltage | : 380/50Hz |
| Dust outlet diameter | : Ø95mm x 7 |
| Net weight | : 2200 kg |
| Machine size | : 9500×1100×1650 mm |
Note: Technical specifications, design features, and machine color are subject to change without prior notice, but this will not affect the machine’s functions and operational capabilities.
