Automatic side panel slot milling drilling machine – SMGS 68 2

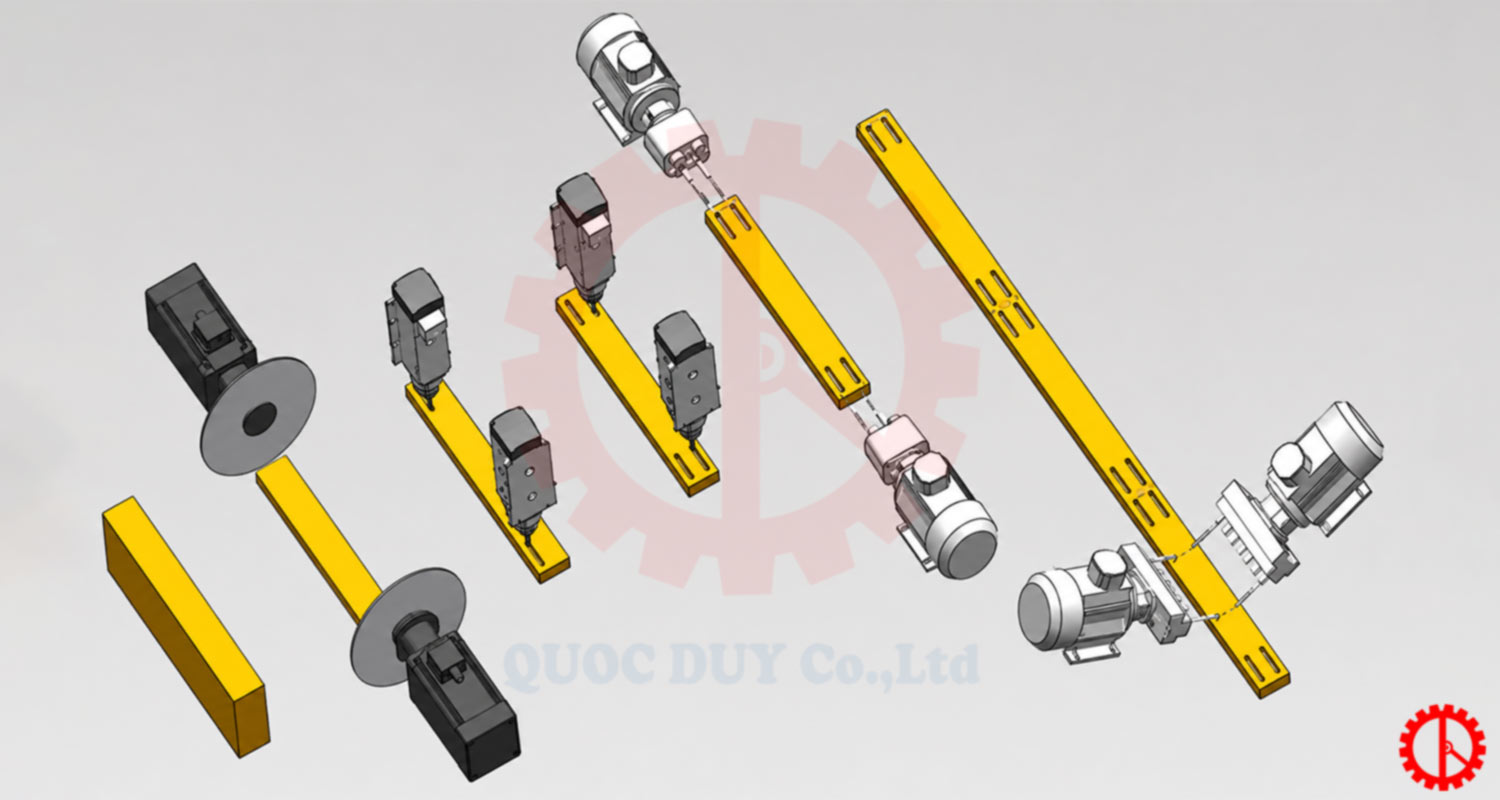

Operating workflow Automatic side panel slot milling drilling machine
Both-Side Trimming -> Slot Milling -> Double-End Drilling -> Secondary Slot Milling -> Hole Drilling
Specifications of automatic side panel slot milling drilling machine
| Workpiece Size | |
| Length | 300 – 600 mm |
| Maximum Width | ≤100 mm |
| Maximum Thickness | ≤30 mm |
| Dual Side Cutting Unit | |
| Motor Power | 1.5 kW × 2 |
| Adjustable Vertical & Horizontal Tilt Angle | ±10° |
| Grooving Unit | |
| High-Speed Motor | 3.7 kW × 4 |
| Adjustable Vertical Tilt Angle | |
| Dual-End Drilling Unit | |
| Motor Power | 1.5 kW × 2 |
| Drilling Head Configuration | 3C-14 |
| Adjustable Vertical & Horizontal Tilt Angle | ±10° |
| Panel Face Drilling Unit | |
| Motor Power | 1.5 kW × 2 |
| Drilling Unit Configuration | Fixed Drilling Head Assembly |
| Feed Servo Motor | 750 W × 1 |
| Productivity | Approx. 6 – 7 pcs/min |
Video of operating the automatic drilling and slotting milling cutting machine
