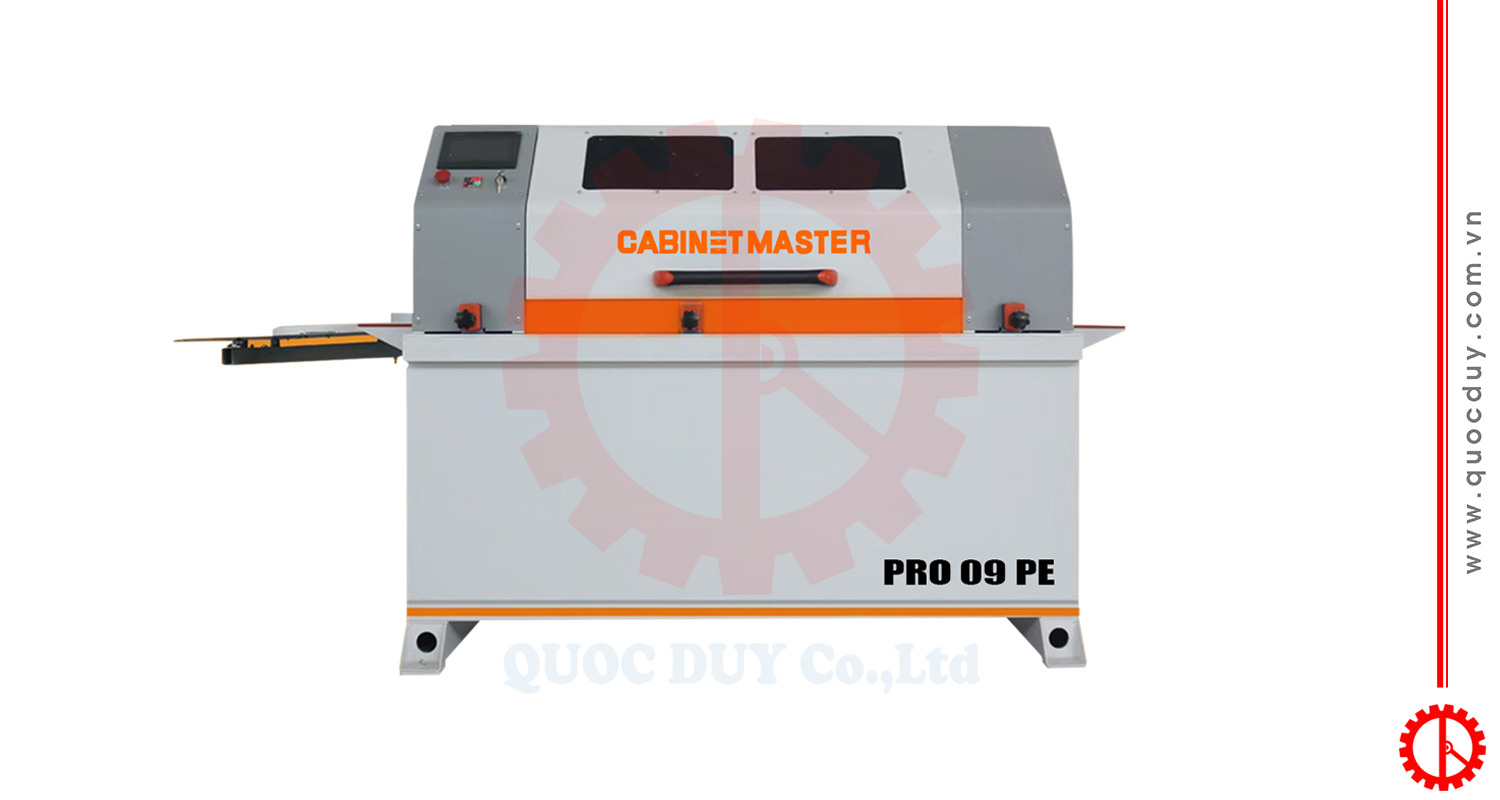

Automatic edge bander for wood slats (small panel edging) is the optimal solution for workshops specializing in narrow-width products such as wooden slats and decorative strips.
With its compact design, the machine supports a wide range of materials (PVC, plastic, melamine…) and features a versatile glue pot compatible with both EVA and PUR glue, delivering precise edge banding, smooth surfaces, and optimized material usage.
Key Features of the Automatic edge bander for wood slats
- 7-inch touchscreen control panel: Modern interface for easy operation and monitoring.

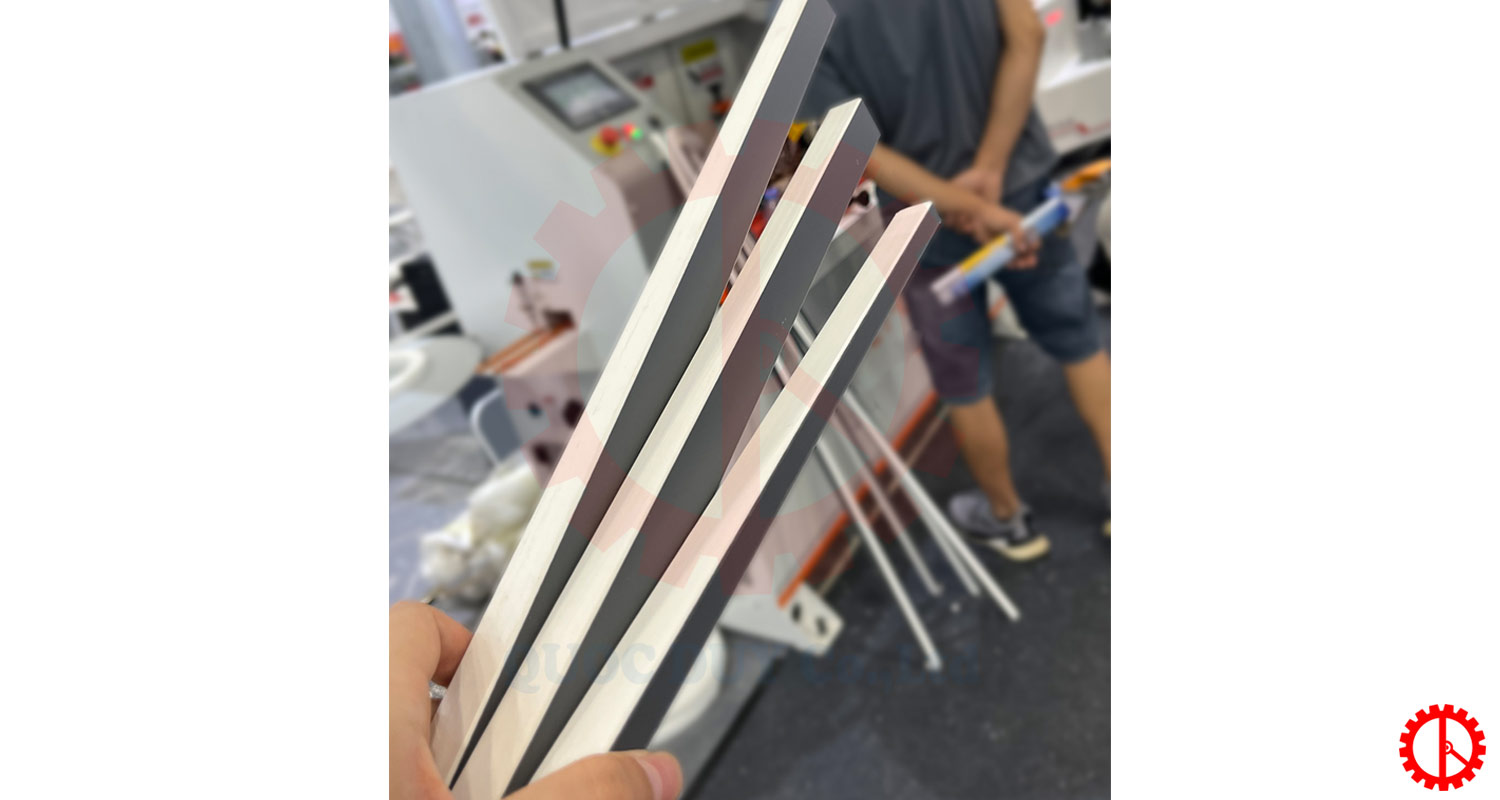

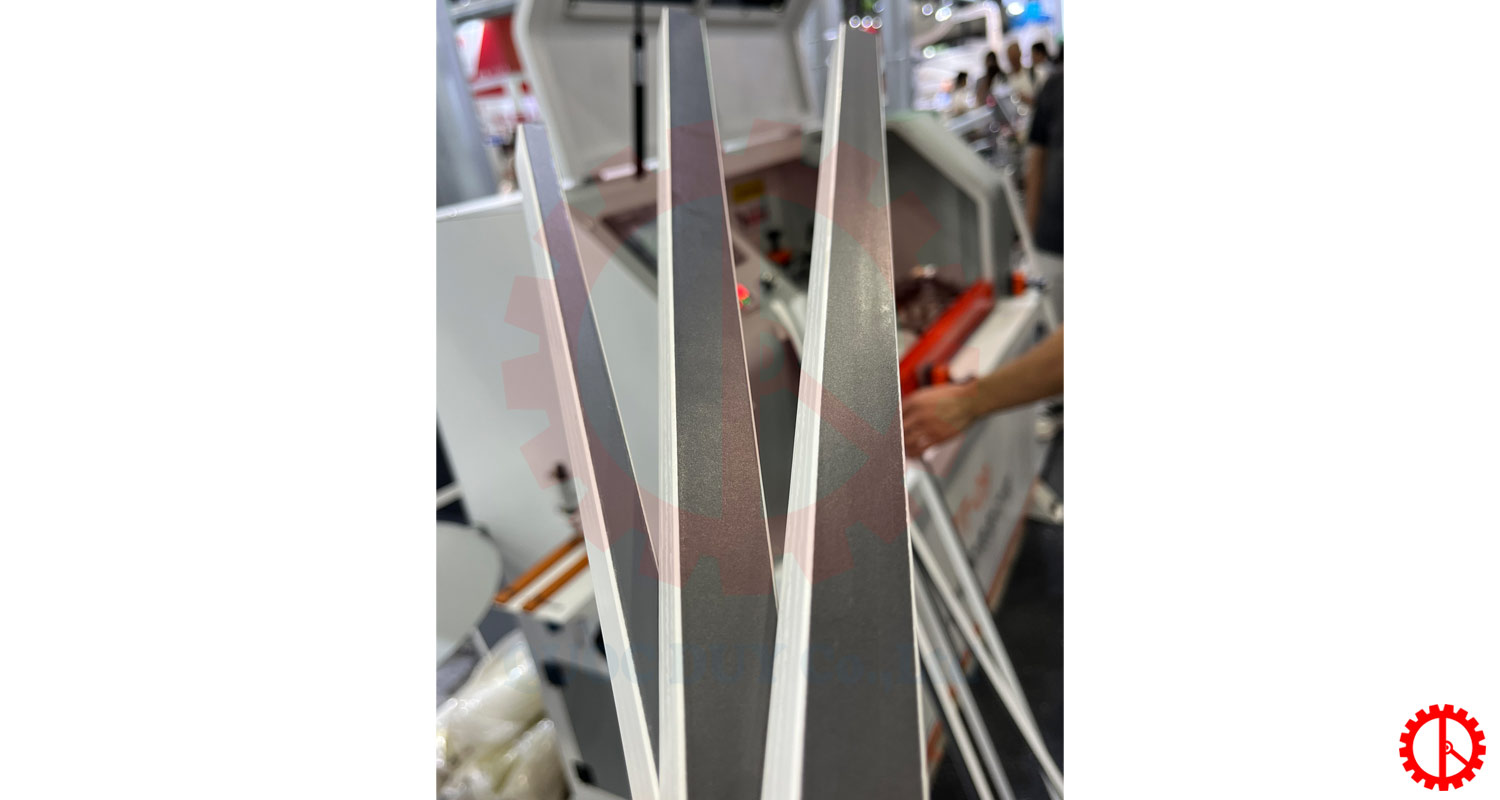

- Specialized for narrow-width products: Ideal for edge banding wooden slats, decorative strips, and similar items.
- Versatile material compatibility: Handles PVC, plastic, melamine, and more.
- Supports extremely narrow panels: Capable of banding panels from 9–70mm wide.
- Fully automated process: Simultaneously performs trimming, end cutting, edge scraping, glue scraping, and buffing in one pass.
- Dual-purpose glue pot: Compatible with EVA and PUR glue; large 2600ml capacity reduces frequent refills.
- Teflon-coated glue pot: Enhances glue adhesion and makes cleaning easier.
- Easy adjustments: Quick control of glue flow and feed speed with convenient knobs.
- Heated conveyor system: Maintains optimal glue temperature for superior bonding between panel and edge.
Technical Specifications of Automatic edge bander for wood slats
| Specification | Value |
|---|---|
| Panel thickness | 9 – 36 mm |
| Panel width | 9 – 70 mm |
| Edging tape thickness | 0.5 – 3 mm |
| Glue pot temperature | 110°C – 210°C |
| Glue pot capacity | 2600 ml |
| Edge banding motor | 0.25 Kw |
| Conveyor motor | 0.25 Kw |
| End trimming motor | 0.8 Kw |
| Buffing motor | 0.37 Kw |
| Feed speed | 15 m/min |
| Air pressure | 0.6 – 0.8 Mpa |
| Dust port diameter | Ø 100 mm |
| Power supply | 380V 50Hz |
| Total power | 6.5 Kw |
| Machine dimensions (LxWxH) | 1700 x 900 x 1400 mm |
| Machine weight | 385 Kg |
