Factories processing industrial wood products for export use automatic curved edge banding machine, which can apply one or two types of glue as desired.

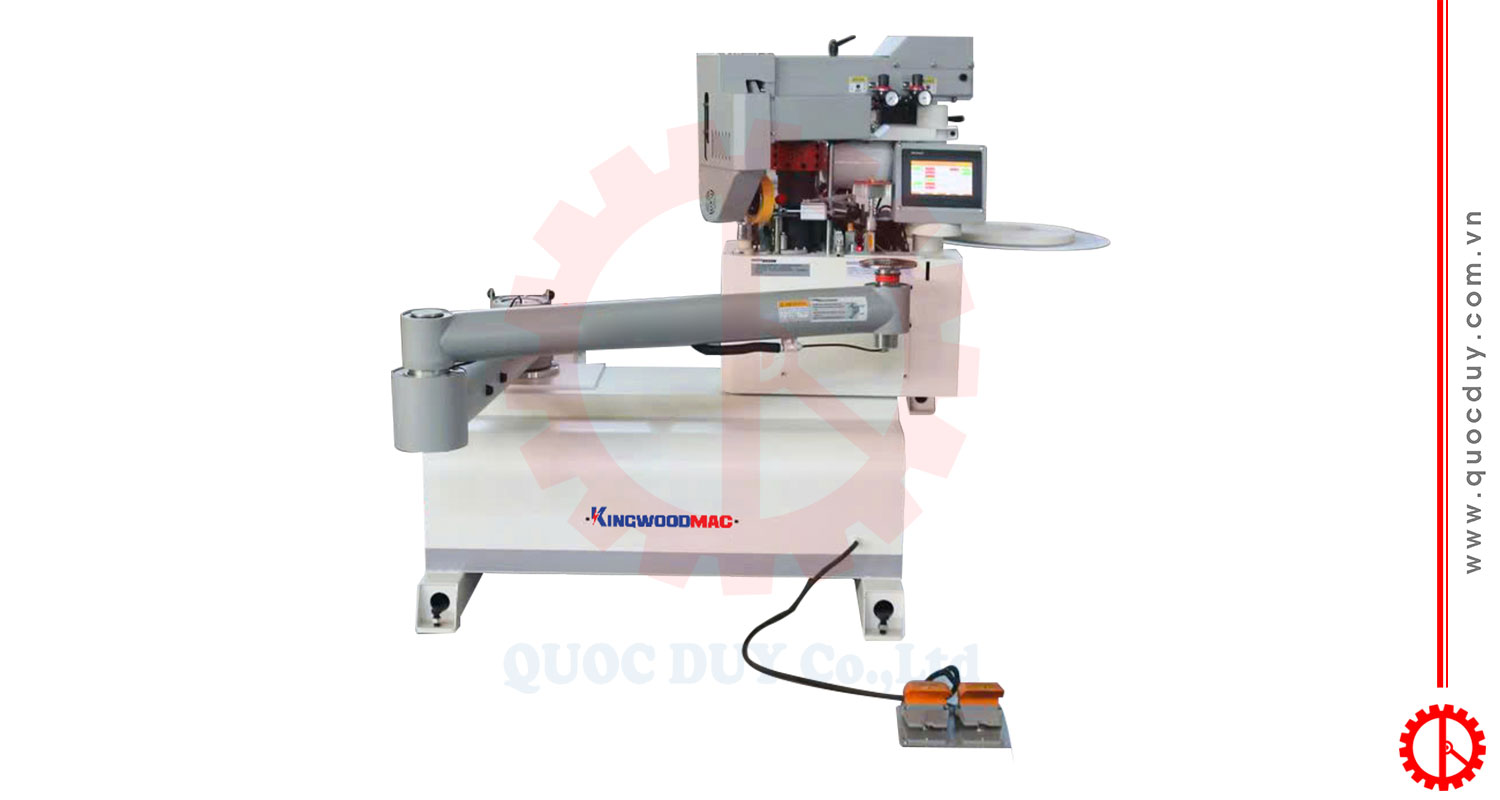

Introducing the automatic curved edge banding machine
Application of automatic curved edge banding machine
- The automatic curved edge banding machine uses glue rolling, splinting, and automatic thread cutting to achieve a smooth finish on the edges of products with rounded, curved, and circular profiles.
- It automatically detects the specifications that are entered, ensuring accurate cutting.
- This machine is versatile and can be used to finish the edges of various products with curved shapes, such as laminate floors, dining tables, study desks, bookshelves, TV shelves, and desk drawers.
Features of automatic curved edge banding machine
- There is a machine currently trending in the wood industry. Unlike traditional edge banding machines that use only EVA glue, the LC 700-3 series stands out with its automatic workpiece holding system. Its sprocket and rubber shaft securely hold the workpiece without leaving scratches on its surface.
- This auto edge banding machine is specialized in gluing and rounding edges, creating an aesthetic appeal for the product.
- It is perfect for gluing edges of MDF, MFC, HDF industrial boards, office furniture, and industrial wood products with spherical or round shapes.
- The edge banding machine features high performance, durability, and energy-saving that reduces labor costs. It produces high-quality work consistently with sharp sticker lines.
- The glue pot is integrated into the machine and can use both EVA glue and PUR glue, which can be easily changed with one-touch operation.
Details of automatic curved edge banding machine
Specifications of automatic curved edge banding machine
| SMBL 620 3 | SMBL 700 3 | |
| Voltage | : 380V/50HZ/ 3phase | : 380V/50HZ/ 3phase |
| Total power | : 5.7Kw | : 3.5 Kw |
| Edge banding speed | : 0-20cm/s | : 0-20cm/s |
| Air pressure | : 0.6-0.8Mpa | : 0.6-0.8Mpa |
| Glue pot capacity | : 2600ml | : 2600ml |
| Glue pot temperature | : 110-210℃ | : 110-210℃ |
| Hot melt adhesive type | : PUR/EVA | : PUR/EVA |
| Strip width | : 14-70mm | : 14-70mm |
| Strip thickness | : 0.5-3mm | : 0.5-3mm |
| Trimming | : ＜14mm single trimming; 14-70mm double trimming up and dowm | : ＜14mm single trimming; 14-70mm double trimming up and dowm |
| Inner arc radius | : ≥20mm( special operation sealable radius 4mm) | : ≥20mm( special operation sealable radius 4mm) |
| Head rotation angle | : 15° | : 15° |
| Vacuuming | : φ150mm | : φ150mm |
| Type of edge strip | : PVC, ABS, Melamine, Plastic, Veneer ( need to be customized), etc | : PVC, ABS, Melamine, Plastic, Veneer ( need to be customized), etc |
| Arm length | : 2250mm | : 2250mm |
| Package size | : 1870*1400*1340mm (half wooden case) | : 1870x1400x1530mm (half wooden case) |
| Weight | : 500kg (half wooden case) | : 530kg (half wooden case) |
VIDEO OF OPERATING THE automatic curved edge banding machine
Latest automatic curved edge banding machine price
With more than 20 years of experience in the woodworking machine supply industry, Quoc Duy boasts a team of highly experienced and skilled professionals who are committed to providing top-quality products that cater to diverse needs throughout the production process. If you have any queries about our 2 glue post edge banding machine, please do not hesitate to contact us using the following contact details:
