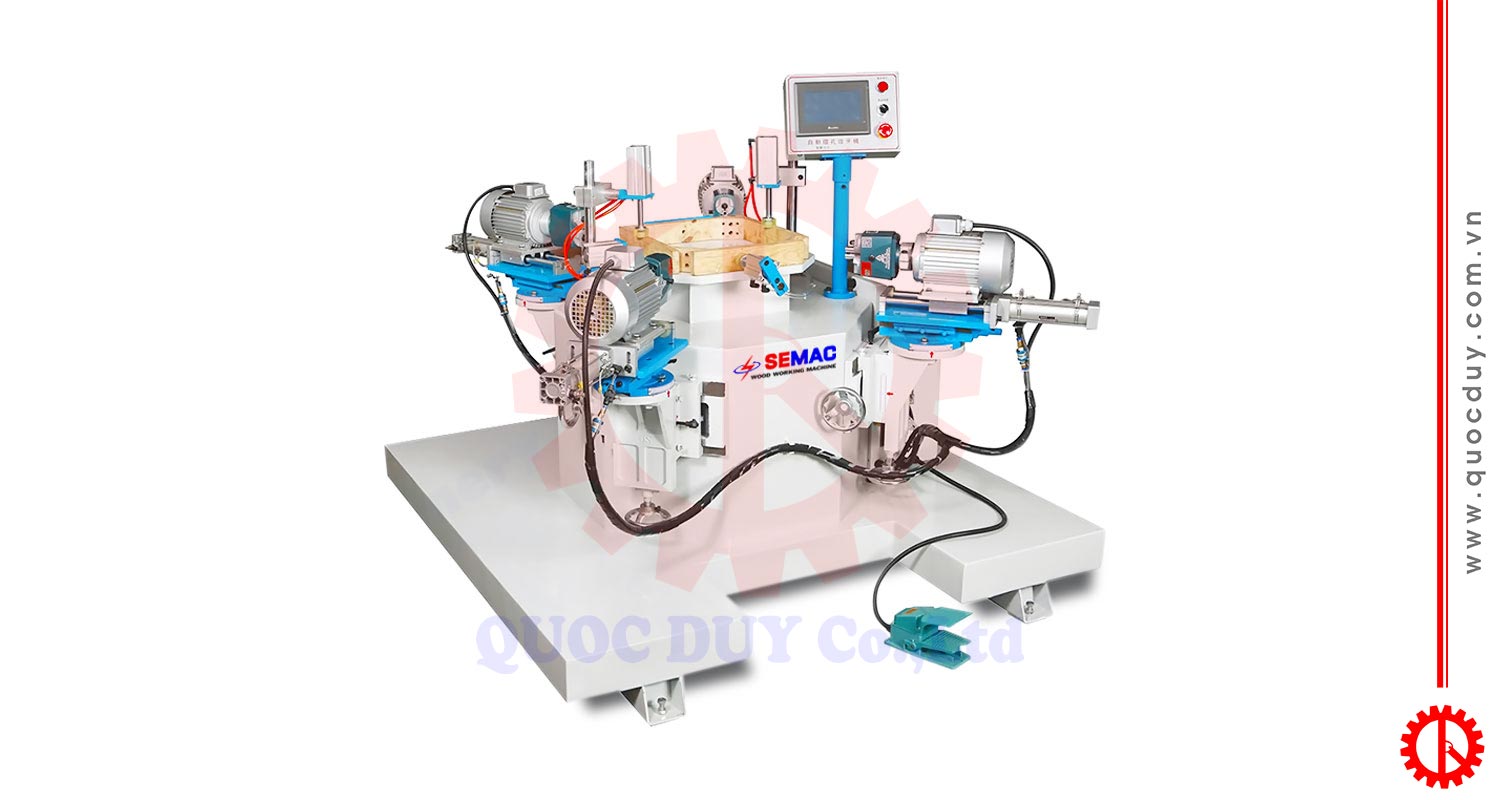

Automatic casing drilling machine SMGS 24
Introduction of automatic casing drilling machine
Feature
– Compact structure and simple operation with high precision and smooth operation.
– Working efficiency: 2000/8hours.
– Can drill 4 directions, equipped with four drilling motors, drilling four directions at the same time.
– Apply to drilling seat frame, frame side for chair wood,…
Specification
Drilling motor | : 2 HP x 2 |
The angle of four sides | : Can be adjusted |
Machine size | : 1500 x 1500 x 1200 mm |
Net weight | : 750 kgs |
Voltage | : 380 V |
See more: Wood chair drilling machine
