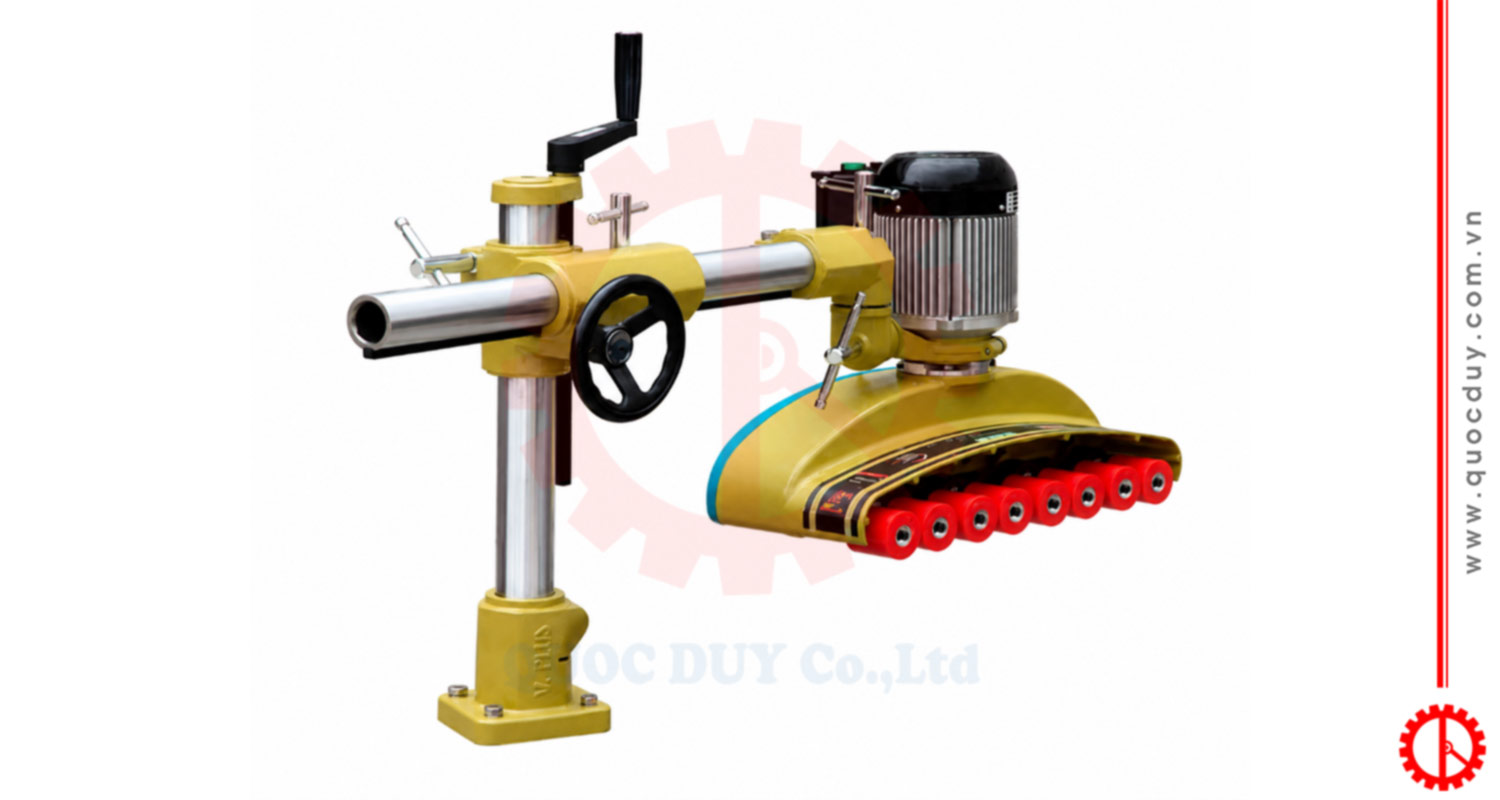

8-Roller automatic feeder – V 886 supports continuous, stable workpiece feeding into processing machinery, maintaining a uniform production pace and reducing manual feeding operations. The 8-roller design enhances grip capacity, ensuring firm and secure workpiece movement.
8-Roller Automatic Feeder Feed Speed
| A | B | I | II |
| 18 | 55 | 7.1 | 14.1 |
| 31 | 42 | 15.9 | 31.8 |
| 42 | 31 | 29.2 | 58.5 |
Specifications of 8-Roller automatic feeder
| Motor Power | : 1 HP (0.75 kW) |
| Roller Size | : Ø58 × 60 mm / 60° |
| Number of Rollers | : 8 |
| Roller Center Distance | : 60 / 68 mm |
| Total Roller Length | : 444 mm |
| Min. Working Length | : 75 mm |
| Speed Control | : Switch |
| Gross Weight | : 69.5 kg |
| Packing Dimensions – Stand | : 750 × 320 × 290 mm |
| Packing Dimensions – Body | : 705 × 325 × 537 mm |
| Power Supply | : 380V / 50Hz / 3-Phase |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
