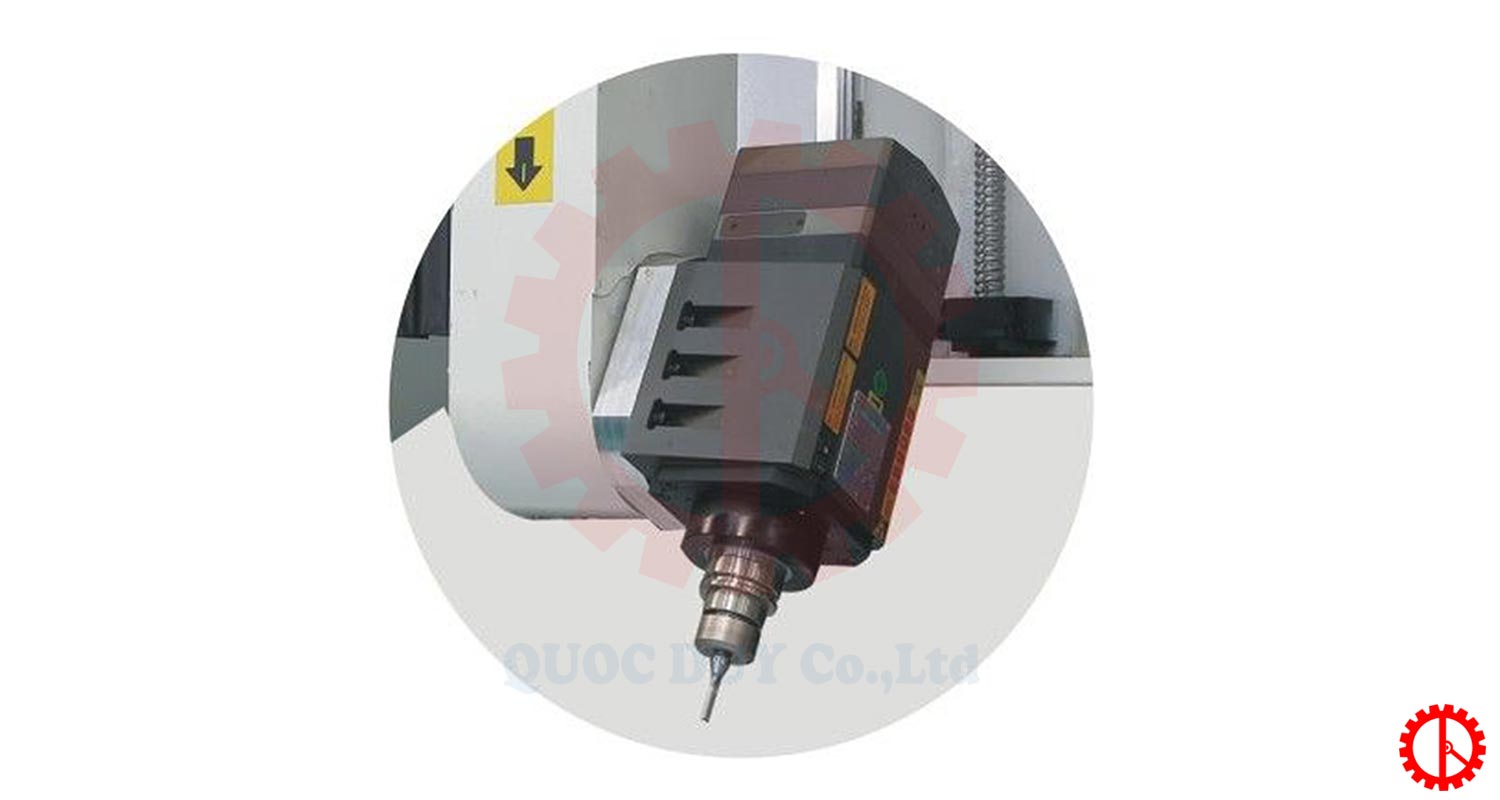

The 5 Axis Heavy Duty CNC Machine for mold making is the optimal solution for the mold manufacturing and complex machining industry. With a flexible spindle system, the machine is capable of precise machining on various curved surfaces and complex details. The integrated 8 slot tool magazine helps change tools quickly, improving working efficiency. Solid design, intelligent control, ensuring outstanding speed and accuracy in all applications.
Key features of the 5 Axis Heavy Duty CNC Machine
The machine is designed with a working table size of 1200x1200mm, including 2 independent tables (Optional single table 2500x1200mm), flexibly meeting machining needs.

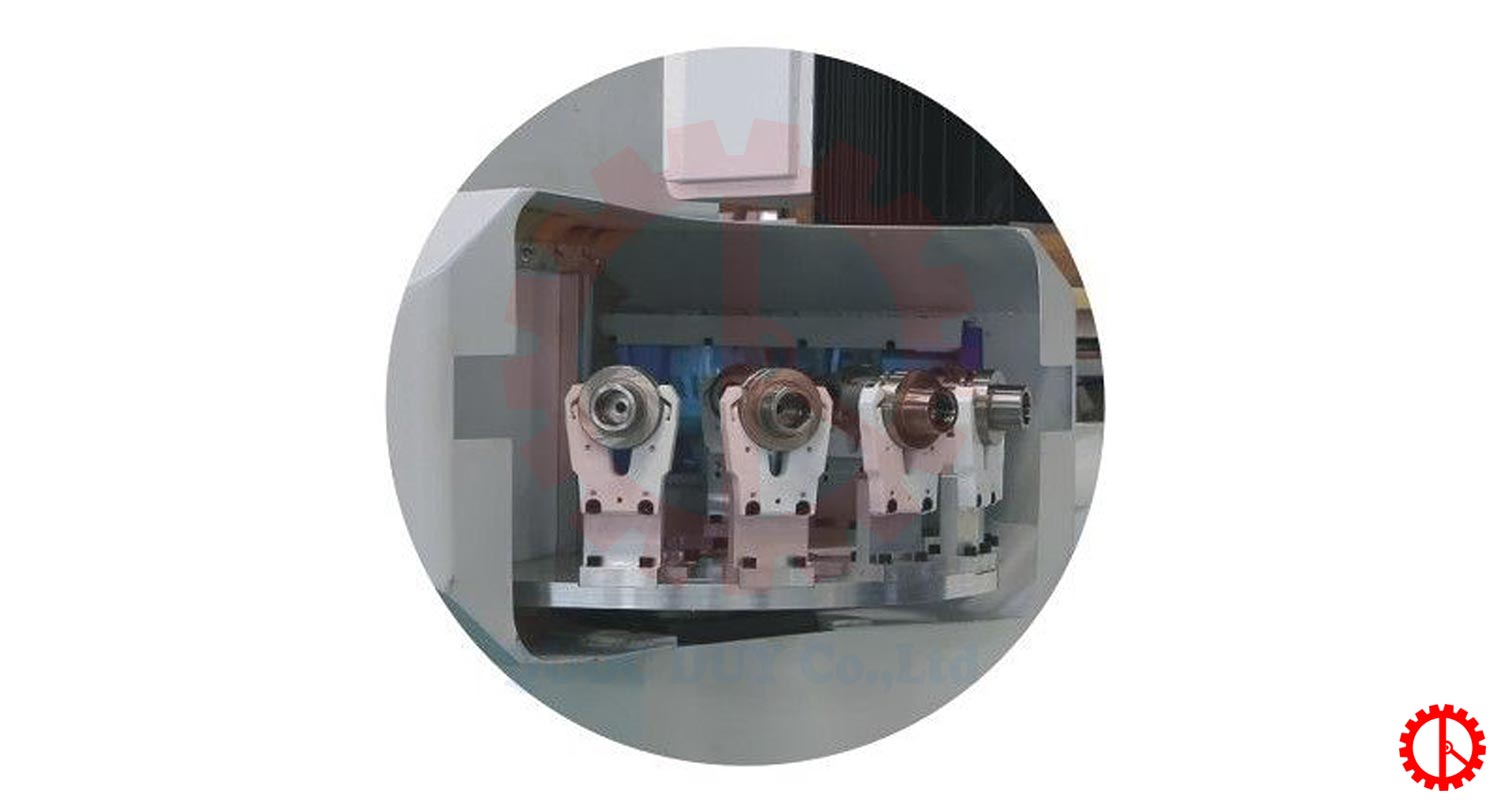

Equipped with a high-power 12kW motor, integrated with an automatic tool changer system with 8 tool positions, helping optimize efficiency and accuracy.
Specializes in machining mold products, chair seats, chair backs, and many other complex details.
Durable and stable SCHNEIDER electrical component system.
Uses TBI ball screw from Taiwan, ensuring high accuracy and smooth operation.
Technical specifications
| Working table size | 1200 × 1200mm × 2 |
| Spindle power | 12 kW – 8 tool automatic tool changer |
| Z, Y axis servo motor | 1.5 kW |
| X axis servo motor | 1.5 kW |
| A, C axis servo motor | 0.75 kW |
| Machining height | 750mm |
| Max. travel speed of X, Y, Z axis | 50m/min |
| Max. machining speed of X, Y, Z axis | 20m/min |
| Controller | LYNUC |
| File format | .NC |
| Machining accuracy | ± 0.02mm |
| Repeat positioning accuracy | ± 0.05mm |
| Inverter | 15 kW |
| Voltage | 380V/50Hz |
| Electrical components | Schneider |
| Ball screw | TBI – Taiwan |
| Pneumatic pressure | 0.6 MPa |
| Machine dimensions | 4300 × 2300 × 3800mm |
| Machine weight | 4000kg |
Note: Technical specifications, design features, and machine color are subject to change without prior notice, but do not alter the function and operational capability of the machine.
