The 5 Axis 4 Spindle CNC Machine is an ideal solution for processing both engineered wood and solid wood, particularly suited for high-complexity products. Equipped with 4 independent working spindles, the machine allows multiple operations to be executed simultaneously without an automatic tool changer system, optimizing the production workflow. Featuring a rigid structure and high precision, the CF MASTERT4 28 perfectly meets the demands of furniture manufacturing and intricate component machining.
Key Features of the 5 Axis 4 Spindle CNC Machine

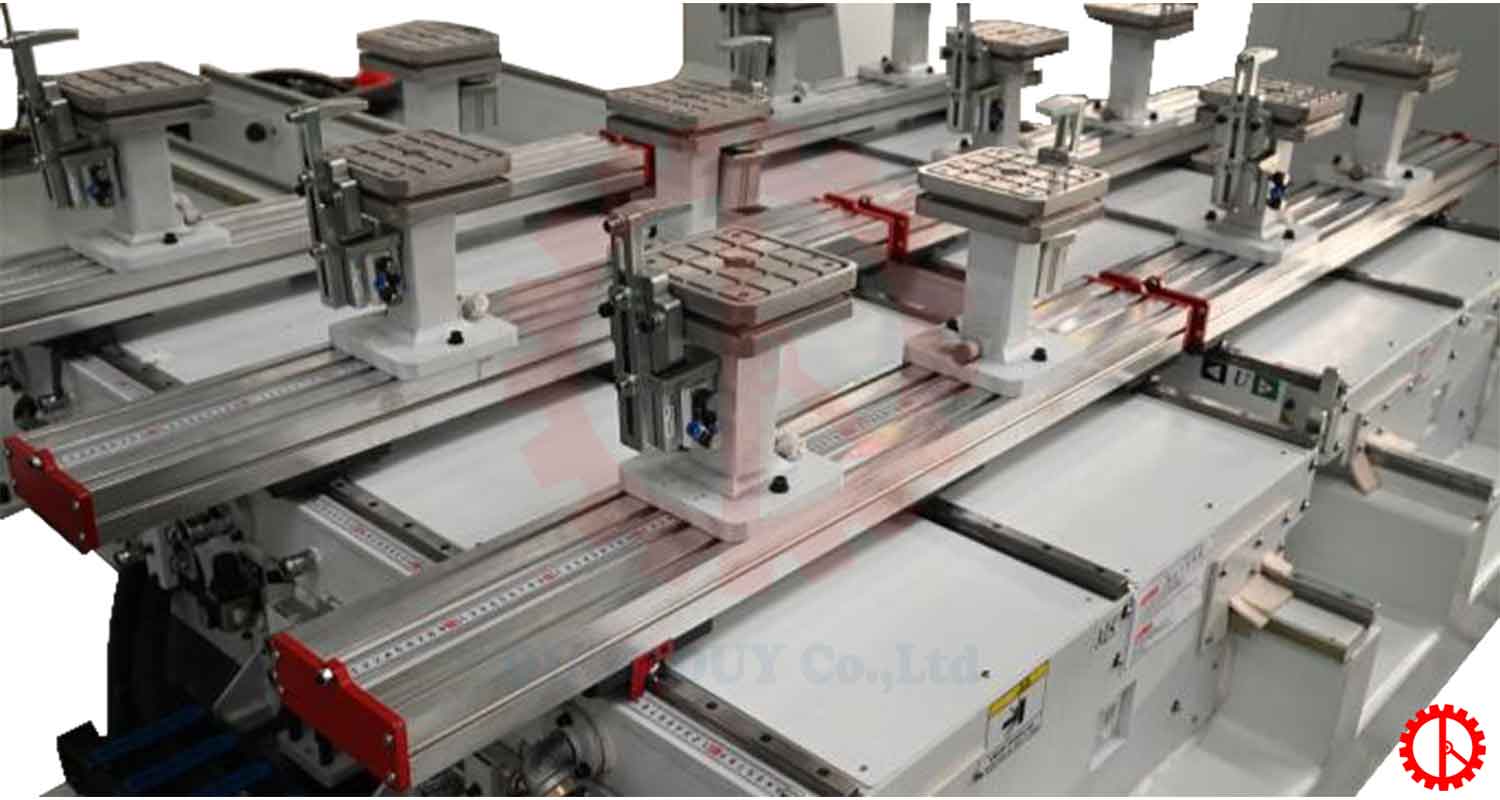

Dual alternating worktables switch between machining and workpiece preparation, ensuring a continuous, uninterrupted production process.
The flexible 5-axis movement system enables multi-surface processing and efficient machining of large-scale curved components.
Simple operation and stable performance deliver high productivity.
Tool changeover takes only a few seconds, enhancing machining quality and optimizing production efficiency.
Technical Specifications
| Worktable size | 1200 x 1500 mm |
| Number of worktables | 2 units |
| Distance between columns | 3000 mm |
| X-axis travel & max. moving speed | 3600 mm; 70 m/min |
| Y-axis travel & max. moving speed | 2800 mm; 70 m/min |
| U-axis travel & max. moving speed | 2300 mm; 70 m/min |
| Z-axis travel & max. moving speed | 1000 mm; 60 m/min |

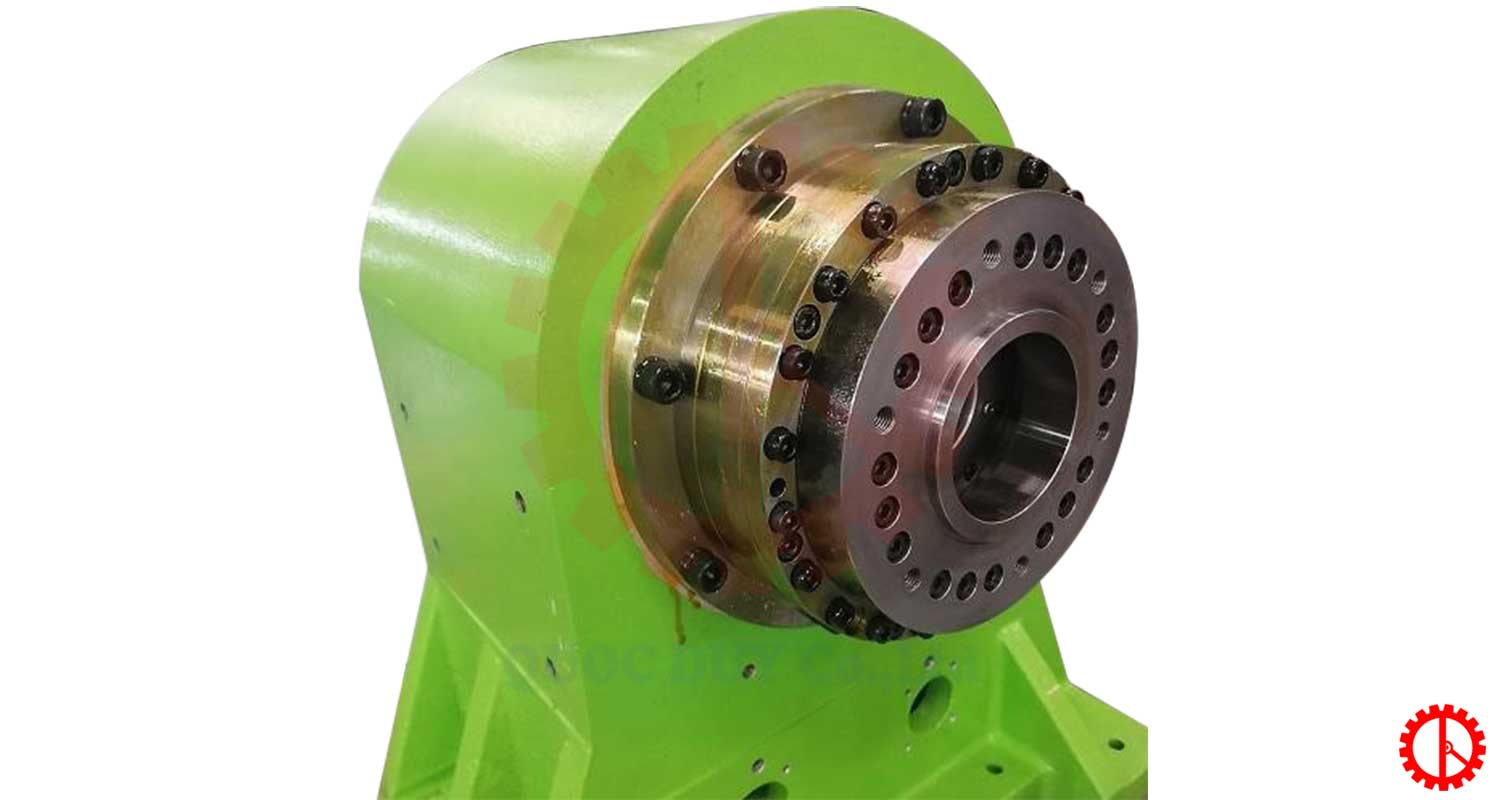

| A-axis travel | Unlimited |
| C-axis travel | ±380° |

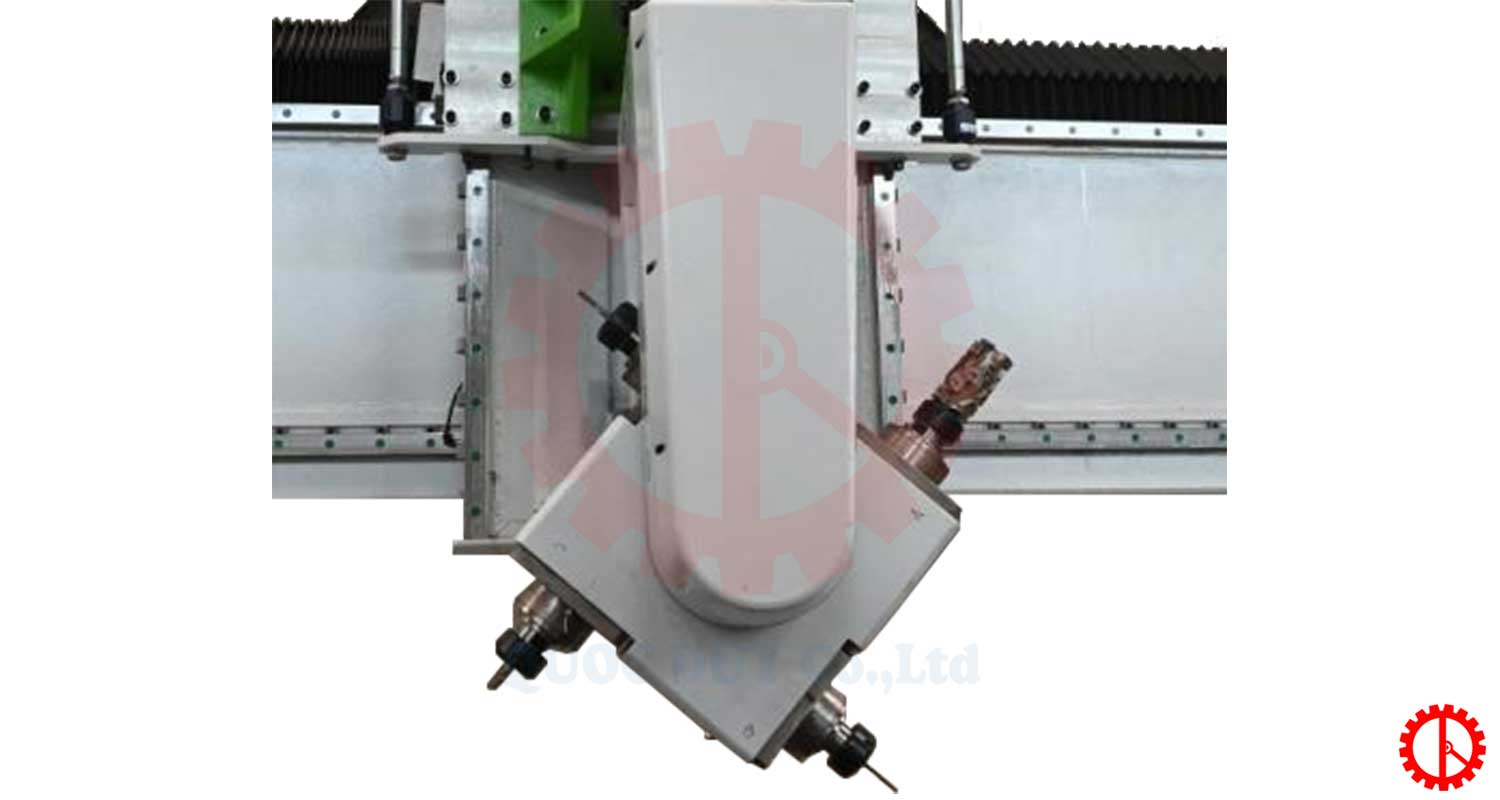

| Spindle motor | 9.6 kW x 4 units |
| Spindle speed | 24,000 rpm |
| Dry vacuum pump | 5.5 kW x 2 units |

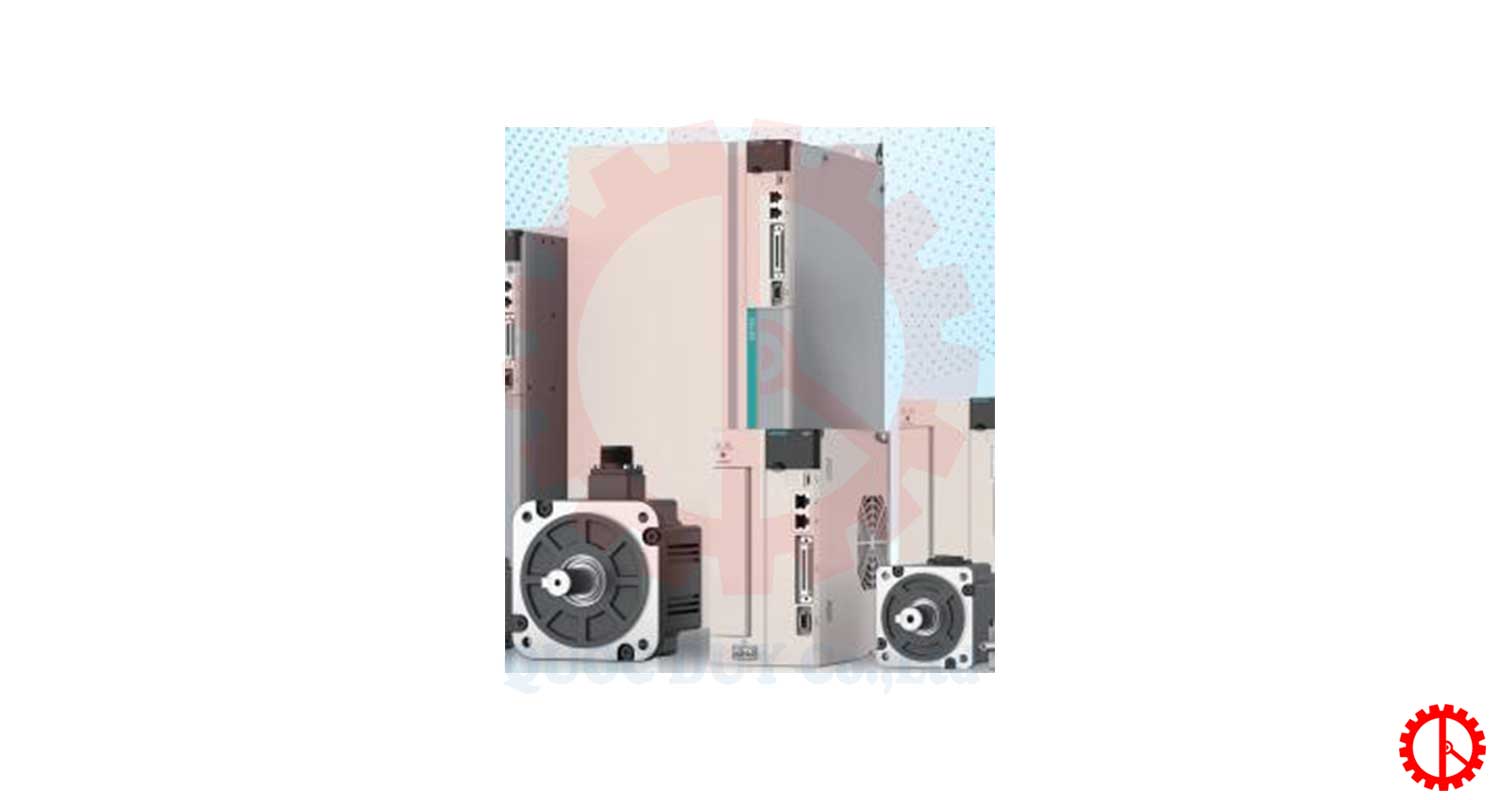

| X-axis servo motor | 2 kW |
| Y-axis servo motor | 1 kW |
| U-axis servo motor | 1 kW |
| Z-axis servo motor | 2 kW |
| A-axis servo motor | 1 kW |
| C-axis servo motor | 1.5 kW |

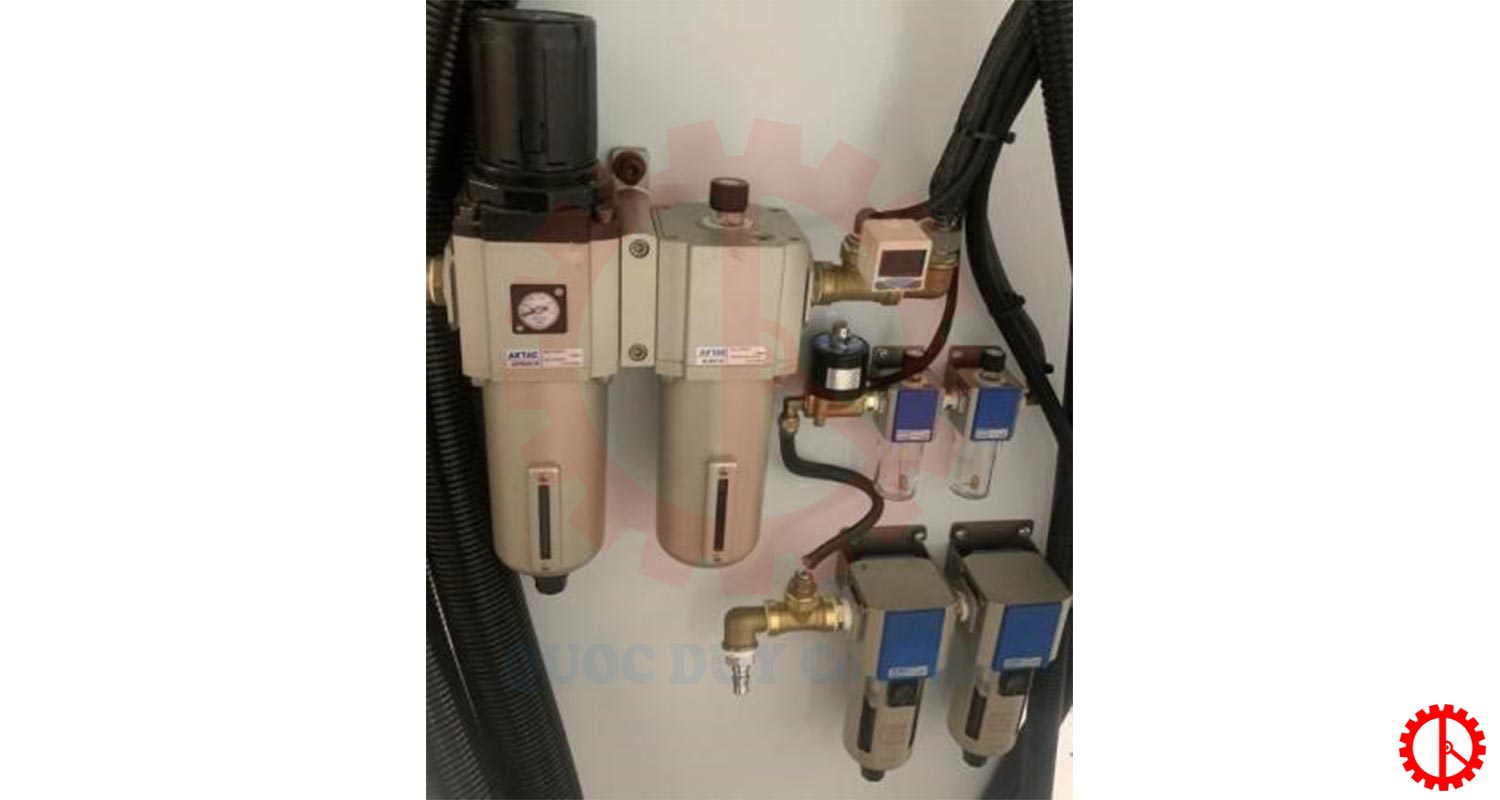

| Air pressure | 0.6 – 0.8 MPa |
| Voltage | 3-phase 380V / 50Hz |
| Total power | 48 kW |

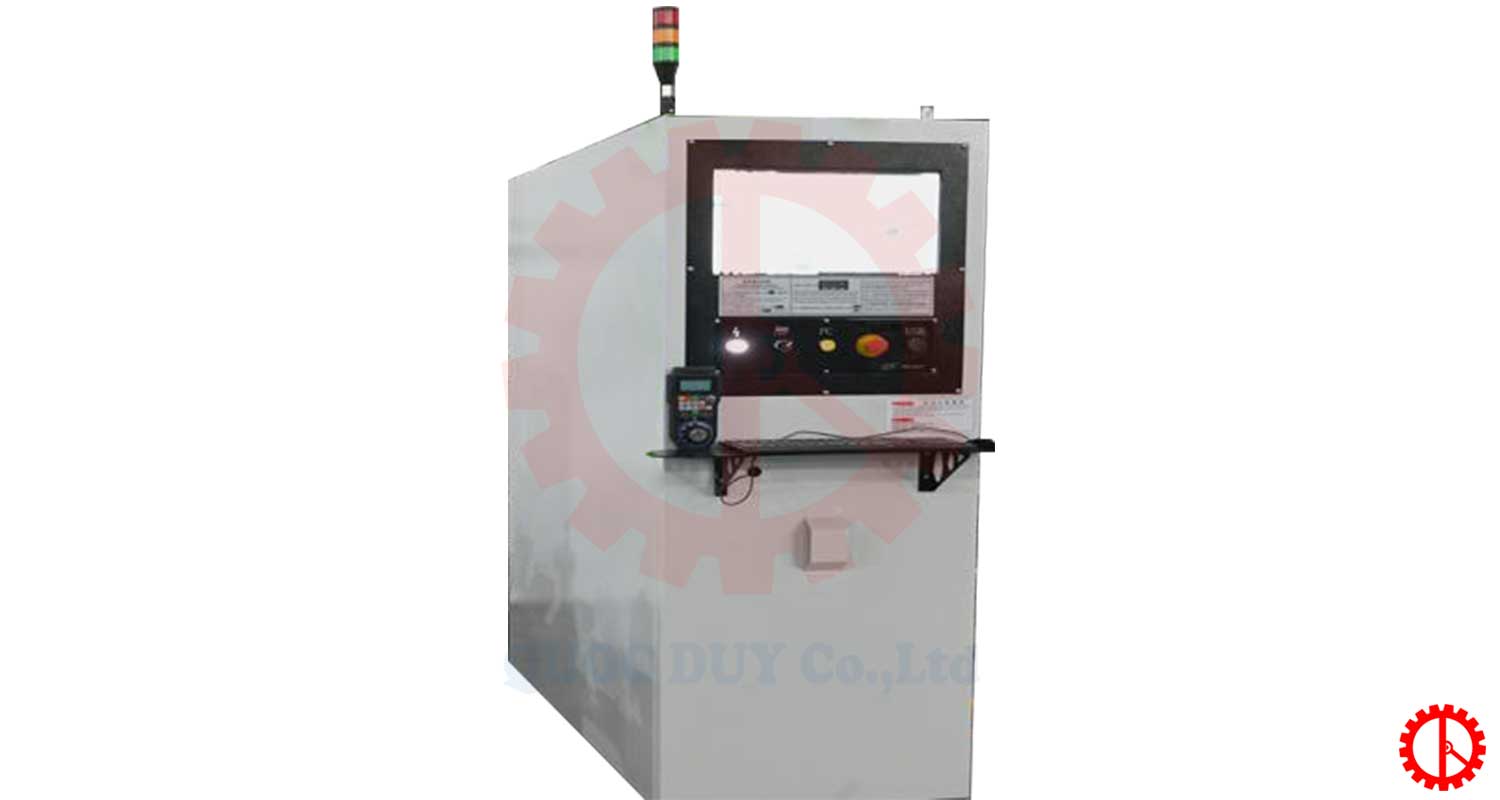

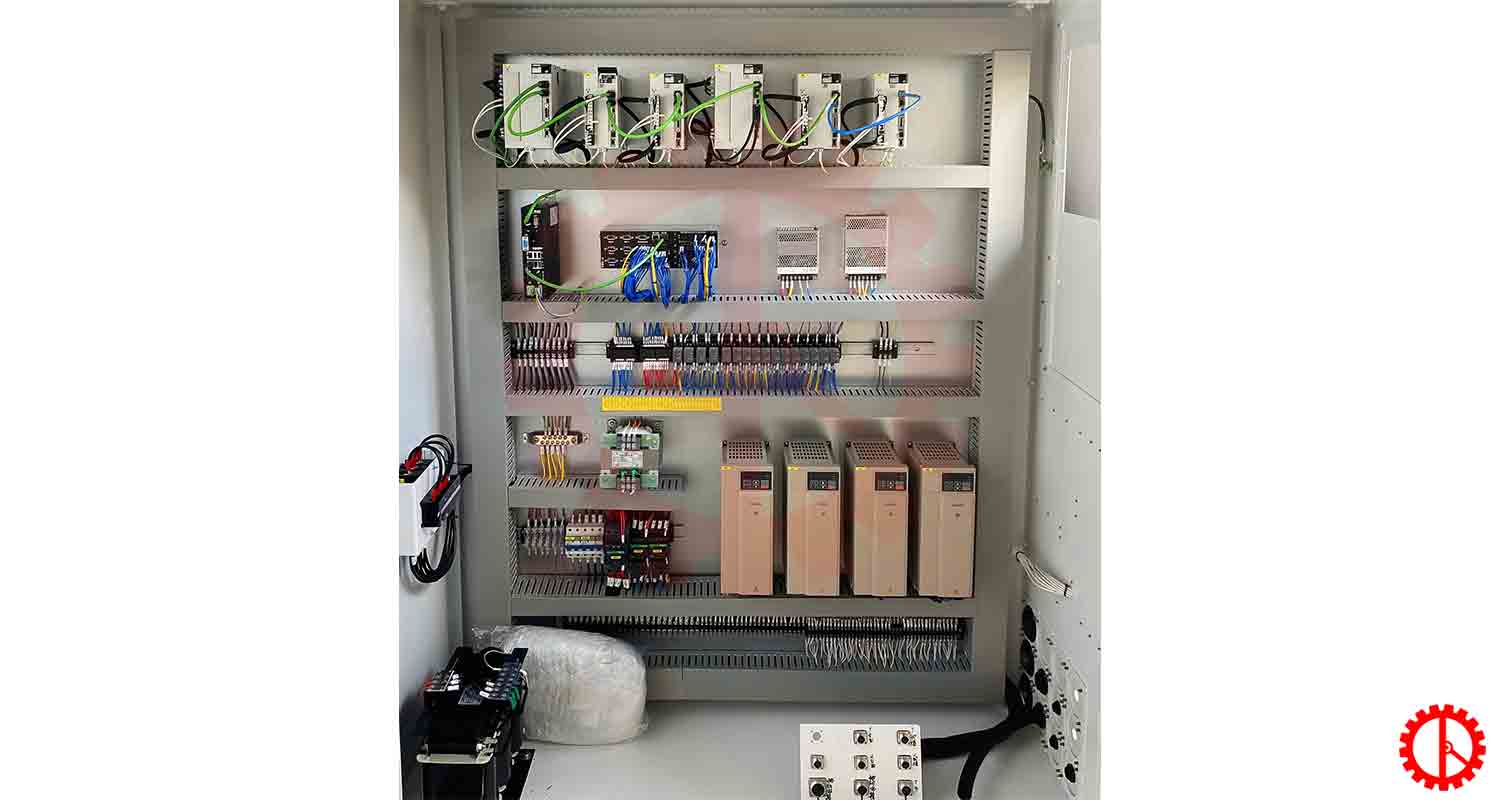

| Control cabinet dimensions (L x W x H) | 1200 x 600 x 1800 mm |
| Machine dimensions (L x W x H) | 4900 x 5000 x 3270 mm |
| Machine weight | Approx. 7000 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice; however, any modifications will not alter the functionality or operational capabilities of the machine.
