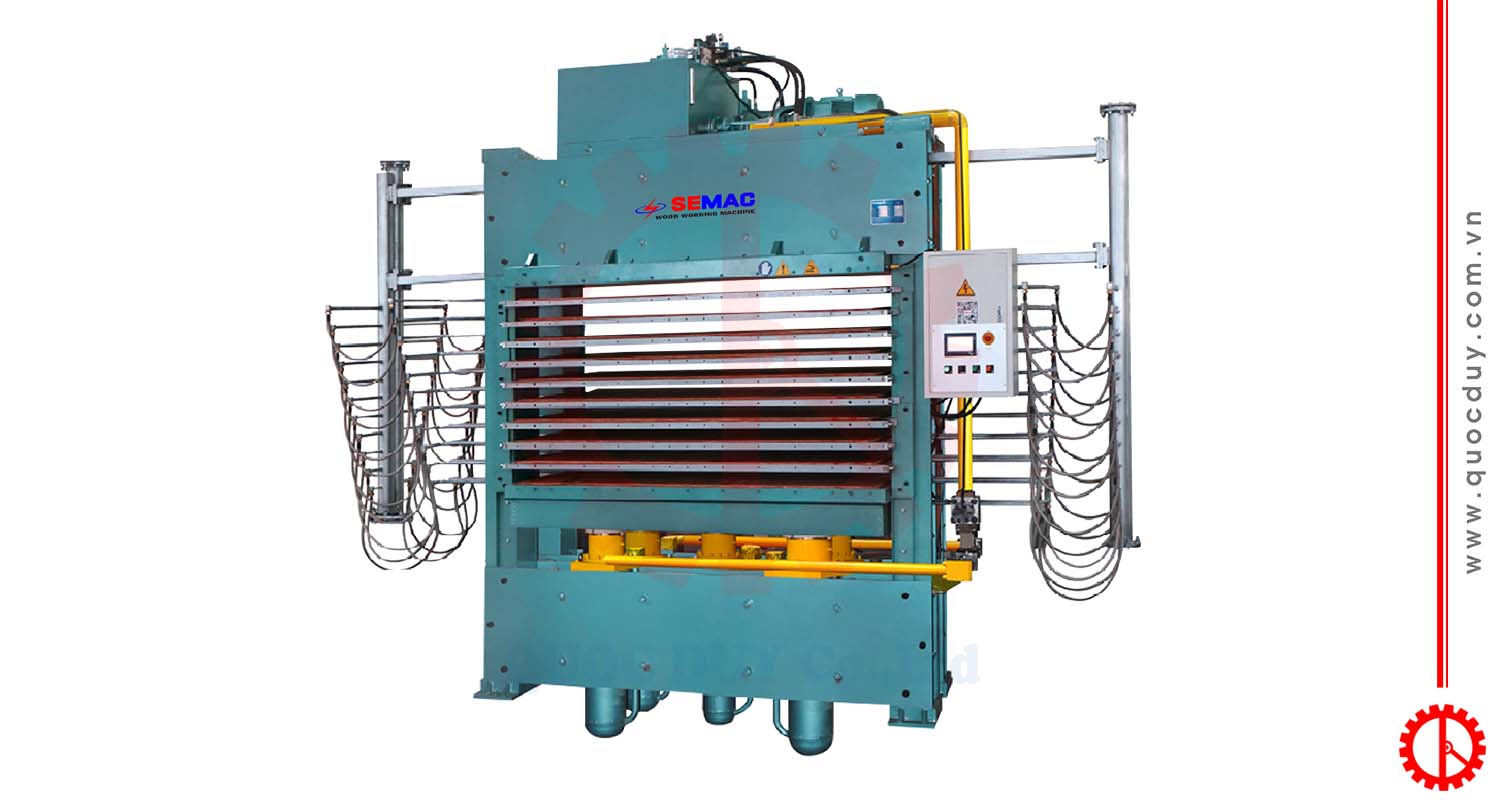

400 ton 10 opening hot press machine – BY214X8/40(10)Z3C is equipped with an advanced heating platen system, ensuring rapid heating, uniform heat distribution, and outstanding energy efficiency. With its powerful pressing capacity and stable operation, this equipment is the optimal solution for factories laminating veneer and melamine onto wood panels, delivering a beautiful, durable, and highly aesthetic surface finish.
Features of 400 ton 10 opening hot press machine – BY214X8/40(10)Z3C
Advanced Heating Platen System: Utilizes highly efficient heating platens that ensure faster heating speeds, uniform heat distribution, and lower energy consumption.
Premium Electrical Components: Integrated with high-grade electrical components sourced exclusively from world-leading brands.
Automated Hydraulic Valves: Features automatic opening hydraulic valves with high pressure-holding capacity, ensuring rock-solid and reliable performance.
User-Friendly Control Interface: Designed with an intuitive control interface, allowing operators to master and manage the machine with ease.
Specifications of 400 ton 10 opening hot press machine – BY214X8/40(10)Z3C
| Total Pressing Force | 4000 kN |
| Number of Openings | 10 |
| Hot Platen Size & Quantity | 2700 × 1370 × 42 mm × 11 Platens |
| Specific Pressure | 10.8 kgf/cm² |
| Hot Platen Opening | 70 mm |
| Hydraulic Cylinders | 5 × Ø190 mm |
| Heating Method | Steam Boiler (Provided by Customer) |
| Installed Power | 15.75 kW |
| Maximum Working Temperature | 120°C |
| Opening System | Automatic |
| Press Closing Speed | 65 mm/s |
| Power Supply | 3-Phase 380V/50Hz |
| Machine Dimensions | 4775 × 1410 × 4565 mm |
| Weight | 26000 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
Quoc Duy provides a diverse range of hot press machines
With over 23 years of experience in supplying woodworking machinery, Quoc Duy is proud to be a reputable partner delivering optimal and sustainable manufacturing solutions to our customers. We offer a comprehensive ecosystem of hot press machines, ranging from models tailored for small enterprises to high-capacity lines engineered for modern industrial production lines. Thanks to our product and service diversity, Quoc Duy consistently and flexibly meets all production demands, helping businesses boost productivity, save costs, and increase their competitive advantage in the market.
View more: 300 Tons Hot Pressing Machine For Veneer With Automatic Conveyor – TM6X10 300T
Quotation for 400 ton 10 opening hot press machine – BY214X8/40(10)Z3C
Are you searching for a hot press machinery line that delivers outstanding performance, highly stable pressing capabilities, uniform output, and perfectly crisp surface finishes? Quoc Duy provides state-of-the-art press solutions with user-friendly operations that flexibly meet all production requirements. We are always ready to partner with you to enhance product quality and efficiently expand your manufacturing scale.
