Detailed Introduction of the Specialized 4 Spindle CNC Milling Machine
Outstanding Features of the 4 Spindle CNC Milling Machine
The specialized 4 Spindle CNC Milling Machine – SM 1325 A4 is designed with a high-efficiency dust collection system to clean dust during processing, keeping the panels completely clean.
The CNC router features 4 independently operating spindles, allowing seamless switching between tools/spindles during operation.
Engineered with a rigid machine frame to ensure highly stable operation. The integrated vacuum working table securely holds the panels firmly in place during heavy-duty cutting.

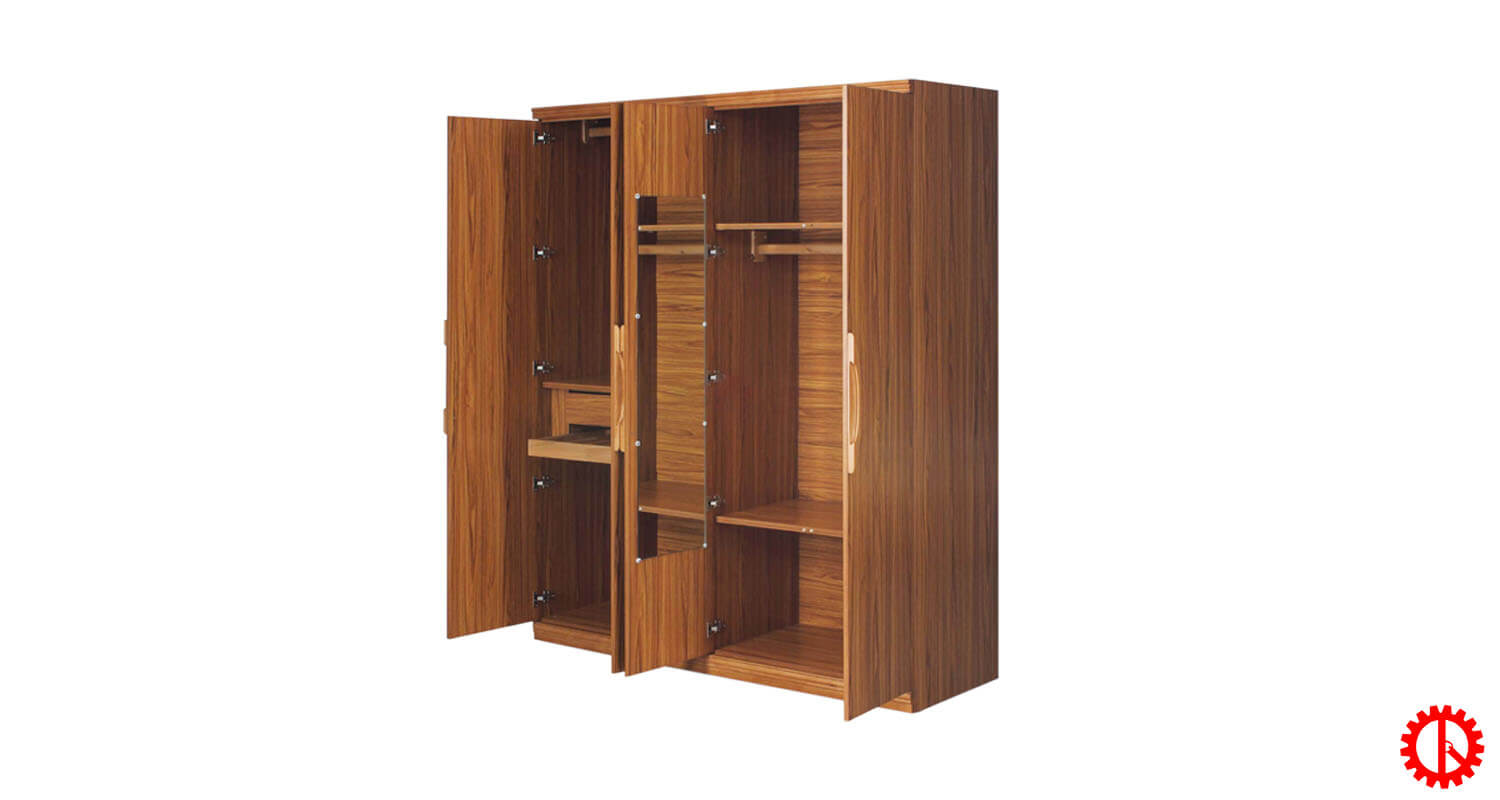

Specially designed for panel sizing and routing applications for products such as desks, chairs, office furniture, cabinets, kitchen cabinets, etc.
Technical Specifications
| X-axis travel | 1300 mm |
| Y-axis travel | 2500 mm |
| Z-axis travel | 200 mm |
| Working table dimensions | 1220 x 2440 mm |
| Working speed | 0 – 30 m/min |
| Main spindle motor | 6 kW x 4 |
| Spindle speed | 0 – 18,000 RPM |
| Command code | G-code |
| Working table structure | Vacuum table |
| Control system | Weihong |
| Servo motor | 1.5 kW (Leadshine) |
| Vacuum pump | 7.5 kW |
| Weight | 3000 kg |
| Machine dimensions | 3900 x 2300 x 2000 mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice, provided that such modifications do not alter the standard functionality and performance of the machine.
video about 4 spindle cnc milling machine
Other Recommended 4 Spindle CNC Routers
See more: 1 Spindle CNC Router Milling Machine – SM 1325 ATC 1JT
View more: CNC router machines
The automatic tool changer CNC router is one of the machine lines that has received highly positive feedback from our customers.
To quickly receive the latest and fastest price list, please contact us directly via our Hotline: 0903 600 113 for completely free support from our specialized staff.
With nearly 20 years of experience in the woodworking machinery supply industry, Quoc Duy is fully confident in delivering the highest quality products to our customers.

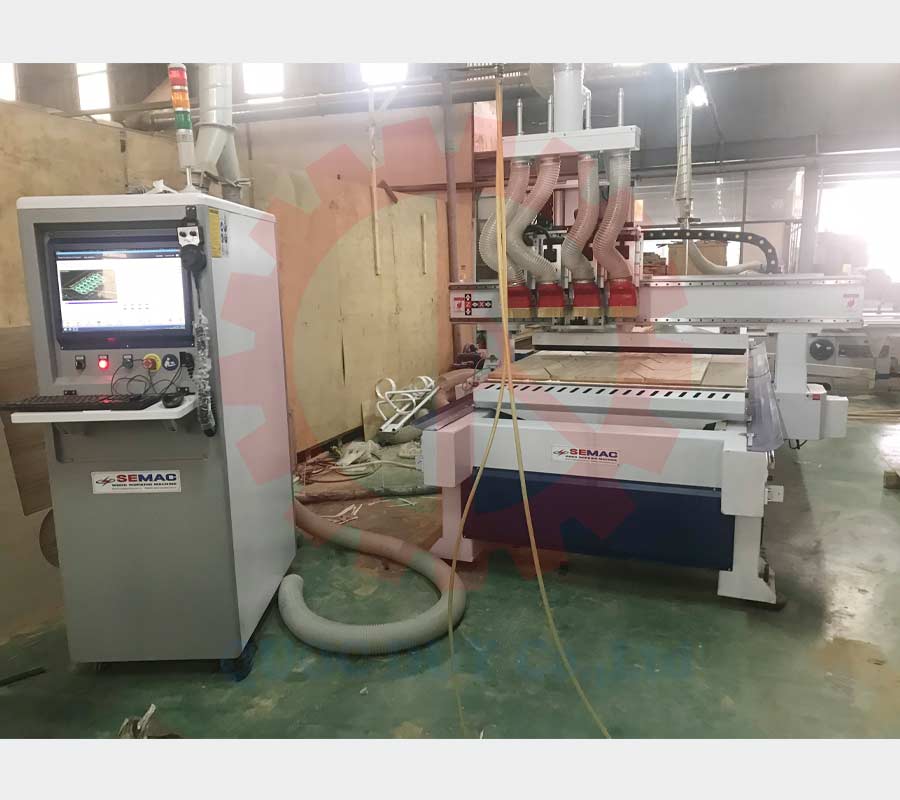

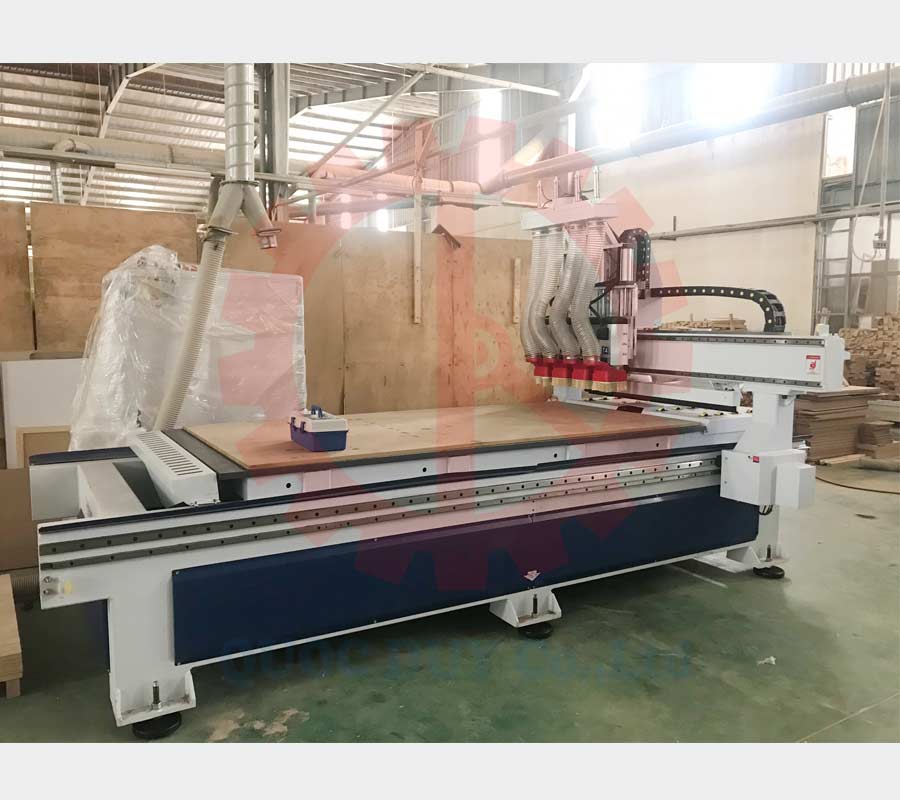

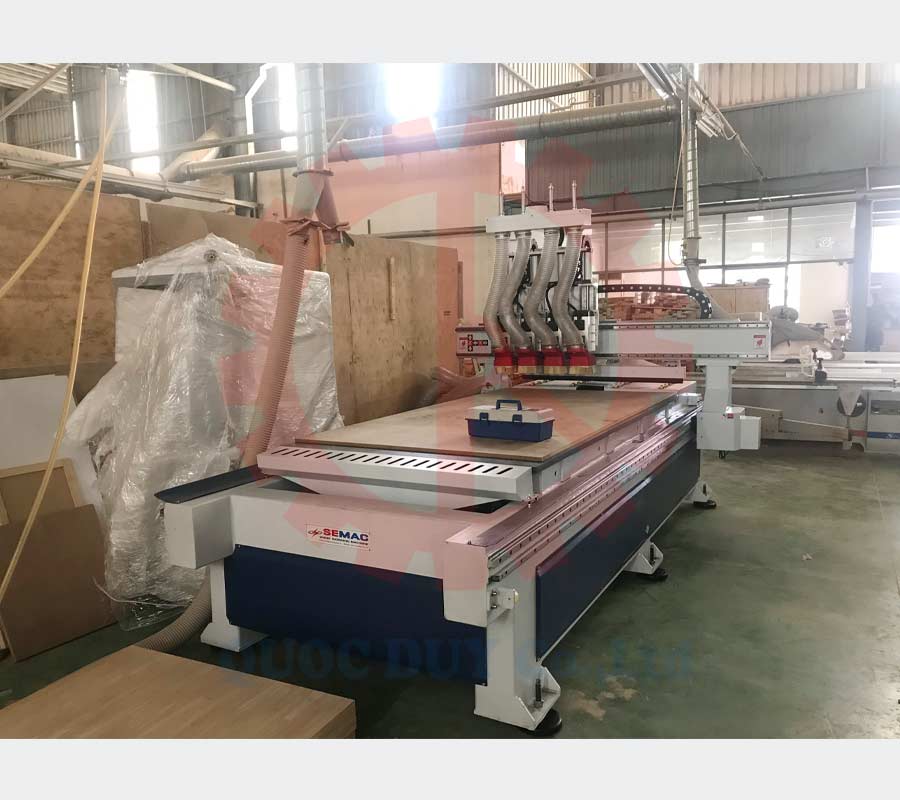

4 spindle cnc milling machine at customer's workshop
