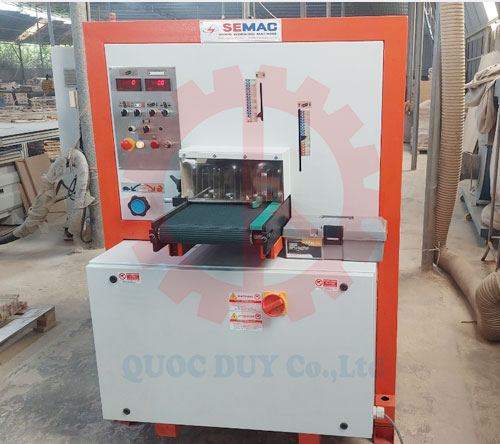

4 sided brush sanding machine – SM 300W8
Features of 4 sided brush sanding machine
- 8 or more sanding axes arranged at 360° concerning the workpiece
- Adjustable tilt
- QRC module for super finishing of flat parts
- Automation is applied to put and return workpieces
- Can be rubbed on all sides at the same time
- Excellent finish even in 90° angle workpieces
- High productivity
- The working environment is completely protected
Specifications of 4 sided brush sanding machine
| Max.Working thickness | : 100 mm |
| Max.Working width | : 300 mm |
| Min.Length of workpiece | : 380 mm |
| Max.Length of workpiece | : Không giới hạn |
| Feed speeds | : 5-25 m/phút |
| Spindle speed | : 200 – 1100 rpm |
| Spindle lenght horizontal | : 300 mm |
| Spindle lenght vertical | : 150 mm |
| Number of spindles | : 8 |
| Spindle motor horizontal | : 4 x 0.55 kw |
| Spindle motor vertical | : 4 x 0.37 kw |
| Conveyor motor | : 0.75 kw |
| Dust collection duct | : 90 mm x 2 pcs |
| Exhaust capacity | : 3500 m³/h |
| Machine | : 2200 x 1200 x 1950 mm |
| Net weight | : 850 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
