Genuine imported 4 head CNC router machine – CNC A4 20th, SYNTEC control system – Taiwan, slide rail, rack and pinion from Taiwan. The machine has a warranty of up to 18 months, and comes with a vacuum cleaner.

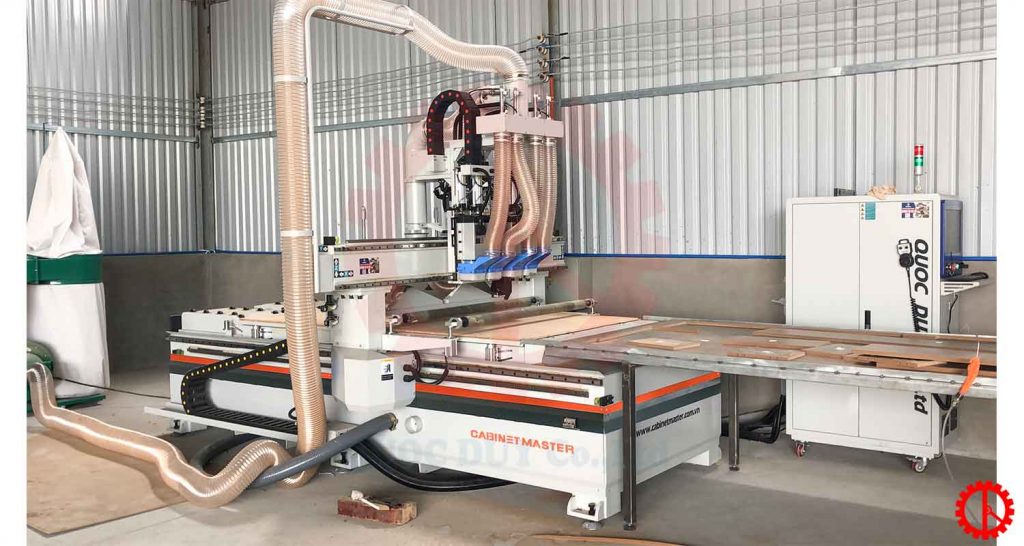

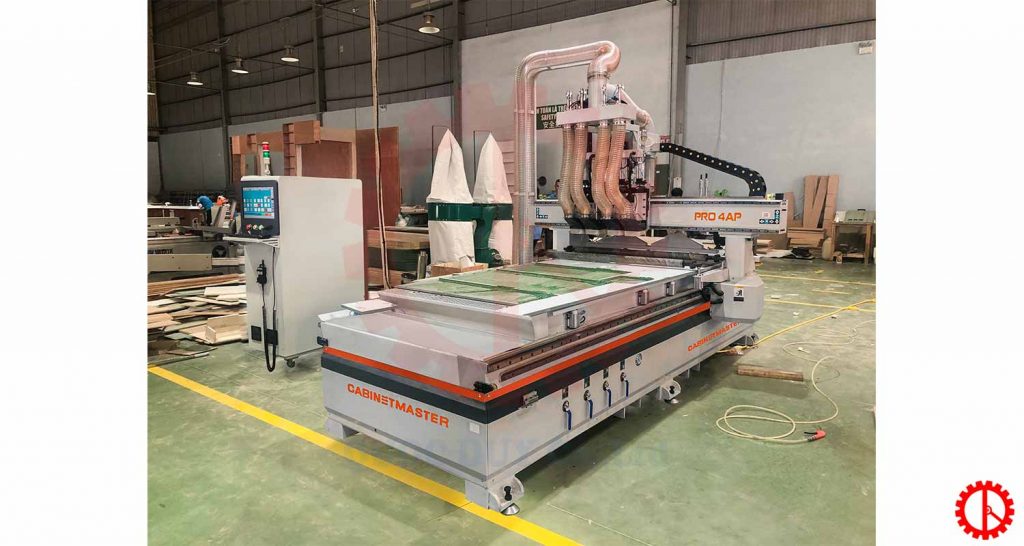

Introduction of 4 head CNC router machine
Features of 4 head CNC router machine
• The CNC machine performs milling, drilling, cutting, sawing boards, etc. with 4 flexible processing heads
• Use servo motors to operate quickly, accurately, and stably.
• Powerful vacuum system, helps stabilize the board during the machining process.
• The sturdy frame structure helps the machine operate stably.
• Control system of CNC router machine: SYNTEC famous brand, modern, easy to access and use.
Advantages of 4 head CNC router machine
• Sliding rail: PEK – SDS30 Italy X, Z 25 mm, Y 30 mm.
• X, Y, Z axis transmission mechanism: X, Y gear drive, Z ball screw.
• Main shaft cylinder: Airtac – Taiwan
• Lubricating oil pump system: automatic.
• Inverter: Delta – Taiwan
• Servo motor: Taiwan Leadshine
• Servo motor driver: Taiwan Leadshine
• Control system: SYNTEC
• Reducer: Nidec
• Work table structure: vacuum table
Specifications of 4 spindle cnc router
Shaft Drive Mode: X/Y axis rack and pinion drive Z- axis screw drive
| X axis stroke | : 1300 mm |
| Y axis stroke | : 2500 mm |
| Z axis stroke | : 200 mm |
| Drilling shaft capacity | : 6 kw x 4 (HQD, làm mát bằng không khí) |
| Servo motor Leadshine | : 1.5 kw |
| Vacuum unit | : 7.5 kw |
| Speed of movement | : 80 m/phút |
| Working speed | : 35 m/phút |
| Spindle speed | : 18000 vòng/phút. |
| Pneumatic | : 0.6 – 0.8 Mpa |
| Roller | : 2 pcs |
| Accuracy | : ±0.05 mm |
| Code | : G code |
| Voltage | : 380V/50Hz |
| Roller table | : Có |
| Board picking | : Có |
| Weight | : 2300 kg |
| Machine size | : 3500 x 2550 x 2380 mm |
Note: Specifications, design features and colors of the machine are subject to change without prior notice, but will not affect the function and operation of the machine.
video of 4 Head CNC Router Machine
See more: 4 spindle cnc router – SM 1528 A4
How much does a 4-head CNC machine cost?
Quoc Duy affirms that the high-end 4-head CNC router has the cheapest price on the market so far. This price is only available this June on the occasion of the 20th anniversary of the establishment of Quoc Duy Company.
How long is the warranty for 4-head CNC router?
Customers who buy a CNC A4 20TH 4-head CNC machine will immediately receive a warranty package of up to 12 months. This will be a policy that no woodworking machine supplier dares to implement. But Quoc Duy is confident in the products we provide, confident in the skills of our technical team (highly specialized), please contact Quoc Duy at HOTLINE 0903 600 113 for the fastest support:
