The 4 Fans Hydraulic Rotary Carrier is a highly productive piece of equipment, specialized for laminating wooden strips into large panels or blocks. Designed to efficiently process wood panels—ranging from extremely thin to thick—the machine is capable of edge-gluing various board dimensions with high precision.
Detailed Introduction of the 4 Fans Hydraulic Rotary Carrier
Outstanding Features of the Hydraulic Rotary Carrier

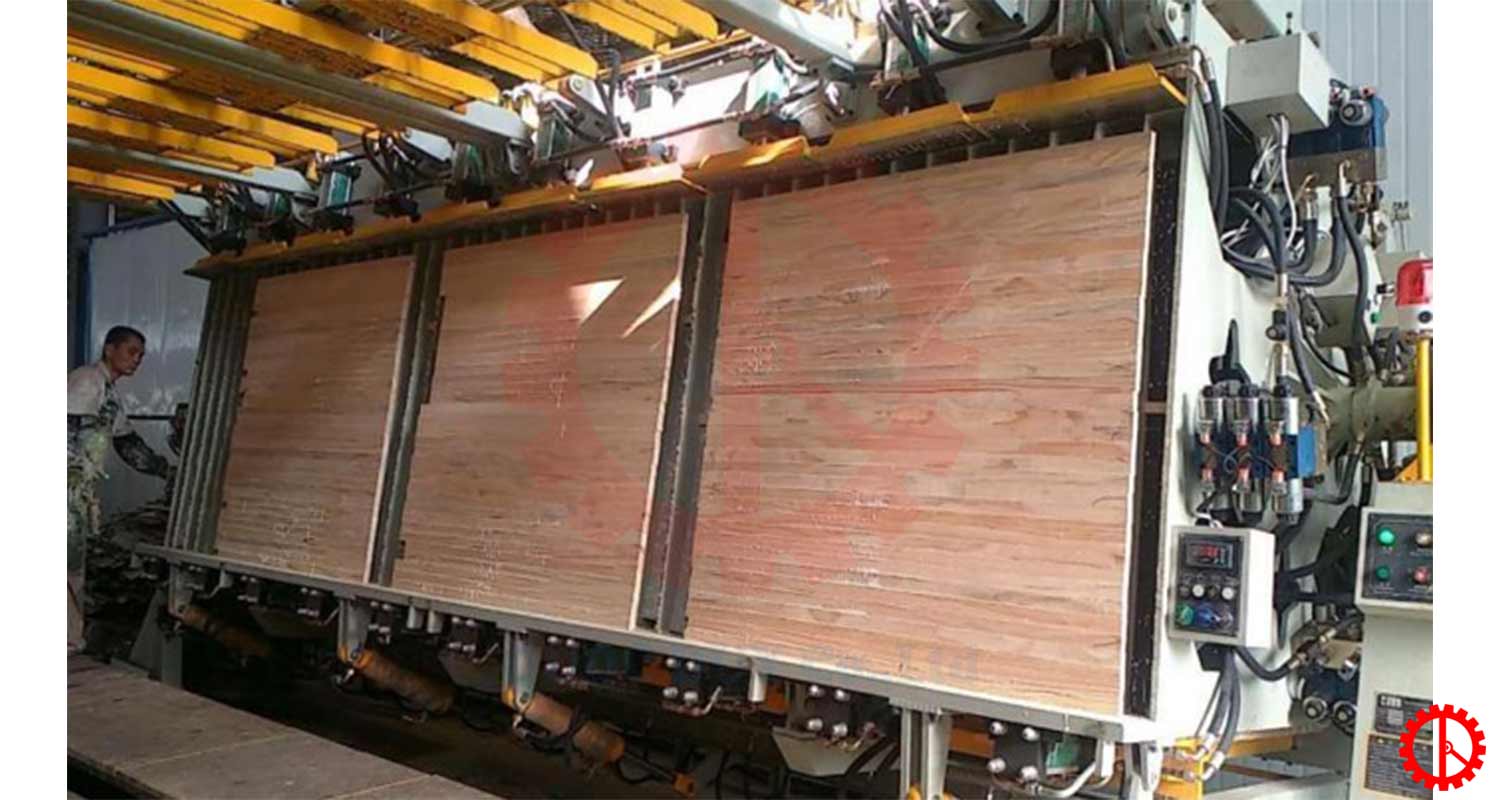

The machine utilizes distinctive hydraulic principles, providing stable motion and high pressure to deliver superior surface precision. This ensures that the workpieces remain perfectly flat during pressing. Simultaneous side and front pressure effectively prevents warping and buckling, producing smooth laminated panels that require minimal sanding and maximize yield.
Depending on the varying specifications of the workpieces (such as length and thickness), the required clamping pressure differs. The system pressure can be adjusted, and digital automatic pressure compensation is integrated to ensure that the required processing pressure remains perfectly constant and uniform.
Leverages CNC technology and one-click operation to eliminate human error, ensuring adherence to standard quality requirements and elevating product finish.

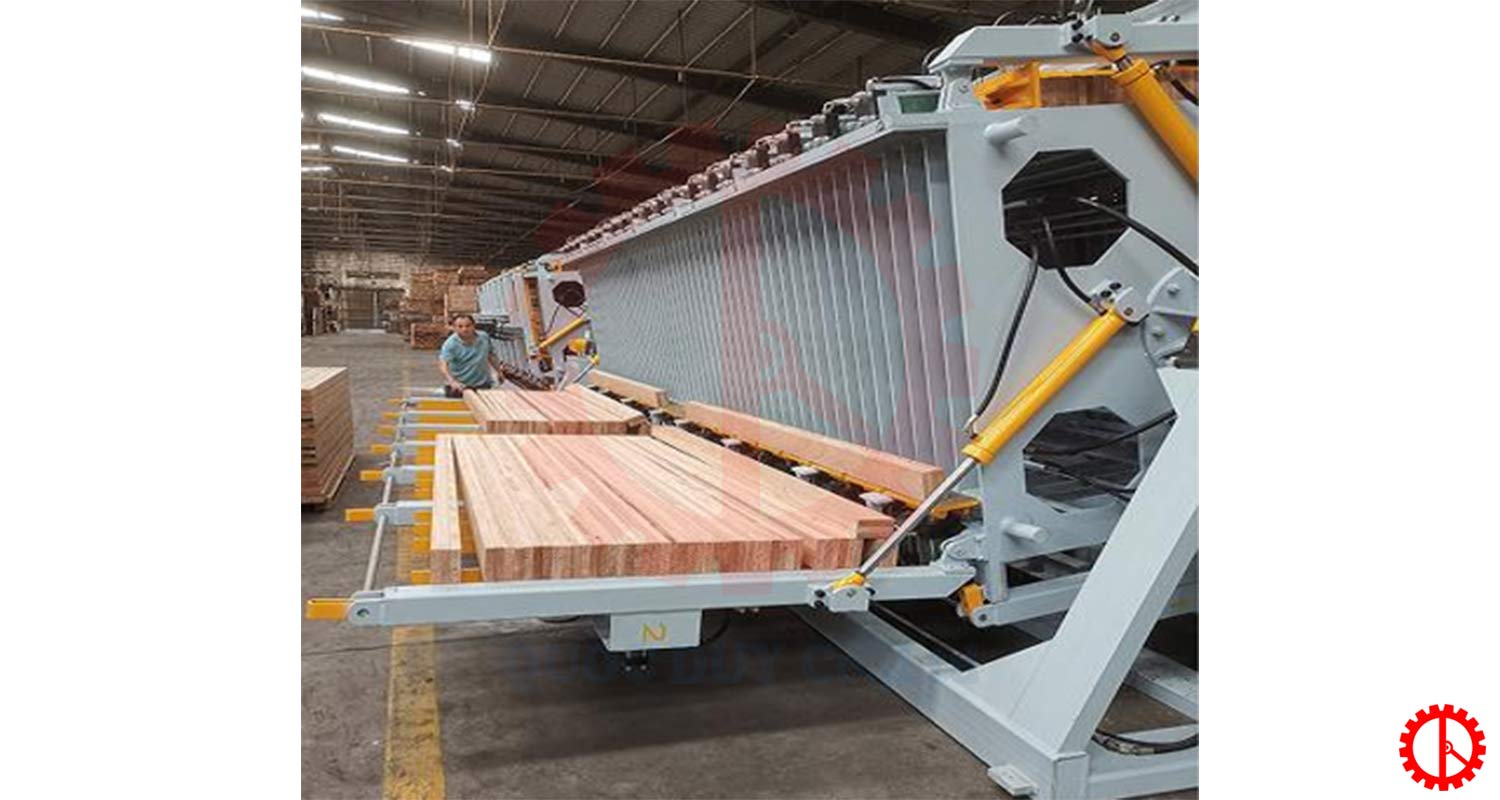

Engineered with four working faces (sections) operating simultaneously to maximize factory throughput.

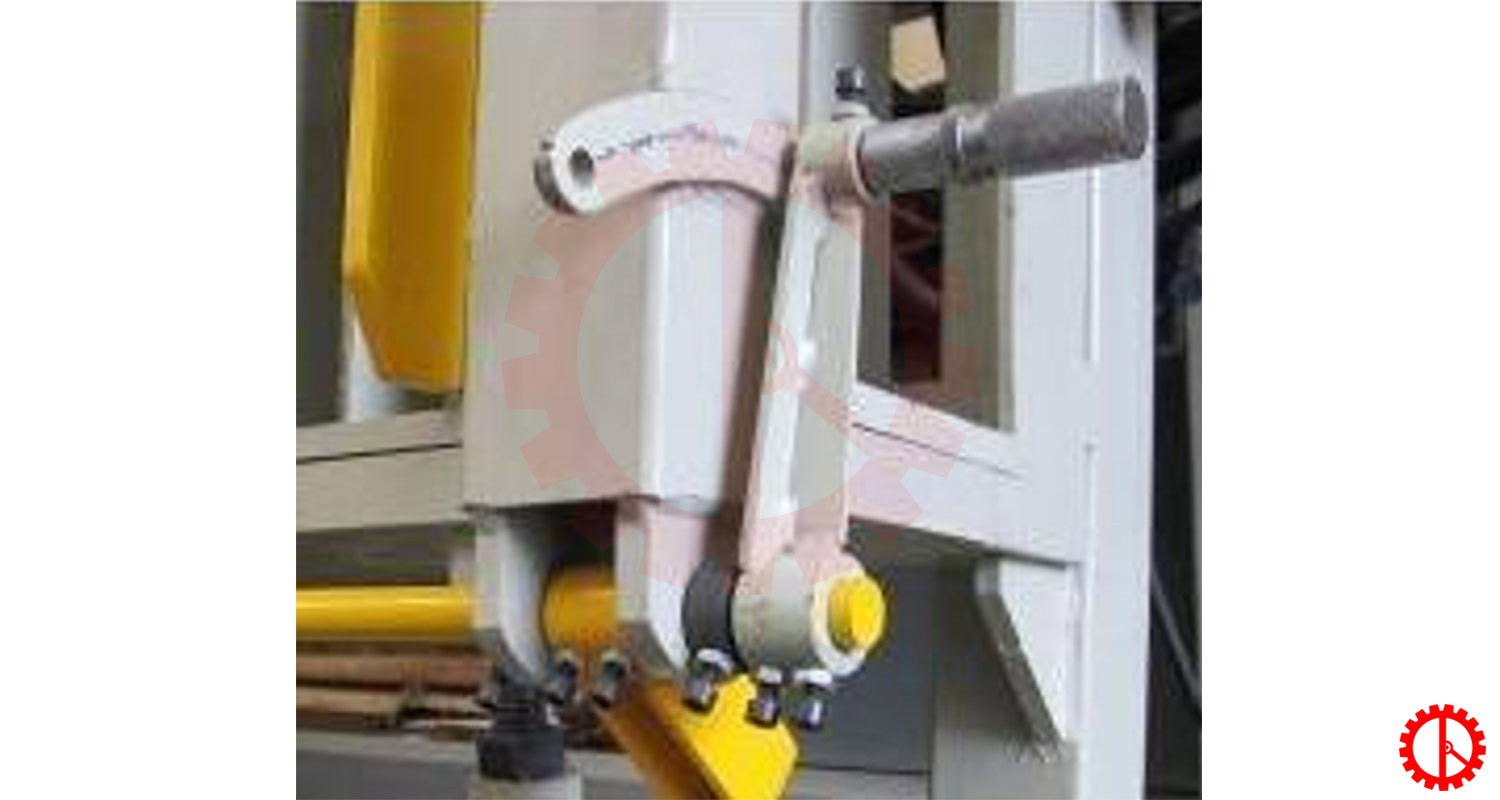

Equipped with high-pressure oil cylinders that offer powerful clamping force and an excellent sealing structure.
Digital automatic pressure compensation device with a sensitivity of up to 0.1 MPa ensures constant pressure and guarantees superior panel quality.

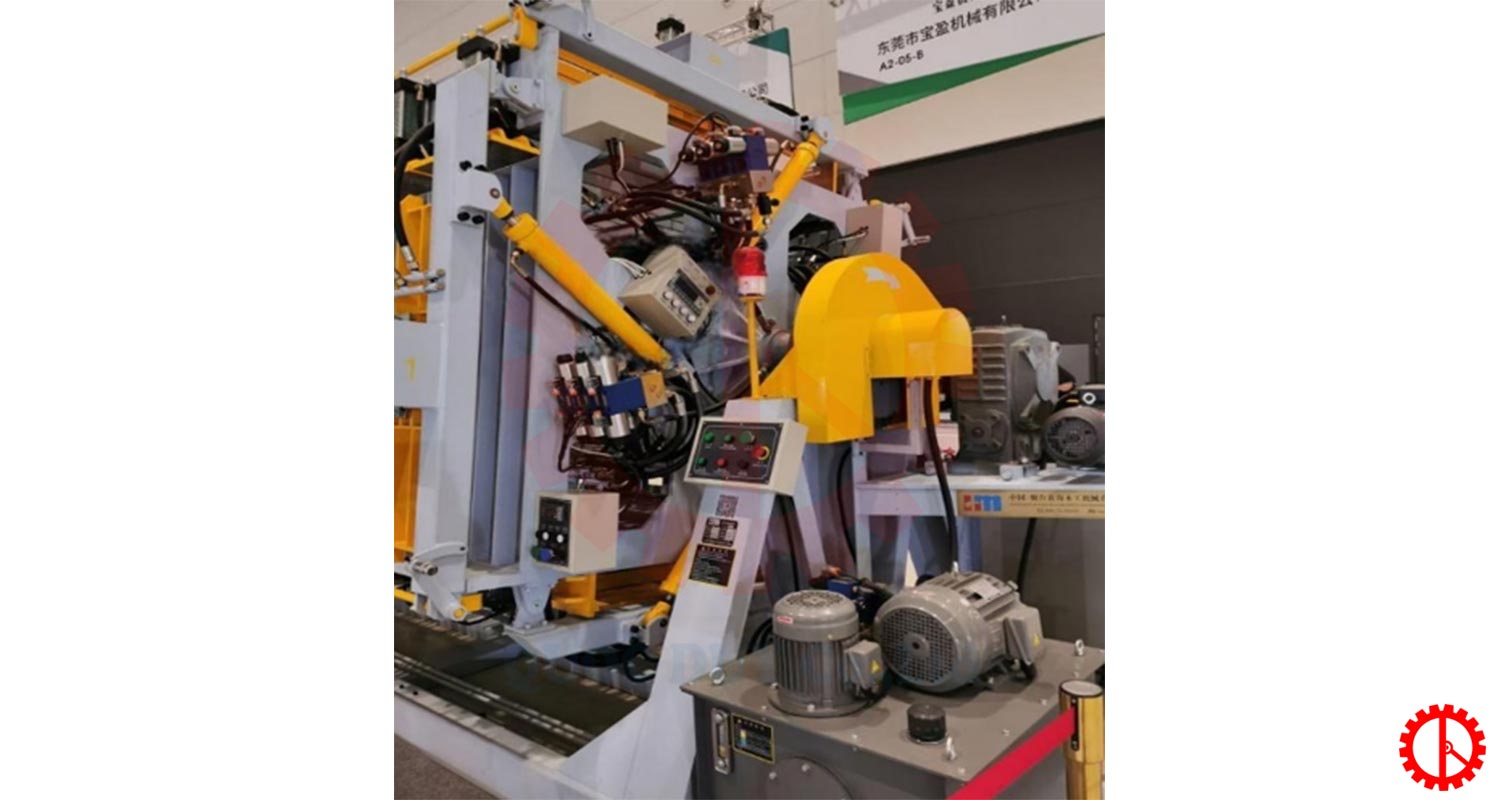

The hydraulic system features an oil return filter to keep the hydraulic fluid clean and minimize component wear and tear.

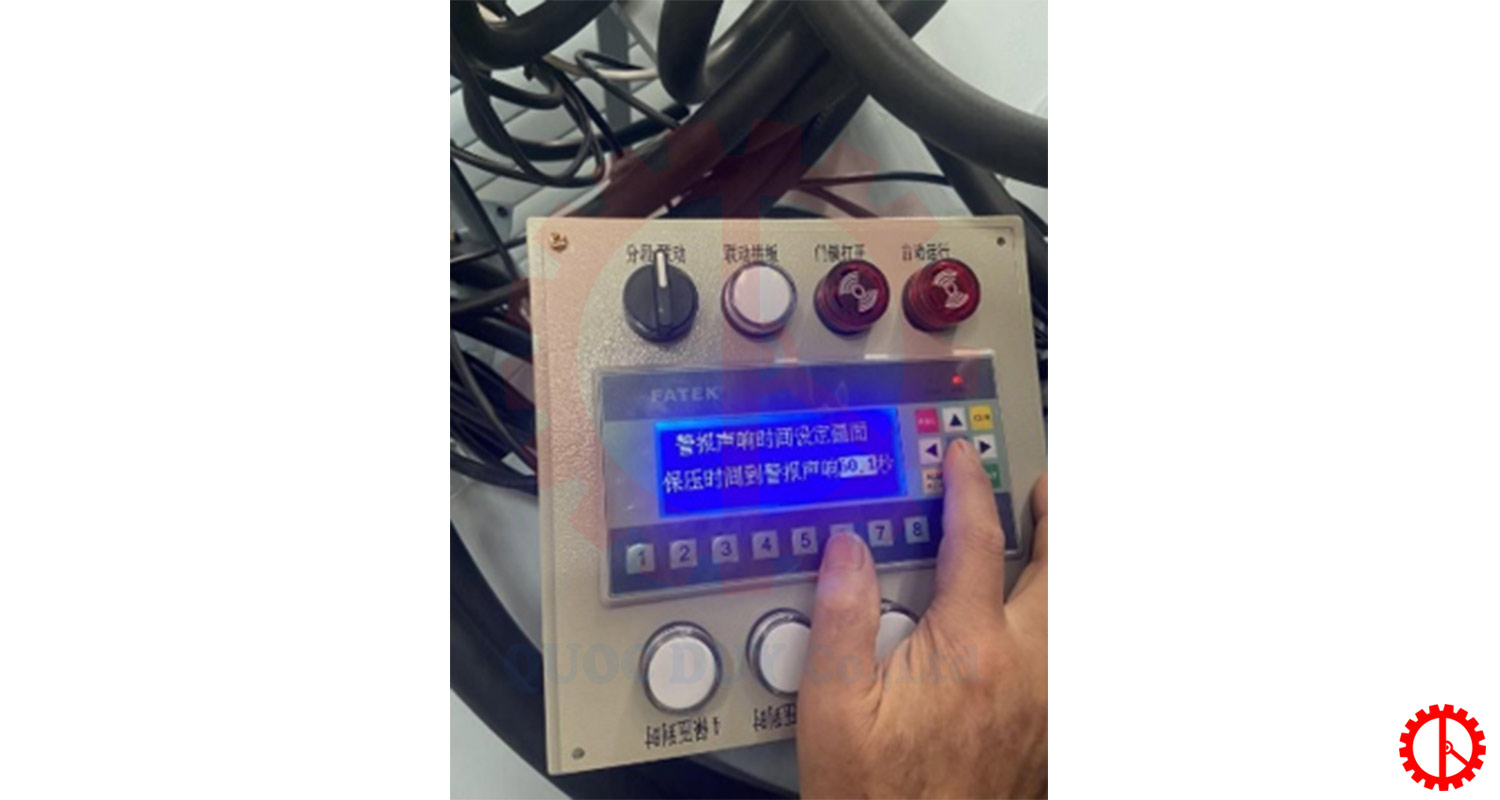

Equipped with a central PLC control system with one-button operation, offering a high level of automation.
Technical Specifications
| Working sections / faces | 4 faces |
| Max. working thickness | 150 mm |
| Max. working height | 1300 mm |
| Max. working length | 5200 mm |
| Top cylinder diameter | φ80 mm |
| Number of top cylinders | 12 pcs / face |
| Side pressing cylinder diameter | φ40 mm |
| Number of side pressing cylinders | 12 pcs / face |
| Lateral lifting cylinder diameter | φ63 mm |
| Number of lateral lifting cylinders | 2 pcs / face |
| Rated system pressure | 16 Mpa |
| Max. pressure when pressing 150mm thickness | 12.1 kg/cm² |
| Total power | 8.5 kW |
| Machine dimensions | 7200 x 2970 x 3100 mm |
Note: Specifications, design features, and machine colors are subject to change without prior notice, provided that such changes do not alter the primary functions and operational performance of the machine.
