4 Axis ATC Cnc Machine Center - KW 4AR1 ATC

4 Axis ATC CNC Machine Center – KW 4AR1 ATC is designed with modern features and superior capabilities such as automatic tool changing, precision machining, and a 180° swivel spindle. This helps workshops save time, boost productivity, and enhance efficiency in the woodworking industry. The machine operates stably and smoothly thanks to its rigid and firmly fixed frame.

Features of the 4 axis ATC cnc machine center

4-axis ATC CNC machine performs multiple functions: curved panel milling, 45° cutting, drilling, and hinge/lock hole routing.
The machine frame is robustly designed with high-quality materials, ensuring stable operation over long periods.

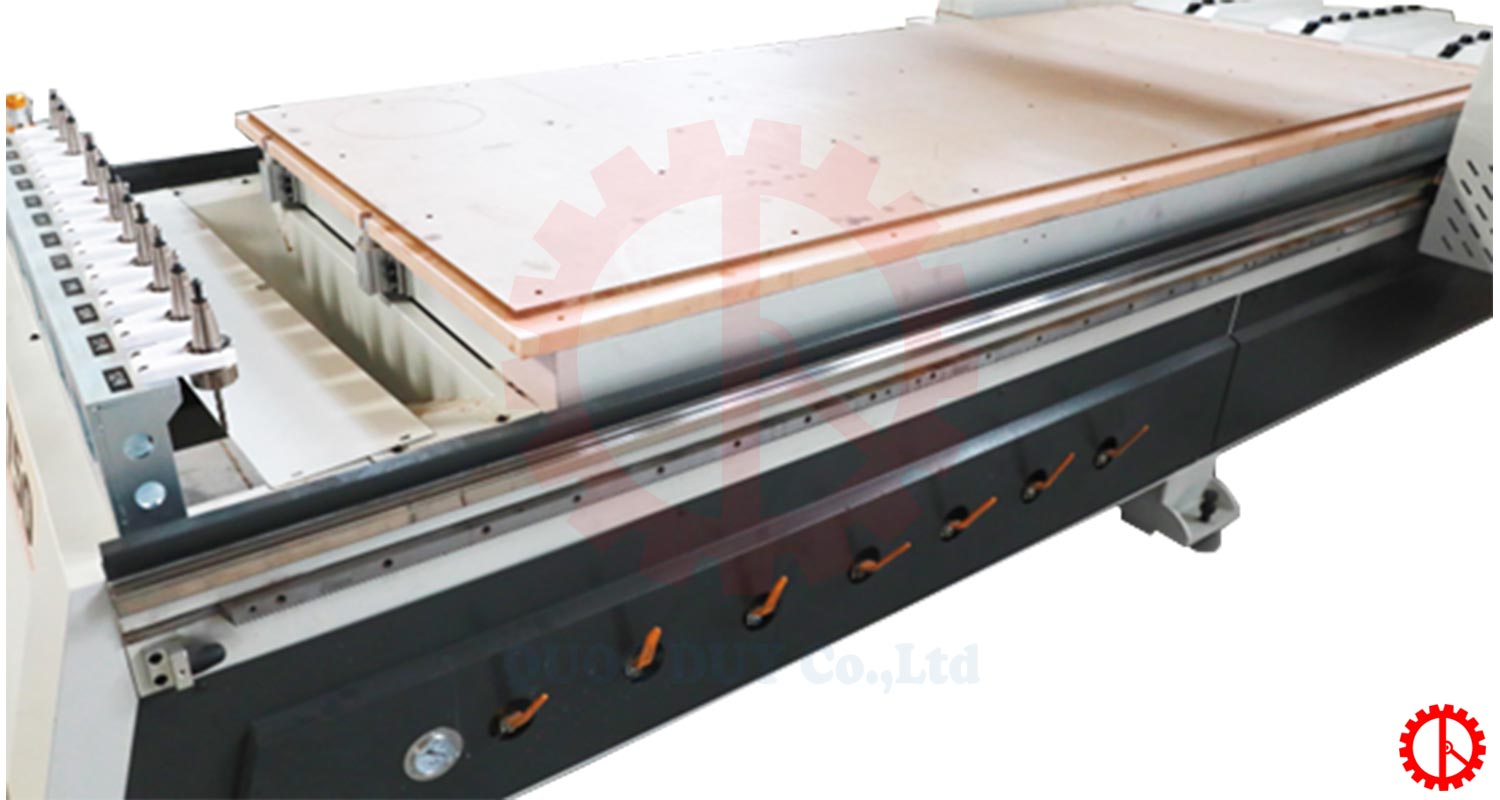

The vacuum table system firmly secures the workpiece, resulting in extremely high machining precision.
Equipped with an automatic tool changer system to optimize the machining process and save time.
Powerful 9kW spindle motor for high-performance operation.

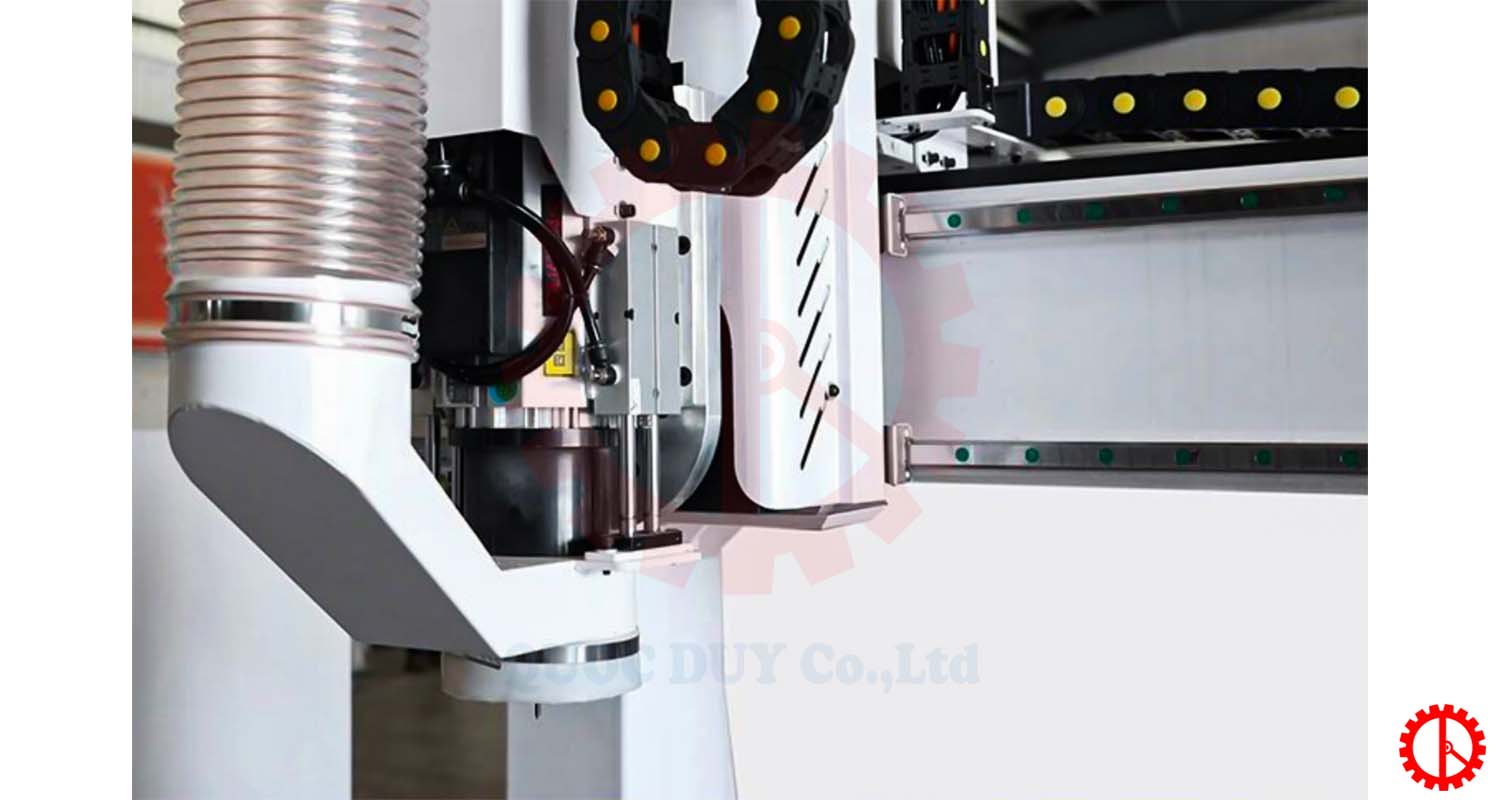

Flexible 180-degree swivel spindle allows for a diverse range of machining processes.

Technical specifications of the 4 axis ATC cnc machine center

Y – axis machining stroke	: 2800mm
X – axis machining stroke	: 1230mm
Z – axis machining stroke	: 500mm
A – axis rotation angle	: ± 90°
Spindle	: 9kW, automatic tool change
Vacuum pump	: 7.5kW
X-axis servo motor	: 1.5 Kw
Y-axis servo motor	: 1.5 Kw x 2 pcs
Z-axis servo motor	: 1.5 Kw
A-axis servo motor	: 1.5 Kw
Total power	: 23.25kW

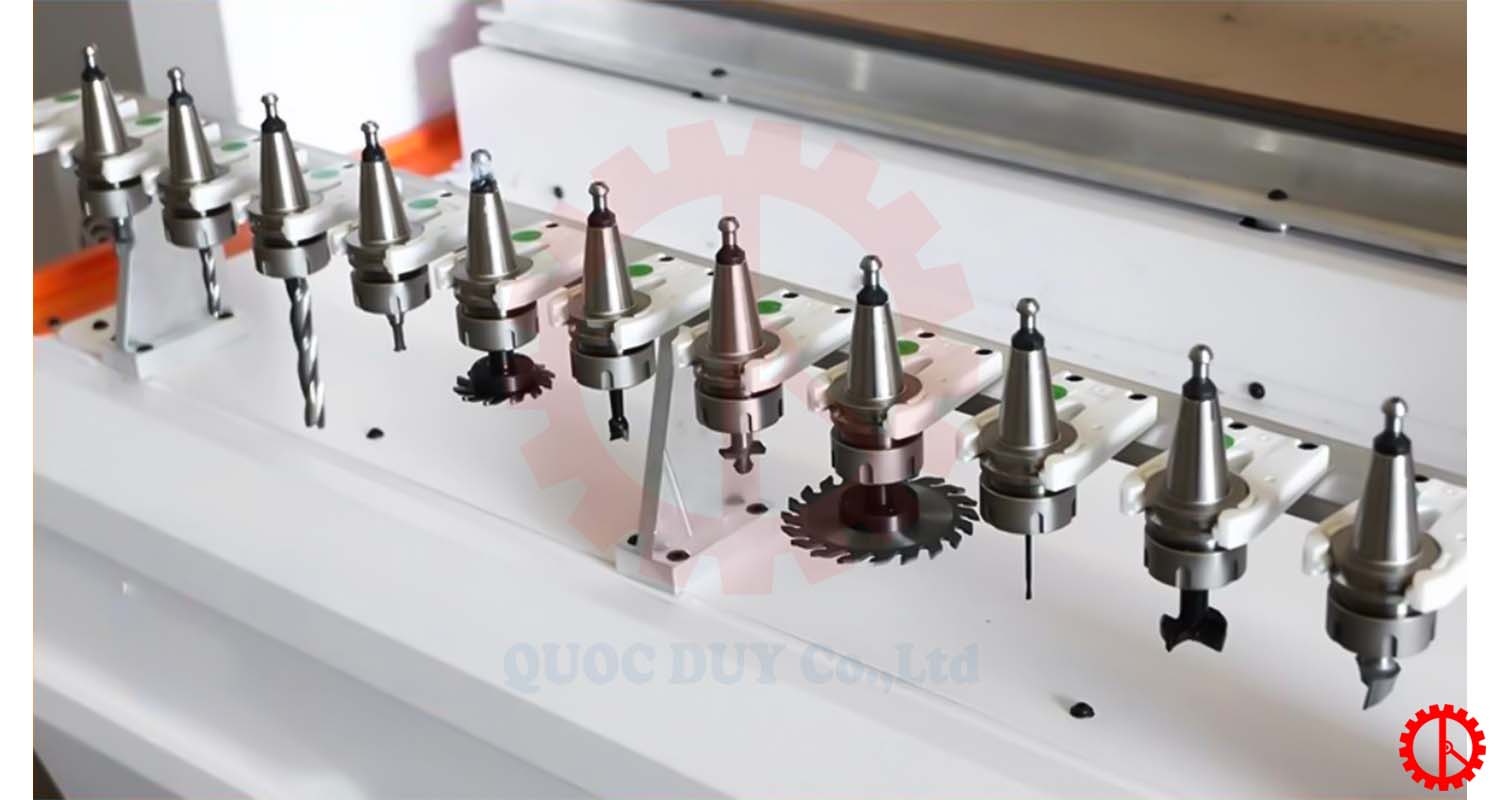

Tool magazine	: 12 pcs
Air pressure	: 0.6 – 0.8 Mpa
Votltage	: 380V/50Hz
Machine dimensions	: 4360 x 2510 x 3270mm

Note: Technical specifications, design features, and machine color are subject to change without prior notice, but this will not affect the machine’s functions and operational capabilities.

Operation video of 4 axis cnc machine center

Contact information and quotation for 4-Axis ATC CNC Machine Center

Quoc Duy – with over 20 years of experience in providing woodworking machinery – is committed to delivering the most tailored solutions for every workshop. We provide comprehensive support, including expert consultation, installation, and full technology transfer, ensuring businesses can invest with long-term peace of mind.
