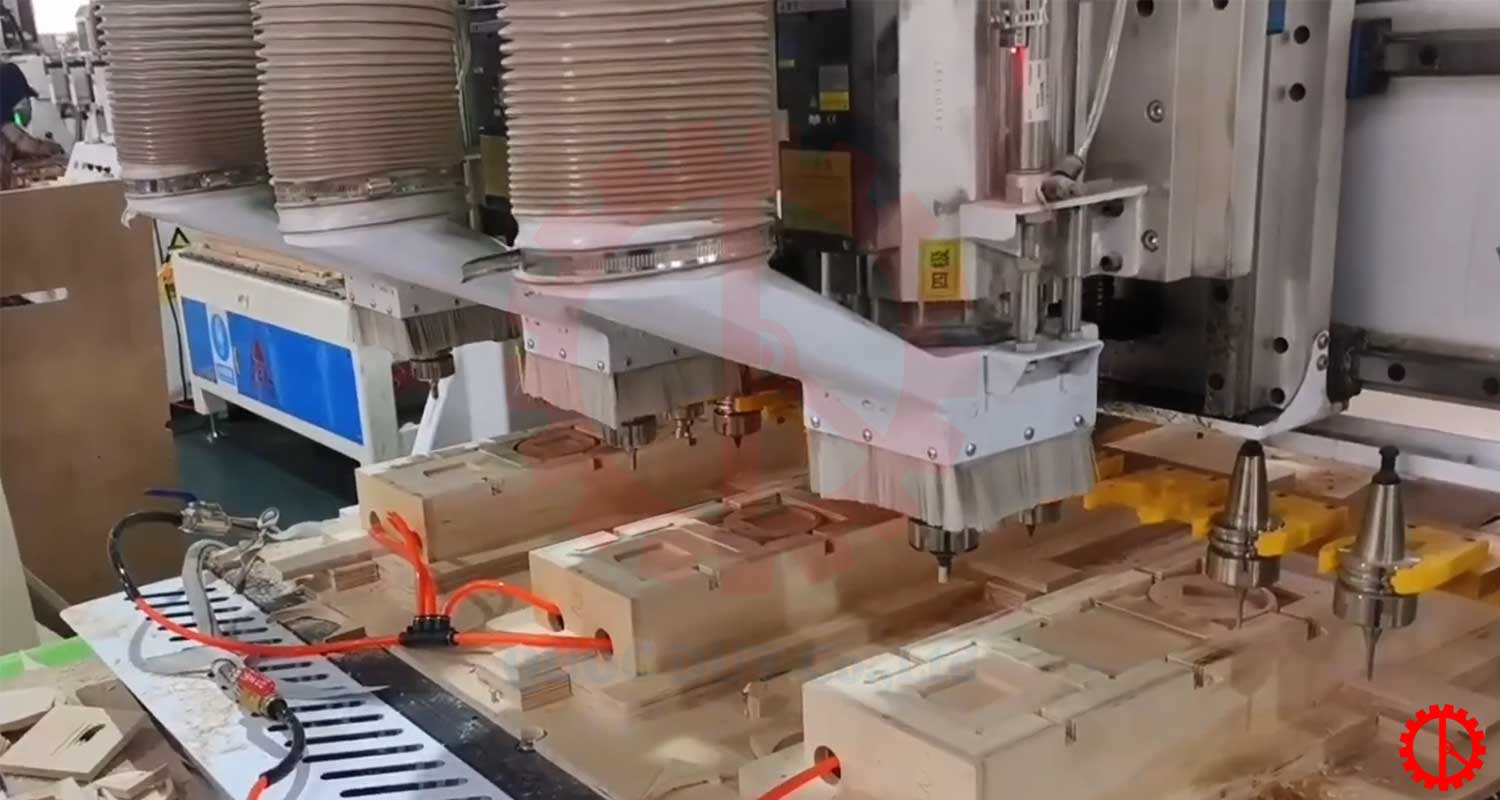

The 3 Independent Spindle CNC Router with an automatic tool changer is the ideal solution for production factories that need to process complex workpieces requiring continuous tool changes while maintaining high precision. Featuring three independently operating machining spindles combined with an intelligent automatic tool changer (ATC) system, this machine significantly saves time, boosts productivity, and minimizes operational errors.
Key Features of the 3 Independent Spindle CNC Router
Multi-functional design, efficiently performs various operations such as milling, drilling, surface engraving, automatic boring, profile cutting, and panel sizing on a single machine.

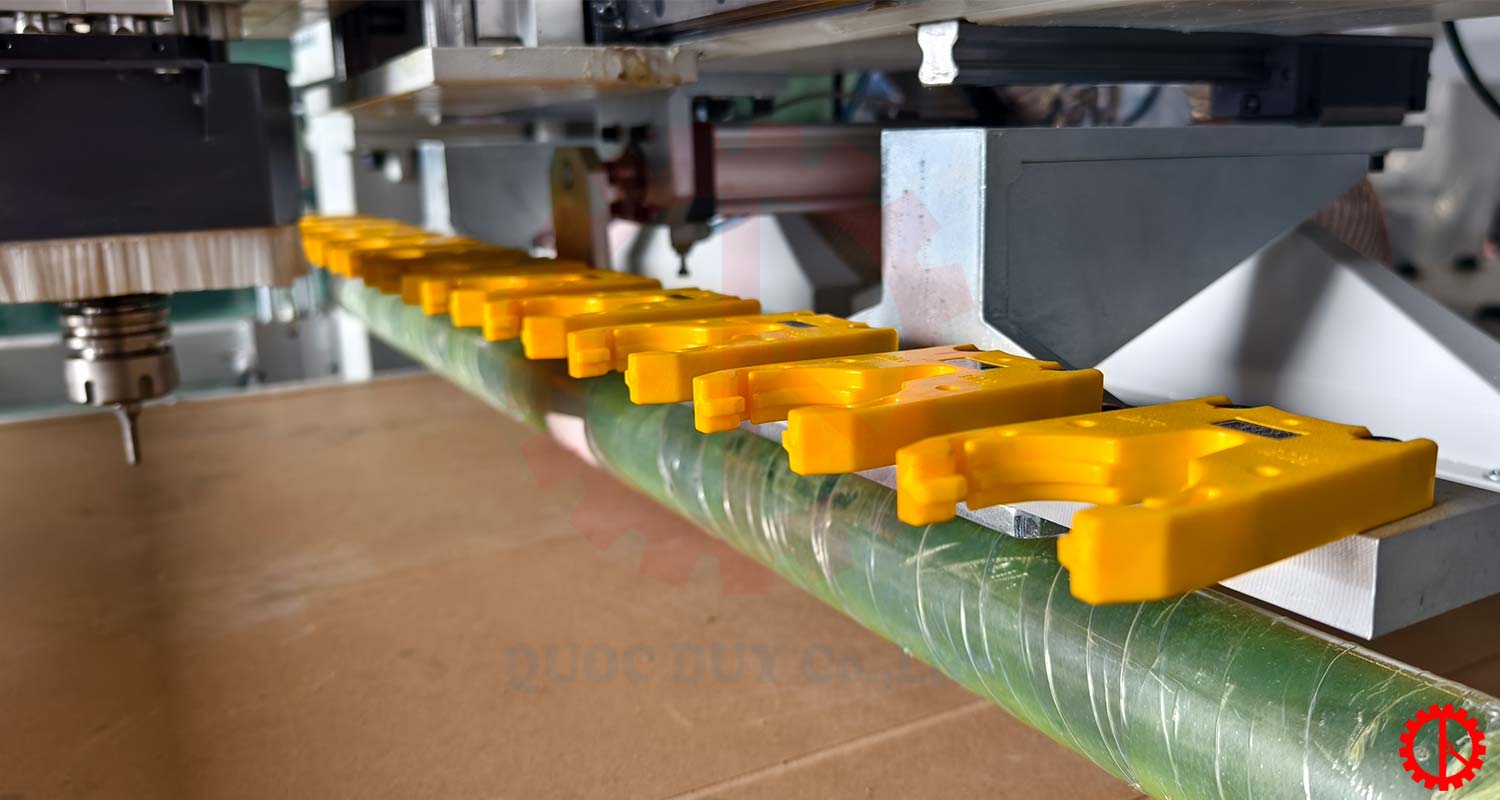

Equipped a 12 position automatic tool changer magazine, enabling flexible tool switching—highly suitable for complex products requiring continuous tool transitions during machining.

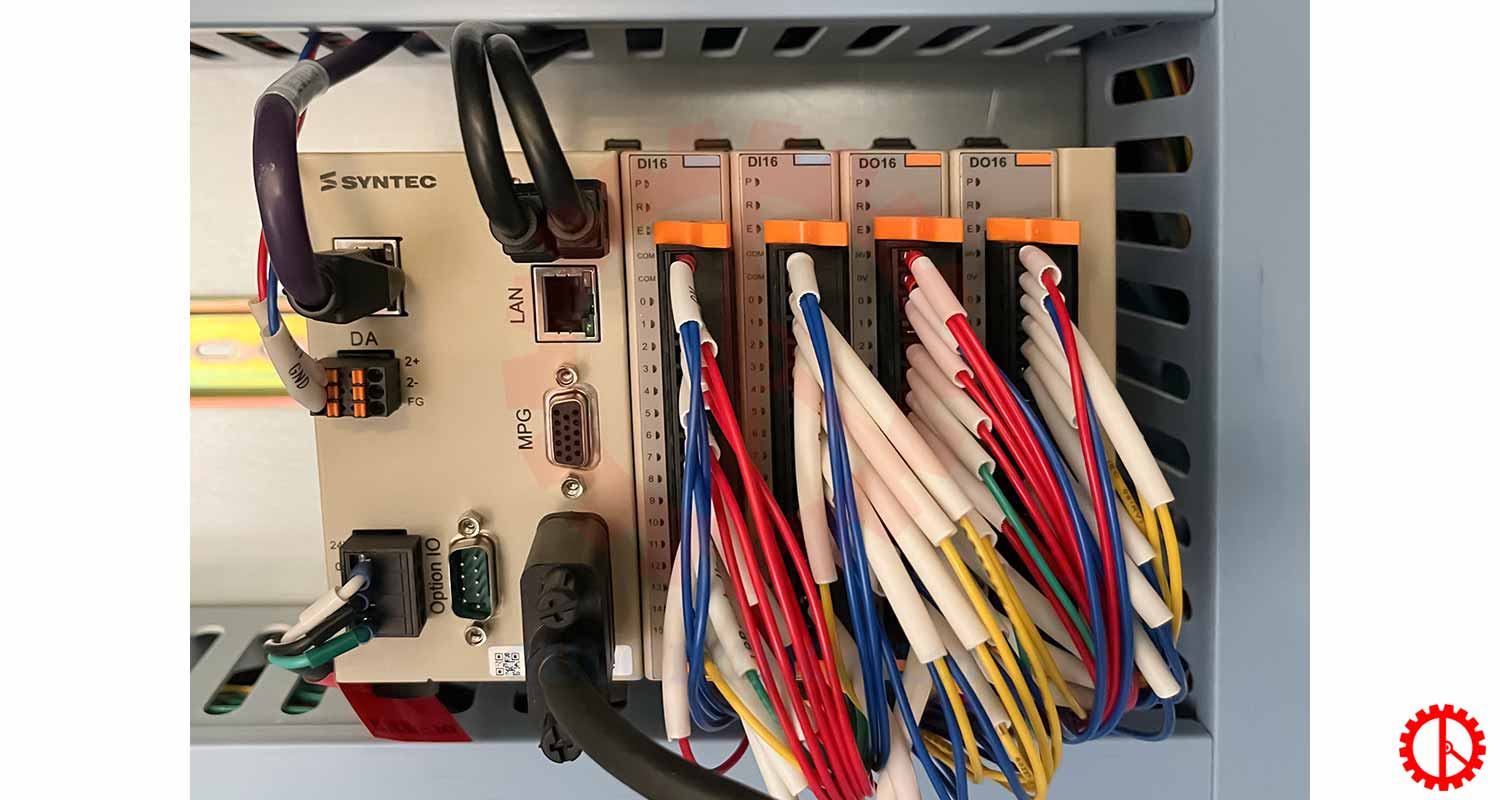

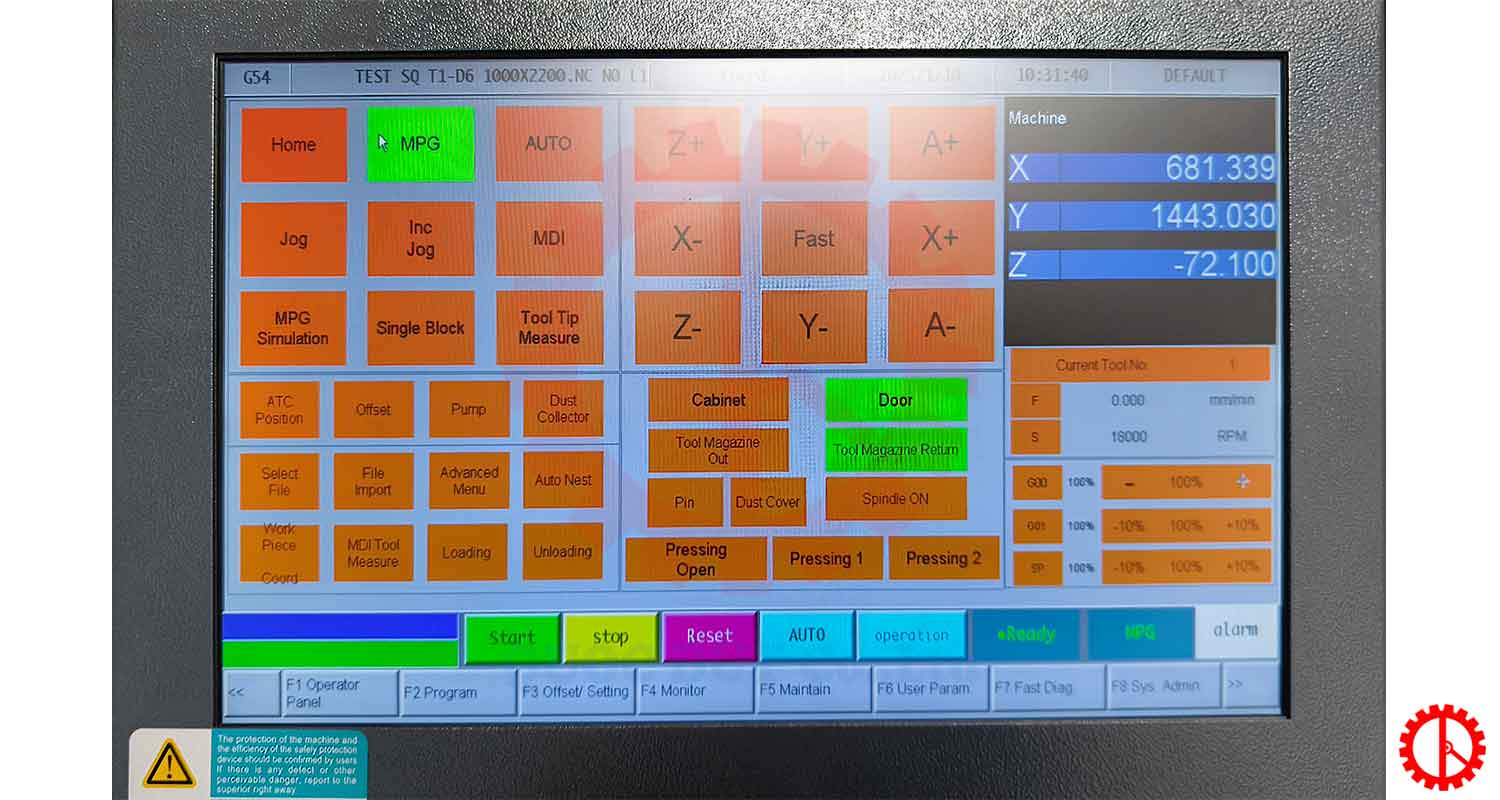

Features SYNTEC control system, a user-friendly interface that is easy to operate, supporting high-precision processing according to pre-programmed configurations.

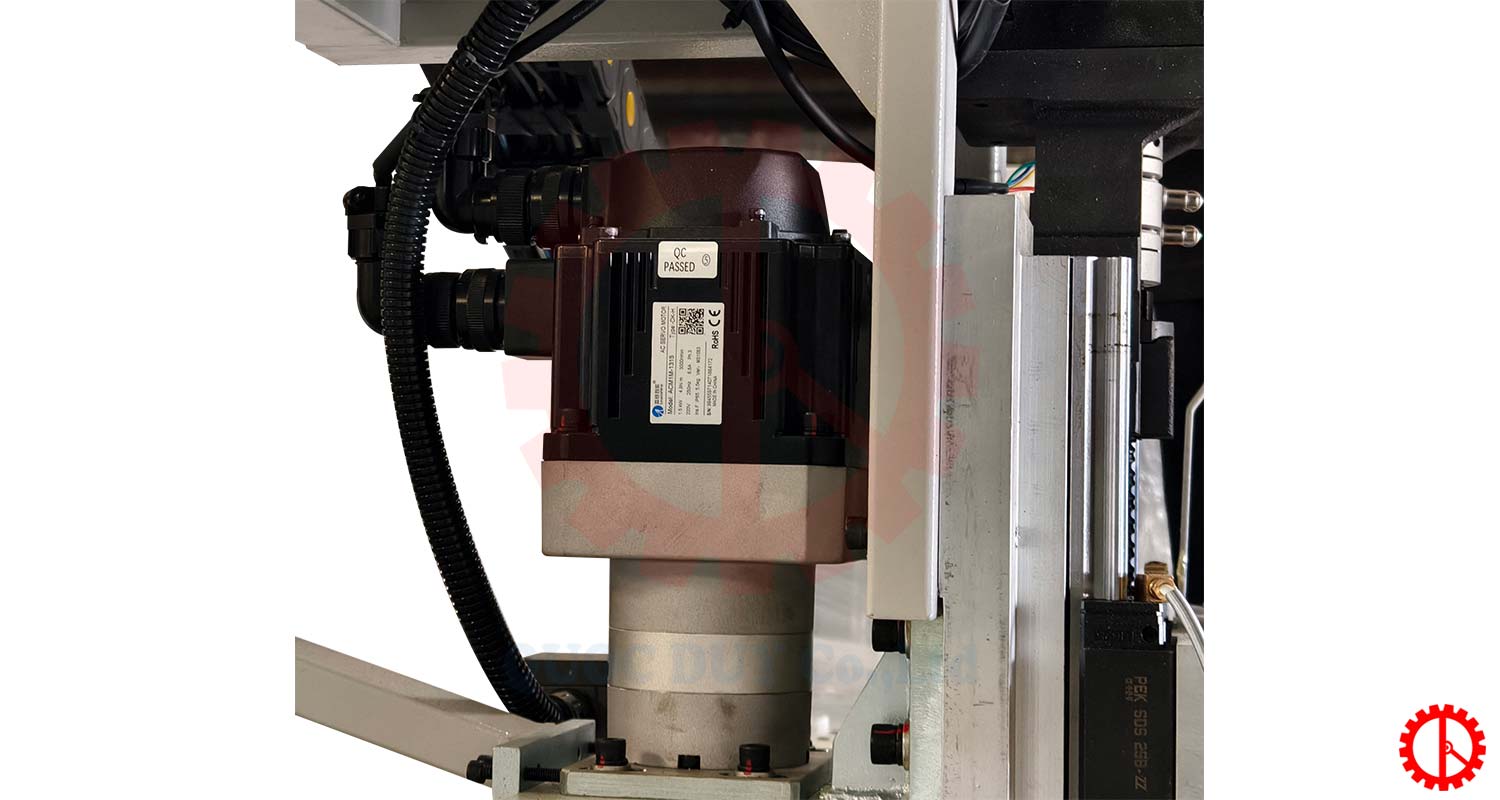

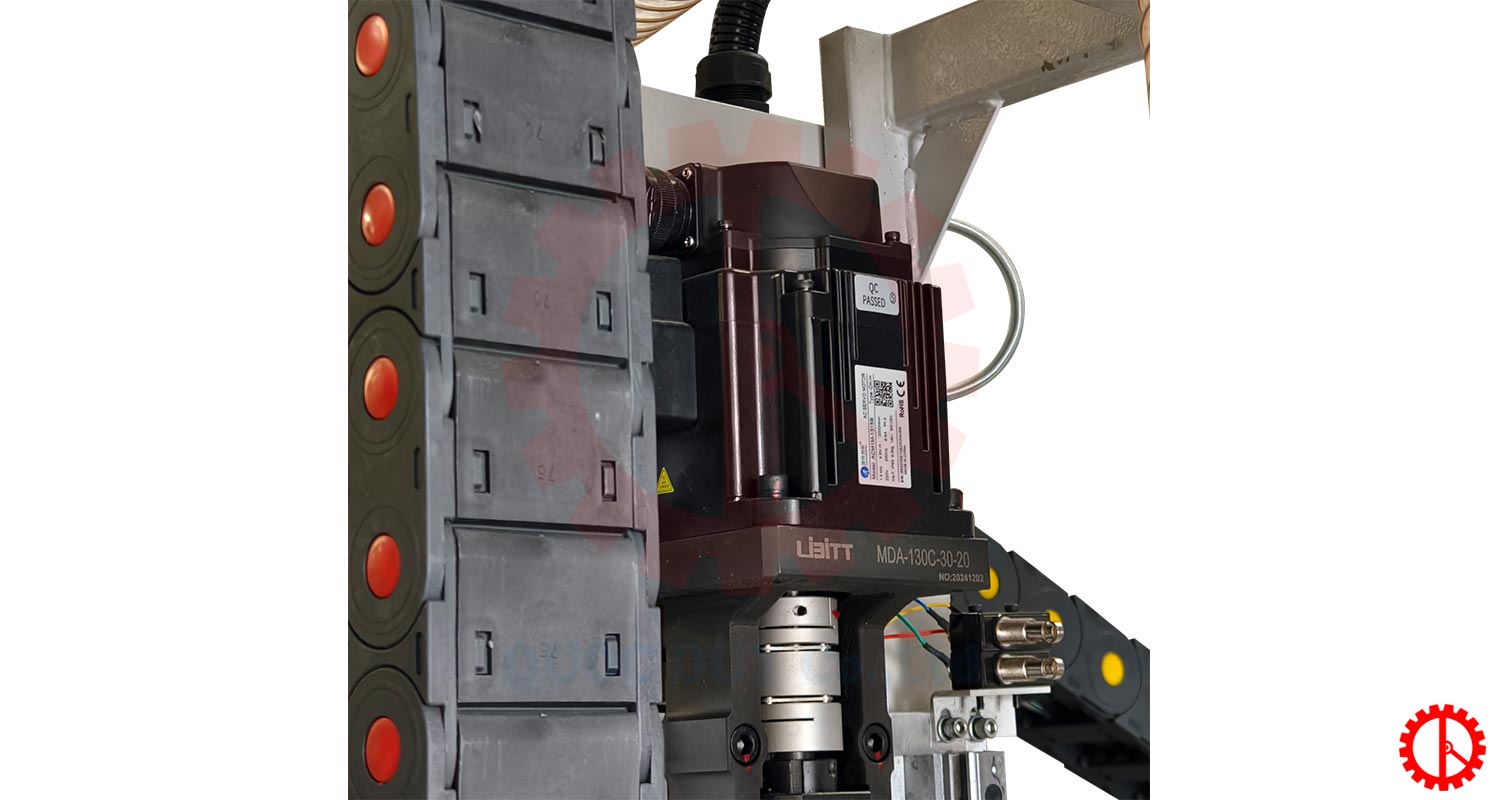

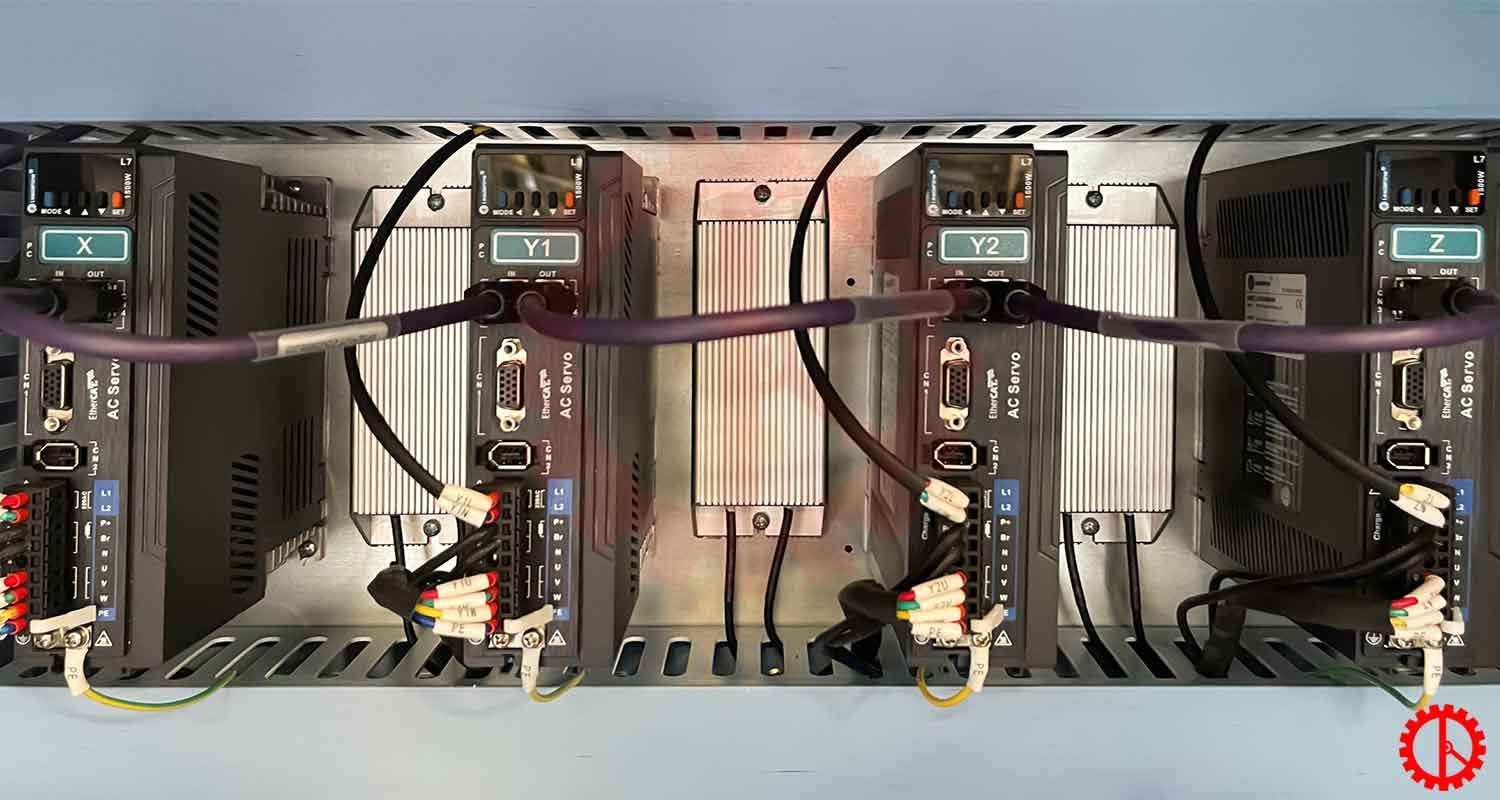

LEADSHINE servo motor & driver provides rapid response speeds, high accuracy, and stable operation over extended working hours.

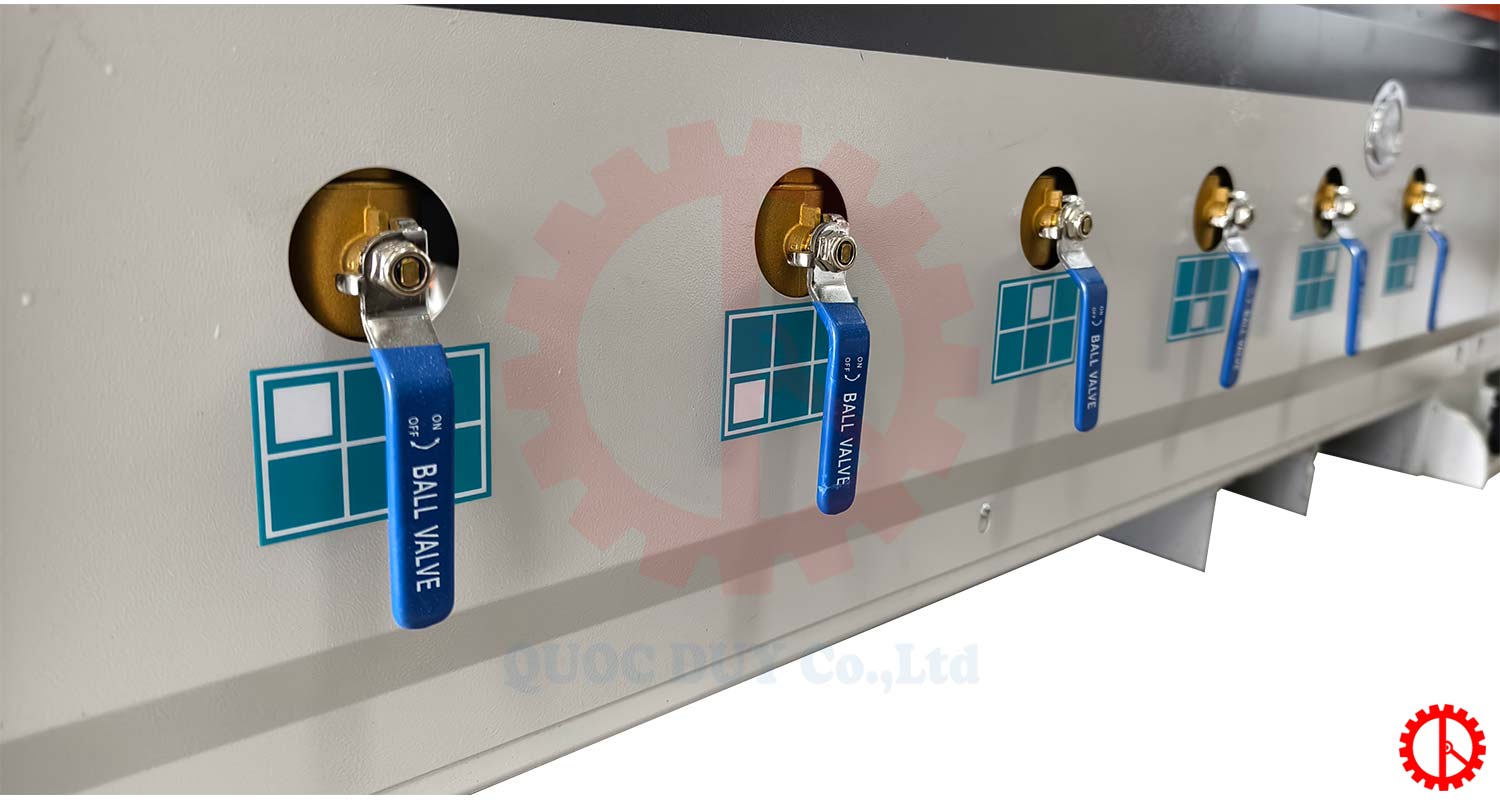

Vacuum working table, holds the workpieces securely and accurately in place during heavy-duty cutting operations.
ISO 30 tool holders, combined with the 12-position tool changer rack to offer versatile support for diverse machining programs.

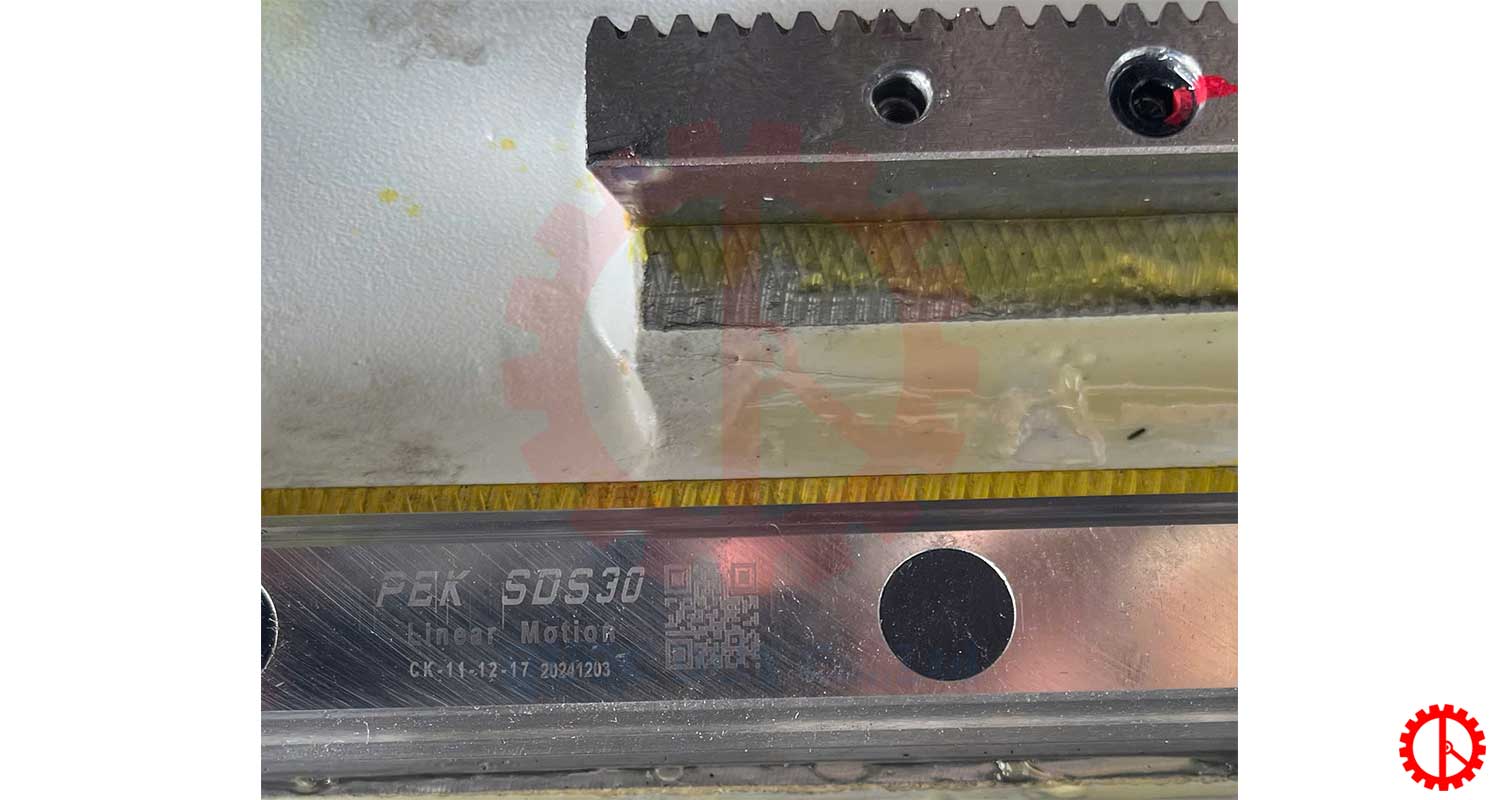

Transmission mechanism: The X and Y axes utilize a precise rack and pinion system, while the Z axis uses a high-grade ball screw, ensuring long-term mechanical durability and accuracy.
Technical Specifications
| X-axis travel | 1300 mm |
| Y-axis travel | 2800 mm |
| Z-axis travel | 200 mm |
| X, Y, Z servo motor | 1.5 kW |
| Maximum travel speed | 50 m/min |
| Maximum working speed | 20 m/min |
| Spindle | 9 kW x 3 (HQD) |
| Spindle speed | 0 – 24,000 RPM |
| Vacuum pump | 7.5 kW |

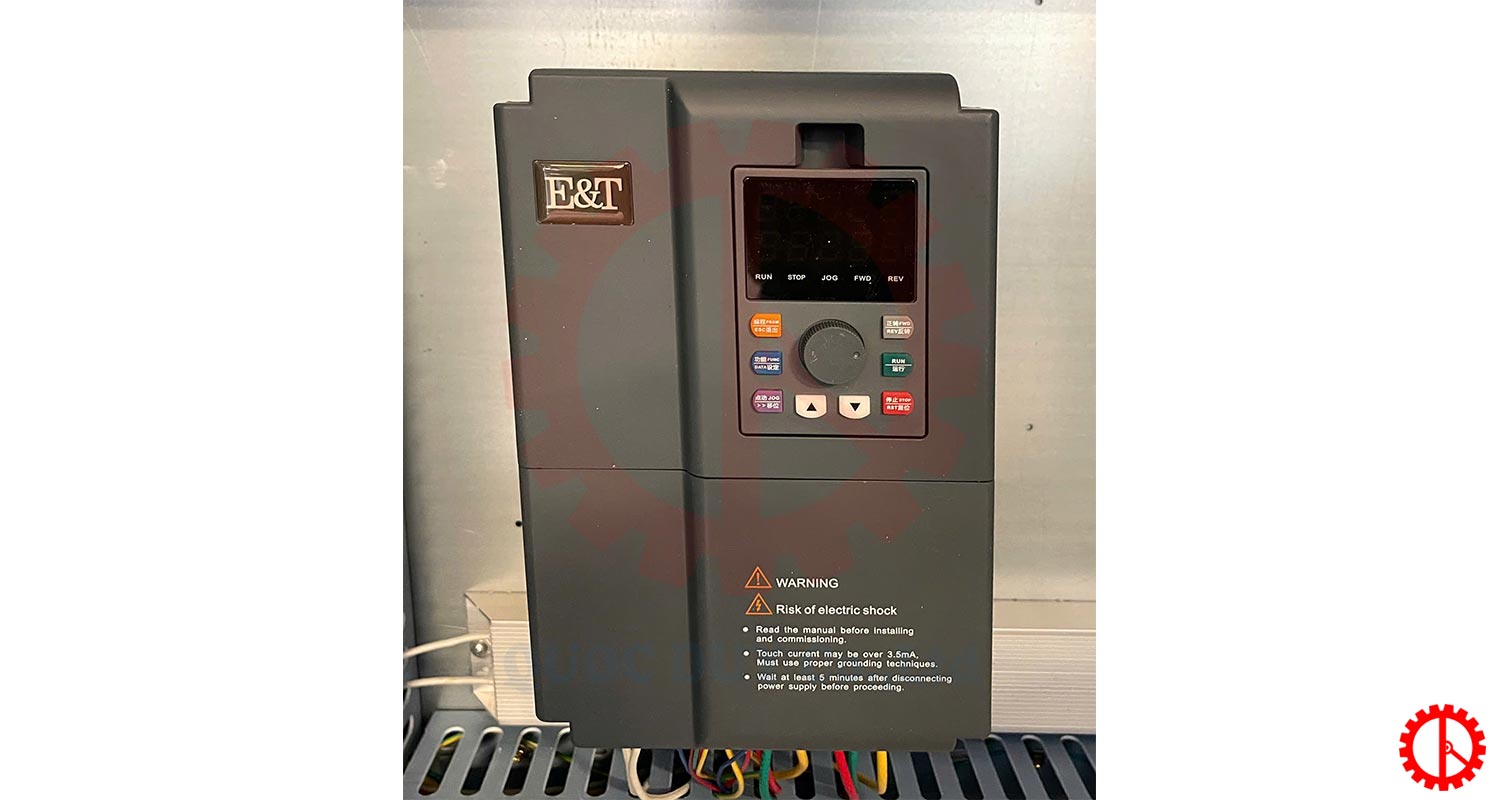

| Inverter | 11 kW |
| Compressed air | 0.6 – 0.8 MPa |
| Accuracy | ±0.05 mm |
| Command code | G code |
| Voltage | 380V / 50Hz |
| Axis driving method | X/Y: Rack & Pinion, Z: Ball screw drive |

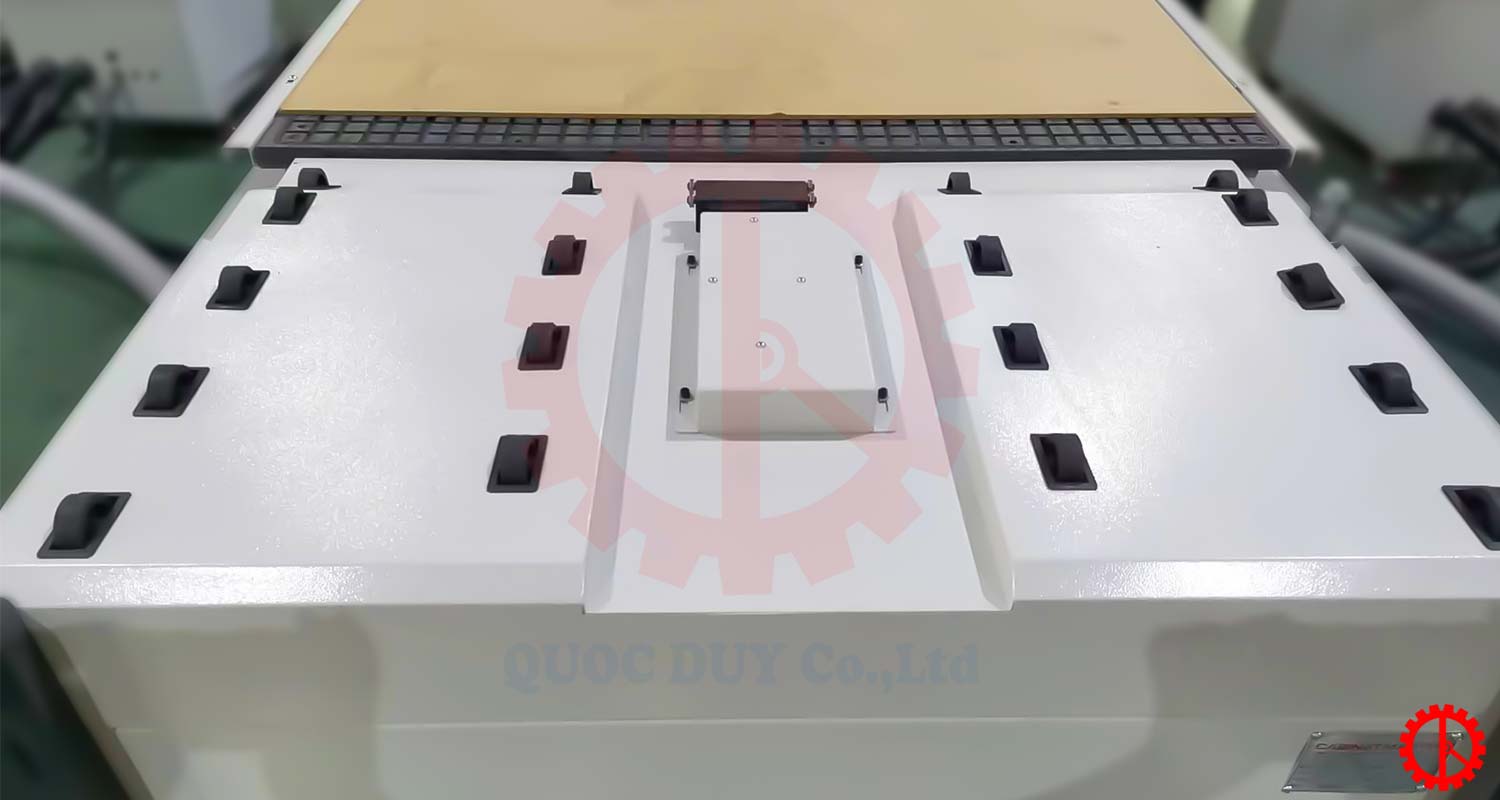

| Feeding roller table | Equipped |
| Panel gripper/pusher | Equipped |
| Weight | Approx. 2500 kg |
| Machine dimensions | 3740 x 2180 x 2290 mm |
| **Loading and unloading tables are not included. | |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice, provided that such modifications do not alter the standard functionality and performance of the machine.
