3 axis brush sander – SM 1300-3S is ideal for sanding a variety of shapes including flat, convex, concave, slots, and edges, resulting in a smooth and even finish.
Features of 3 axis brush sander
- Vertical and horizontal sanding – specially designed for solid doors, composite doors, molded doors, and interior details.
- The irregular curve sanding machine suitable for all needs from coarse to fine scrubbing. Rub smooth – smooth – even – perfect beauty.
- Suitable for many shapes and profiles: flat, convex, concave, slit, edge.
- Scrubs without blemishes, no white edges, no fading when priming.
- Reduce costs, and double productivity.
- Specialized for scrubbing before priming and scrubbing to remove primer.
Structure of 3 axis brush sander

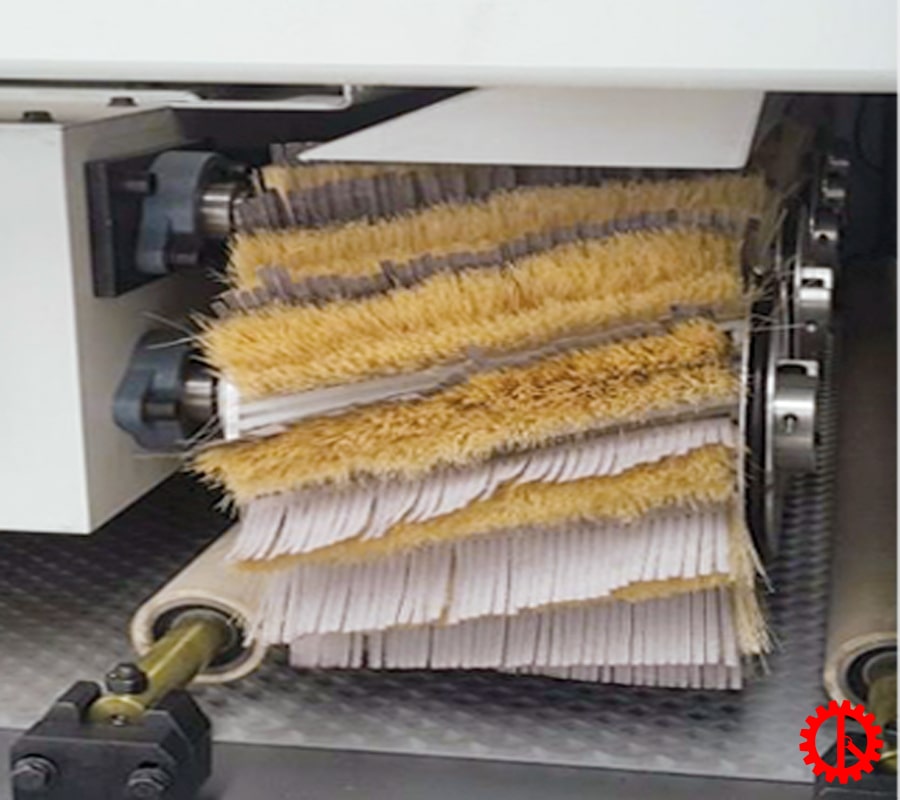

- 2 brush sanding shafts rotate vertically on the conveyor belt.

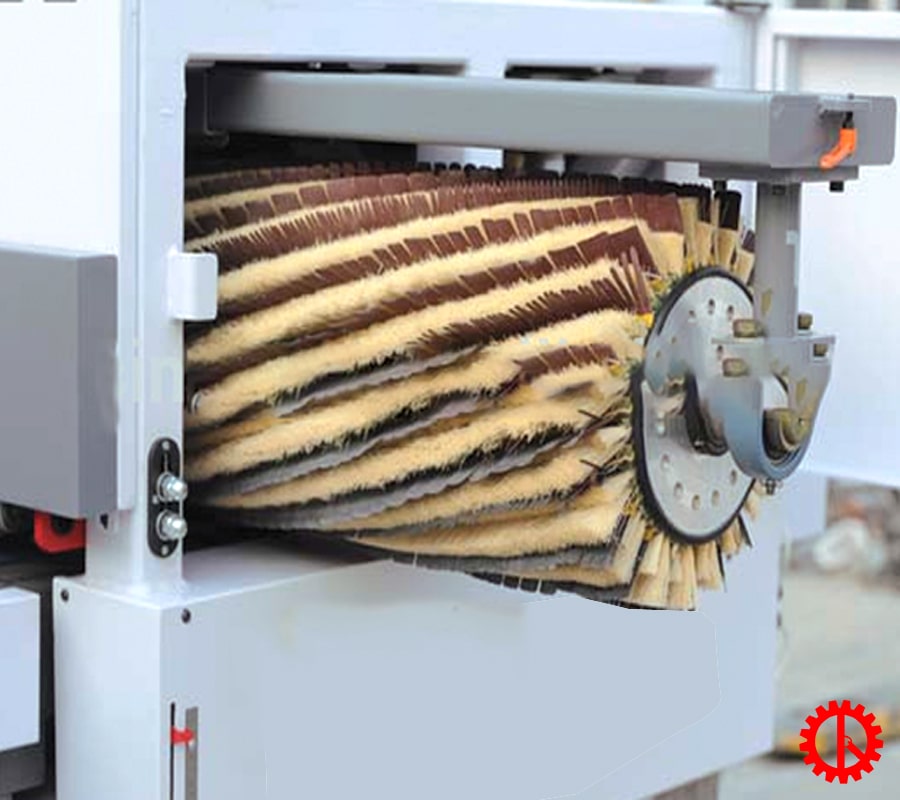

- 1 row of shafts (4 brush wheels) for flexible, horizontally rotating sanding brushes.
Specifications of 3 axis brush sander
| Max. Working width | : 1300 mm |
| Max. Working thickness | : 100 mm |
| Conveyor motor | : 1.5 kw |
| Conveyor speed | : 6 – 12 m/min |
| Vertical roller motor | : 2 x 1.5 kw |
| Vertical roller number | : 2 set |
| Dia. Vertical roller | : Ø 380 |
| Disk running machine motor | : 1 x 0.75 Hp |
| No. Of disk | : 14 pcs |
| Total power | : 11.5 kw |
| Blow dust speed | : 22 – 30 m/s |
| Net weight | : 3300 kgs |
| Machine size | : 2300 x 2350 x 2000 mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
View more: Rotation brush sander machine – SM 1300-4S
VIDEO OF OPERATION OF A 3-RROW AXLE BRUSH SANDING MACHINE
Latest 3 axis brush sander price
At Quoc Duy, we offer a wide range of sanding machine, including rotation brush sander machine, 3-sided sanders for wooden door frames, 4-axis rotation brush sander machines, and 6-inch brush sanders. Our experienced sales specialists will work with you to find the perfect solution that meets your specific needs and budget.
