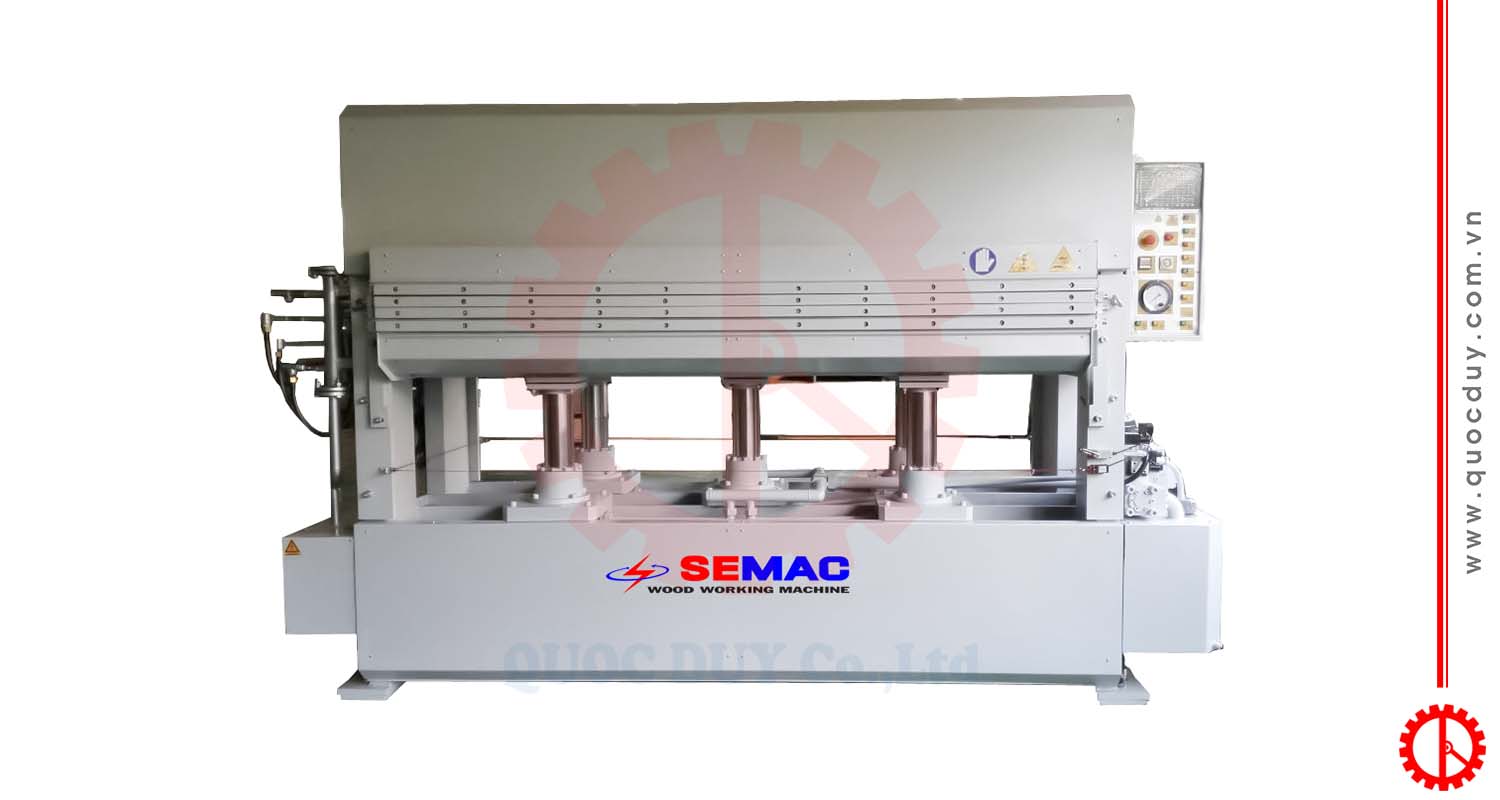

200 ton 5 opening hot press (1300 × 4000 mm working table) – MY214X13/20(5)ZRC features a powerful pressing force and a modern heating system, delivering outstanding efficiency in panel pressing and surface lamination for veneer, laminate, melamine, or PVC film.
Features of 200 ton 5 opening hot press (1300 × 4000 mm working table) – MY214X13/20(5)ZRC
Powerful 200-Ton Pressing Force: Ensures workpieces are tightly bonded, resulting in a perfectly flat, beautiful surface without warping.
5-Opening Work Design: Facilitates multiple-panel pressing simultaneously, significantly boosting production capacity.
Spacious 1300 × 4000mm Working Platen: Offers great flexibility in handling various product sizes, from small to large-scale panels.
Thermal Oil Heating System: Delivers consistent and stable heating while ensuring operation safety and energy efficiency.
Automated Operation: Lowers labor requirements and optimizes overall manufacturing efficiency.
Specifications of 200 ton 5 opening hot press (1300 × 4000 mm working table) – MY214X13/20(5)ZRC
| Number of Openings | 5 |
| Maximum Pressing Force | 200 Tons |
| Specific Pressure | 3.8 kgf/cm² |
| Hot Platen Size | 4000 × 1300 × 42 mm (Mylar Film Covered) |
| Hot Platen Opening | 100 mm |
| Hydraulic Cylinders | 5 × Ø150 mm |
| Maximum Temperature | 120°C |
| Heating Method | Steam Boiler (Provided by Customer) |
| Installed Power | 4 kW |
| Press Closing Speed | 34 mm/s |
| Opening System | Automatic |
| Voltage | 380V/50Hz |
| Machine Dimensions | 4700 × 1340 × 3116 mm |
Hydraulic oil and heat transfer oil are not included.
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
Where to invest in a reliable and high quality 200t 5 opening hot press machine ?
Are you wondering where to buy a high-quality 200T 5-opening hot press machine to both guarantee production performance and optimize costs? Choosing a reputable supplier is the decisive factor for the machine’s durability, stability, and efficiency throughout its operation.
With over 20 years of experience in the woodworking machinery industry, Quoc Duy is proud to be a trusted partner, delivering state-of-the-art hot press machines with powerful pressing force, large working platens, and dedicated after-sales services. Investing in a press machine at Quoc Duy not only secures a premium piece of equipment but also provides you with optimal manufacturing solutions that boost productivity, ensure production schedules, and drive sustainable growth for your business.
Learn more about our other press machines with similar functions: 200 ton 5 opening hot press machine – MY214X9/20(5)ZRC
To receive the fastest quotation for our 200T 5-opening hot press machine, please contact Quoc Duy directly via the following information:
- Email : info@quocduy.com.vn
- Hotline : +84 903 600 113
You are also welcome to visit our showroom and experience the machine in operation at: 401 To Ngoc Van Street, Thoi An Ward, Ho Chi Minh City, Vietnam.
