12 spindle 48 tool CNC turning milling machine – SM 12X4SE D1200 is an advanced machining solution designed to meet the demands of producing highly complex parts with exceptional precision. Equipped with a flexible 12-spindle system, the machine is capable of processing up to 12 workpieces in a single cycle, fully optimizing production time and maximizing efficiency. The 48-position tooling system allows for rapid tool changes, making it perfectly adaptable to a wide range of diverse machining requirements.
Features of 12 spindle 48 tool CNC turning milling machine – SM 12X4SE D1200

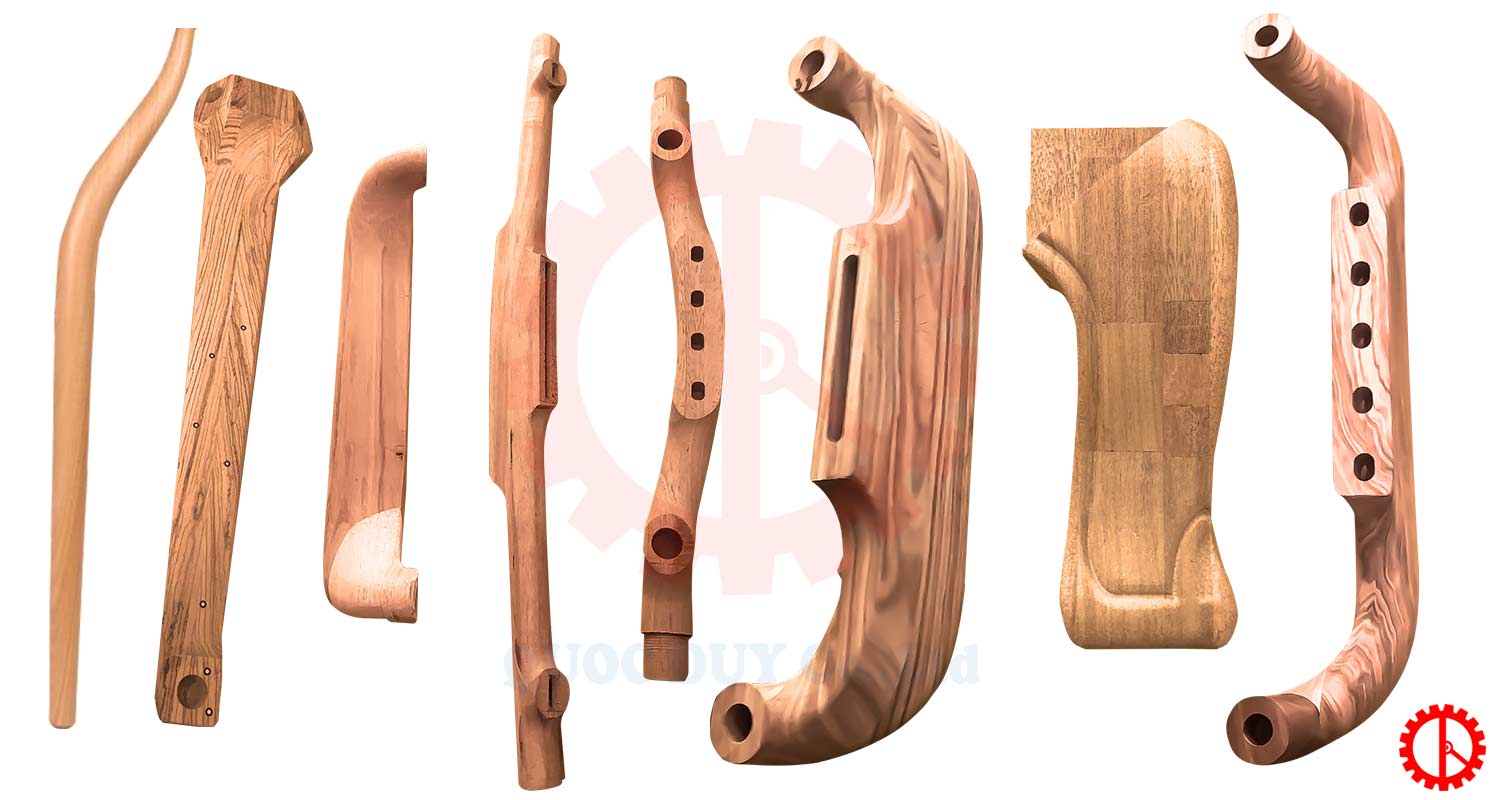

Specialized Table and Chair Leg Machining: Expertly handles chair and table legs with the capability to perform milling, turning, carving, and complex profile processing with maximum efficiency.

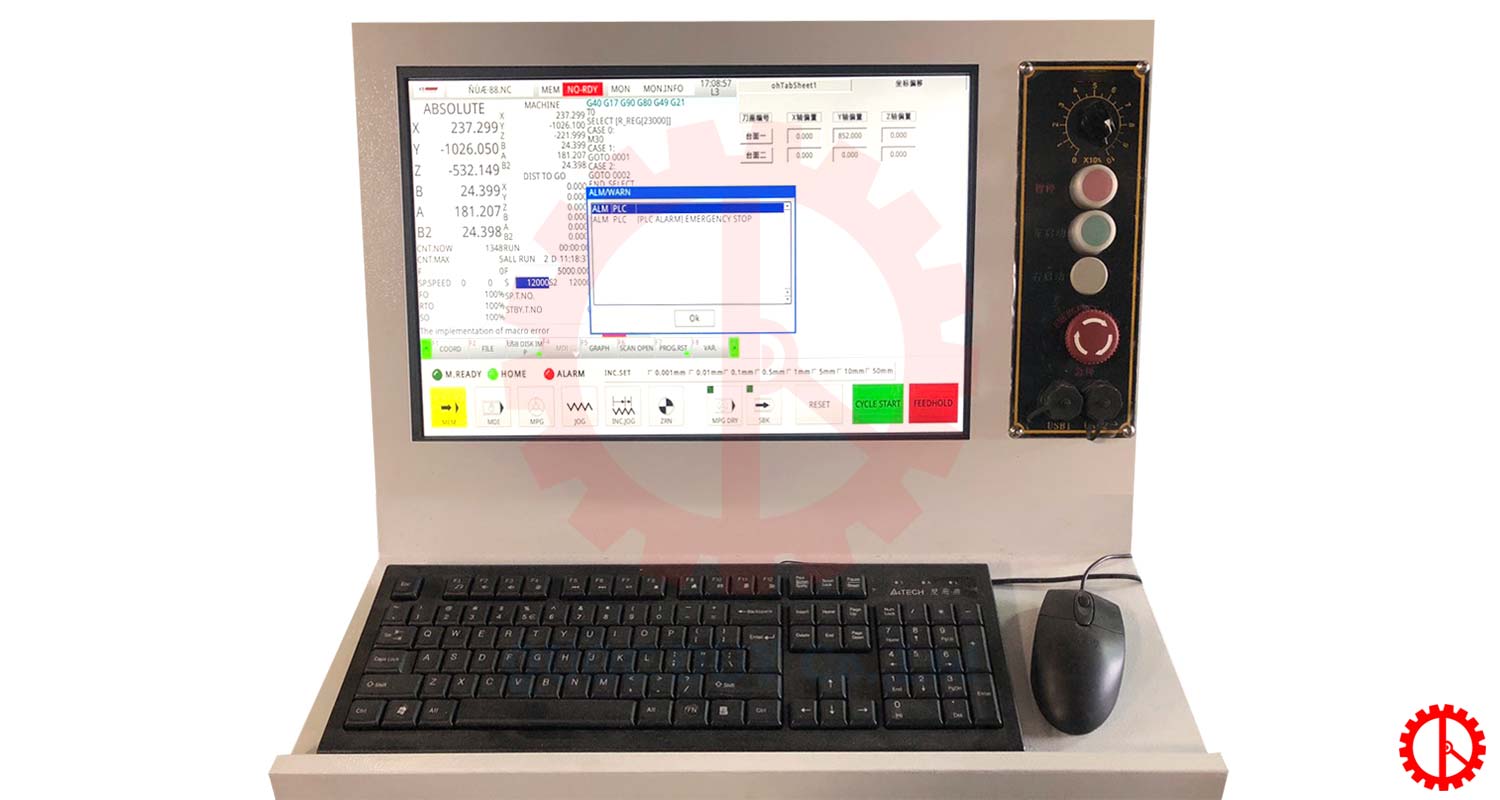

Stable Taiwan LNC Control System: Equipped with a highly stable LNC (Taiwan) control system that offers a user-friendly interface and effortless operation.

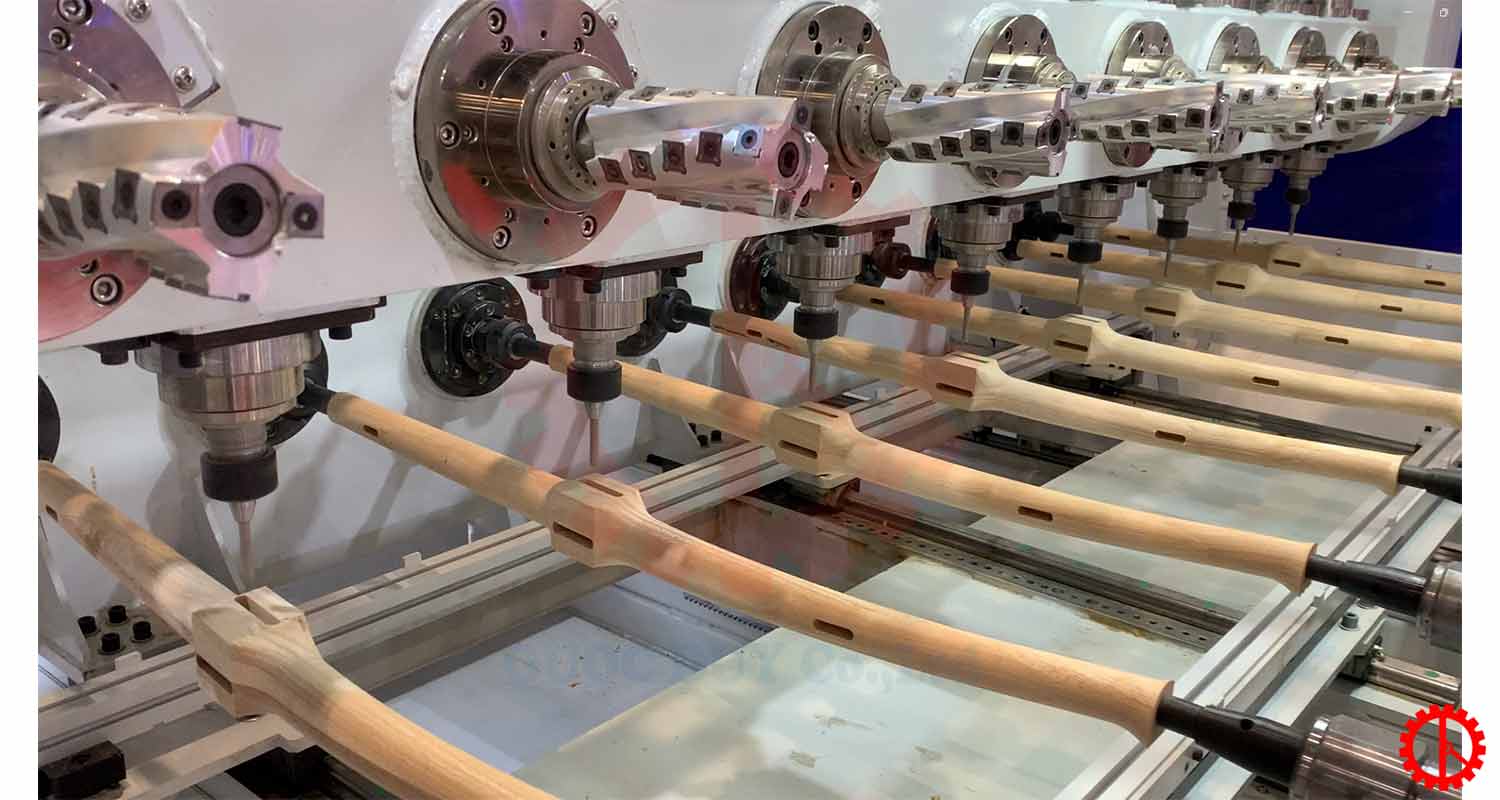

High-Efficiency 48-Tool Head Design: Features a 48-tool head configuration capable of processing 12 workpieces simultaneously, fully optimizing operational efficiency.
Versatile Tool Mounting: Supports the installation of a wide variety of cutting tools, drastically shortening tool-change times and driving productivity to its peak.
High-Speed Machining: Delivers high-speed processing while guaranteeing exceptional precision and accuracy.
Specifications of 12 spindle 48 tool CNC turning milling machine – SM 12X4SE D1200
| Working Area | 1200 × 230 × 230 mm |
| Maximum X-axis Travel | 1800 mm |
| Maximum Y-axis Travel | 1200 mm |
| Maximum Z-axis Travel | 400 mm |
| Maximum A-axis Travel | ±180° |
| Maximum B-axis Travel | Unlimited |
| Maximum X-axis Travel Speed | 30 m/min |
| Maximum Y-axis Travel Speed | 30 m/min |
| Maximum Z-axis Travel Speed | 15 m/min |
| Spindle Motor | 5.5 kW × 12; 3.7 kW × 12 |

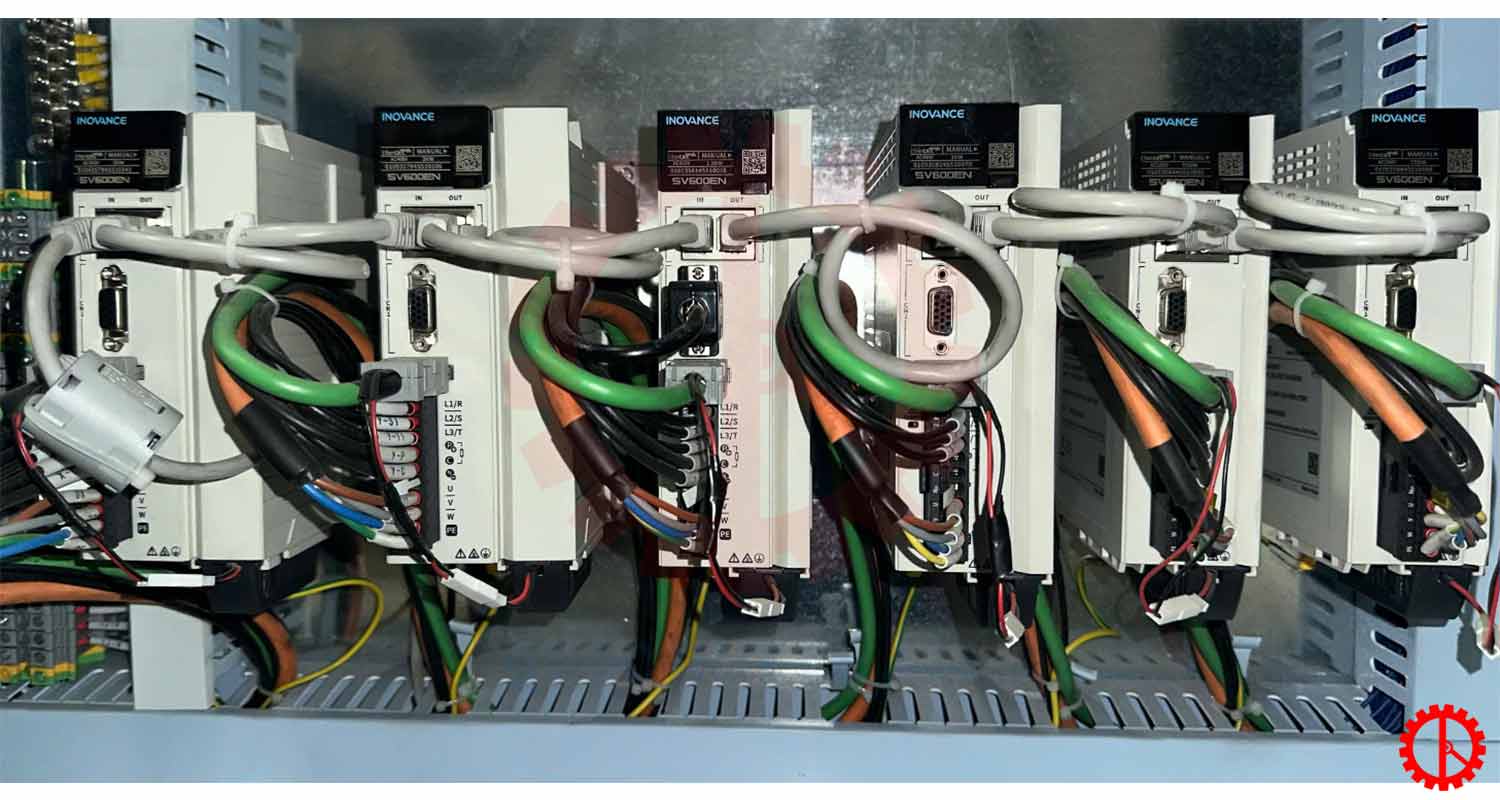

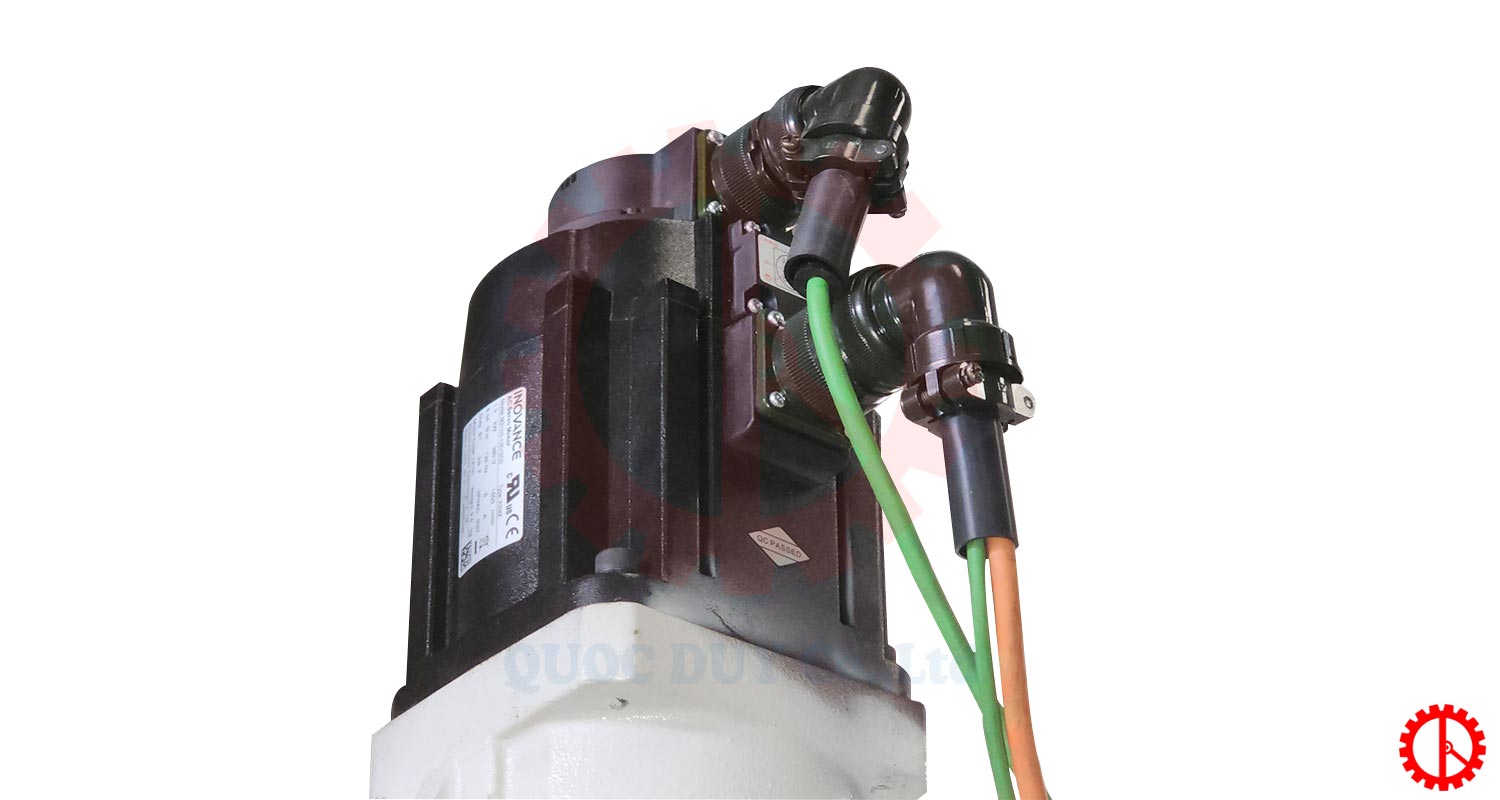

| Z-axis Servo Motor | 1.3 kW |
| Y-axis Servo Motor | 2 kW |
| X-axis Servo Motor | 1.8 kW |
| A-axis Servo Motor | 1 kW |
| B1-axis Servo Motor | 0.75 kW |
| B2-axis Servo Motor | 0.75 kW |

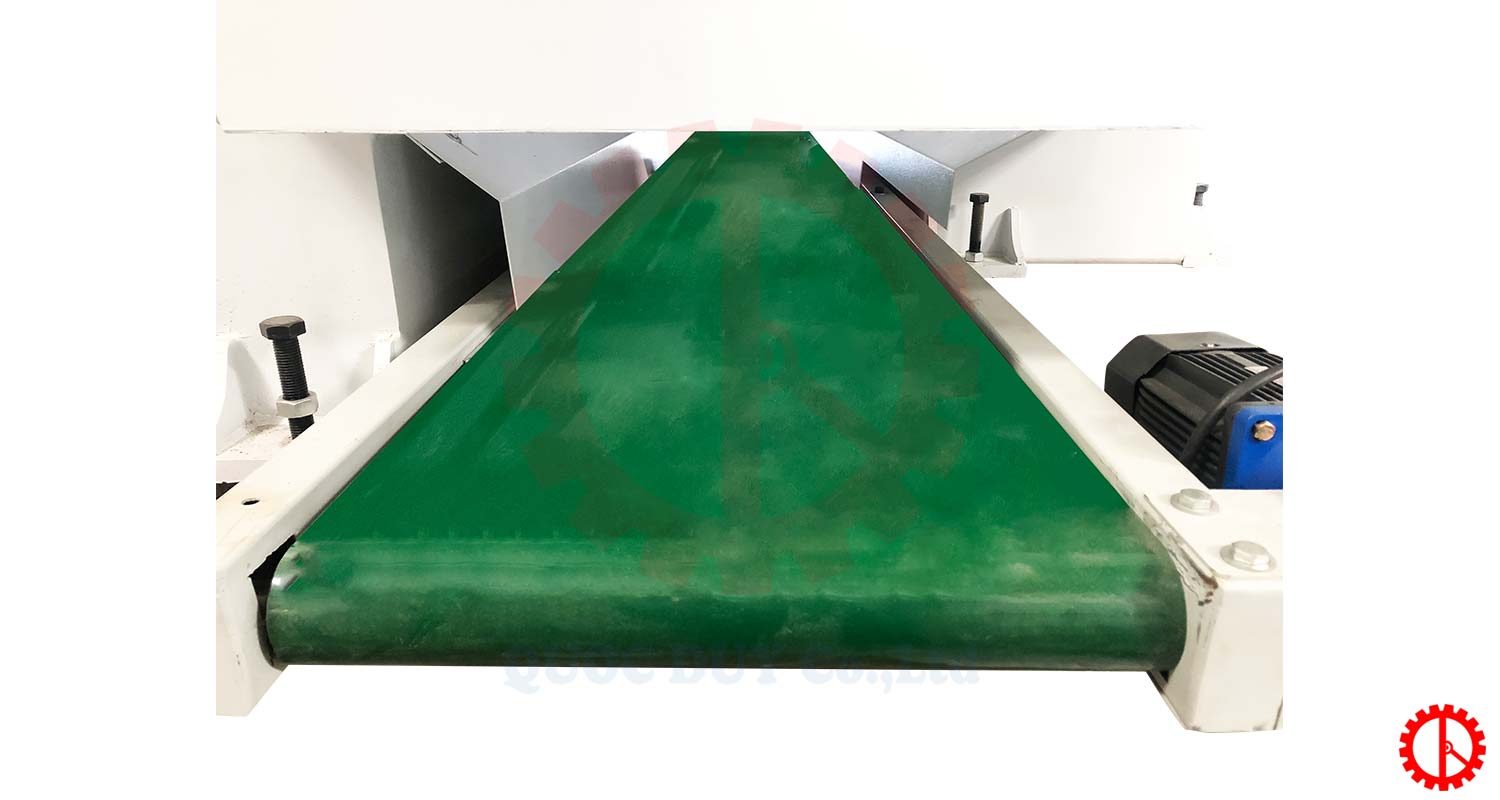

| Conveyor Drive Motor | 0.12 kW |
| Voltage | 380V/50Hz |
| Total Power | 76 kW |

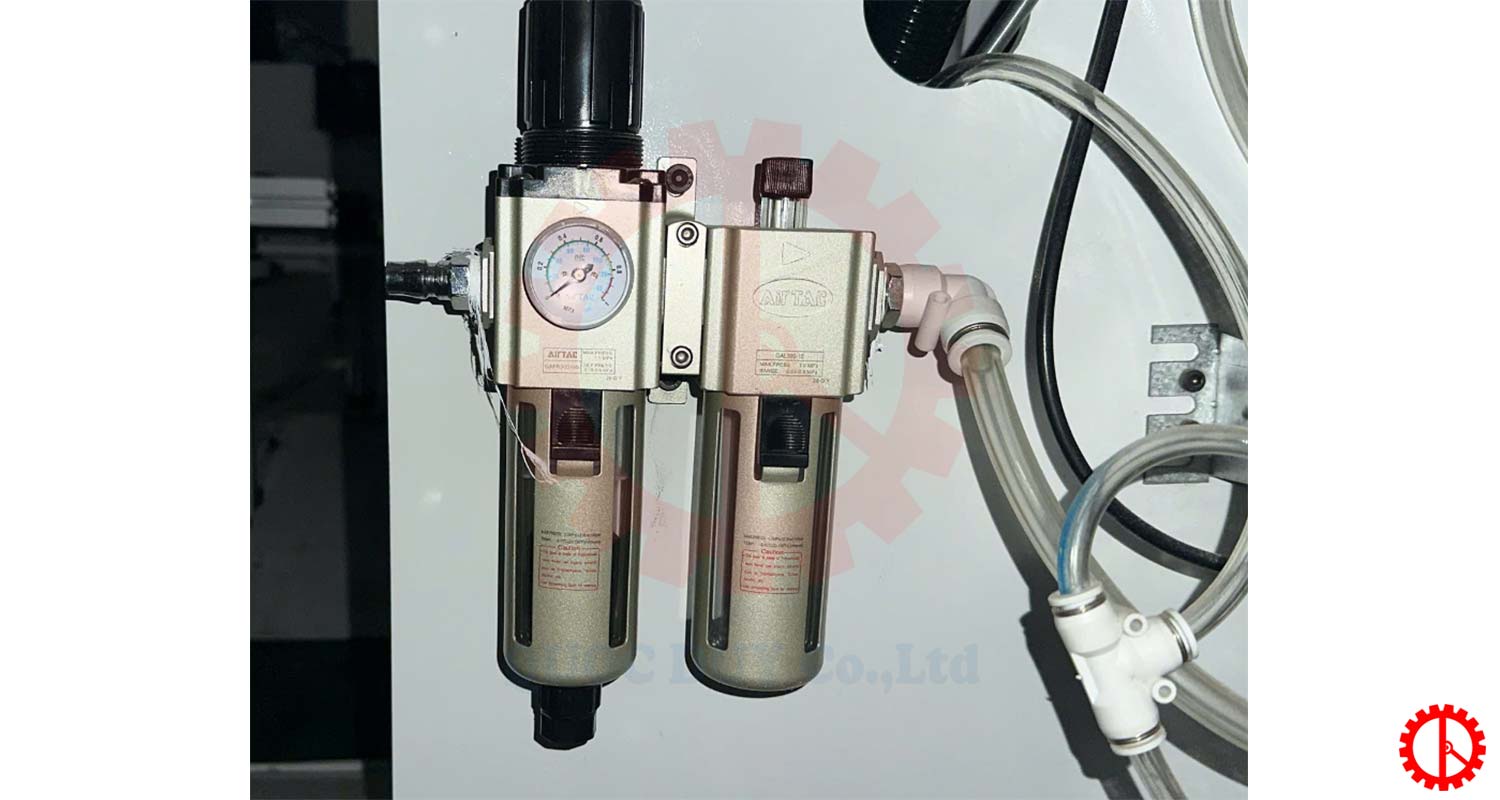

| Air Pressure | 0.6 MPa |
| Weight | Approx. 6500 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
Operation Video 12-SPINDLE 48-TOOL CNC TURNING & MILLING MACHINE – SM 12X4SE D1200
Explore state of the art CNC lathes for versatile wood machining
Quoc Duy supplies a state-of-the-art range of CNC lathe systems designed to satisfy all machining demands, from simple shapes to complex profiles. Leveraging modern technology, our CNC lathes deliver high-precision machining for round timber components, table legs, chair legs, and staircase pillars ensuring flawless finish quality and exceptional processing speeds.
In addition to our 12-axis 48-tool 3D CNC turning-milling machine line, we offer a variety of other options, such as: Automatic Wood Lathe Machine – CW 1020, 32 Axis CNC Wood Lathe 1 Tables – KW 32S D1200, Turning Groove Forming Shapers – CGS 120,…tailored to fit any production scale. Every machinery line is engineered with an optimized design, guaranteeing stable operation while significantly minimizing manufacturing costs.
Explore Quoc Duy’s CNC lathe systems today to find the perfect solution for your workshop. Contact us now for an in-depth consultation and to receive our best pricing offer!
Own a 3D CNC milling machine today to upgrade your machining workflow
Are you looking for an efficient, high-precision, and cost-effective machining solution? A wood lathe is the perfect choice to upgrade your production workflow, allowing you to rapidly process complex components such as chair legs, table legs, wooden statues, and molds with exceptional accuracy.
Equipped with state-of-the-art technology and intelligent control systems, these machines offer effortless operation and a massive boost in productivity. The flexible multi-axis design combined with automatic tool-changing capabilities drastically shortens machining cycles and elevates final product quality.
