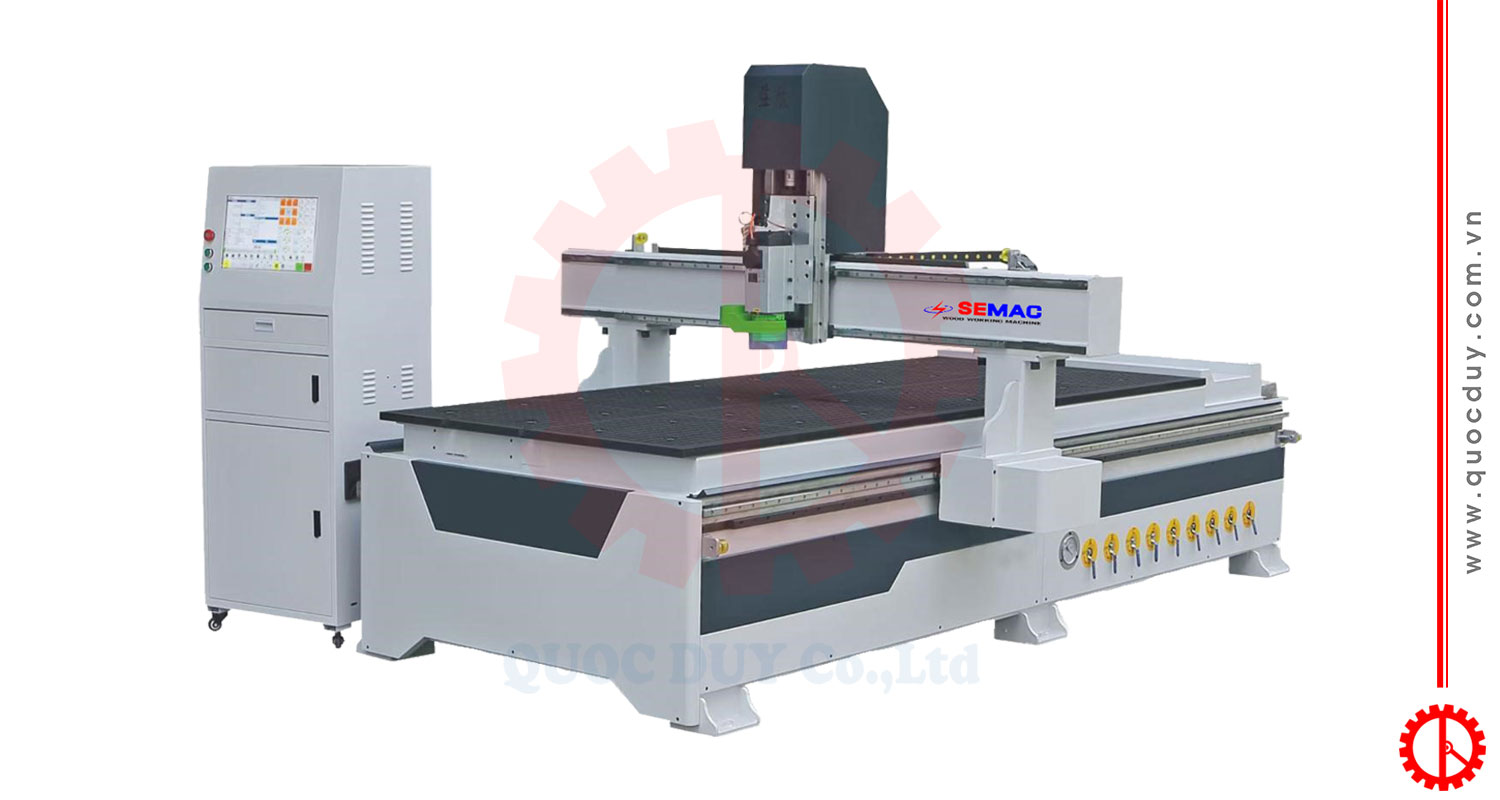

Single-Head Router Milling Machine for 1.8x3m Panels is designed to cut, mill, and shape large industrial wood panels with precision. Featuring a working table up to 1.8x3m, this machine is ideal for processing cabinet doors, decorative wall panels, engineered wood doors, and other large-scale furniture components. Equipped with a high-power router spindle, it ensures stable operation and can be customized to meet the specific production needs of each workshop.
Outstanding Features of the Single-Head Router Milling Machine for 1.8x3m Panels
Rigid steel frame structure prevents deformation, ensuring high machining accuracy.
Hiwin linear guide rails (Taiwan) offer superior precision, high load capacity, and long service life.
X and Y axes use imported BORCH helical rack and pinion system (Germany); the Z axis uses TBI ball screw system (Taiwan) for smooth, precise movements.
Resume function remembers the stopping position to continue processing after a power outage and estimates processing time for uninterrupted operation in case of unexpected incidents or for next-day production continuity.
Technical Specifications of the Single-Head Router Milling Machine for 1.8x3m Panels
| X axis travel | : 1800mm |
| Y axis travel | : 3000mm |
| Z axis travel | : 350mm |
| Spindle speed | : 0 – 24,000 rpm |
| Spindle motor power | : 6kW |
| Maximum idle running speed | : 30m/min |
| Processing speed | : 0 – 18m/min |
| Repeat positioning accuracy | : ±0.03mm |
| Processing accuracy | : ±0.05mm |
Note: Technical specifications, design details, and machine colors may change without prior notice, but functionality and performance remain unaffected.
Similar Models to the Single-Head Router Milling Machine for 1.8x3m Panels
CNC router machines are highly versatile tools for a wide range of applications, from basic groove milling to intricate surface patterning on wood. Depending on production speed and precision requirements, users can choose single-head, double-head, or automatic tool changer configurations to accommodate high-volume manufacturing needs.
Where to Buy a Single-Head Router Milling Machine for 1.8x3m Panels?
Are you looking for a large-format CNC router to process 1.8x3m panels in Ho Chi Minh City? Choosing the right machine configuration not only enhances productivity but also improves surface finish and accuracy for every cut detail.
Quoc Duy, with over 20 years of experience in supplying woodworking machinery, offers high-performance single-head CNC routers that are easy to operate and suitable for workshops of all sizes. We provide consultation on machine configuration, site surveys, and customized production line designs to match your specific requirements.
