The Single Blade Cutter For Leather Sofa Production With Conveyor Table is designed to handle work with superior efficiency. Equipped with a high-speed oscillating blade, the machine is capable of quickly cutting a diverse range of flexible and super-thick materials while ensuring exquisite precision. As a result, every detail of the sofa, leather, or fabric is cut perfectly and sharply, enhancing product quality and optimizing production time.
Features of The Single Blade Cutter For Leather Sofa Production With Conveyor Table

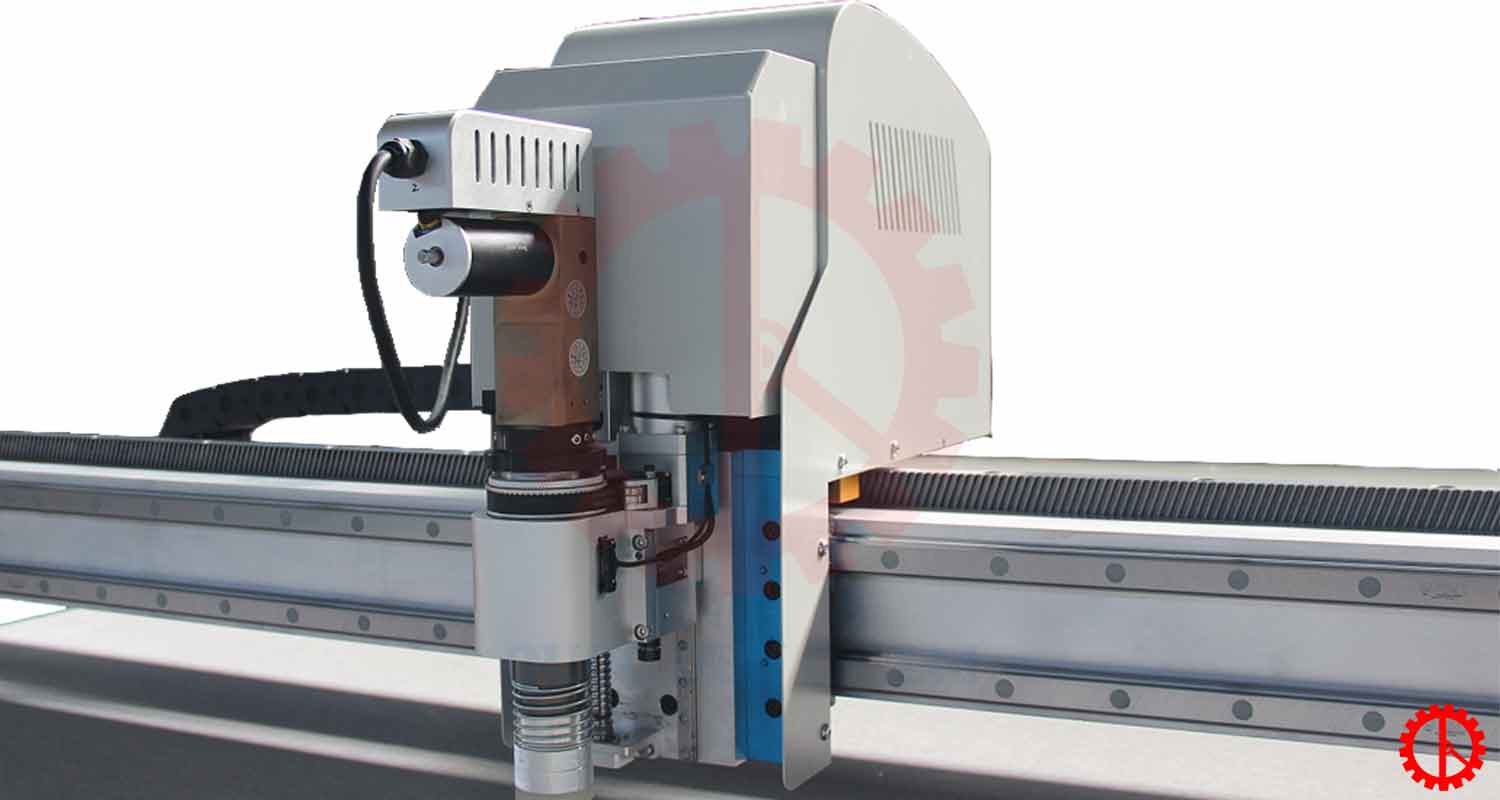

High-speed oscillating blade and a drive mechanism using PMI square guide rails + rack and pinion ensures a smooth, precise cut up to 0.05 mm, resulting in perfect final products.
The machine handles PVC, foam boards, garment fabric, leather, carpets, and other flexible materials, meeting production needs for sofas, upholstered chairs, and furniture without material damage or machine jamming.
Supports CAD, CDR, and other vector software, and reads DXF, PLT formats, allowing users to easily import patterns and optimize the design before cutting.
The aluminum honeycomb working table firmly secures the material, ensuring evenly distributed vacuum suction force and protecting the material surface to increase product durability.

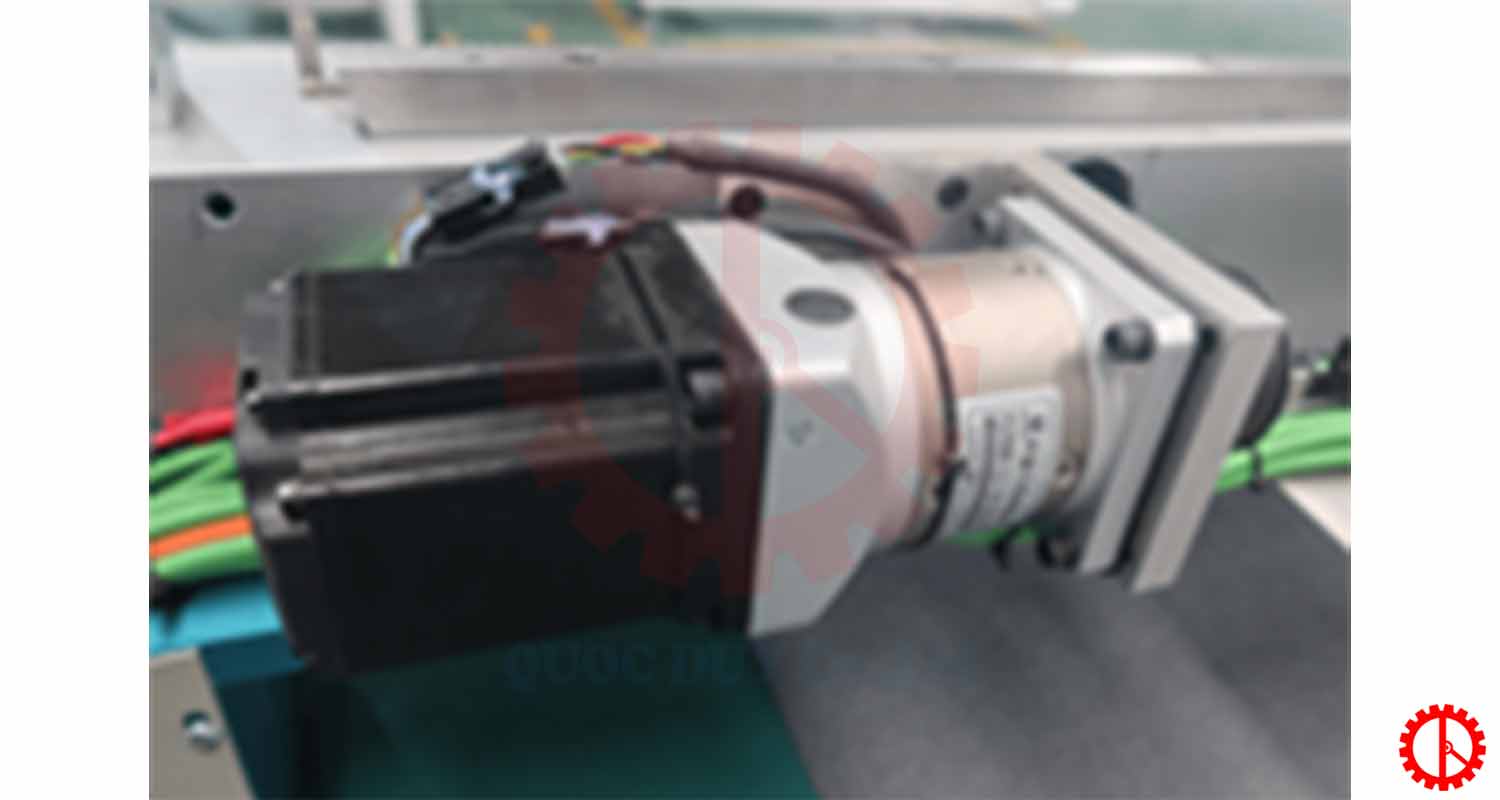

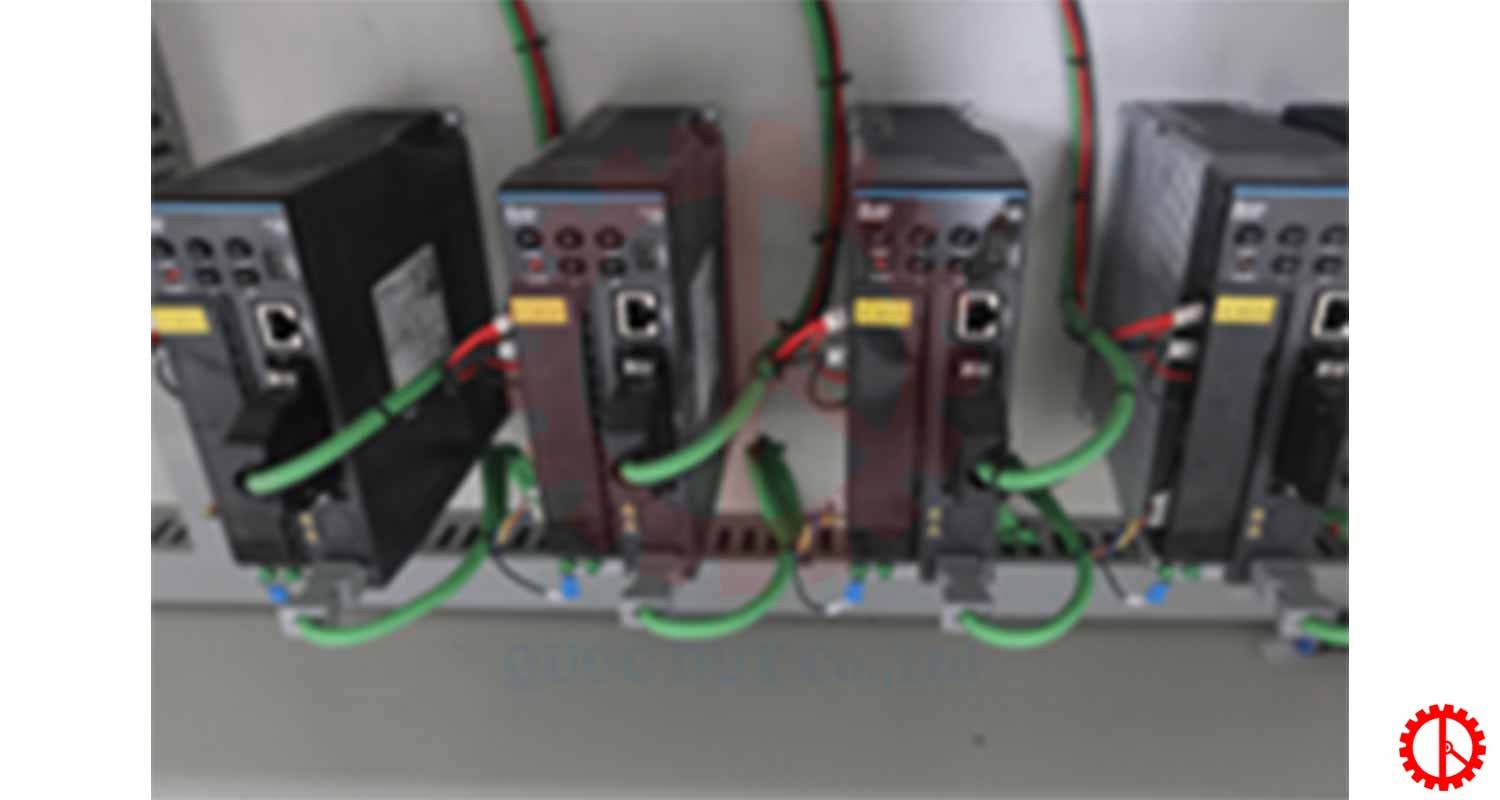

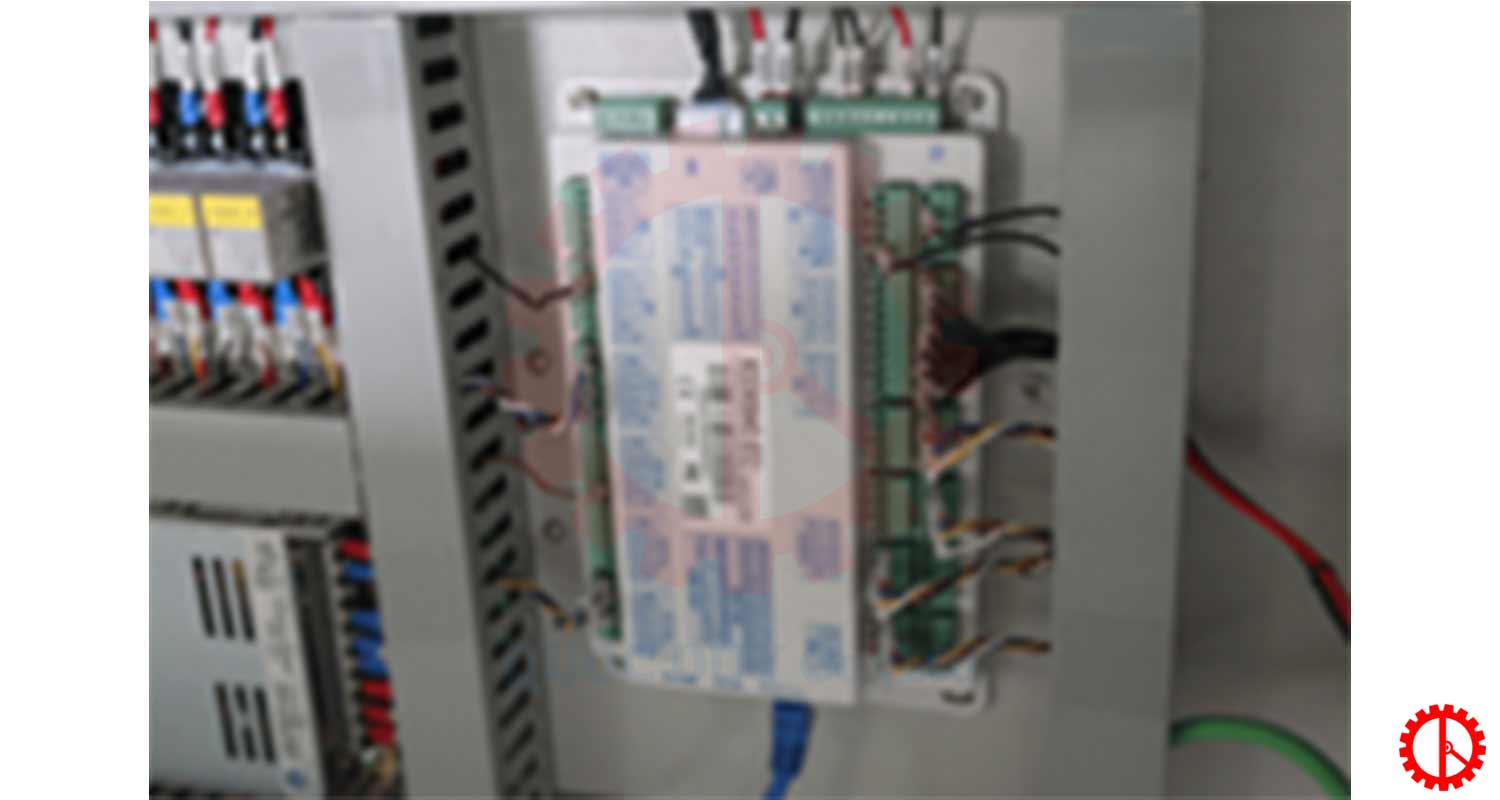

Uses a high-resolution 0.01 mm Delta servo combined with the Ruida 6584G controller for stable operation and Ethernet communication, making it easy to integrate into the production line.
With a maximum working speed of 1500 mm/sec and acceleration of 5000 mm/sec, the machine significantly boosts cutting productivity, reduces manual operation time, and saves labor costs.
The 9 kW vacuum pump firmly holds the material on the conveyor table, ensuring precise and stable cuts even with material sheets up to 110 mm thick.
The Single Blade Cutter For Leather Sofa Production With Conveyor Table Technical Specifications
| Working area | : 1600x2500mm |
| Cutting thickness | : 110mm (depending on the specific material) |
| Maximum working speed | : 1500mm/s |
| Maximum acceleration | : 5000mm/s |
| Repeat positioning accuracy | : 0.05mm |
| Servo resolution | : 0.01mm |
| Vacuum pump | : 9.0 Kw |
| Control system | : Ruida 6584G |
| Voltage | : 380V/50Hz |
| Net weight | : 900 Kg |
| Machine size | : 3400x2350x1400mm |
Note: Technical specifications, design features, and machine color are subject to change without prior notice, but this will not affect the machine’s functions and operational capabilities.
Why Invest in the Single Blade Cutter For Leather Sofa Production With Conveyor Table ?
Imagine your workshop cutting every detail precisely, with materials always smooth and zero waste. That is the experience that the Single Blade Cutter For Leather Sofa Production With Conveyor Table from Quoc Duy can provide. The machine operates stably, quickly, and efficiently, helping to increase productivity, save time and costs, while simultaneously improving product quality. Quoc Duy is proud to accompany furniture workshops in making every step of cutting fabric, leather, or PVC easy, professional, and highly effective.
