The Paper Laminate Coating Line is a modern panel surface processing line that brings optimal processing efficiency to businesses, especially woodworking panel production workshops.
Key Features of the Modern Paper Laminate Coating Line
Quoc Duy is pleased to introduce the Paper Laminate Coating Line, featuring the most modern machinery from panel feeding and glue spreading to final pressing and finished product output.

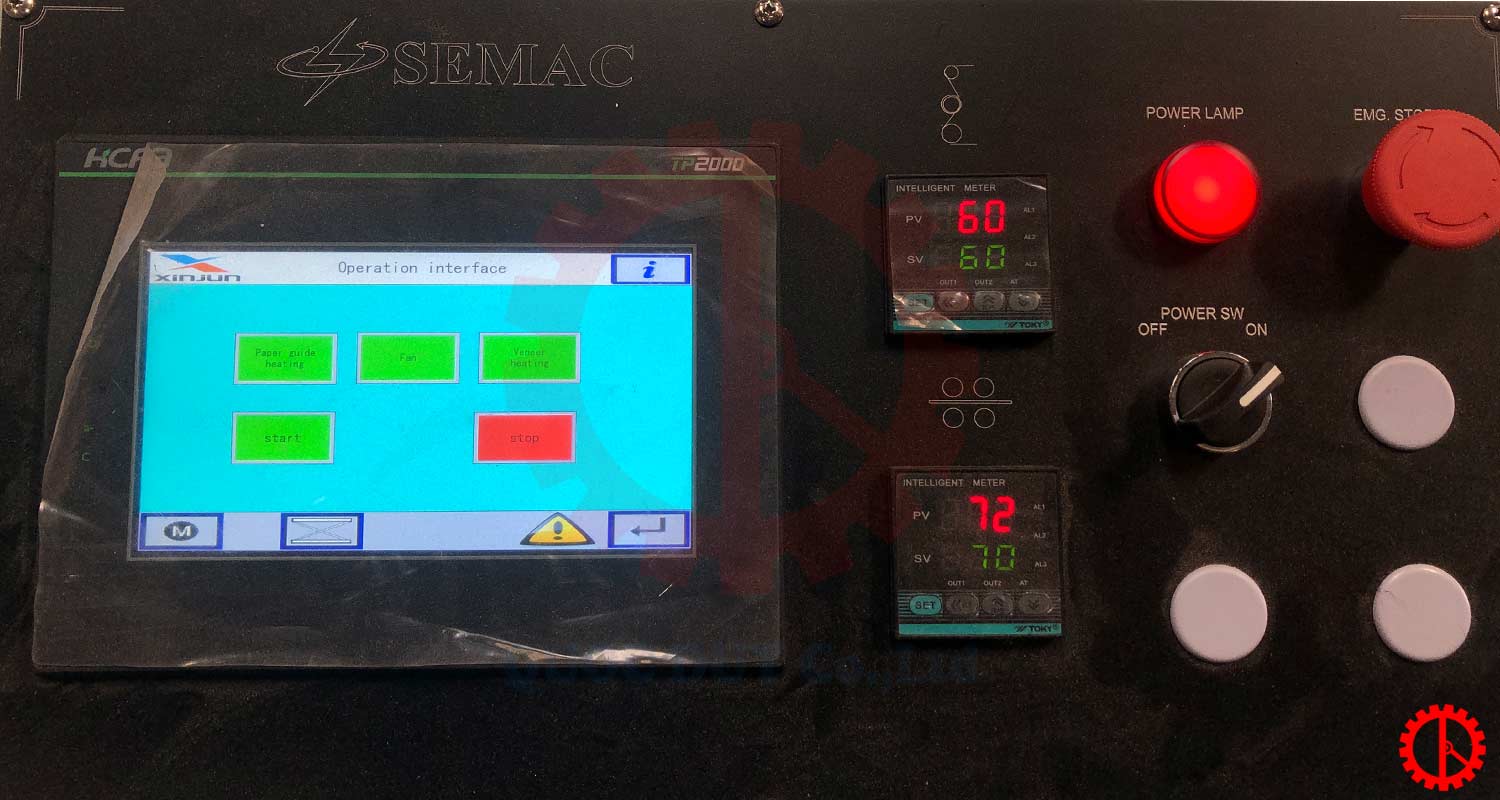

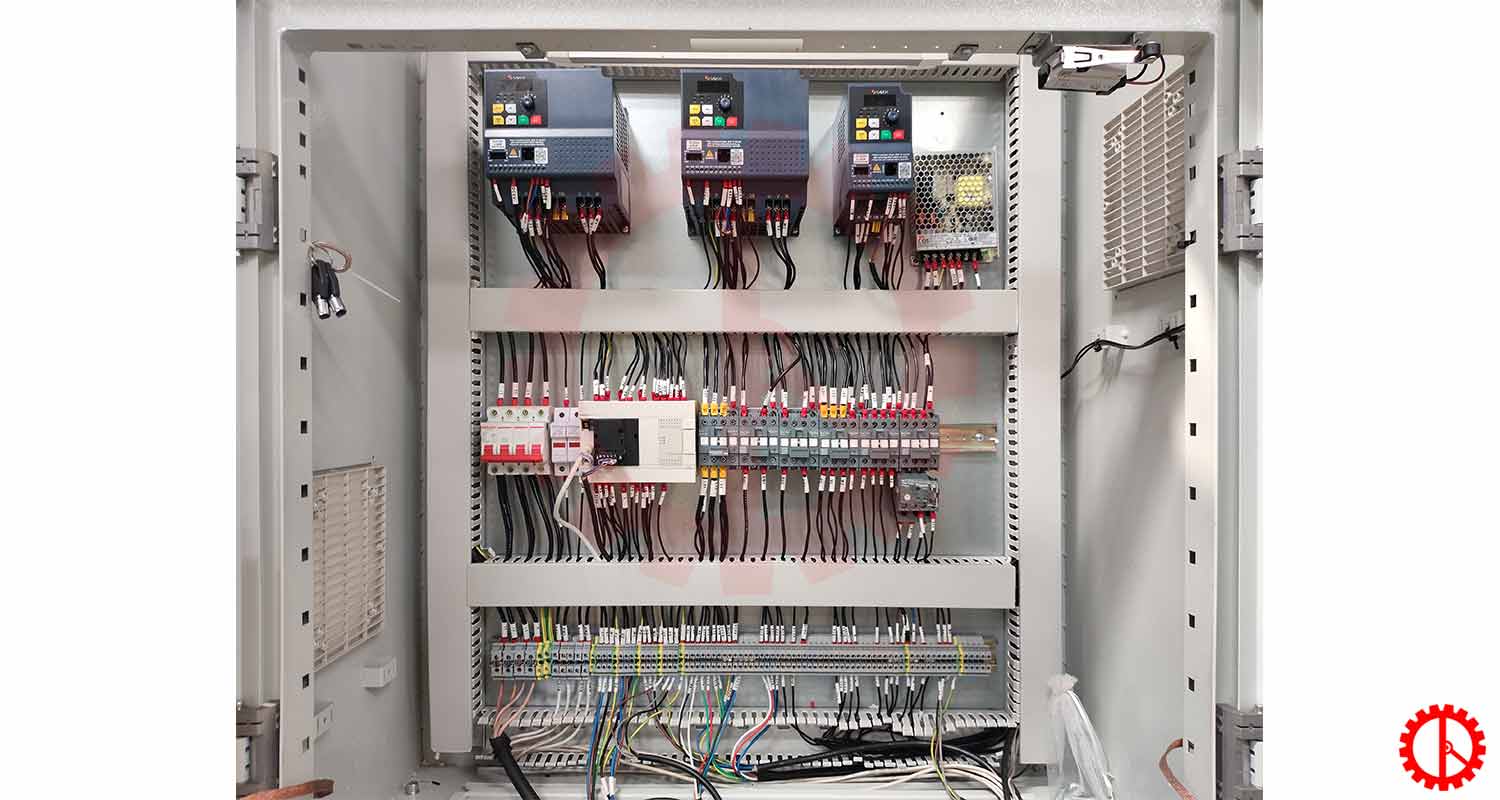

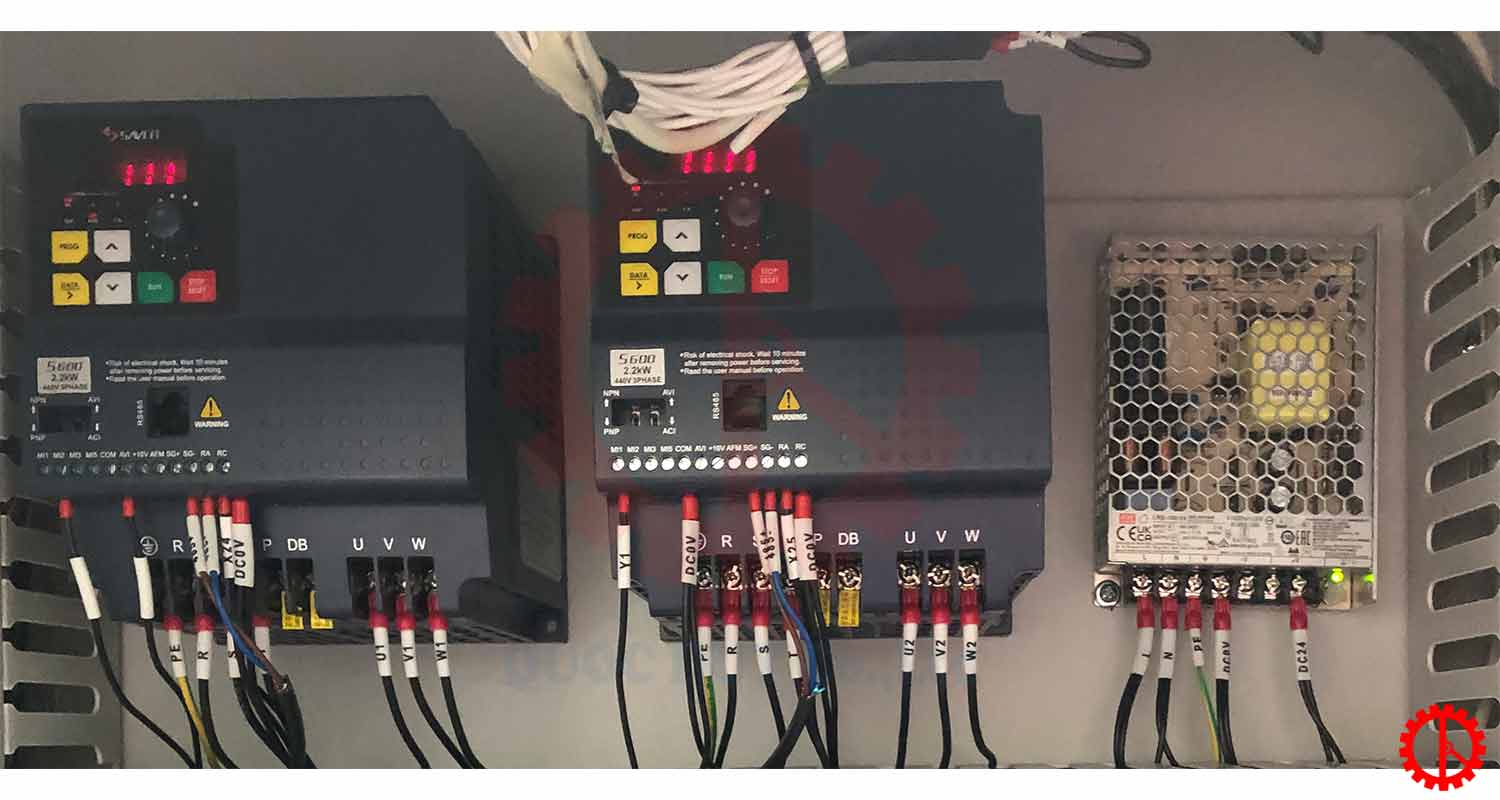

- Machine control and operation are made easy through a simple and intuitive control panel.
- The fast working speed significantly enhances product processing efficiency.
- The machines are robustly manufactured, ensuring stable operation during the production process.
- Processed products achieve high quality standards.
Technical Specifications for Paper Laminate Coating Line
| Minimum Working Length | : 600mm |
| Working Thickness | : 1 – 50mm |
| Maximum Working Width | : 1220mm |
| Working Rate | : 0 – 22m/min |
| Paper Width | : 1280mm |
| Total Capacity | : 11kW |
| Pressing Method | : Air Pressure |
| Control Cabin Dimensions | : 500 x 800 x 1200mm |
| Line Dimensions | : 11800 x 2200 x 3000mm |
| Weight | : 6000kg |
Please Note: Technical specifications, design characteristics, and machine colors are subject to change without prior notice, but this will not alter the function or operational capabilities of the machine.

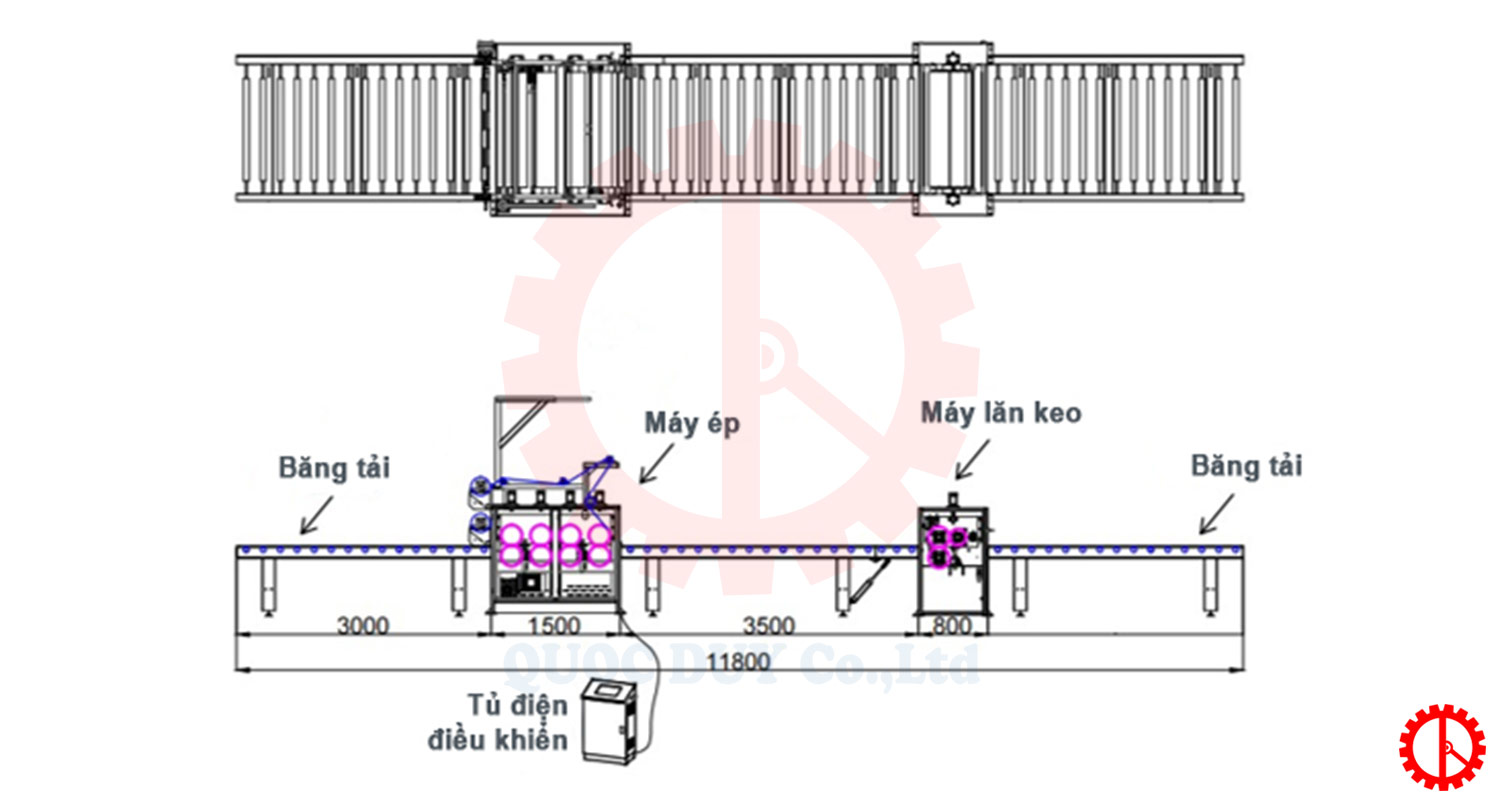

The Paper Laminate Coating Line includes the following machines/units:

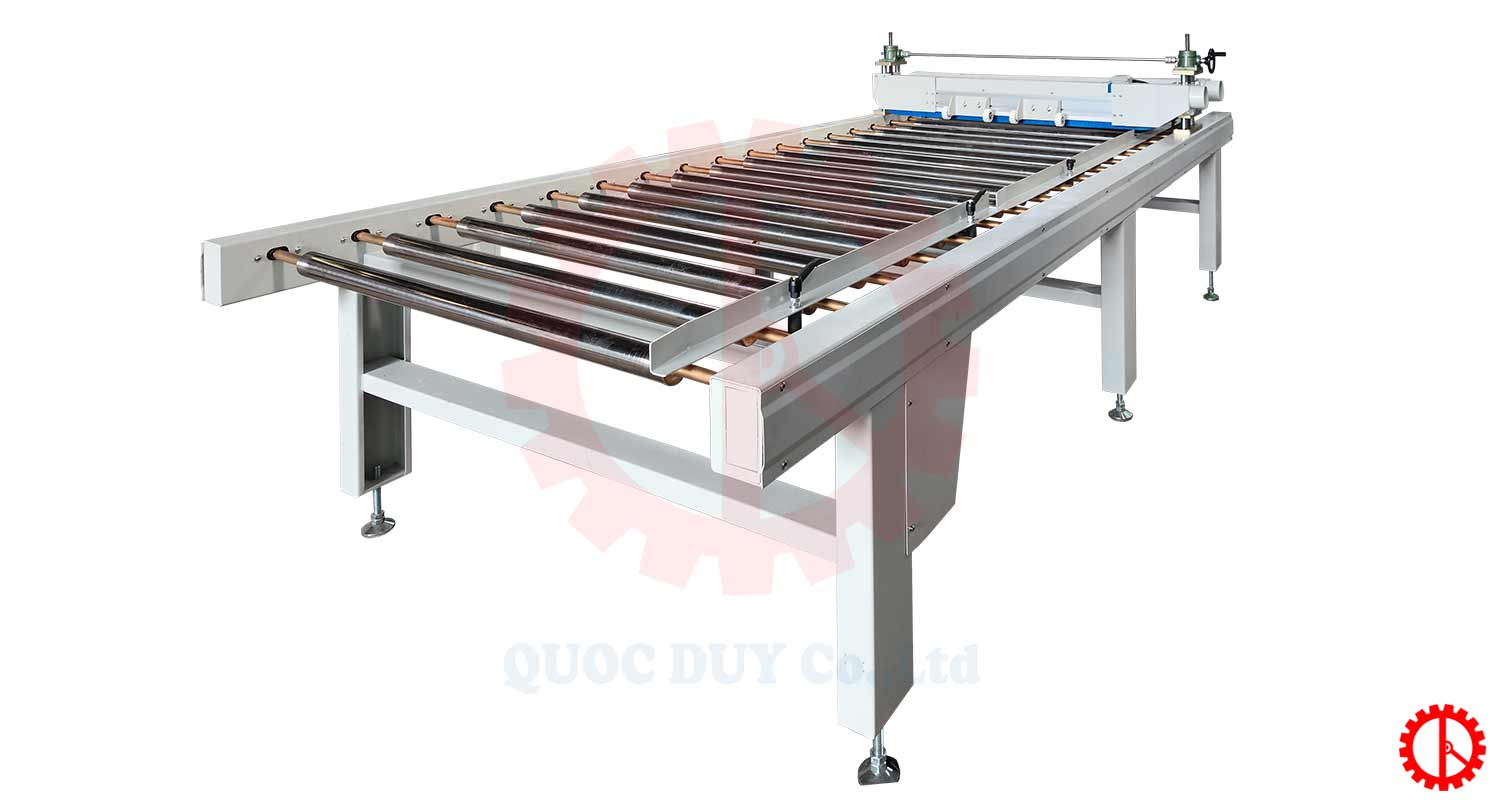

1. ROLLER CONVEYOR
Technical Stipulations
| Working Rate | : 0 – 22m/min |
| Minimum Feeding Length | : 600mm |
| Roller Dimensions | : Ø60 x 1200mm |
| Number of Roller | : 20 |
| Feeding Roller Capacity | : 0.75kW |
| Cleaning Brush Engine Capacity | : 0.75kW |
| Dust Exhaust Outlet Diameter | : Ø100mm x 2 |
| Machine Dimensions | : 3950 x 1850 x 1400mm |
| Weight | : 400kg |
Please Note: Technical specifications, design characteristics, and machine colors are subject to change without prior notice, but this will not alter the function or operational capabilities of the machine.

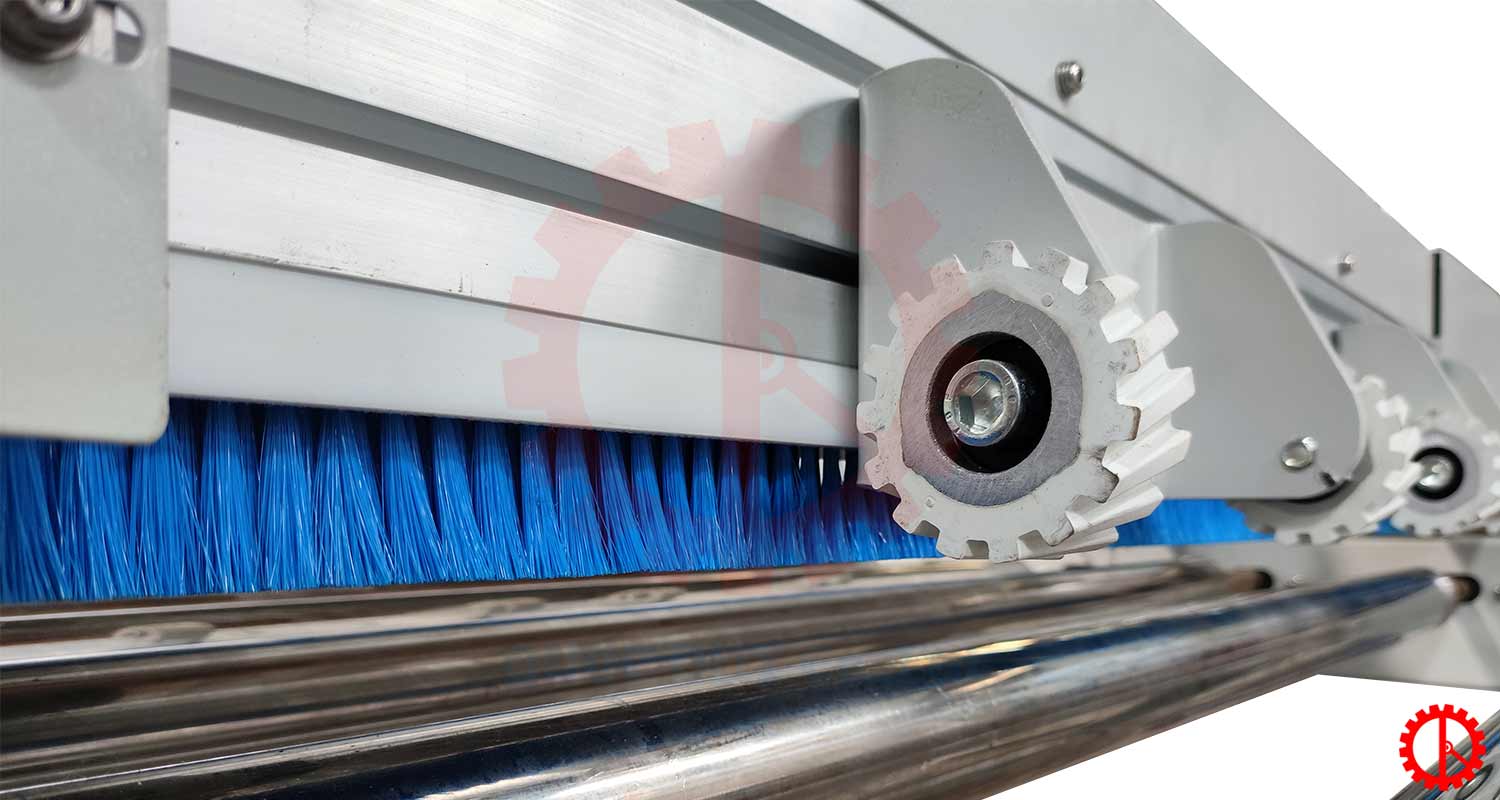

Dust Cleaning Brush

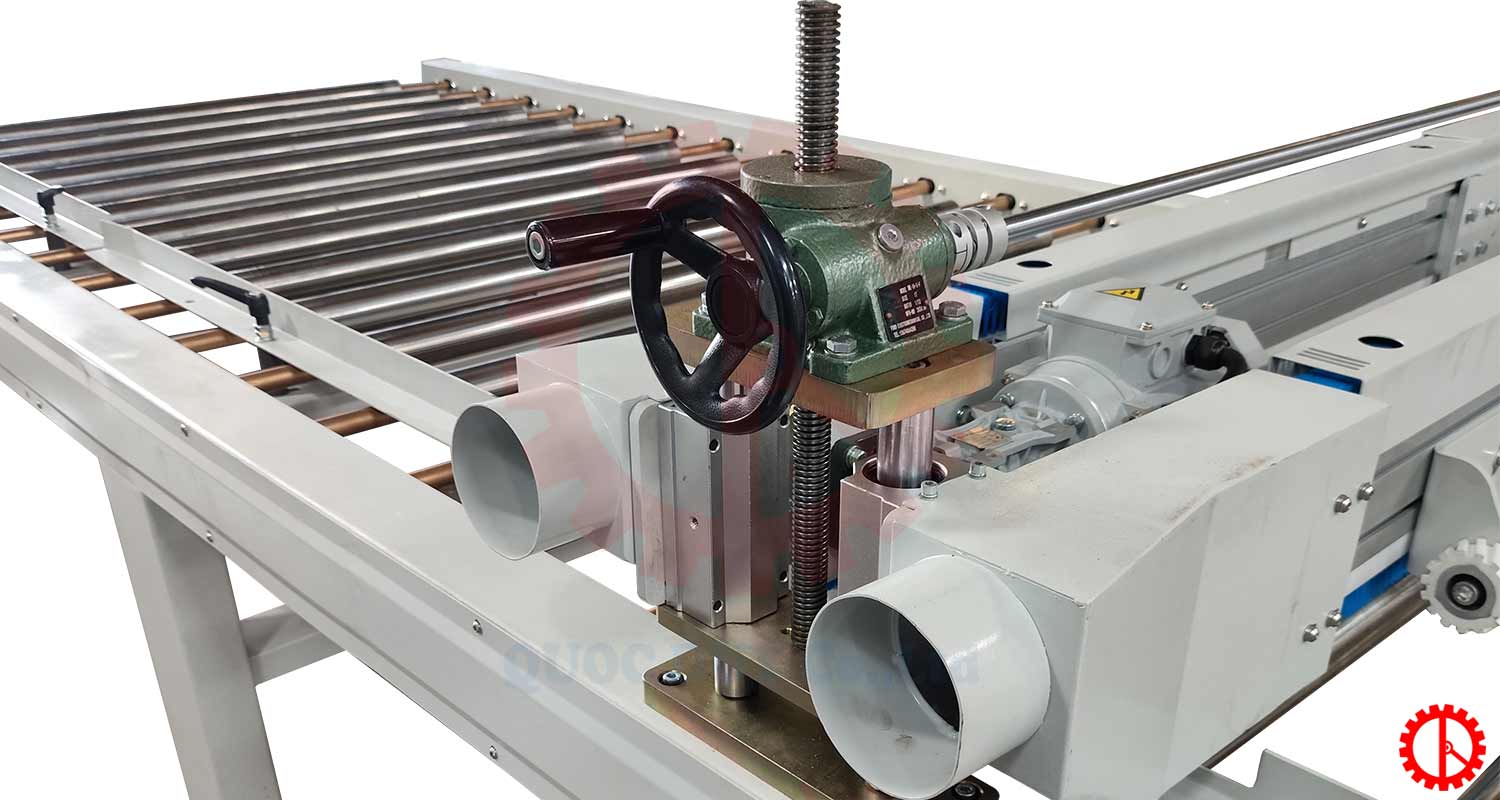

Elevating Wheel

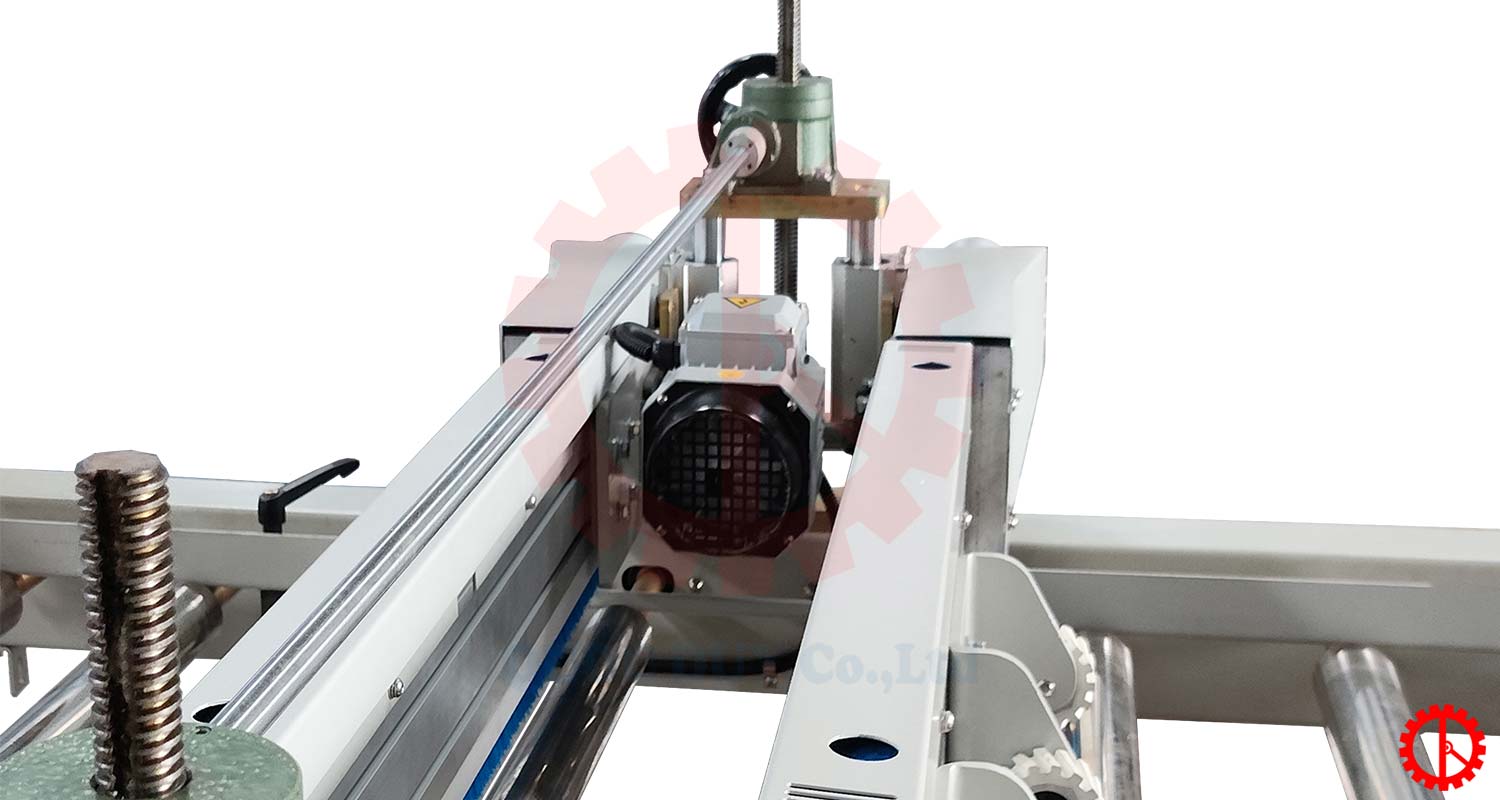

Dust Cleaning Brush Engine

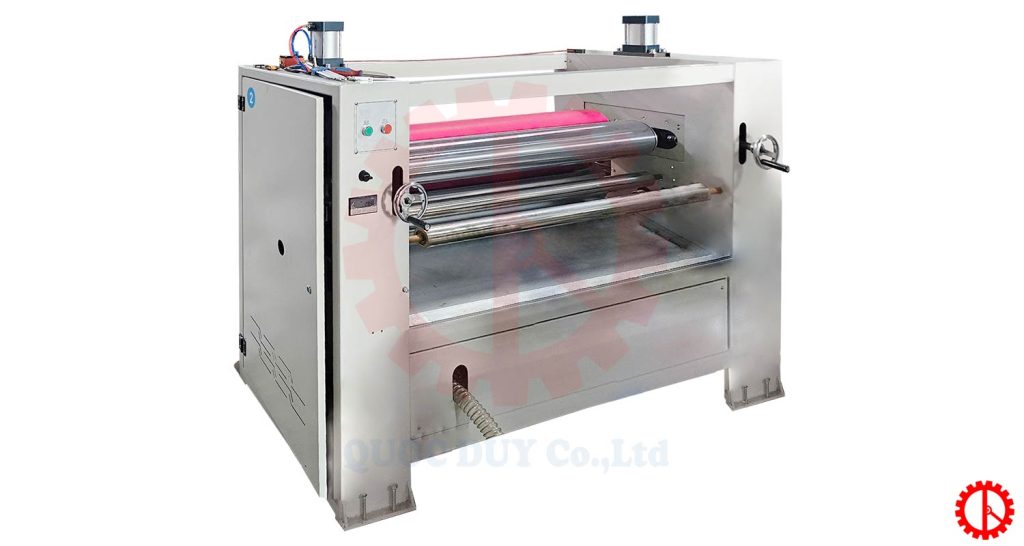

2. GLUE SPREADING MACHINE
Technical Stipulations
| Minimum Working Length | : 600mm |
| Working Width | : 500 – 1300mm |
| Working thickness | : 1 – 50mm |
| Roller Motion Engine Capacity | : 2.2kW |
| Motion Method | : Chain |
| Working Rate | : 0 – 22m/min |
| Machine Dimensions | : 800 x 2050 x 1450mm |
Please Note: Technical specifications, design characteristics, and machine colors are subject to change without prior notice, but this will not alter the function or operational capabilities of the machine.

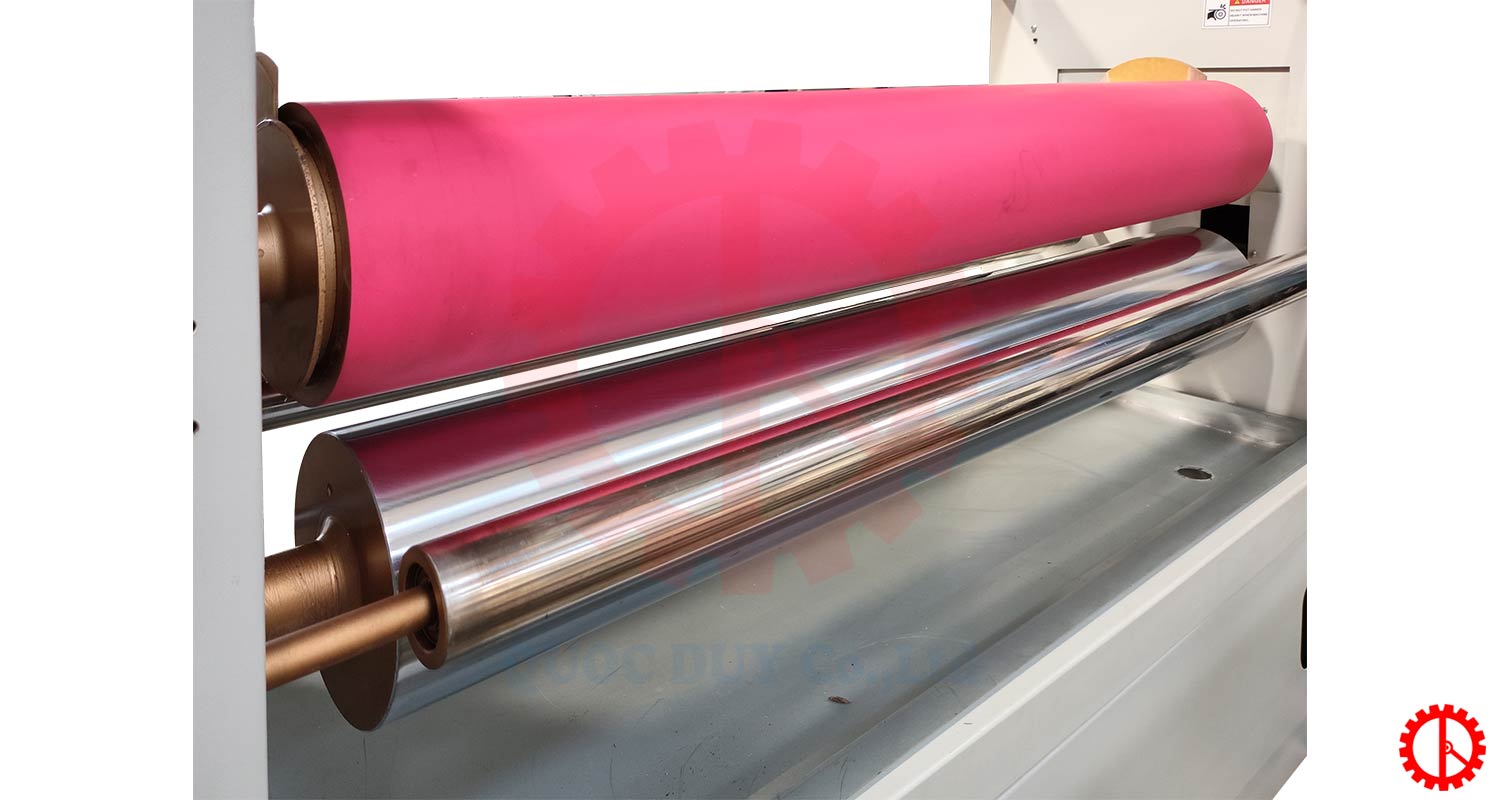

Glue Spreading Roller

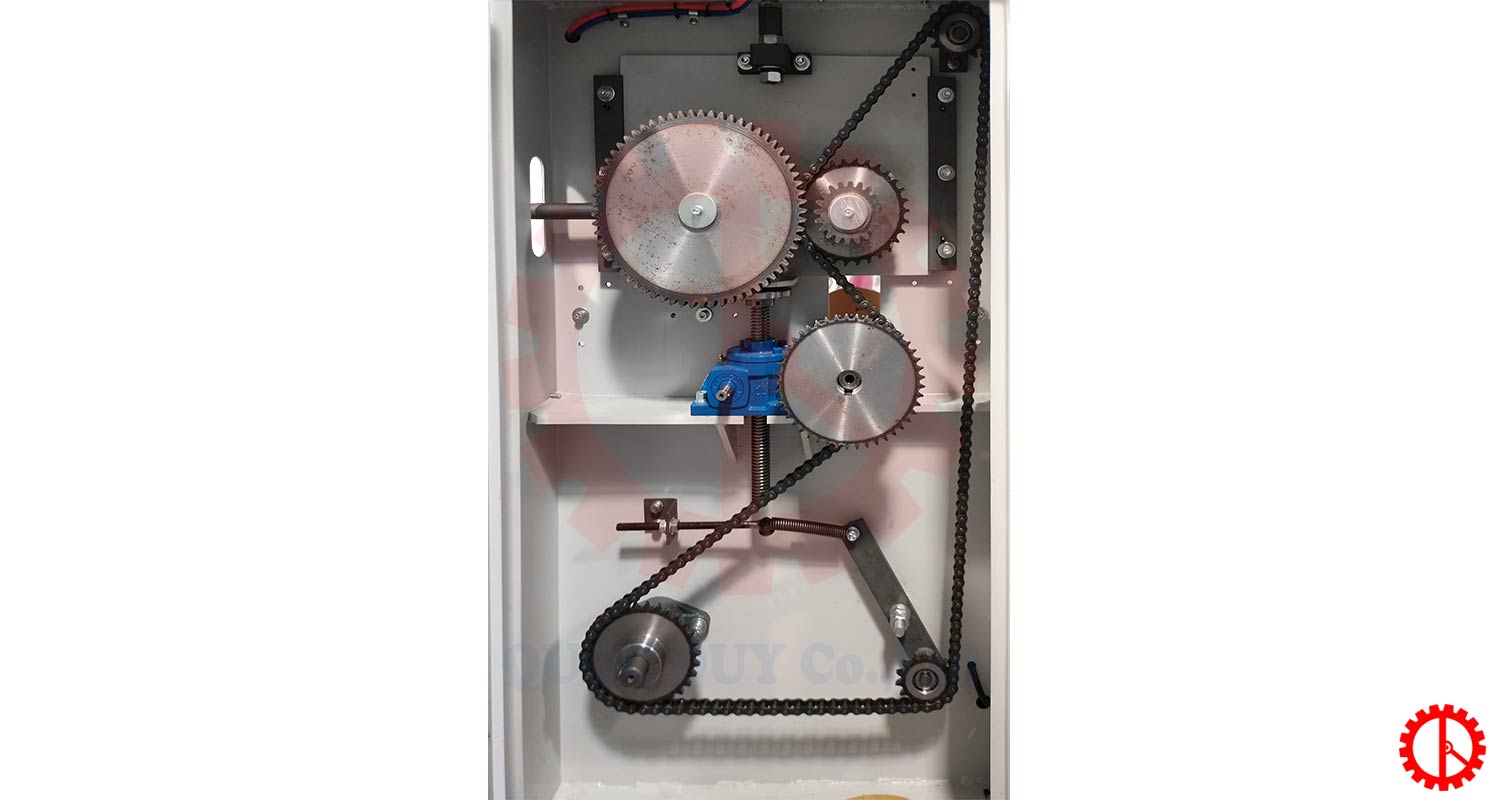

Roller Motion System

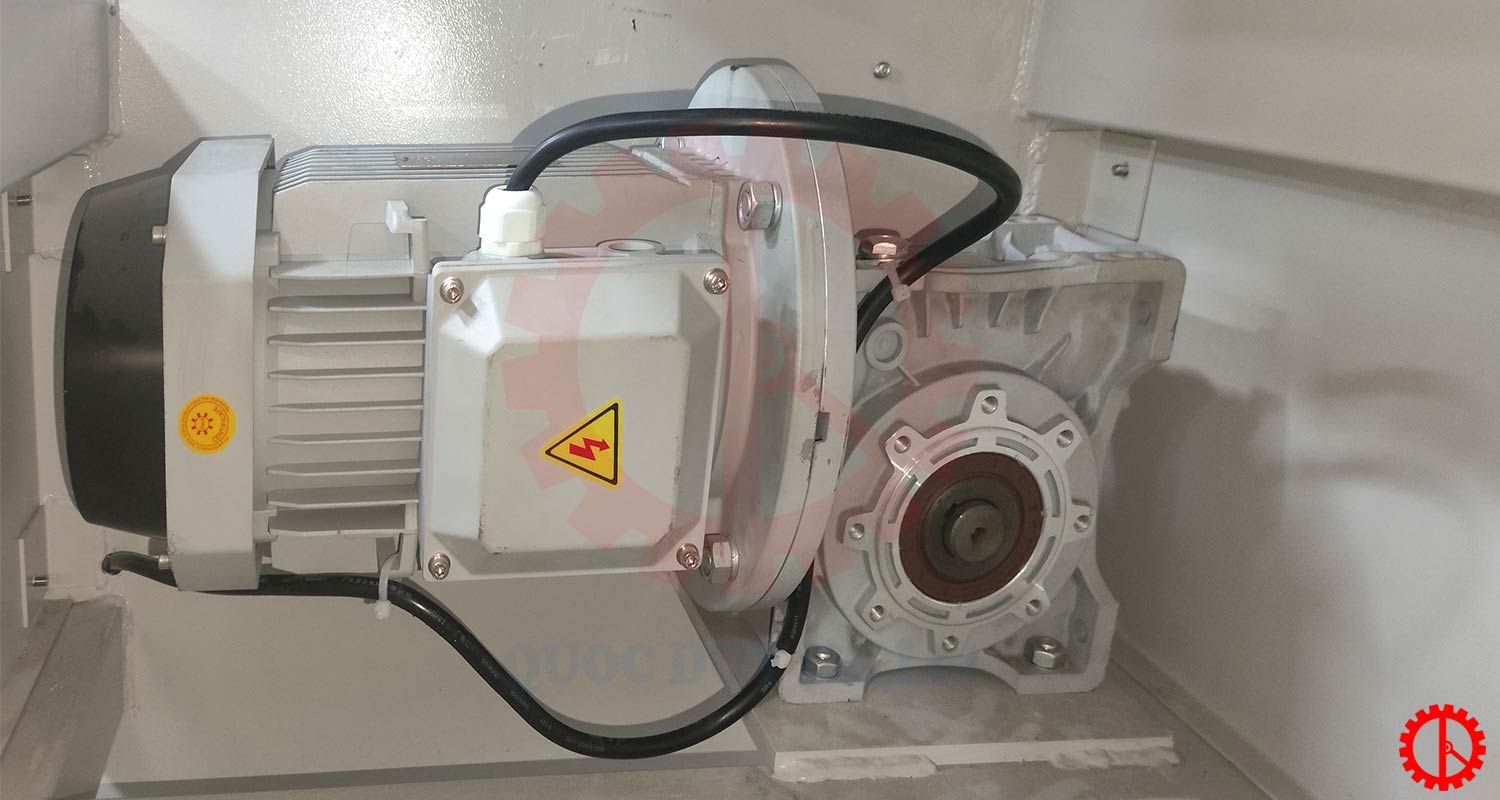

Glue Spreading Roller Engine

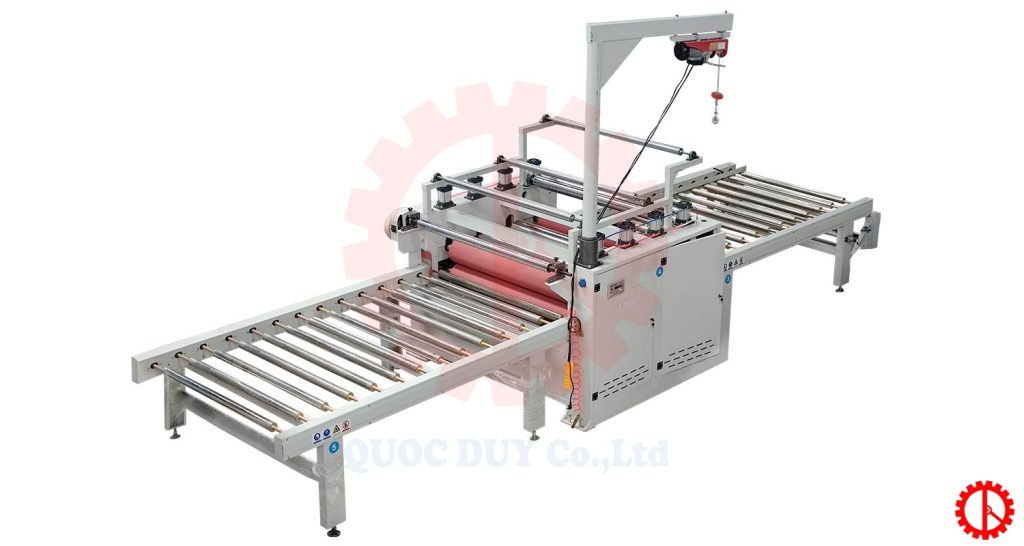

3. PRESSING MACHINE
Technical Specifications
| Working Length | : 600 – 3000mm |
| Working Widtg | : 500 – 1300mm |
| Working Thickness | : 1 – 50mm |
| Working Speed | : 0 – 22m/min |
| Pressing Roller Size | : Ø190 x 1350mm |
| Heating Method | : Heating tube |
| Motion Method | : Chain |
| Pressuring Method | : Piston |
| Braking Device | : Adjustable |
| Roller Levitating Engine Capacity | : 0.55kW |
| Pressing Roller Engine Capacity | : 2.2kW |
| Machine Dimensions | : 7200 x 2100 x 3000mm |
Please Note: Technical specifications, design characteristics, and machine colors are subject to change without prior notice, but this will not alter the function or operational capabilities of the machine.

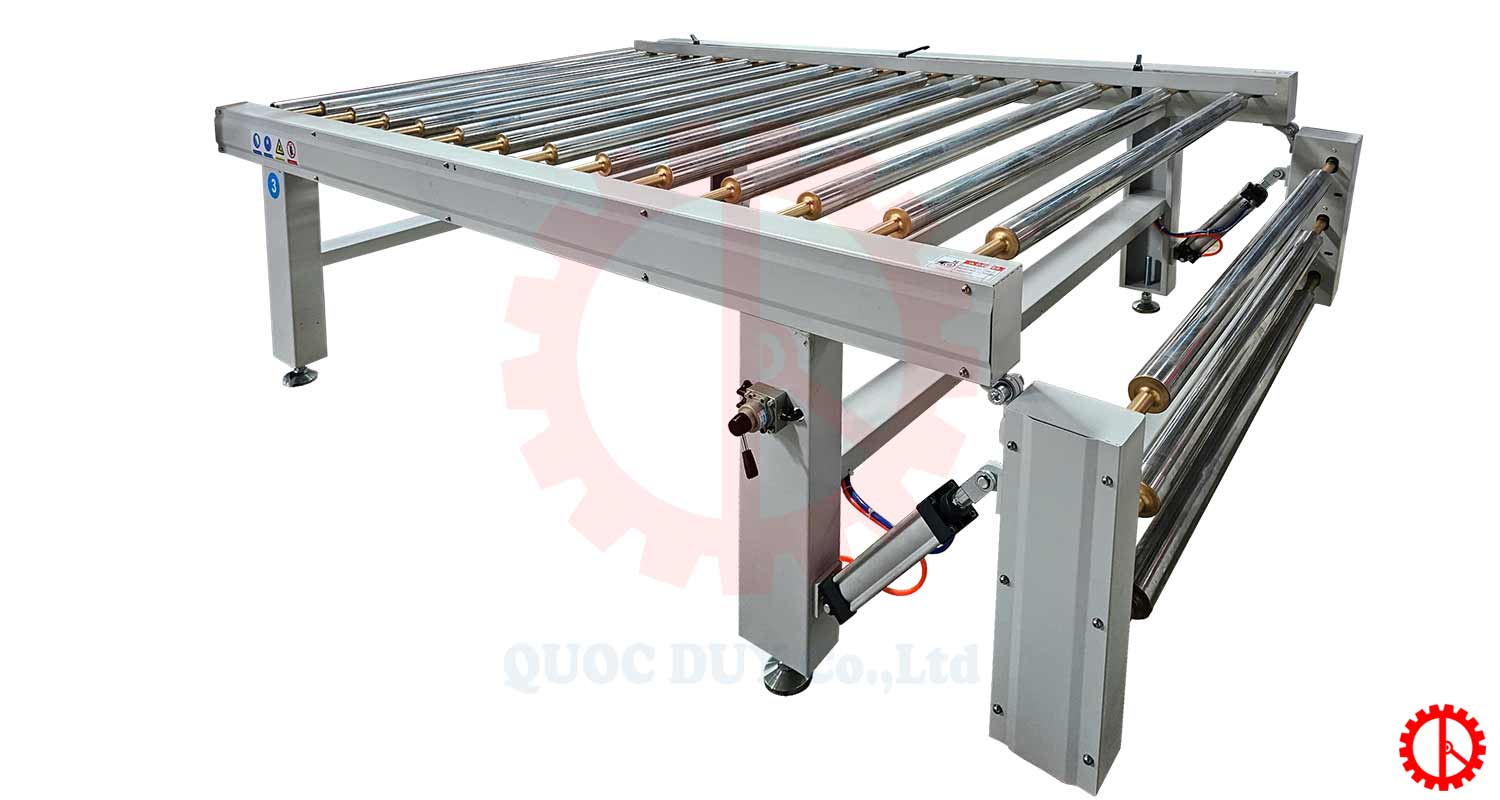

Input Roller

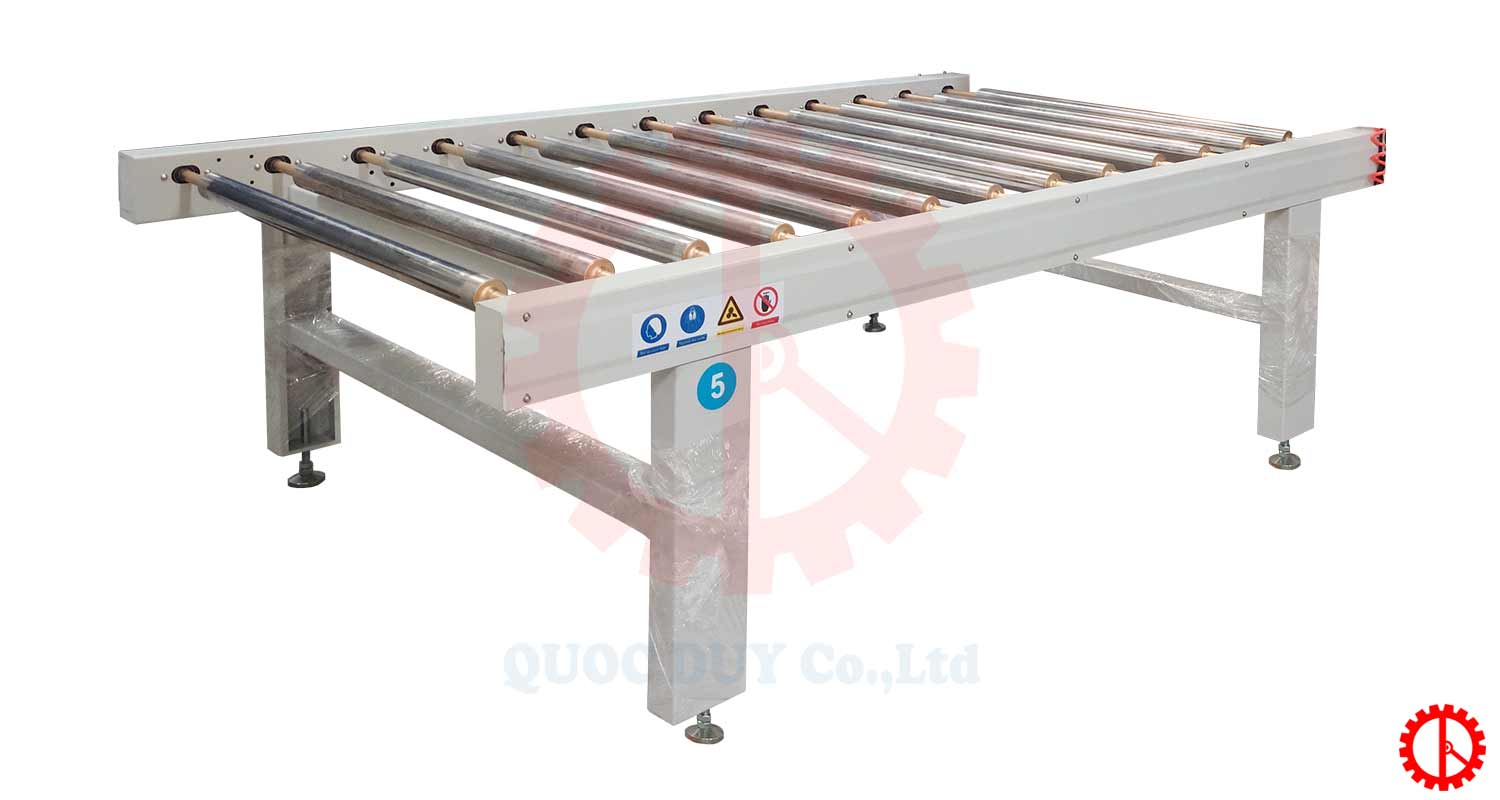

Output Roller
Heating Resistor
