Four sided 8-axis planer SMVK 823D
Introduction of four sided 8-axis planer
Features of four sided 8-axis planer
- Touch screen, intuitive display, simple and accurate parameter setting.
- 4 side planer using servo motor, stable operation.
- The system of cast iron wheels made of steel helps to bring the workpiece effectively, durable, and limit wear.

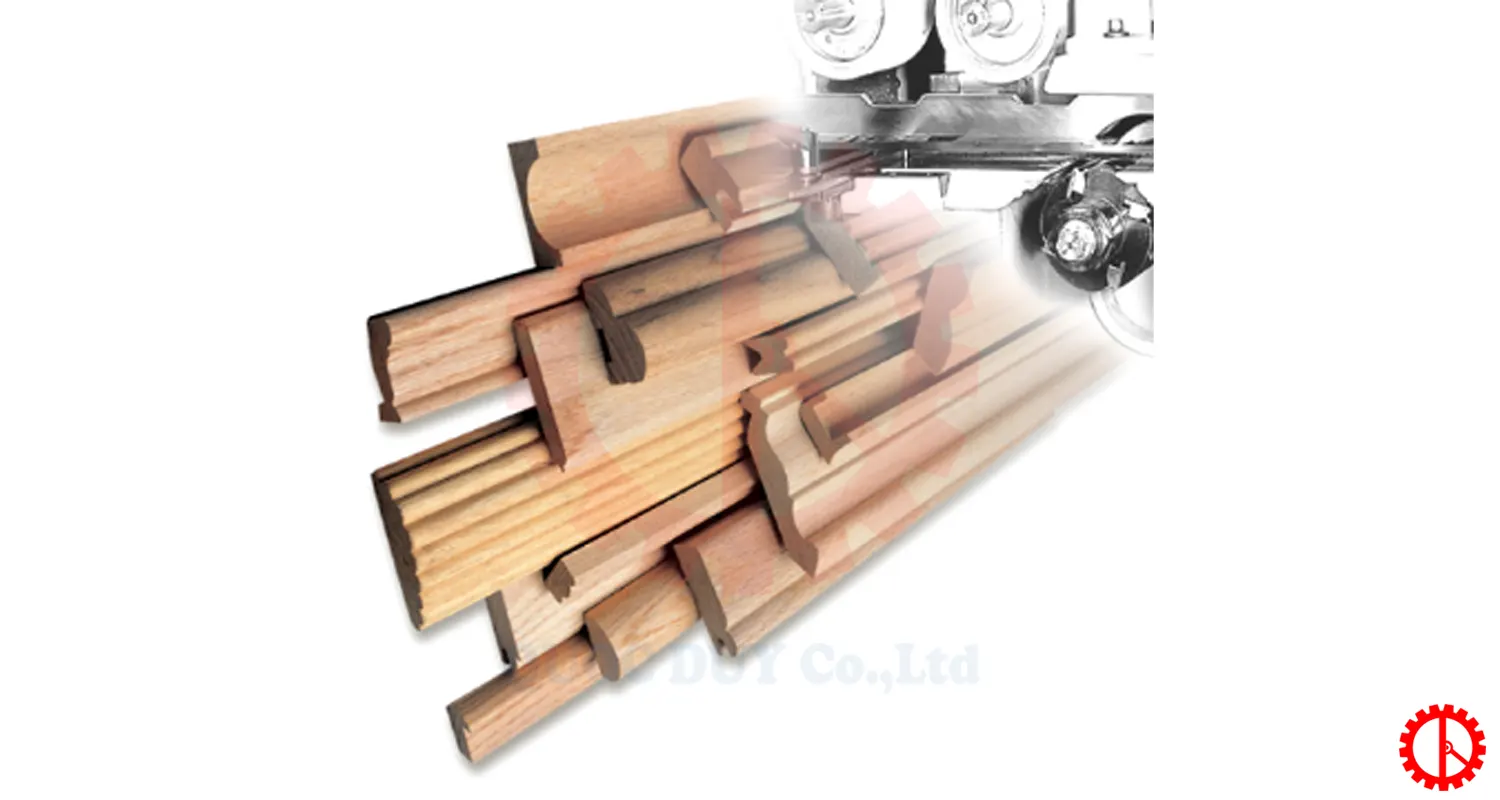

- The planer machine has 8-axis design, smoothing 4 workpiece faces in just 1 working cycle.
Specifications four sided 8-axis planer
| Working width | : 25-230 mm |
| Working thickness | : 8-130 mm |
| Working table length | : 580/300 mm |
| Feeding speed | : 5-40 m/min |
| Main shaft diameter | : Ø40 mm |
| Main spindle speed | : 7000 r/min |
| Pressure | : 0.6 mpa |
| Feeding power | : 5.5 Kw ( OPT ) |
| Roller lifting capacity | : 1.5 Kw |
| 1st lower shaft power | : 5.5 Kw |
| 1st upper shaft power | : 9 Kw |
| Right shaft power | : 7.5 Kw x 2 |
| Left shaft power | : 7.5 Kw x 2 |
| Left shaft servo power | : 0.75 Kw x 2 |
| Upper knife lifting power | :0.55 Kw x 2 |
| 2nd lower shaft power | : 7.5 Kw |
| 2nd upper shaft power | : 7.5 Kw |
| Feeding motor | : 7.5 Kw |
| Conveyor power | : 2.2 Kw |
| Diameter Right shaft | : Ø110 – Ø170mm x 2 |
| Diameter Left shaft | : Ø110 – Ø170mm x 2 |
| Diameter upper shaft | : Ø125 – Ø160mm x 2 |
| Diameter 1st lower shaft | : Ø110 – Ø 150mm |
| Diameter 2nd lower shaft | : Ø125 – Ø180mm |
| Dust collector diameter | : Ø 150mm x 8 |
See more: FOUR-SIDE MOULDER – SMVK – 416
