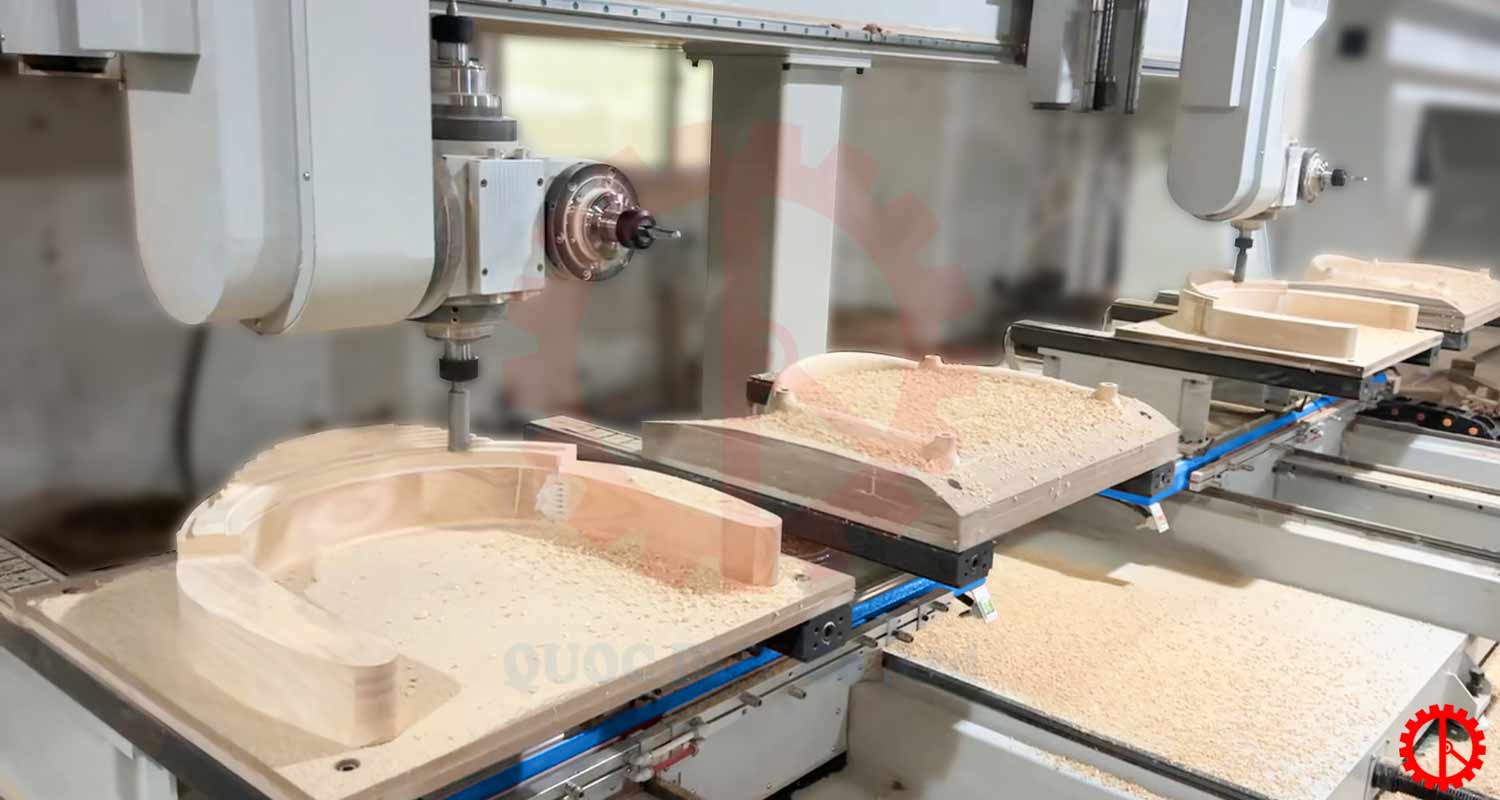

The double head 5 axis cnc machining – dual independent spindles – TWIN 524. This allows for the simultaneous setup of up to 4 workpieces, significantly boosting production efficiency. Specifically engineered to handle any complex 3D profiles—such as chair seats, backrests, and legs—the TWIN 524 delivers exceptional speed and pinpoint accuracy. Every finished product achieves a superior level of surface quality and detail.
Features of double head 5 axis cnc machining with dual independent spindles
- The OSAI controller from Italy operates stably and is easy to operate with high precision.
- The machine performs a variety of functions including milling, drilling, grooving, and 45-degree bevel cutting, with 5 axes of motion allowing for easy processing of complex shapes.
- The machine completes product finishing quickly in just one machining process, saving costs and increasing productivity.
- With a robust machine frame design, it ensures stable operation during product processing.
- The dual 5-axis independent design allows for machining the same product or two different types of products simultaneously.
- Using a dual 7.5kW spindle head with two cross-shaped motors, it can accommodate 4 tools simultaneously, allowing for simultaneous machining of different products, increasing processing efficiency and saving production time.
- The main spindle is cooled by a chiller, ensuring stable machine operation.
- The adjustable vacuum work table can be adjusted left and right, allowing for quick clamping and positioning, and convenient installation of pneumatic fixtures. It allows for quick switching between curved and flat fixtures.
- The 3D simulation software is particularly useful: it avoids collision risks, eliminates unnecessary stops and tool paths, reduces programming time, and improves production efficiency. It is compatible with many programming software programs on the market such as NX, AlphaCam, PowerMill, etc., and is easy to operate.

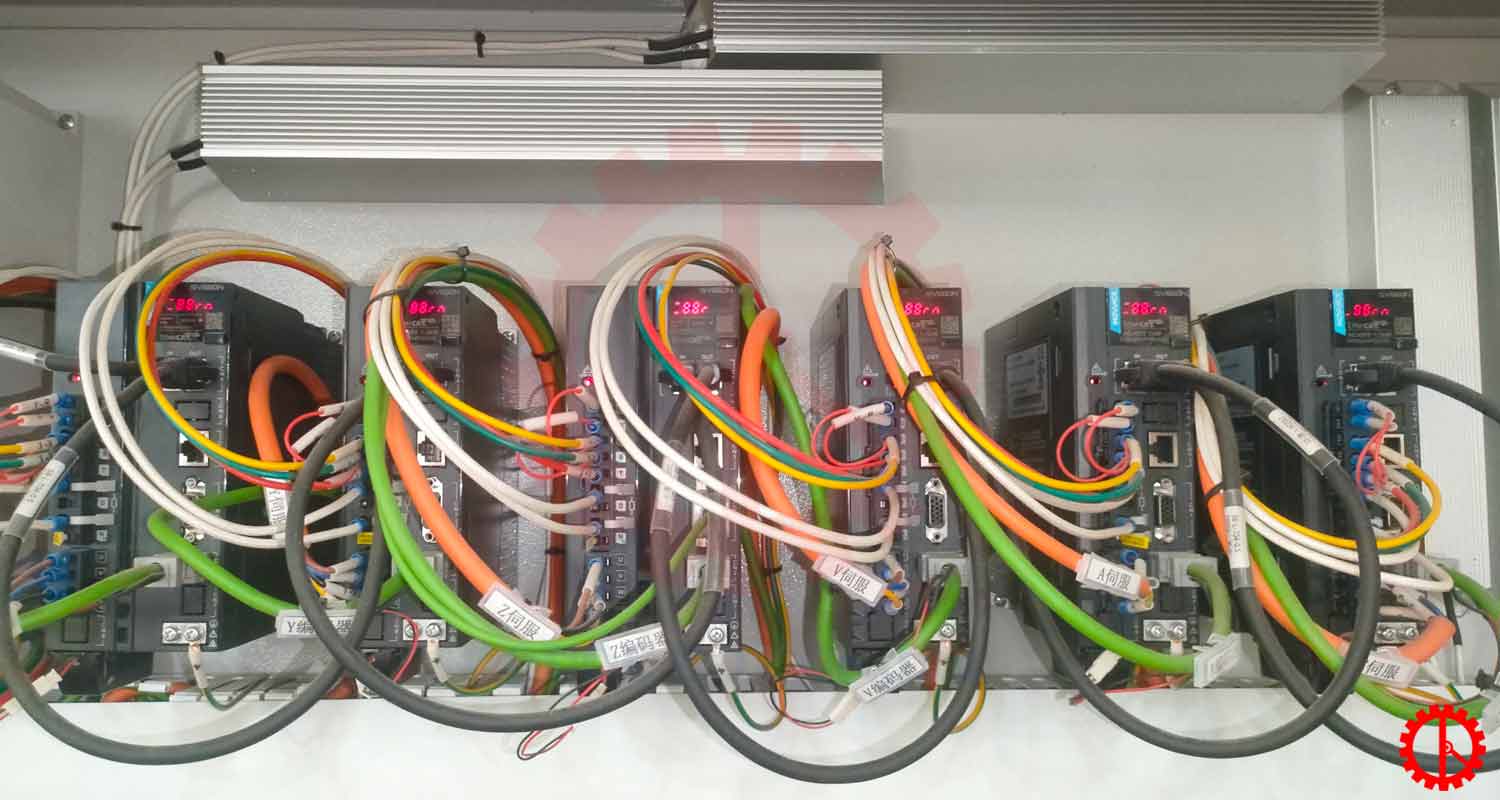

- INOVANCE servo motors + high-precision drive structures: The mechanical system uses servo motors to drive high-precision drive structures on each axis.
- The specially designed handheld control crank enhances machine control, improves work efficiency, and features a simple and easy-to-operate structure. Wired connection to the control panel prevents disconnection. The rear suction cup design allows for direct attachment to the control panel after use, ensuring convenient operation.
- The Sumitomo (Japan) gearbox operates smoothly and quietly. The low friction coefficient eliminates relative slippage in the meshing area, minimizing wear and ensuring durability.
- Installation and usage environment: Do not install on soft ground; installation on a hard surface such as concrete is recommended.

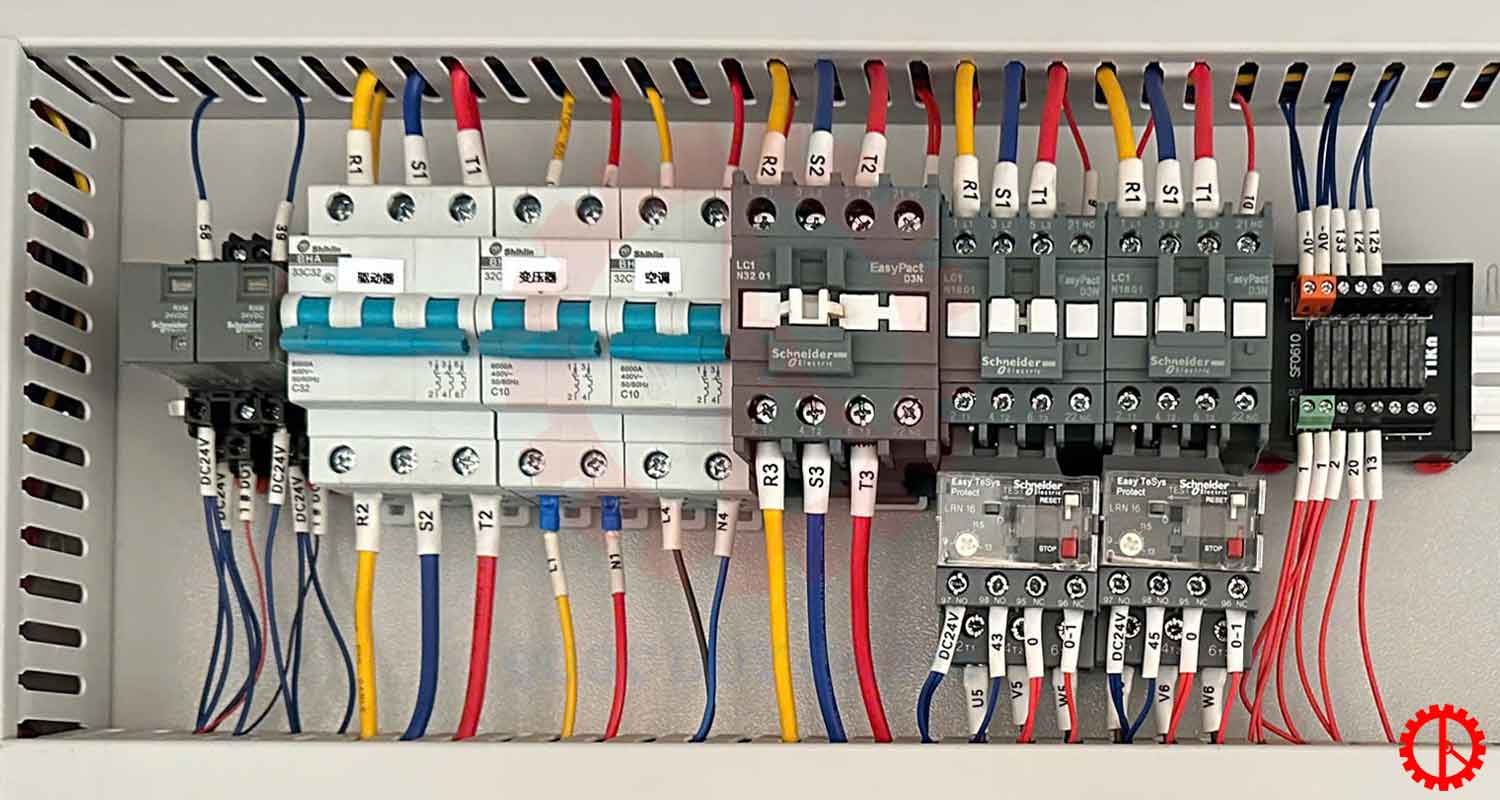

- Use of genuine components from brands like Airtac, Schneider, and Omron ensures stable operation and a long lifespan.
- Automatic oil pump to the drive mechanisms such as guide rails, racks, and gears ensures smooth and highly accurate movement.
Specifications of double head 5 axis cnc machining
| Working table size | : 2000x940mm x 2 pcs |
| Number of vacuum strip worktables | : 8 pcs |
| axis travel | : 2200 mm |
| axis travel | : 1700 mm |
| axis travel | : 850 mm |
| axis travel | : ±400° |
| A axis ( rotary head ) | : Continuous rotation |
| axis travel speed | : 70m/min |
| Maximum Y axis travel speed | : 70m/min |
| Maximum Z axis travel speed | : 50m/min |
| X axis servo motor power | : 1.5 Kw x 2 pcs |
| Y axis servo motor power | : 1.5 Kw x 2 pcs |
| Z axis servo motor power | : 2.0 Kw x 2 pcs |
| C axis servo motor power | : 1.5 Kw x 2 pcs |
| A axis servo motor power | : 1.0 Kw x 2 pcs |
| Spindle motor power | : 7.5 kW x 2 clusters – speed 18000 rpm |
| Vacuum pump power | : 4kW x2 pcs (Opt:7.5 Kw x 2 pcs) (dry type) |
| Total power | : 61 kW |
| Voltage | : 380V/50Hz |
| Air pressure | : 0.7 – 0.8 MPa |
| Net weight | : 10000 kg |
| Machine size | : 6000x3350x3600mm |
Note: Technical specifications, design features, and machine color may be subject to change without prior notice; however, such changes will not affect the machine’s functions or operational performance
