Double end saw machine – SM 424R/624R/824R delivers high-speed, high-precision automatic double-end wood cutting. Featuring a simple design and easy operation, it ensures consistent, high-quality finished products.
Features of the Double end saw machine
Designed with a sliding track feed mechanism to smoothly guide workpieces into the cutting zone.
Delivers high cutting speeds and features a precision lead screw system for flexible adjustment based on workpiece dimensions.
Equipped with robust clamping cylinders to ensure secure workpiece hold-down during processing.
Specifications of Double end saw machine
| MODEL | SM 424R | SM 624R | SM 824R |
| Max. Processing Size | : 1250 mm | : – | : 2400 mm |
| Max. Working Thickness | : – | : – | : 75 mm |
| Spindle Tilt Angle | : 45° | : 45° | : 45° |
| Max. Saw Blade Diameter | : Ø305 mm | : Ø305 mm | : Ø305 mm |
| Saw Blade Arbor Diameter | : 25.4 mm | : 25.4 mm | : 25.4 mm |
| Saw Blade Spindle Speed | : 2880 r/min | : 2880 r/min | : 2880 r/min |
| Milling Spindle Diameter | : 30 mm | : 30 mm | : 30 mm |
| Milling Spindle Speed | : 2880 – 6500 r/min | : 2880 – 6500 r/min | : 2880 – 6500 r/min |
| Number of Working Tables | : 1 table | : 1 table | : 1 table |
| Milling Motor Power | : 3 kW × 2 | : 3 kW × 2 | : 3 kW × 2 |
| Saw Blade Motor Power | : 2.2 kW × 2 | : 2.2 kW × 2 | : 2.2 kW × 2 |
| Machine Weight | : 1200 kg | : – | : 1330 kg |
| Overall Dimensions (L×W×H) | : 2100 × 800 × 1450 mm | : – | : 3300 × 1700 × 1450 mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
View more: Double-end cutting milling machine with scoring saw – SM 8625/SM 8630
VIDEO OF OPERATION OF A 2-HEAD MILLING CUTTING MACHINE FOR WOOD
Fastest price updates for double end saw machine
Double end saw machine are among the popular woodworking saw systems widely chosen by manufacturers, consistently receiving positive feedback from customers. To quickly obtain an accurate price quote for woodworking machinery, please contact Quoc Duy directly via:
24/7 Consultation & Quotation Hotline: +84 903 600 113
Factory / Showroom Address: 401 To Ngoc Van Street, Thoi An Ward, Ho Chi Minh City, Vietnam. (visit to view machines operating live)
Email: info@quocduy.com.vn
Quoc Duy specializes in supplying trusted, high-quality woodworking machinery at the best prices. We are always ready to serve you.
machine delivered to customers factory

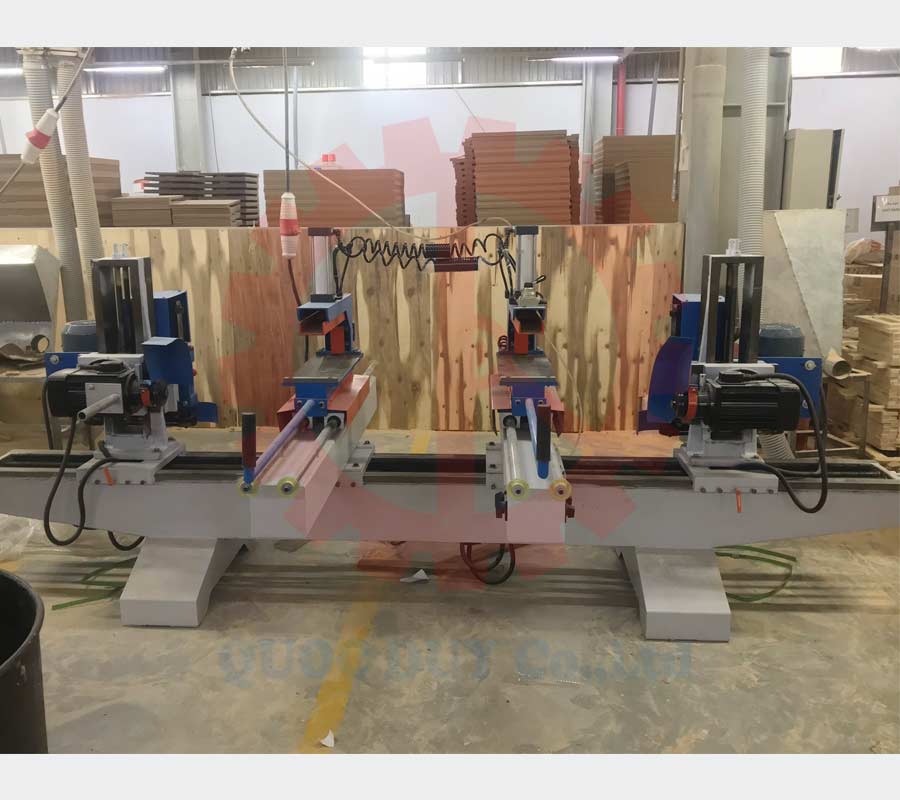

machine handover to customer in Dong Nai

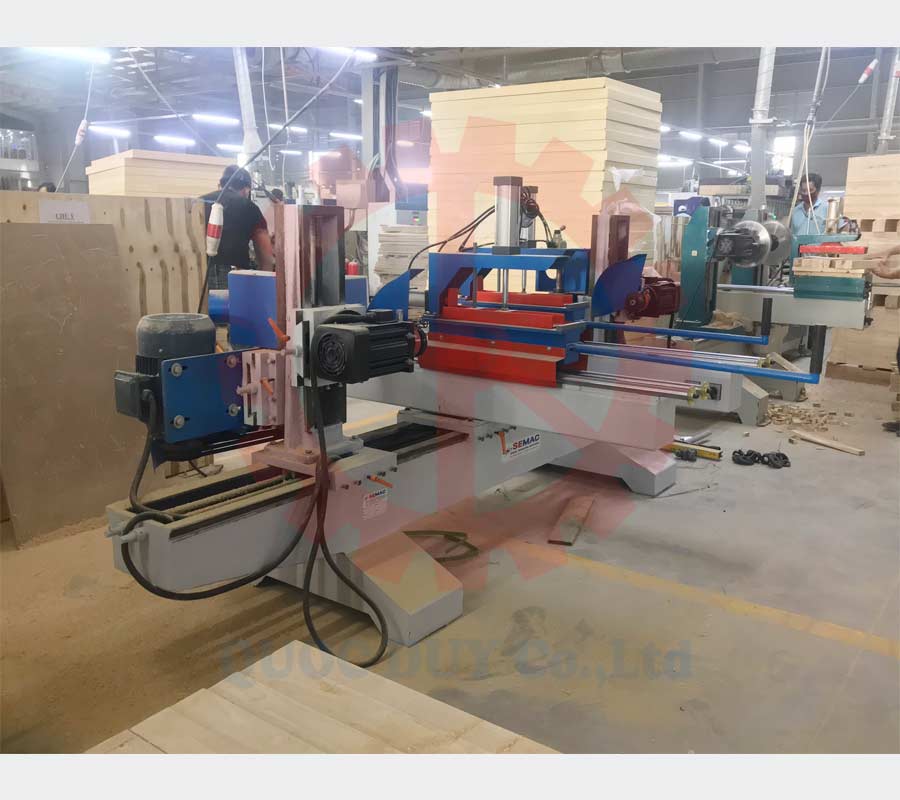

Delivery of double-end saw machine in Dong Nai

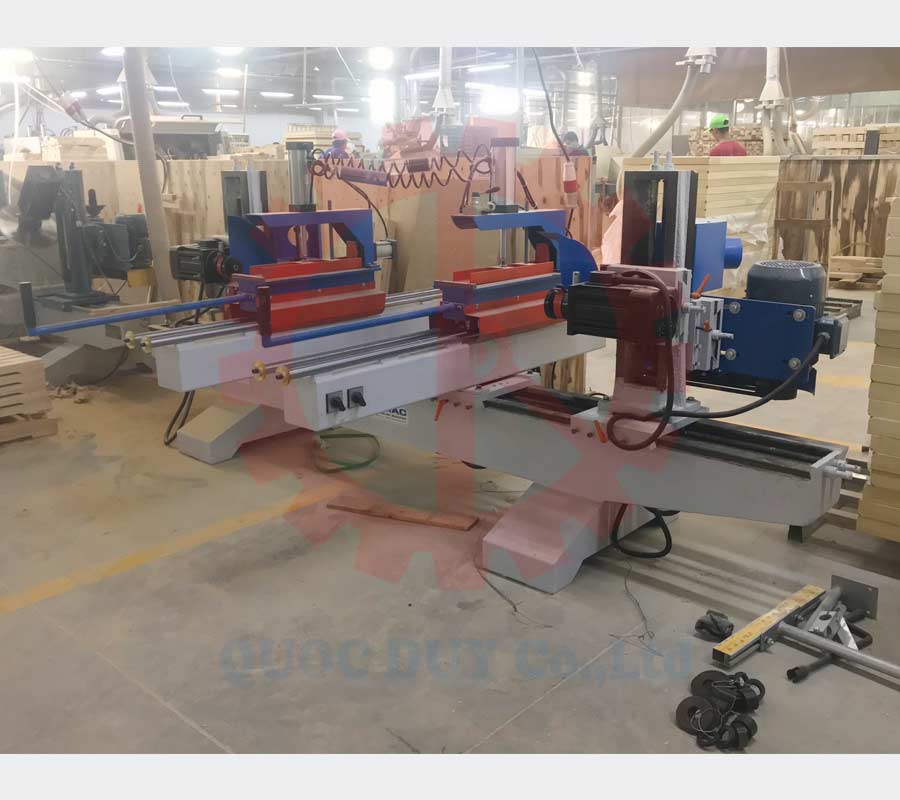

double end saw machine at customers factory in Dong Nai
