Curved edge banding machine is used in factories manufacturing and processing industrial wood products for export. It can apply 1 or 2 types of glue as desired.

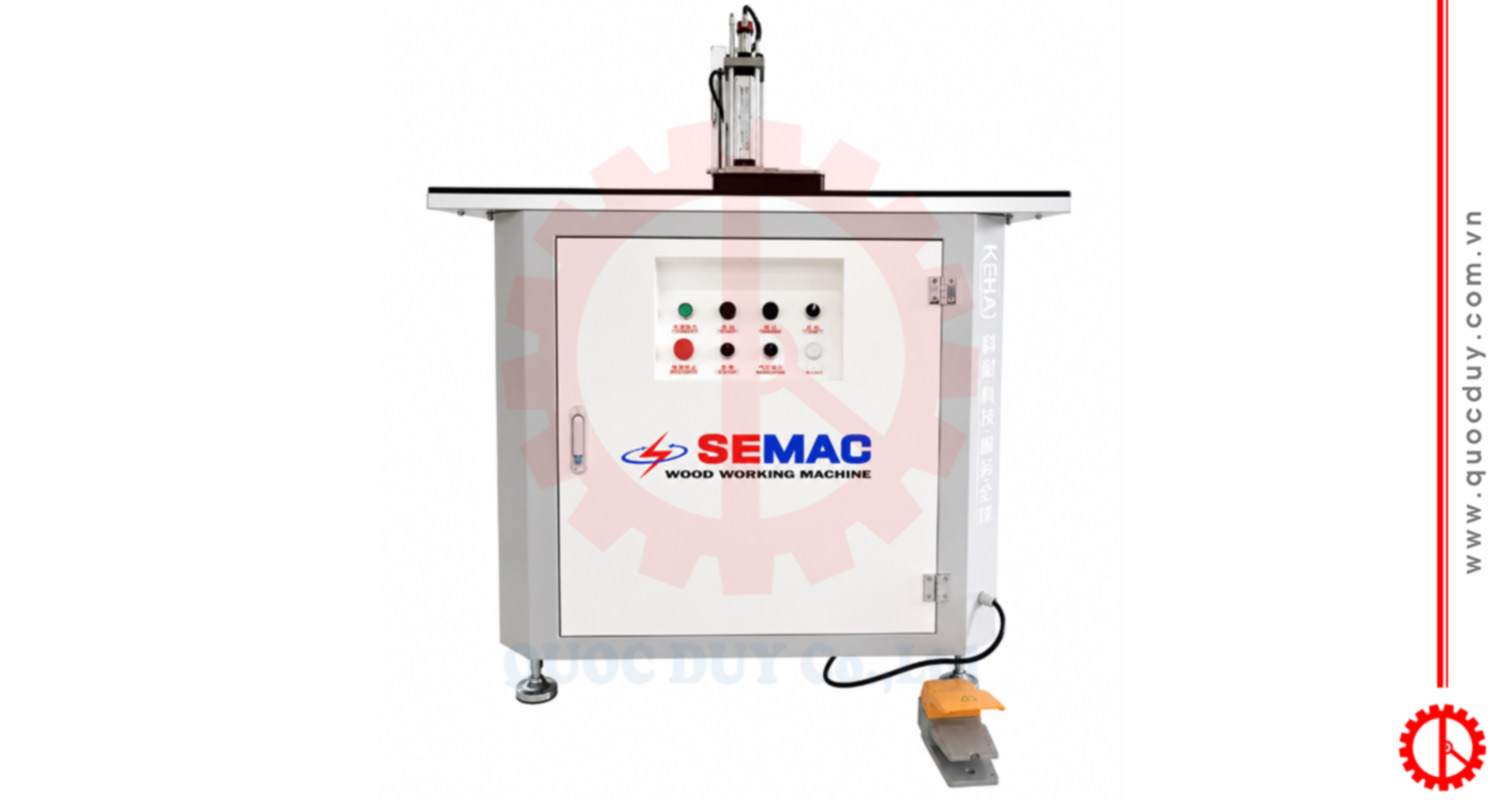

Introducing the curved edge banding machine
Application of the edge rounding machine
- To achieve a smooth finish on the edges of products with rounded, curved, and circular profiles, the machine uses glue rolling, splinting, and automatic thread cutting.
- The specifications entered into the machine are automatically detected to ensure accurate cutting.
- This curved edge banding machine can be used to finish the edges of various products with curved shapes, ranging from laminate floors to dining tables, study desks, bookshelves, TV shelves, and desk drawers.
Features of pur/eva glue curved thread gluing machine
- In the wood industry, there is a machine that’s currently trending.
- It’s different from traditional edge banding machine that use only EVA glue.
- It has a sprocket and rubber shaft that firmly holds the workpiece without scratching its surface.
- This curved edge banding machine serves to glue and round edges, creating aesthetic appeal for the product.
- It specializes in gluing edges of MDF, MFC, HDF industrial boards, office furniture, and industrial wood products with spherical or round shapes.
- The curved edge banding machine operates with high performance, durability, and energy-saving features that reduce labor costs.
- It consistently produces high-quality work with sharp sticker lines.
- The glue pot is integrated into the machine and can use both EVA glue and PUR glue, easily changed with one-touch operation. on.
Details of the curved edge banding machine
Specifications of straight curved thread pasting machine
| SMBL 620 3 | SMBL 700 3 | |
| Voltage | : 380V/50HZ/ 3phase | : 380V/50HZ/ 3phase |
| Total power | : 5.7Kw | : 3.5 Kw |
| Edge banding speed | : 0-20cm/s | : 0-20cm/s |
| Air pressure | : 0.6-0.8Mpa | : 0.6-0.8Mpa |
| Glue pot capacity | : 2600ml | : 2600ml |
| Glue pot temperature | : 110-210℃ | : 110-210℃ |
| Hot melt adhesive type | : PUR/EVA | : PUR/EVA |
| Strip width | : 14-70mm | : 14-70mm |
| Strip thickness | : 0.5-3mm | : 0.5-3mm |
| Trimming | : ＜14mm single trimming; 14-70mm double trimming up and dowm | : ＜14mm single trimming; 14-70mm double trimming up and dowm |
| Inner arc radius | : ≥20mm( special operation sealable radius 4mm) | : ≥20mm( special operation sealable radius 4mm) |
| Head rotation angle | : 15° | : 15° |
| Vacuuming | : φ150mm | : φ150mm |
| Type of edge strip | : PVC, ABS, Melamine, Plastic, Veneer ( need to be customized), etc | : PVC, ABS, Melamine, Plastic, Veneer ( need to be customized), etc |
| Arm length | : 2250mm | : 2250mm |
| Package size | : 1870*1400*1340mm (half wooden case) | : 1870x1400x1530mm (half wooden case) |
| Weight | : 500kg (half wooden case) | : 530kg (half wooden case) |
VIDEO OF OPERATING THE PUR/EVA GLUE CURVED EDGE MACHINE
Latest curved edge banding machine price
With over 20 years of experience in the woodworking machine supply industry, Quoc Duy has a team of experienced and skilled staff who constantly strive to provide high-quality products that cater to different needs during the production process.
If you have any questions about our automactic curved edge banding machine, please feel free to contact us using the details provided below:
- Email : info@quocduy.com.vn
- Hotline : 0903 600 113
- Website : www.quocduy.com.vn – www.semac.com.vn
You can also visit our factory at 401 To Ngoc Van, Thanh Xuan Ward, District 12, Ho Chi Minh City to observe the most modern machine operating process firsthand.
