CNC router with integrated drilling unit – CNC R1B 20TH uses genuine components, SYNTEC control system – TAIWAN. Quoc Duy launched a warranty policy of up to 18 months, and also included a vacuum cleaner,… at an extremely low price, never seen before.
CNC router with integrated drilling unit
Machine features of CNC router with integrated drilling unit
- Integrated machine: Equipped with 1 router unit and 1 drilling unit, capable of performing multiple functions effectively, including milling, drilling, surface engraving, automatic tool change, contour cutting, and board splitting.
- Automatic tool changer system with 12 tool holders, providing flexibility in tool change for complex products with frequent tool variations.
- Utilizes SYNTEC control system, user-friendly and easy to operate.
- Precise machining based on pre-programmed instructions, optimizing processing time.
- The CNC router machine with automatic tool changer is applied in the production of doors, tables, chairs, decorative patterns, decorative wall panels, and more.
Highlighted advantages of CNC router with integrated drilling unit
- Utilizes high-torque Servo motors for fast, accurate, and stable operations.

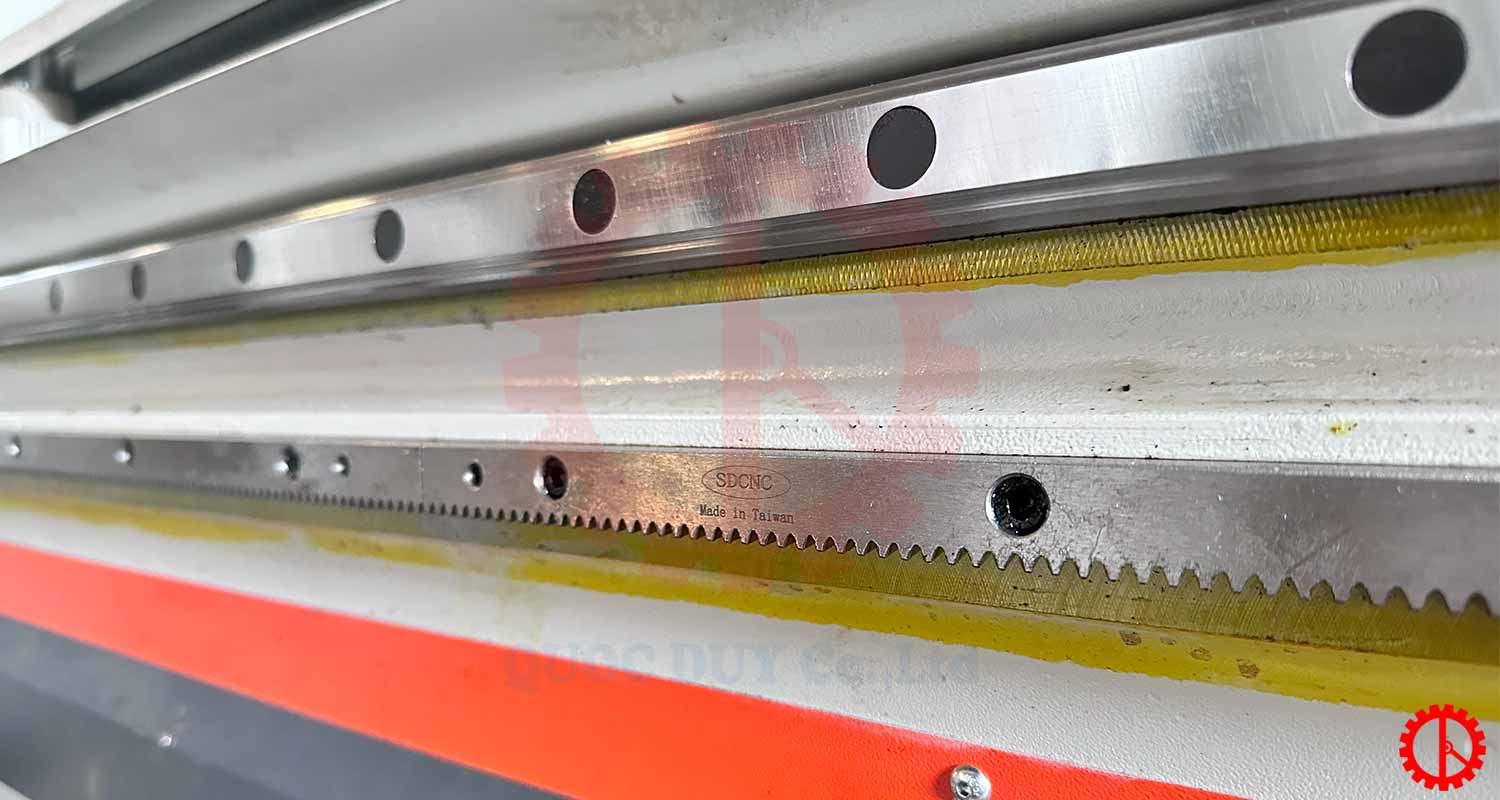

- Equipped with 30mm square guide rail from Taiwan.
- Control system: SYNTEC.
- Motor driver: Leadshine Servo motor.
- Working table structure: Vacuum table
- Rack Support: Spiral gear rack support.
- ISO 30 Tool Holder, tool changer with 12 tool clamps.
- X, Y, Z Axis Drive Mechanism: X, Y axes driven by gear rack, Z axis driven by ball screw.
- Pneumatic Positioning Cylinder: Equipped with a pneumatic positioning cylinder for workpiece alignment.
- Lubrication Pump System: Automatic lubrication system.
Specifications
| Working Area | : X=1300mm, Y=2500mm, Z=200mm. |
| Main Spindle | : 9kw (HQD) |
| Drilling Unit | : 5+4 drills |
| Leadshine Servo Motors | : 1.5kw |
| Vacuum System | : 7.5kw |
| Maximum Travel Speed | : 80 m/min |
| Maximum Working Speed | : 35 m/min |
| Inverter | : 11kw |
| Spindle Speed | : 18000 rpm |
| Excludes the up and down worktable for the workpiece. | |
| Dust Collector: Dual-bag dust collector with 5.5kw power. | |
| X axis travel | : 1300 mm |
| Y axis travel | : 2500 mm |
| Z axis travel | : 200 mm |
| Servo motor X, Y, Z | : 1.5 kw x 4 pcs |
| Maximum travel speed | : 80 m/min |
| Maximum working speed | : 35 m/min |
| Motor | : 9kw (HQD) |
| Spindle speed | : 18000 rpm |
| Drilling | : 5 + 4 |
| Vacuum | : 7.5 kw |
| Inverter | : 11 kw |
| Compressed air | : 0.6 – 0.8 Mpa |
| Roller | : 2 pcs |
| Accuracy | : ±0.05 mm |
| Code | : G code |
| Voltage | : 380V/50Hz |
| Workpiece feeding roller table | : Yes |
| Board picking equipment | : Yes |
| Net weight | : 2400 kg |
Attention: Specifications, design features and colors of the machine are subject to change without prior notice, but will not affect the function and operation of the machine.
