Cnc milling lathe machine 32 heads
Introducing the 32-head cnc machining lathe
Features of 32-head cnc lathe machining
- Specialized in processing chair legs, table legs, etc., integrating multi-functions of milling, turning, engraving, and handling complex profiles effectively.
- Designed with 32 tool heads, machining 8 workpieces at the same time, 360 degree machining positioning.
- Many types of tools can be installed, saving time and maximizing productivity.
- Machining with fast speed and high precision.
Application of cnc milling lathe machine 32 heads
Specifications of 32-head lathe cnc machine
| Processing range | : 1200 x 200 x 200 mm |
| Distance between spindles | : 300mm |
| Maximum X-axis travel | : 600mm |
| Maximum Y-axis travel | : 1400mm |
| Maximum Z-axis travel | : 400mm |
| Maximum A-axis travel | : 360° |
| Motor power | : 5.5kW x 8pcs, 12000rpm |
| : 3.7kW x 8pcs, 18000rpm | |
| Z-axis servo motor | : 1.3kW |
| Y-axis servo motor | : 2 kW |
| X-axis servo motor | : 1.8kW |
| A-axis servo motor | : 0.85kW |
| B axis servo motor | : 0.75kW x 2 |

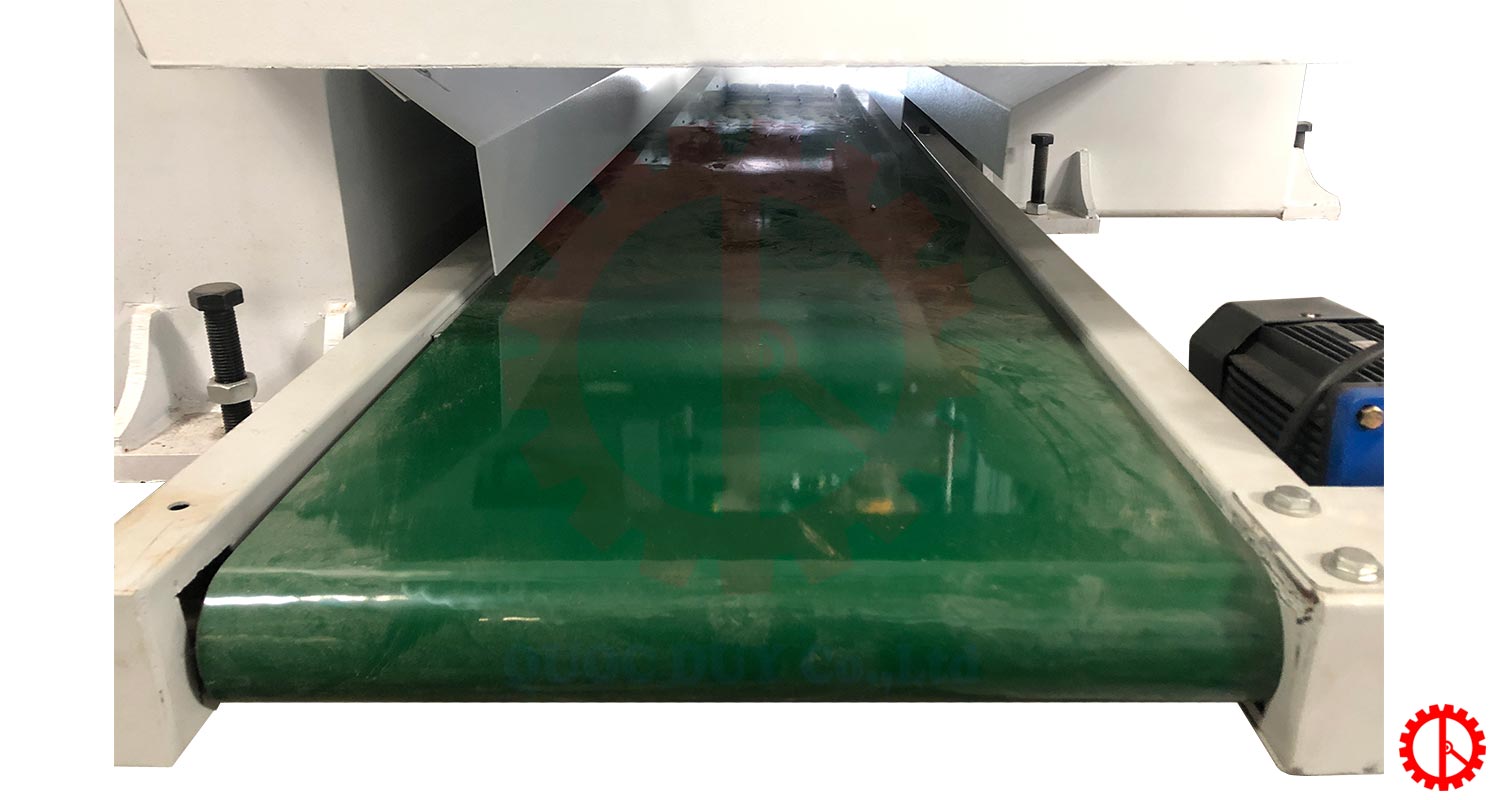

| Conveyor motor power | : 0.14 kW |
| Voltage | : 3 phase, 380V/50Hz |
| Air pressure | : 0.6 MPa |
| Dust outlet diamter | : Ø180mm x 2 |
| NET weight | : 3500 Kg |
| Machine dimensions | : 3000 x 3800 x 2500 mm |
Video of operation of 32 axis cnc milling machine
> See more:
Latest cnc milling lathe machine 32 heads price
With over 20 years of experience in the woodworking machine supply industry, Quoc Duy provides a range of high-quality wood lathe machines to meet the diverse needs of customers during the production process.
If you have any questions regarding the 32-head CNC milling and turning machine, please feel free to contact us using the information provided below:
- Email : info@quocduy.com.vn
- Hotline : 0903 600 113
- Website : www.quocduy.com.vn – www.semac.com.vn
You are also welcome to visit our factory at 401 To Ngoc Van, Thanh Xuan Ward, District 12, Ho Chi Minh City, to witness firsthand the operation of our state-of-the-art machinery.
