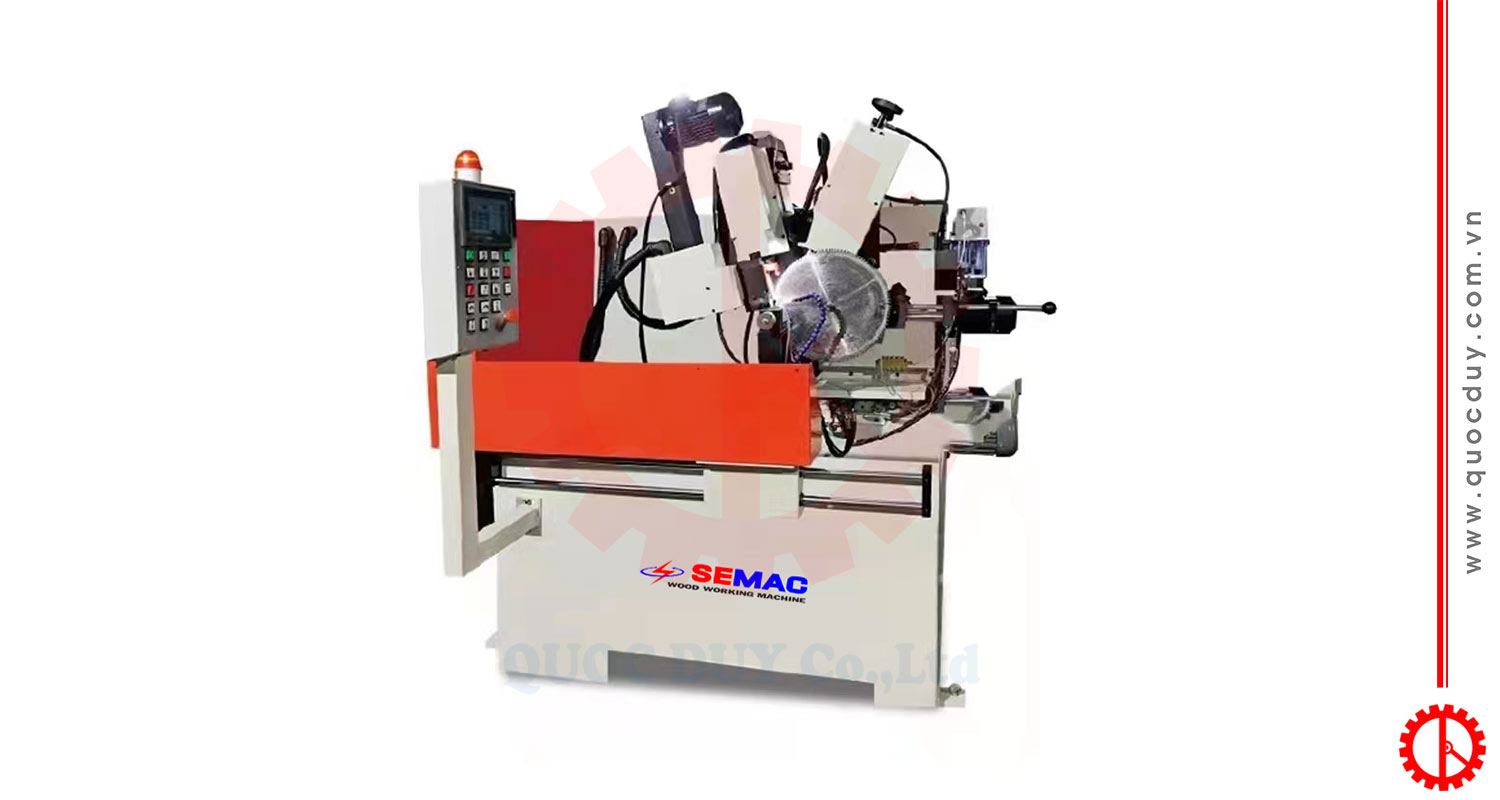

Features of Automatic Saw Blade Grinding Machine

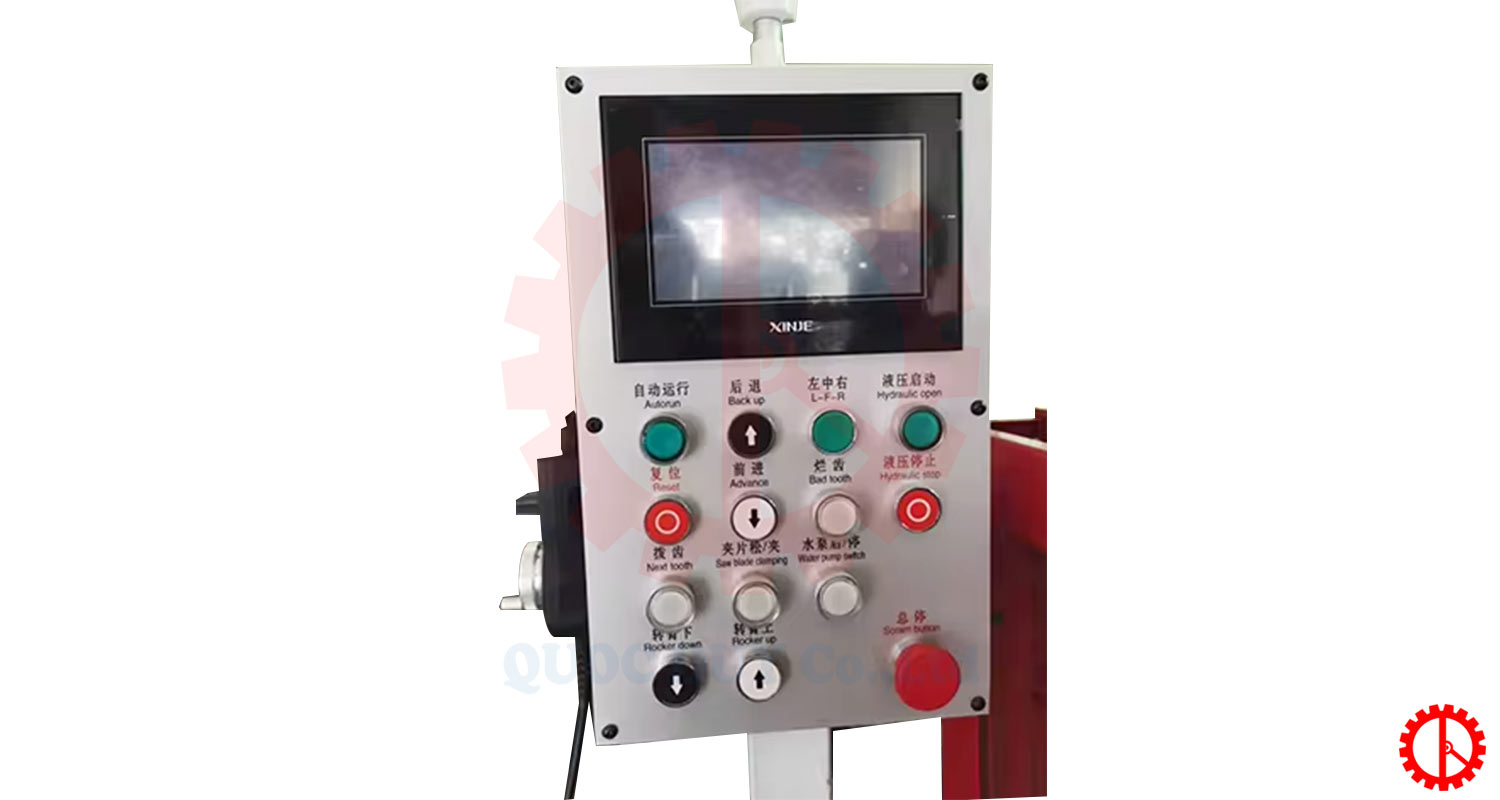

- The control panel is intuitively designed, making operation easy.
- Fast processing speed.
Specifications of Automatic Saw Blade Grinding Machine
| Saw blade diameter | : 120 – 800 mm |
| Inner diameter of saw blade | : 10 – 200 mm |
| Saw blade thickness (steel plate) | : 1 – 8 mm |
| Tooth pitch | : 7 – 100 mm |
| Grinding speed | : 0.5 – 6 mm/s |
| Working speed | : up to 20 teeth/min |
| Front rake angle | : 5° to +30° |
| Tooth top and back clearance angle | : 6° to 45° |
| Left/right tooth bevel angle | : 45° (top/back) |
| Negative bevel grinding angle | : -27° |
| Grinding head rotation angle | : 90° and 180° |
| Grinding wheel linear speed | : 26 m/s |
| Outer diameter of grinding wheel | : 125 mm |
| Inner diameter of grinding wheel | : 32 mm |
| Coolant pump flow rate | : 50 L/min |
| Coolant tank capacity | : 85 L |
| Voltage | : 380V – 3 phase |
| Total power | : 1.85 kW |
| NET weight | : 900 kg |
| Machine dimensions | : 1500 × 1300 × 1900 mm |
Note: Specifications, design features and colors of the machine are subject to change without prior notice, but will not affect the function and operation of the machine.
