Automatic PUR Glue Laminating Line for PVC- SMTC 1350 PUR

The automatic pur glue laminating line for PVC is the optimal solution for furniture and industrial panel manufacturing workshops that need to laminate surfaces with paper, PVC, or decorative laminates. Utilizing PUR hot-melt adhesive combined with an intelligent PLC control system, the machine delivers high and consistently stable performance.

Key Features of the automatic PUR glue laminating line

• Intelligent Control System: Equipped with an intelligent PLC touchscreen control system for simple, intuitive operation and easy monitoring of the entire process.
• Material Compatibility: Compatible with various substrates like MDF, particleboard, plywood, etc., offering flexible manufacturing capabilities.
• Robust Construction: The machine structure is designed to be sturdy, ensuring high stability throughout continuous operation.
• High Precision: Finished products achieve high accuracy, with a smooth and uniform laminated surface that meets stringent quality standards.

Details of the automatic PUR glue laminating line

• 4m Feeding Conveyor: Equipped with stainless steel rollers, ensuring stable panel transport without causing surface scratches.
• Dust Cleaning System: Combines an electrostatic dust eliminator, two 0.75kW fans, and sticky rollers, helping to thoroughly remove dust before adhesive application.
• Infrared Heating (Drying): Heats the panel surface before adhesive application, increasing adhesion and the quality of the finished product.
• Glue Spreader Machine: Controlled via the PLC touchscreen, it applies adhesive evenly and accurately using a system of three upper and two lower rollers. A 0.5m conveyor is arranged at both the input and output to facilitate easy operation.

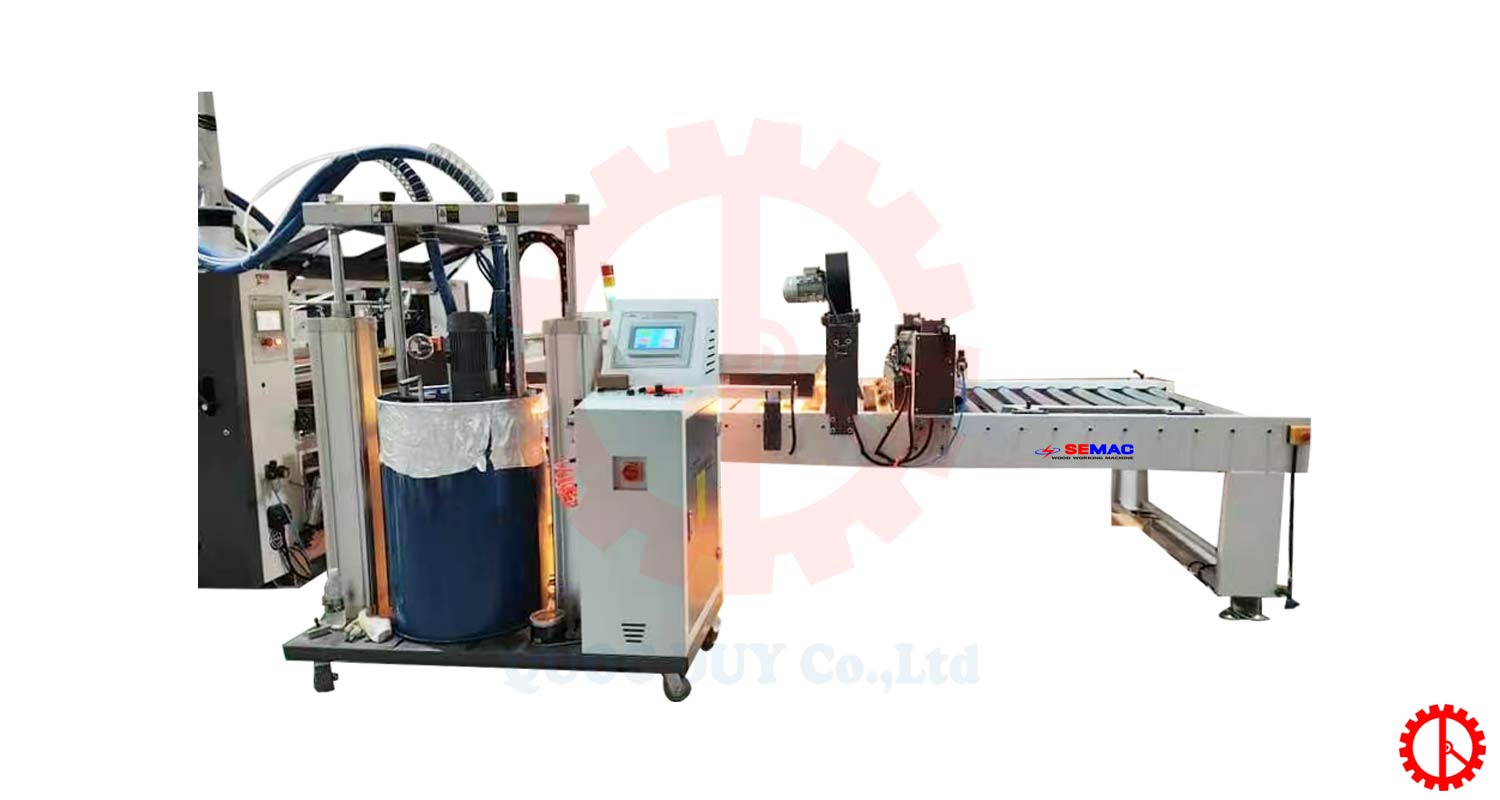

• PUR Glue Pot Unit: Responsible for melting and consistently supplying the adhesive to the spreader machine, ensuring the glue is always at its ideal state throughout the operation.
• Film Pressing Section: Includes a membrane roll lifting crane, a roll straightening unit, and a membrane roll stand, allowing for easy changing and alignment. The entire section is operated through the modern PLC touchscreen.
• Outfeed Conveyor: After pressing, the finished products are transferred to the outfeed area, which integrates an automatic trimming system for excess film on both sides, ensuring clean and uniform cut edges.

Technical specifications of the automatic PUR glue laminating line

Note:Specifications, design features, and machine colors are subject to change without prior notice, but this will not affect the functionality or operational capability of the machine.
