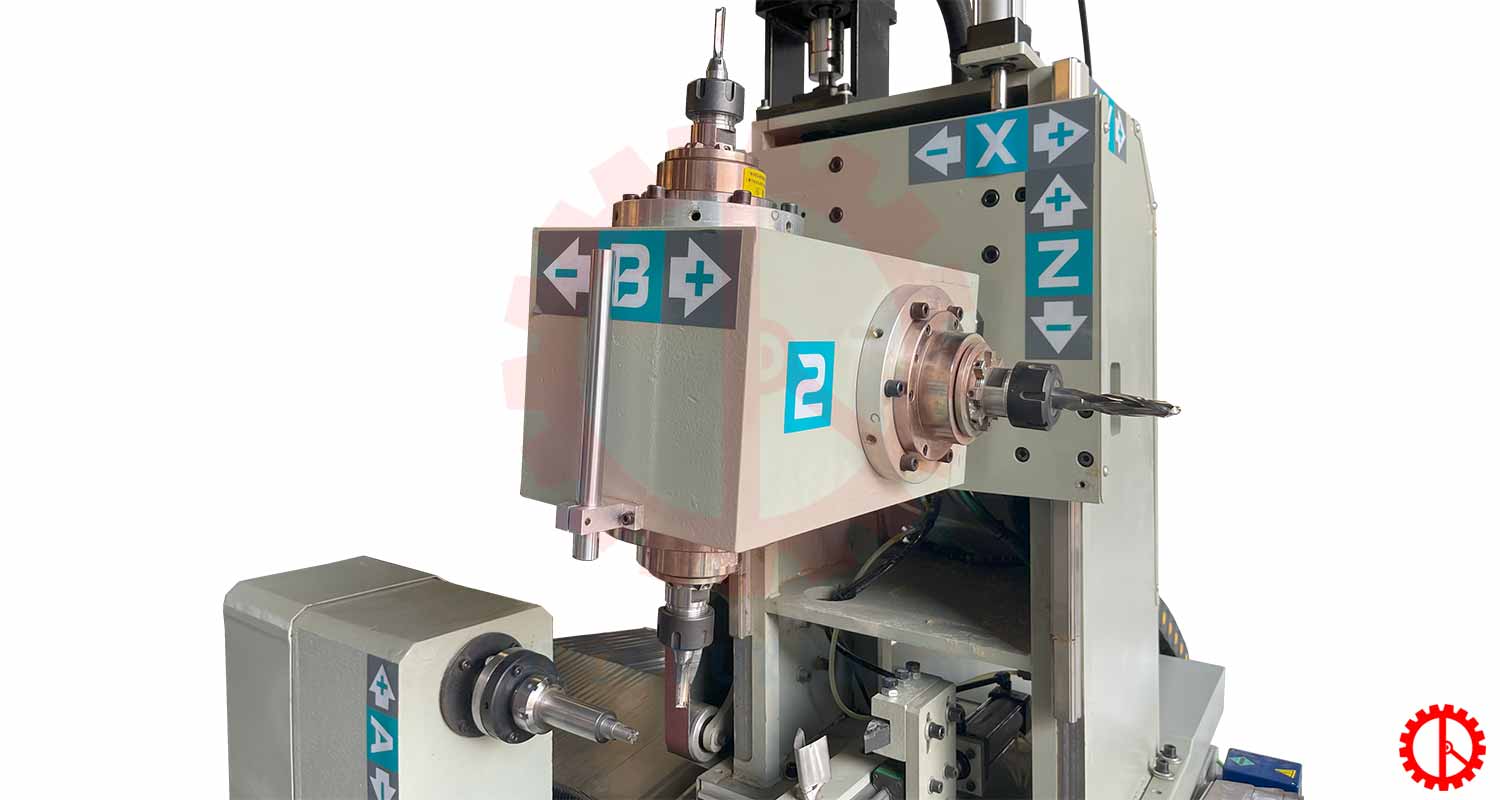

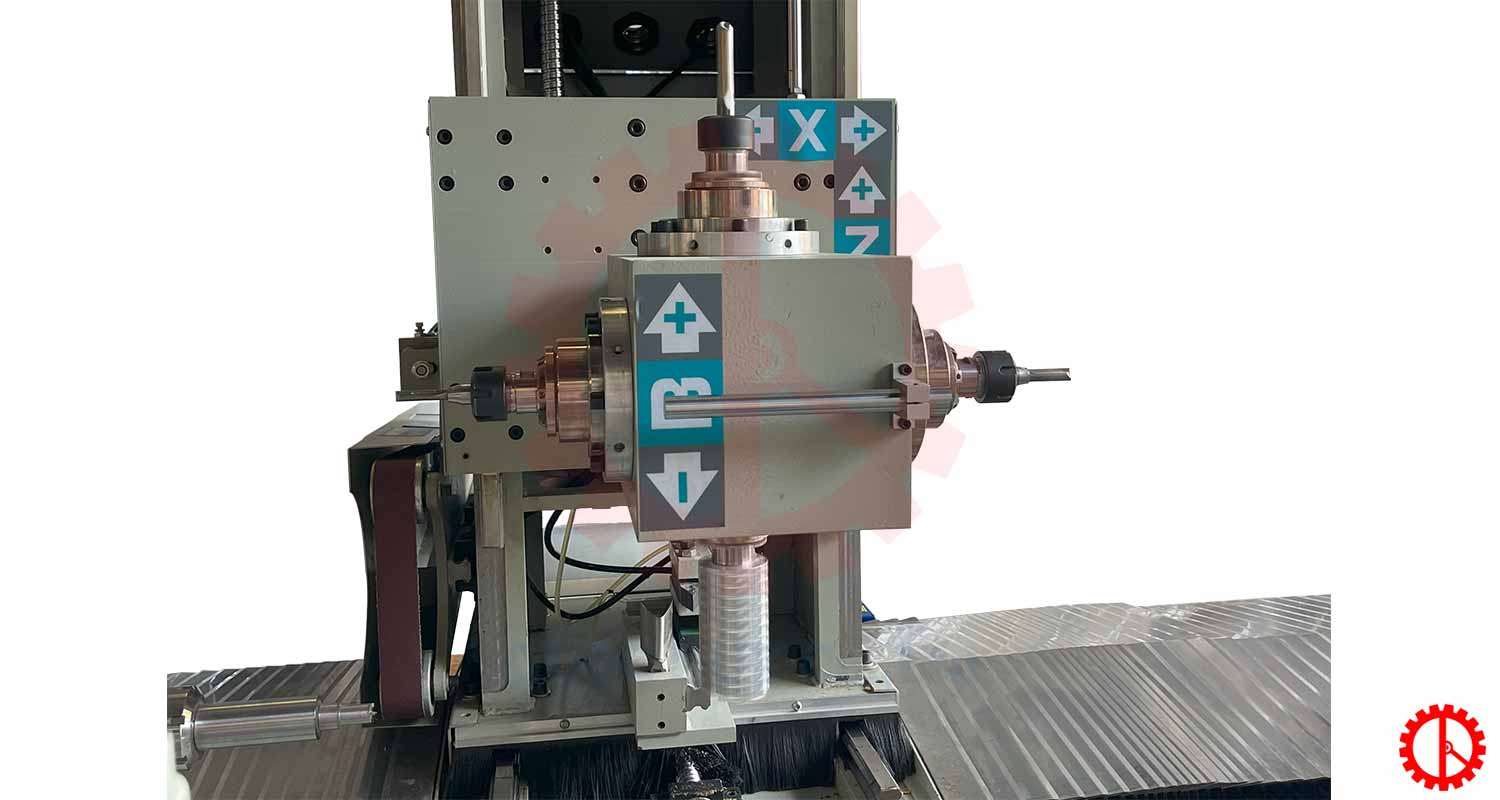

The 5-Axis Milling And Turning Sanding Machine With Automatic Workpiece Feeding has a sturdy welded steel structure, high-speed and flexible machining spindle. Additionally, the machine is equipped with an automatic feeding unit to save processing time.
Features of 5-Axis Milling And Turning Sanding Machine With Automatic Workpiece Feeding

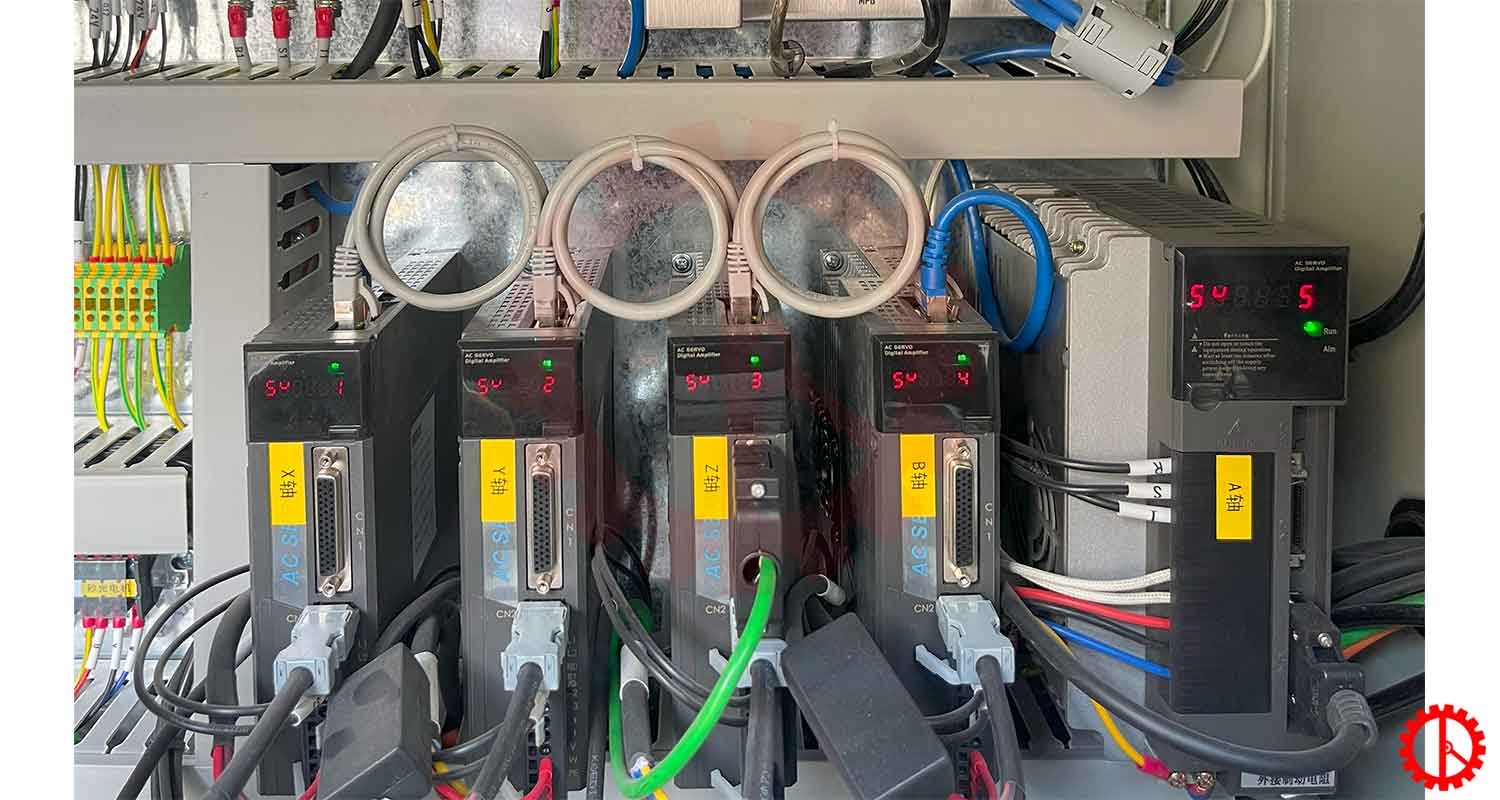

- The servo motor ensures high precision.
- Motion method:

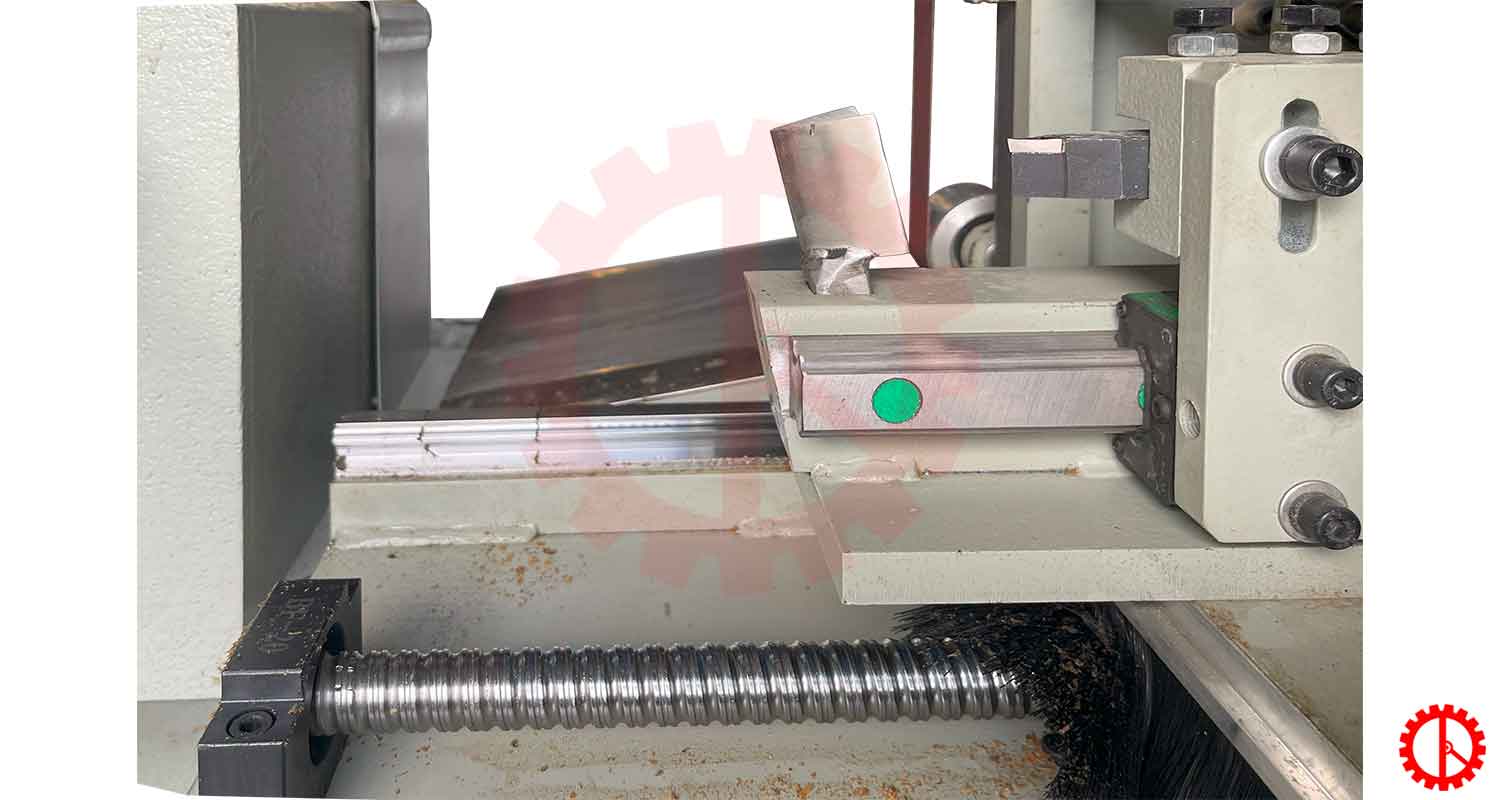

- Ball screw on the X-axis (high precision, low noise)
- Straight rack and pinion + planetary gearbox on the Y-axis (high precision)
- Ball screw on the Z-axis (high precision, low noise)
- Machine body structure: Sturdy welded steel frame, heat-treated at 600˚C to reduce vibration during operation.
- Drive components: High-quality, precise linear guides from Germany.
- Tool movement mechanism: IMPERIAL gearbox from Germany.
Specifications of 5-Axis Milling And Turning Sanding Machine With Automatic Workpiece Feeding
| Machining length | : 1200 mm |
| Diameter of round workpiece | : 150 mm |
| Size of square workpiece | : 100 mm |
| X axis travel | : 1300 mm |
| Y axis travel | : 300 mm |
| Z axis travel | : 200 mm |
| Moving speed | : 50 m/min |
| Machining speed | : 20 m/min |
| Main motor power | : 5.5 kW, 3.7 kW |

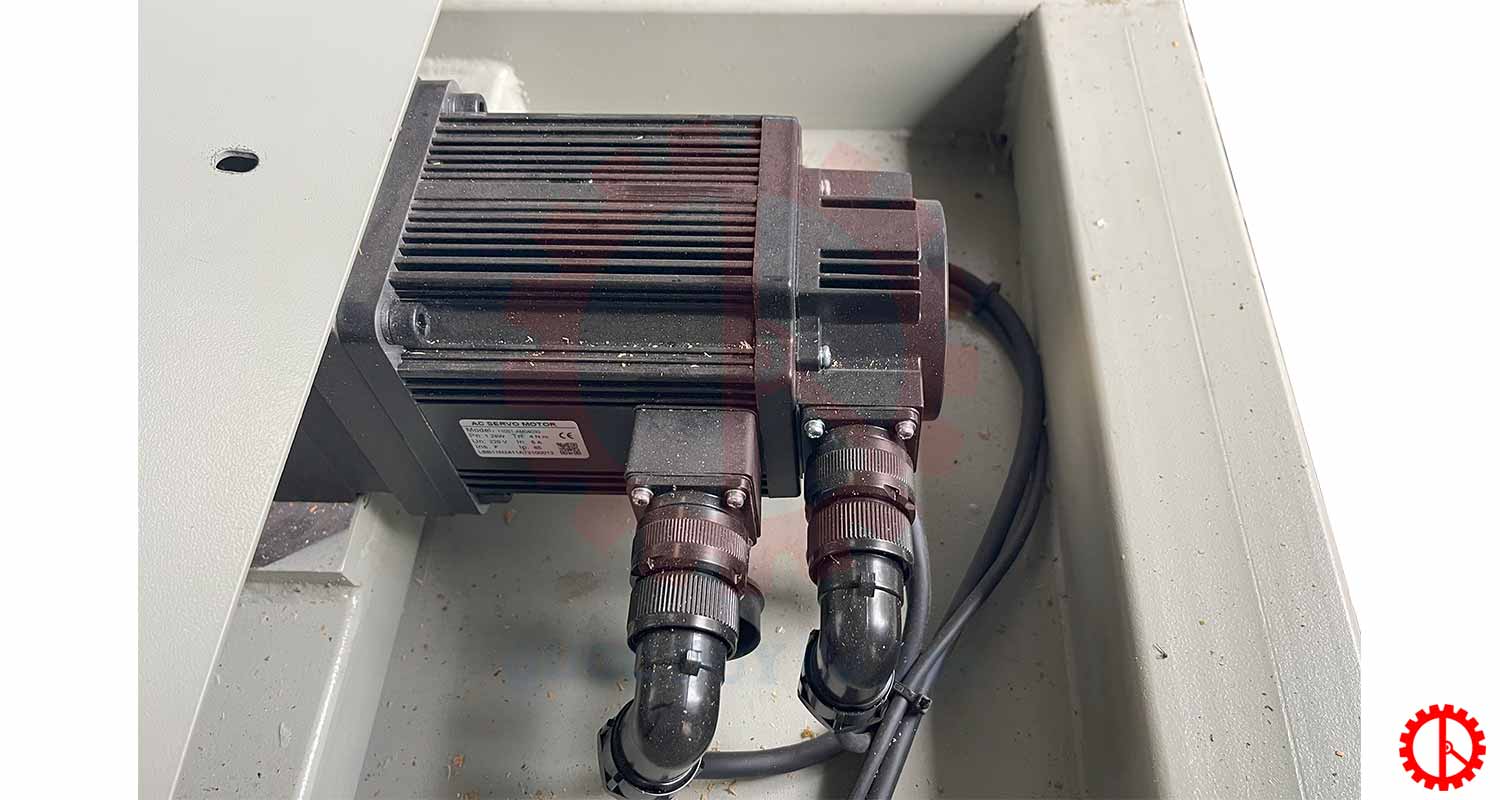

| X axis servo motor | : 1.2 kW |

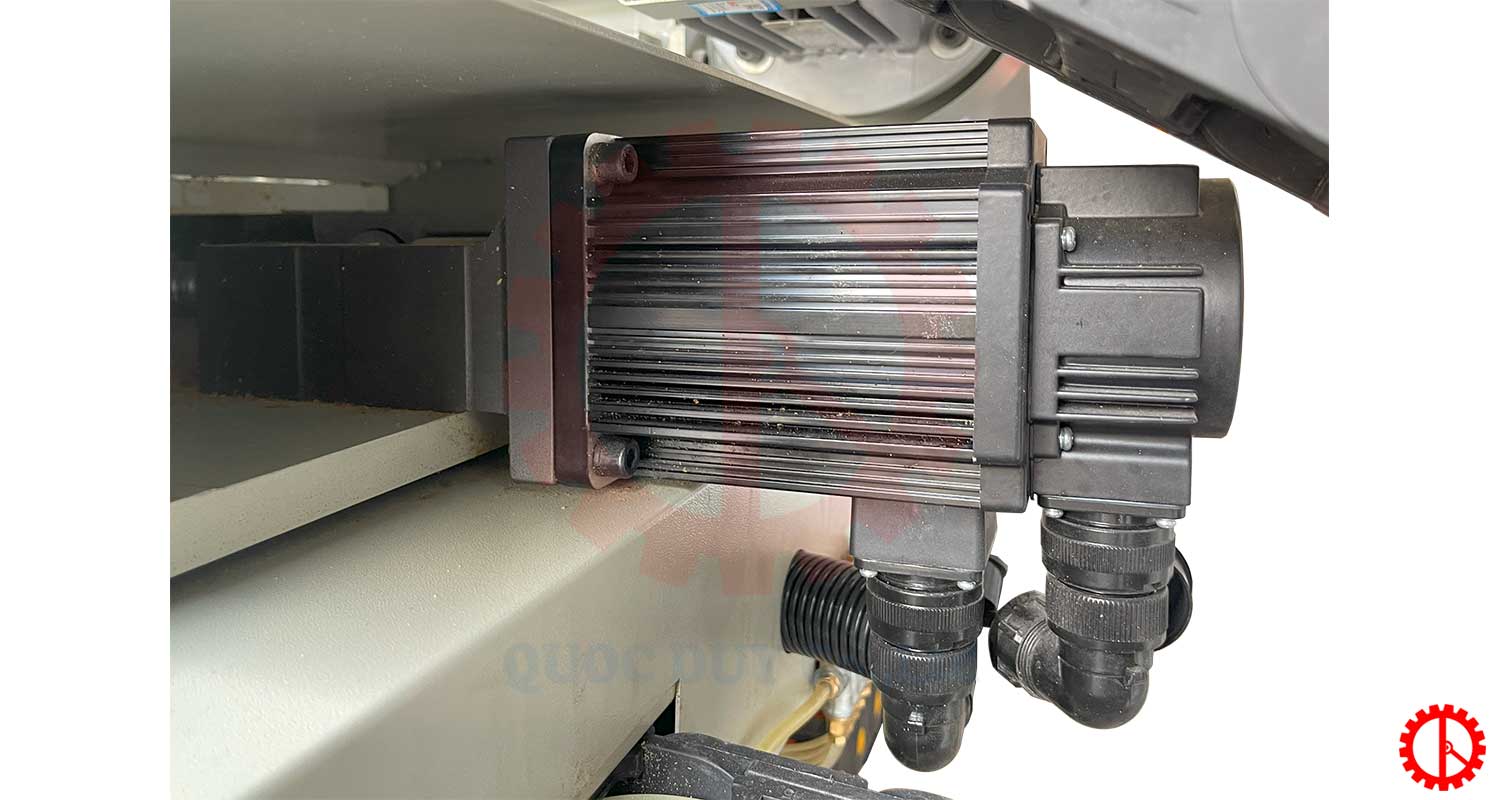

| Y axis servo motor | : 1.2 kW |

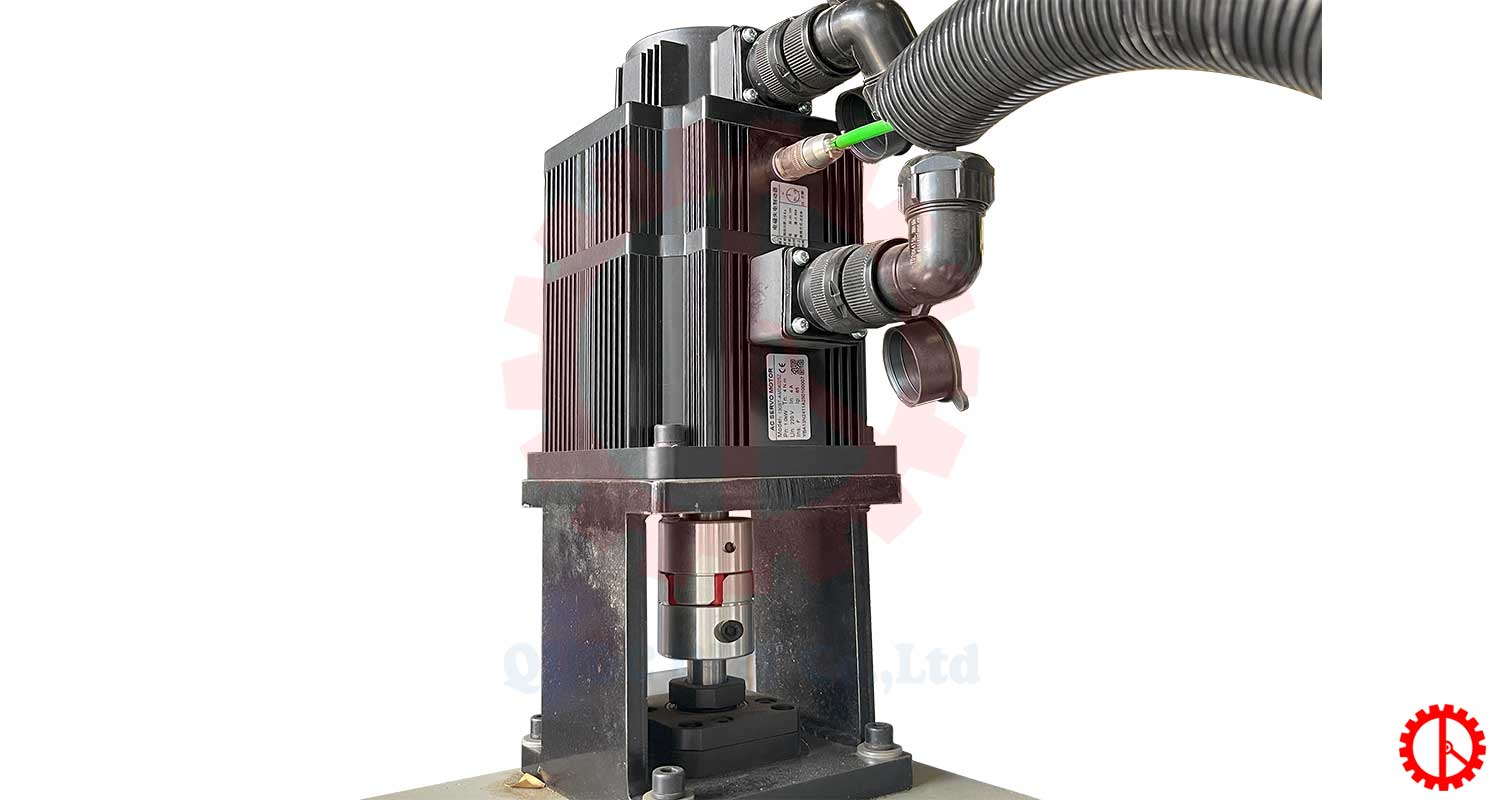

| Z axis servo motor | : 1.0 kW |
| B axis servo motor | : 1.5 kW |
| A axis servo motor | : 4.0 kW |
| B axis | : 360° rotation |

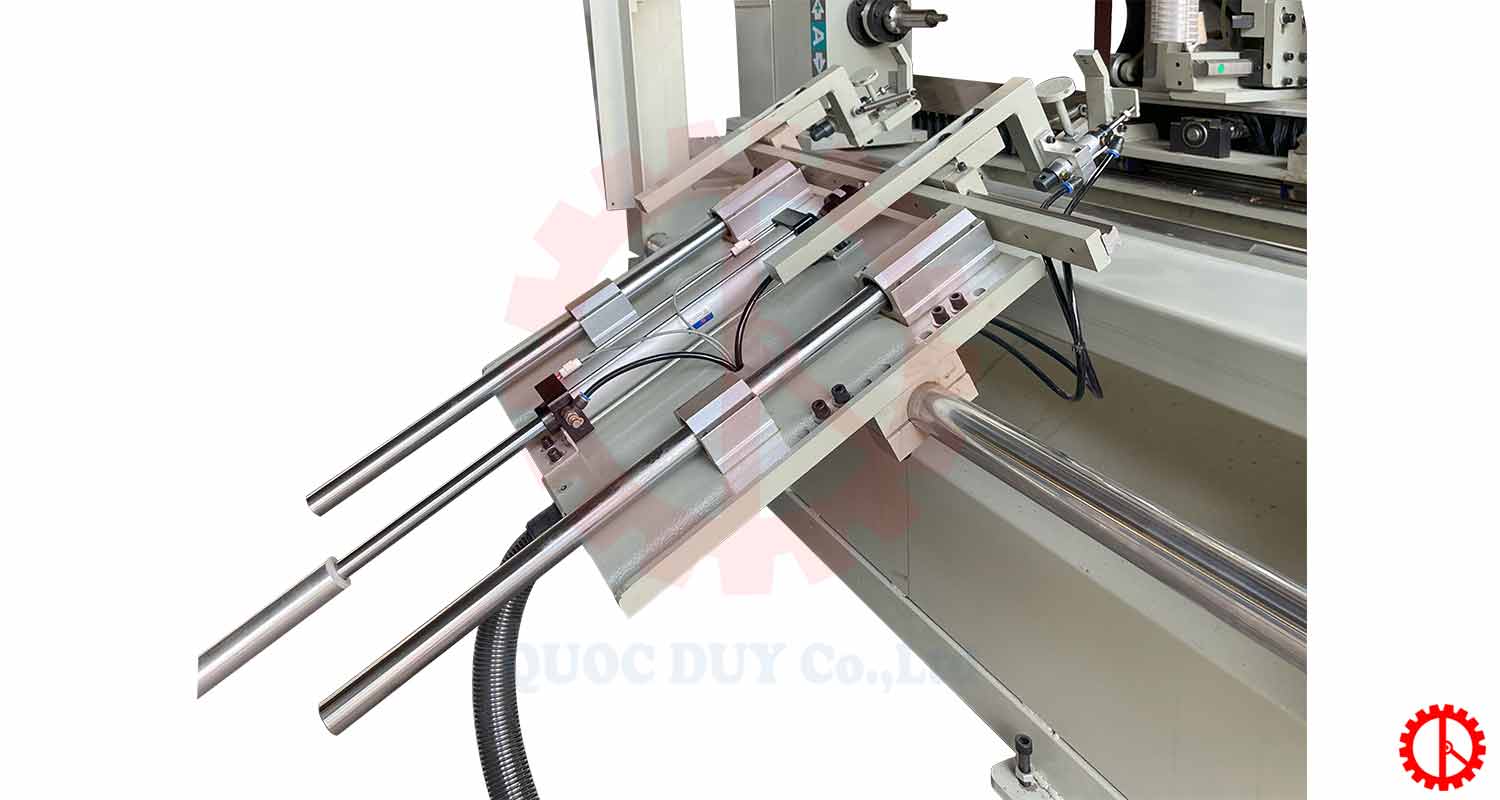

| Automatic loading system | : 1 unit |

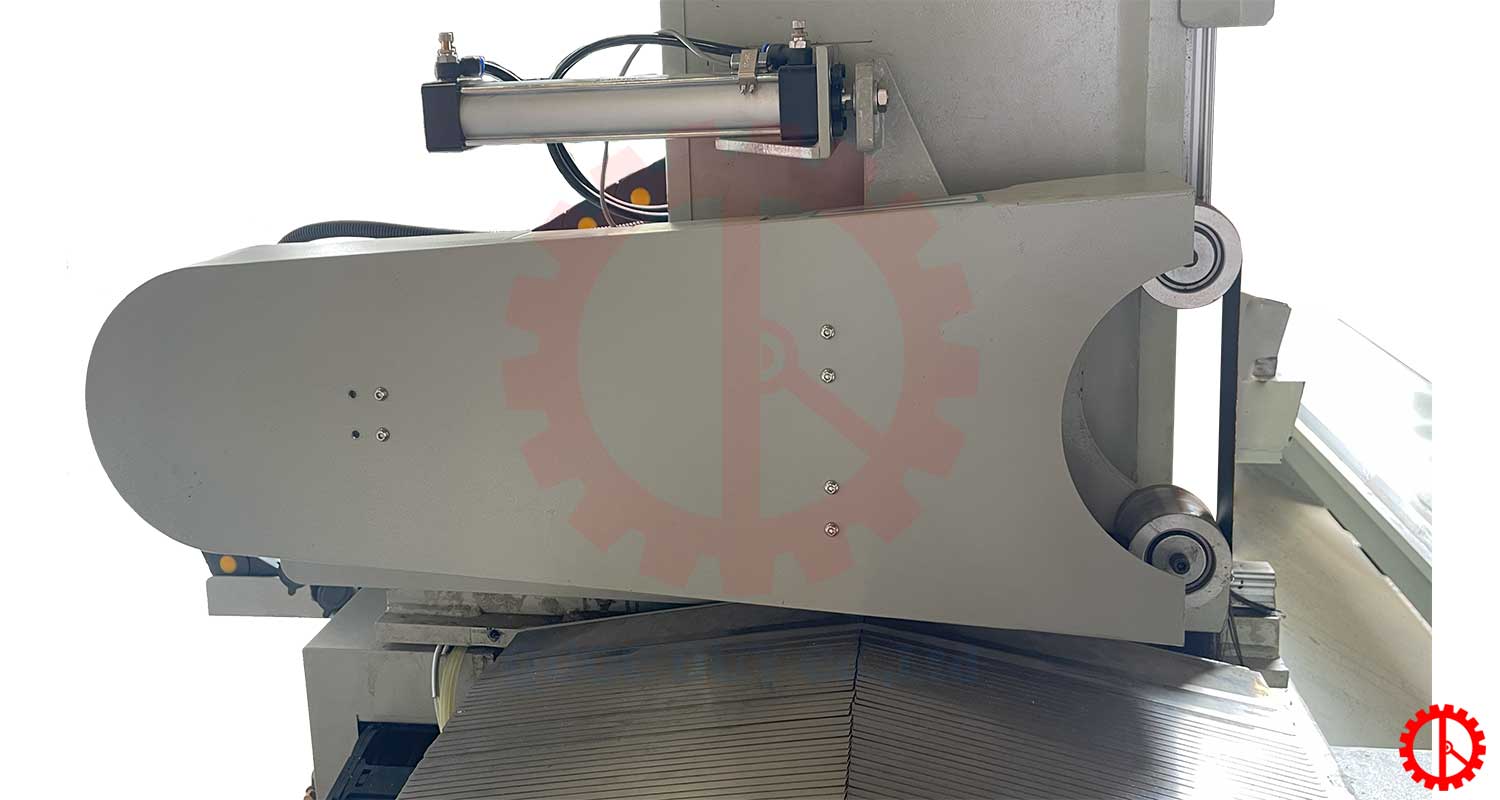

| Sanding unit | : 1 set (optional) |

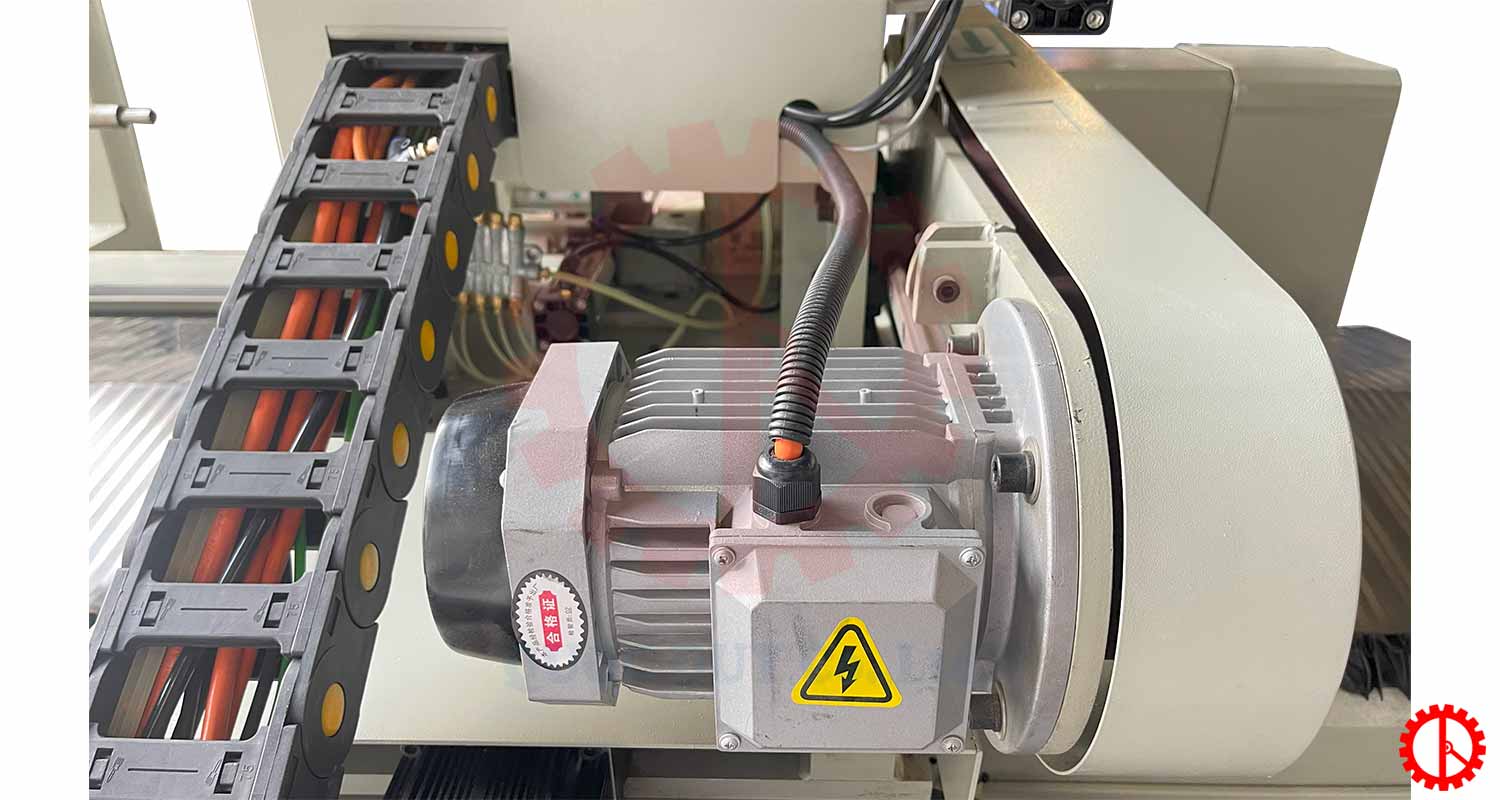

| Sanding motor power | : 0.75 kW (optional) |
| Air pressure | : 0.6 – 0.8 MPa |
| Voltage | : 380V / 50 Hz |
| Machine dimensions | : 2700 × 2100 × 2150 mm |
| NET weight | : about 3000 kg |
Note: The technical specifications, design features, and color of the machine may be subject to change without prior notice, while still maintaining its functionality and operational capabilities.
video of 5-Axis Milling And Turning Sanding Machine With Automatic Workpiece Feeding
Latest 5-Axis Milling And Turning Sanding Machine With Automatic Workpiece Feeding Price
The 5-Axis Milling And Turning Sanding Machine With Automatic Workpiece Feeding is one of the best choice for woodworking in the modern industry due to its flexibility and outstanding precision. Equipped with up-to-date technology, the machine effectively meets the needs of complex production, optimizes the machining process, and delivers high-quality products.
