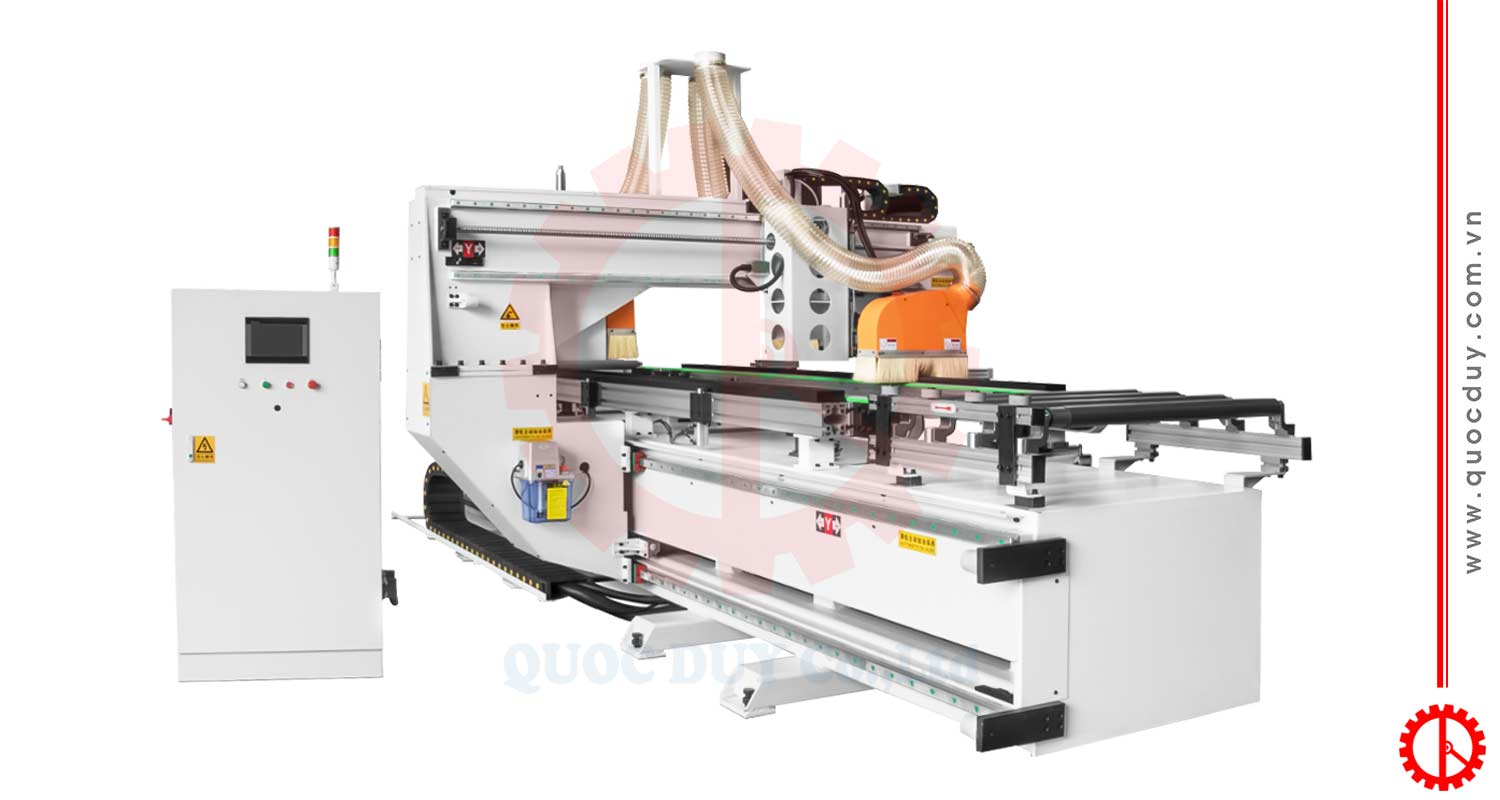

Features of 4 side door trimming machine – 3 cutting heads
Fully automatic four-side alignment system ensures high efficiency and convenient operation.
Equipped with three powerful cutting heads, including a main saw blade and scoring blade, delivering smooth cuts and minimizing edge chipping.
Suitable for processing laminate doors and fire-rated doors, with a maximum working width of up to 1100 mm.
Smart, user-friendly design allows easy and fast operation.
Main spindle powered by a 7.5 kW motor provides high machining speed, meeting industrial production demands.
Finished products achieve high dimensional accuracy, sharp cutting edges, and excellent aesthetic quality.
Specifications of 4 side door trimming machine – 3 cutting heads
| Working Length | : 1800 – 2800 mm |
| Working Width | : 520 – 1100 mm |
| Working Thickness | : 35 – 60 mm |
| Main Saw Blade Diameter | : D300 mm – d30 mm |
| Scoring Saw Blade Diameter | : D100 mm – d22 mm |
| Main Saw Motor Power | : 7.5 kW |
| Scoring Saw Motor Power | : 1.1 kW |
| Vacuum Motor Power | : 5.5 kW × 2 units |
| Main Saw Speed | : 6000 rpm |
| Scoring Saw Speed | : 12000 rpm |
| Dust Extraction Port Diameter | : Φ150 mm × 3 ports |
| Air Pressure Requirement | : 0.4 – 0.6 MPa |
| Voltage | : 380V / 50Hz |
| Total Installed Power | : 33.8 kW |
| Machine Weight | : 2500 kg |
| Overall Dimensions | : 4200 × 2350 × 1800 m |
Note: Technical specifications, design features, and machine color may be subject to change without prior notice; however, such changes will not affect the machine’s functions or operational performance.
