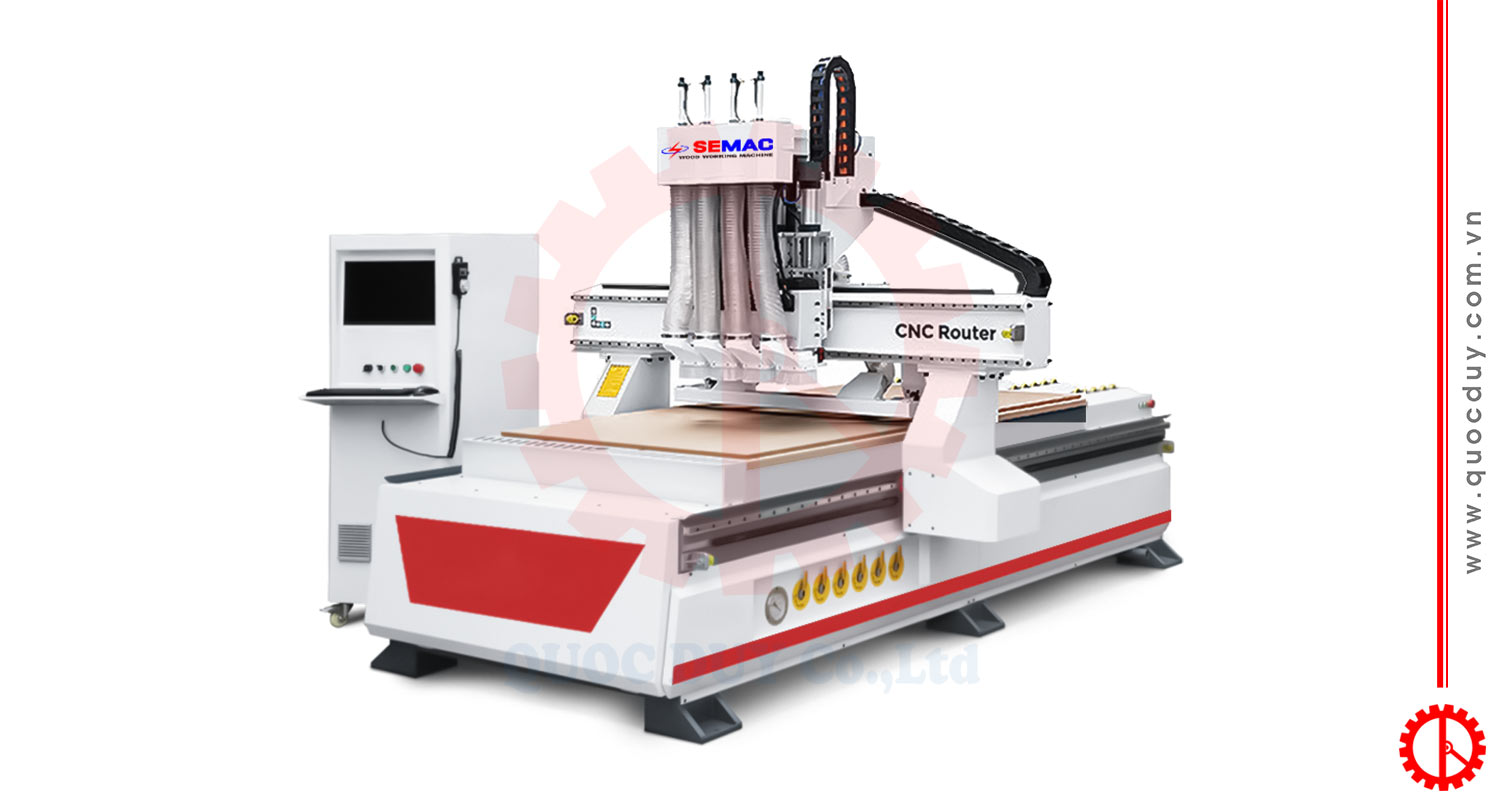

4 head CNC router milling machine designed for high-speed, precise wood processing. With four independent spindles, it ensures efficient multi-piece machining, ideal for mass production. Strong build and easy operation make it a smart choice for boosting productivity.
Features of 4 head CNC router milling machine
- The machine is suitable for processing panel furniture, cabinets, office furniture, tables, etc. It can process many different types of boards such as MDF, Plywood, etc.
- 6 Kw high capacity motor, fast working speed..

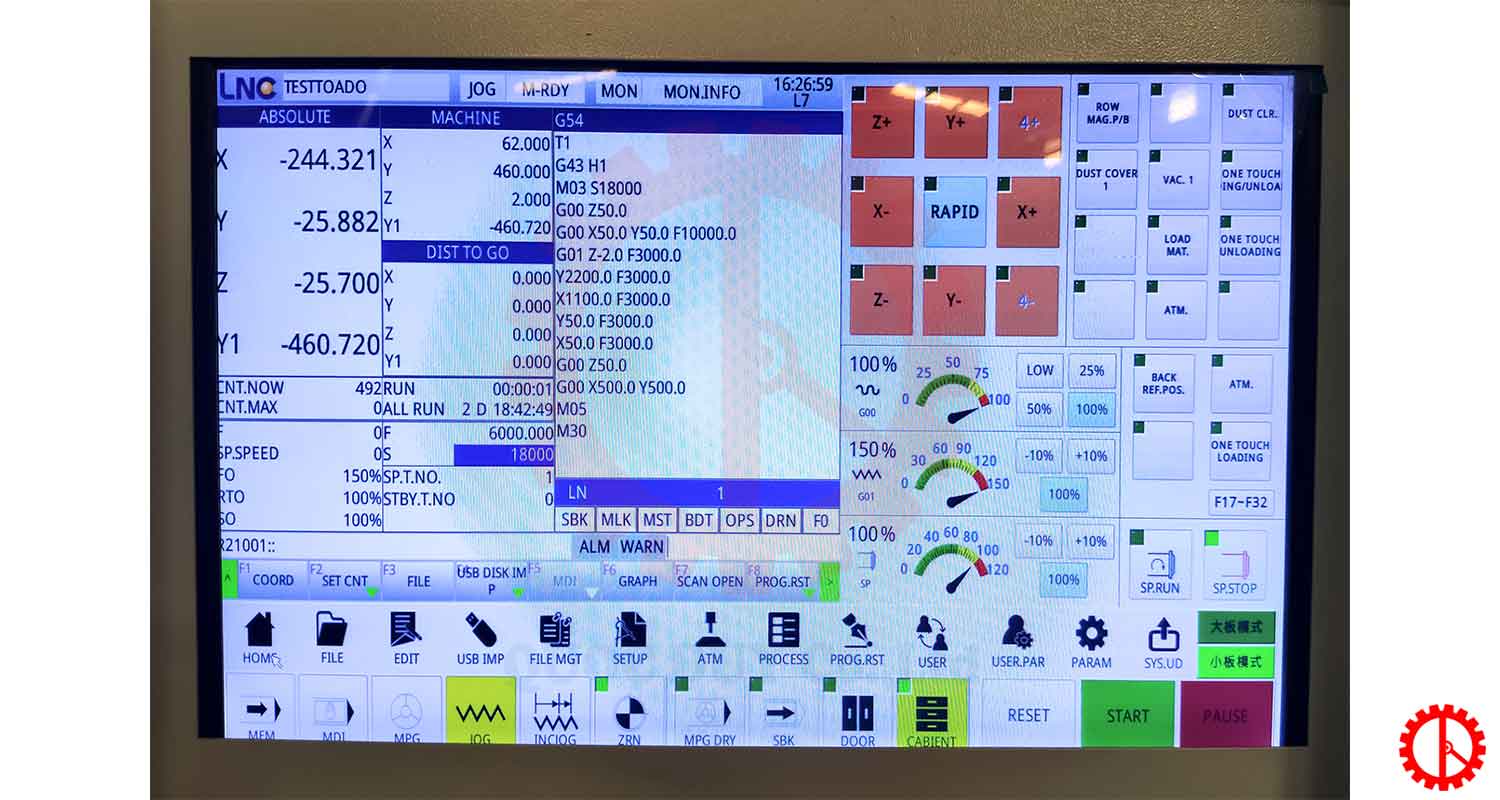

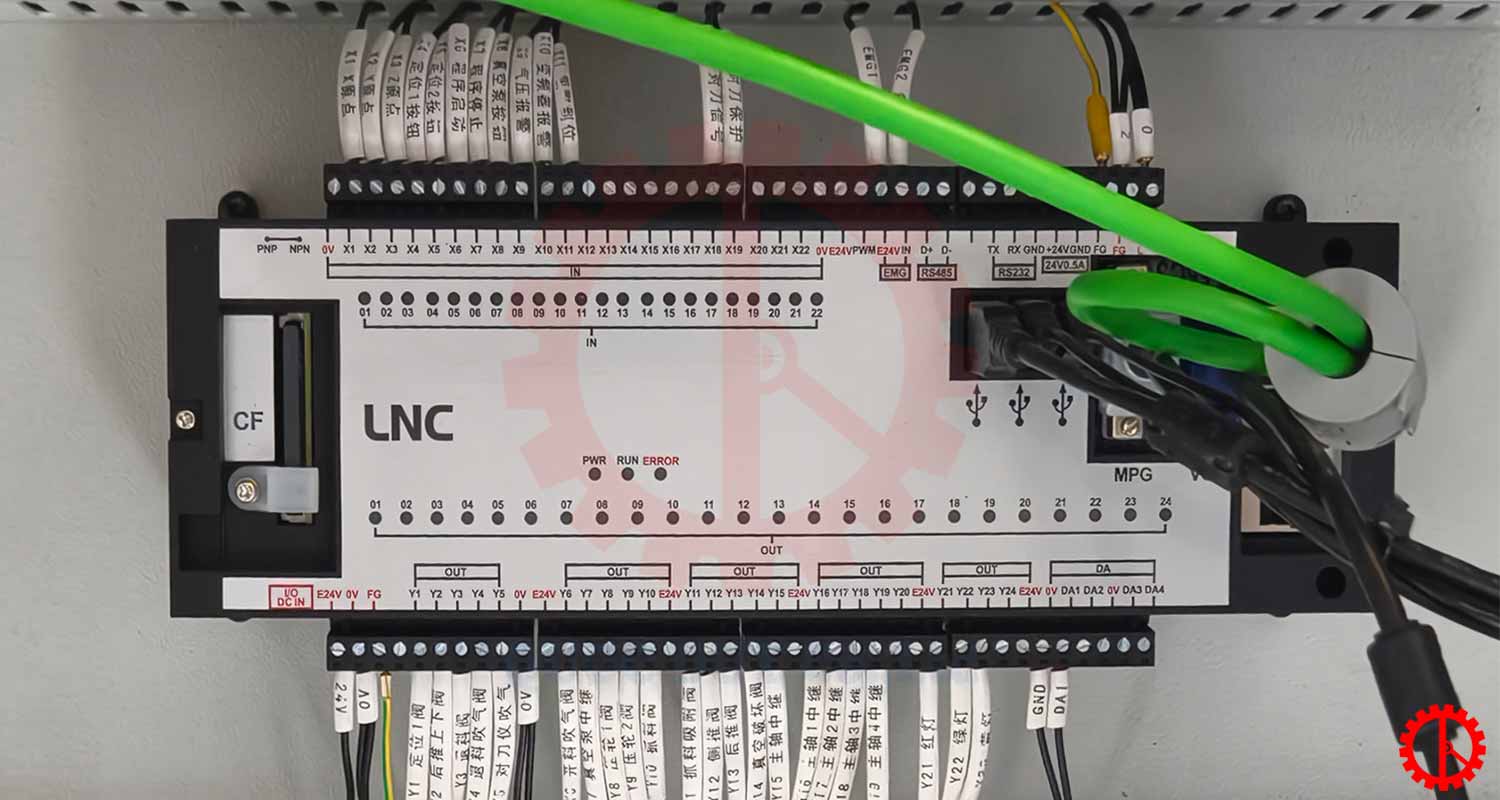

- LNC controller – Taiwan operates stably with high precision.

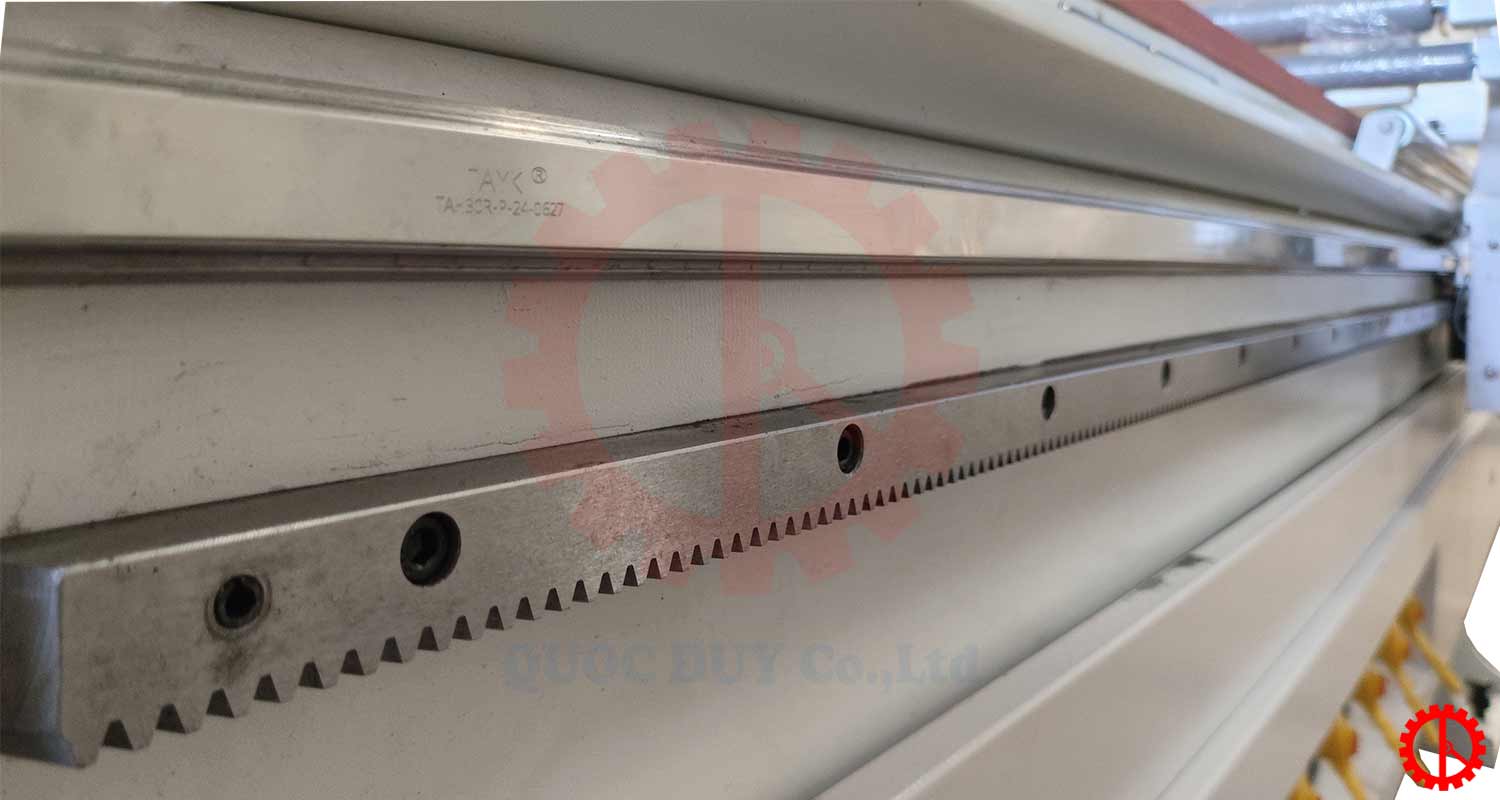

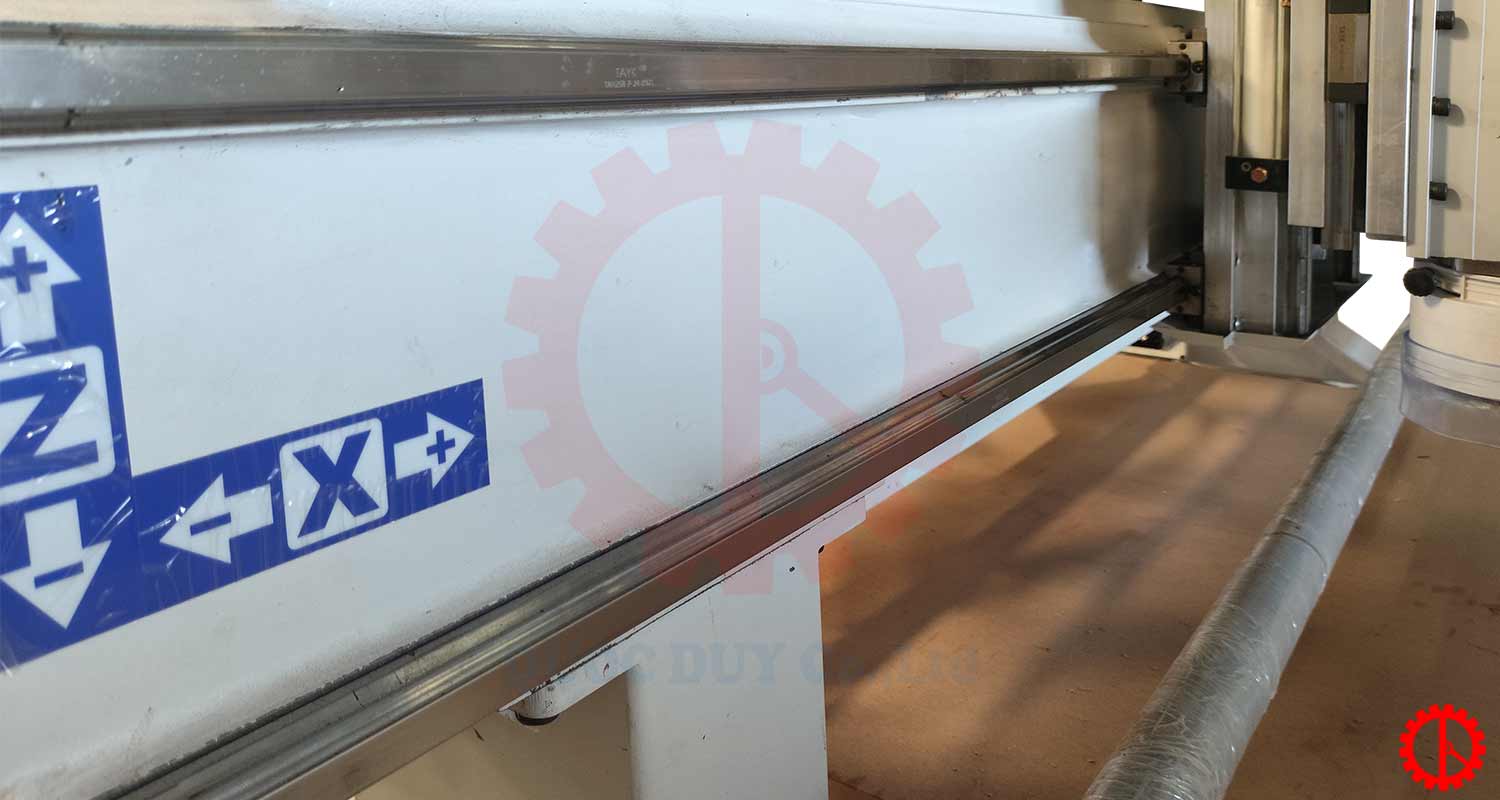

- TBI lead screw shaft – Taiwan, TAYK slide rail – Taiwan.
Specifications of 4 head CNC router milling machine

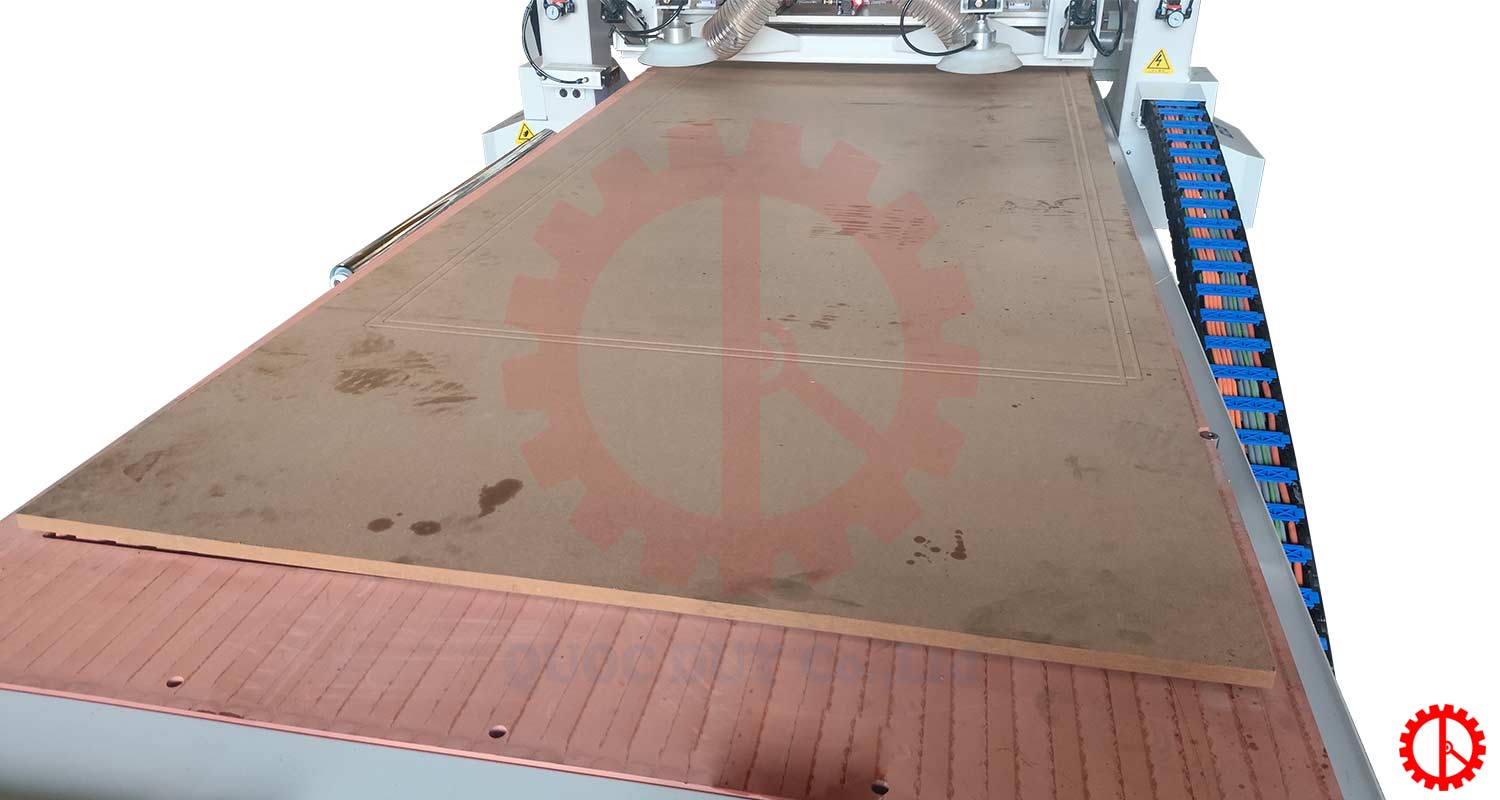

| Working table | : 1300 x 2800 mm |
| X axis travel | : 1800 mm |
| Y axis travel | : 3400 mm |
| Z axis travel | : 200 mm |
| Processing accuracy | : ± 0.15 mm |
| Maximum idle speed | : 50 m/min |
| Maximum cutting speed | : 15 – 20 m/min |

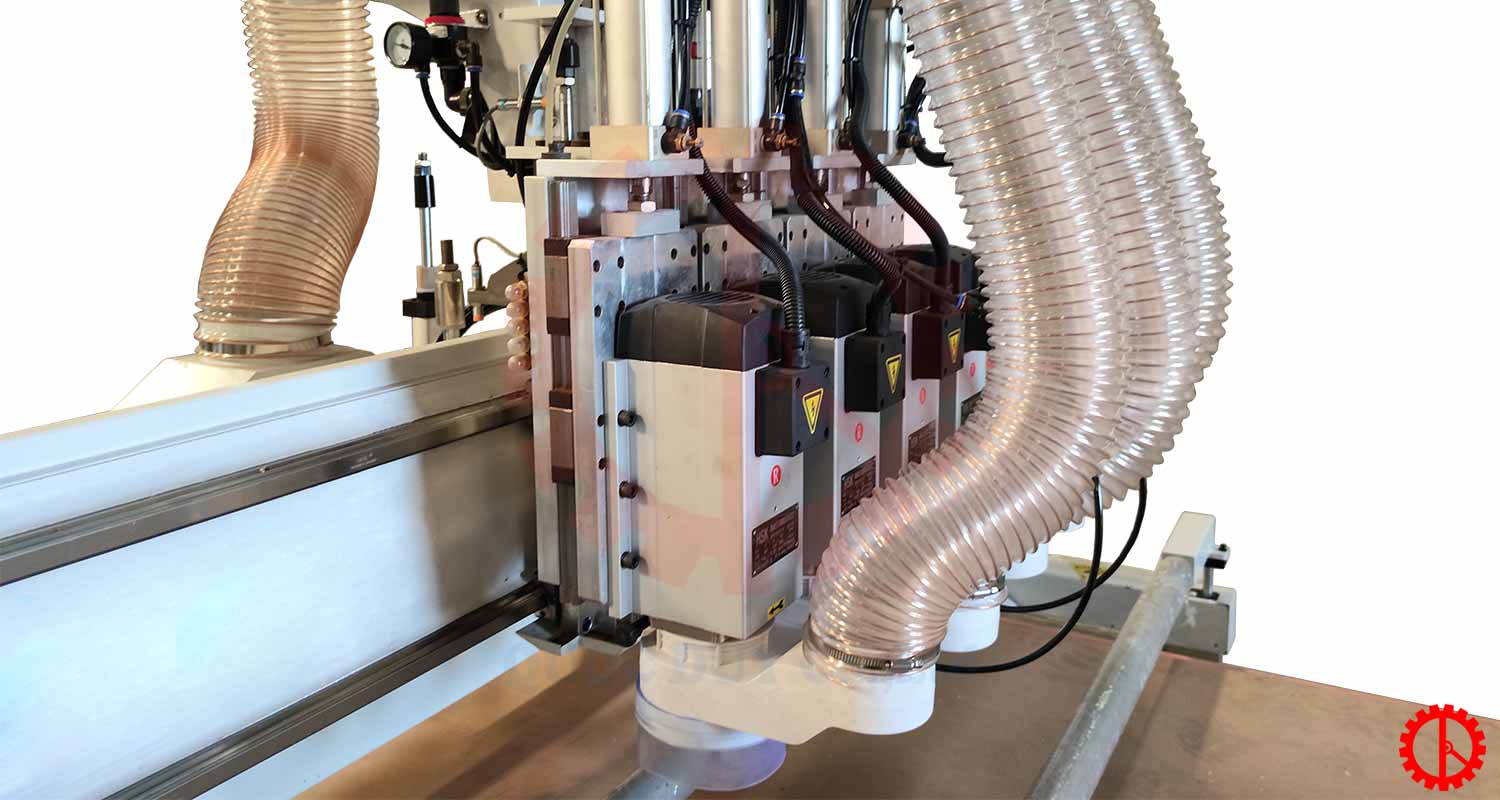

| Spindle motor | : 6 kW x 4 |
| Spindle speed | : 18000 rpm |

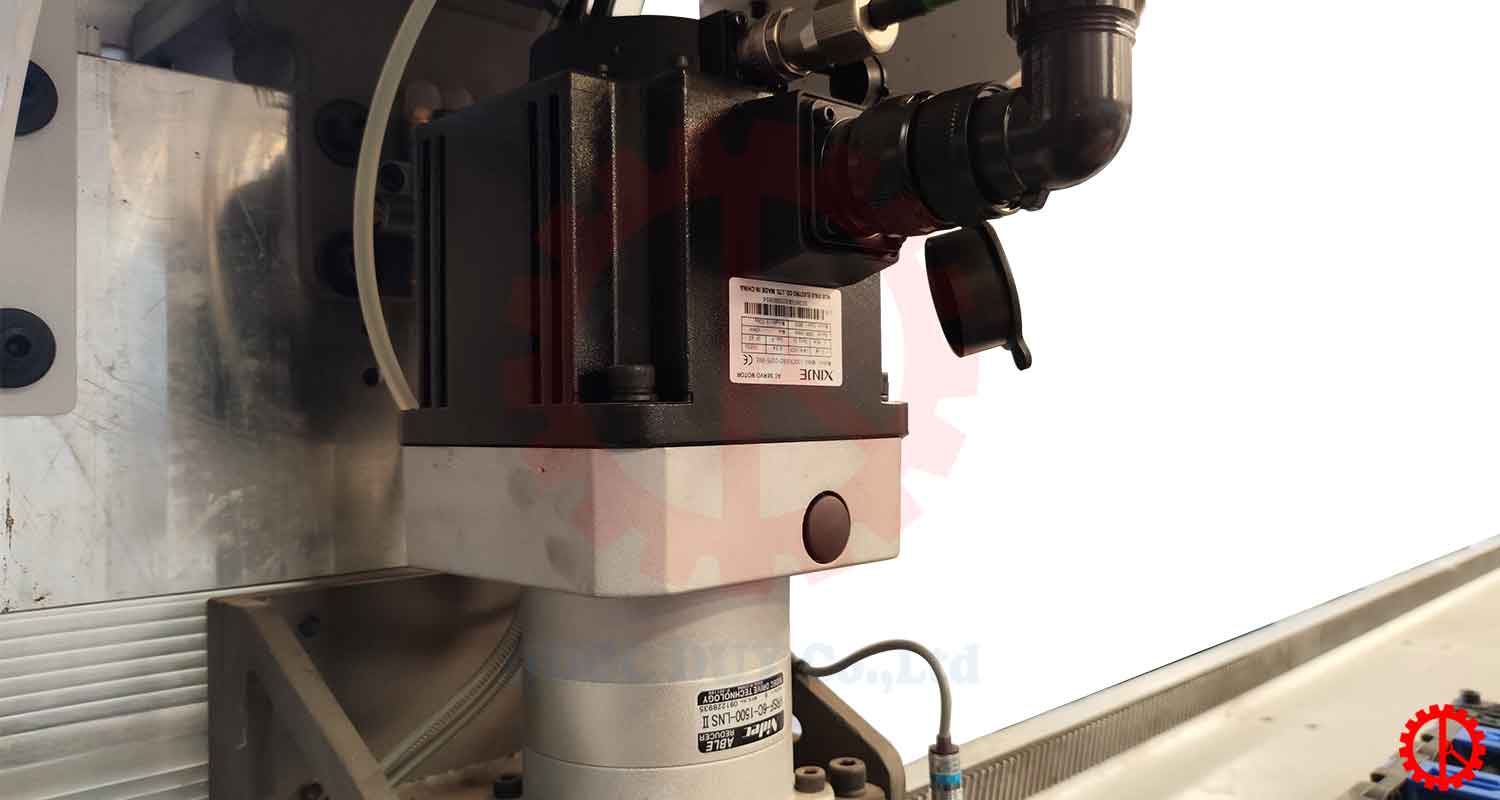

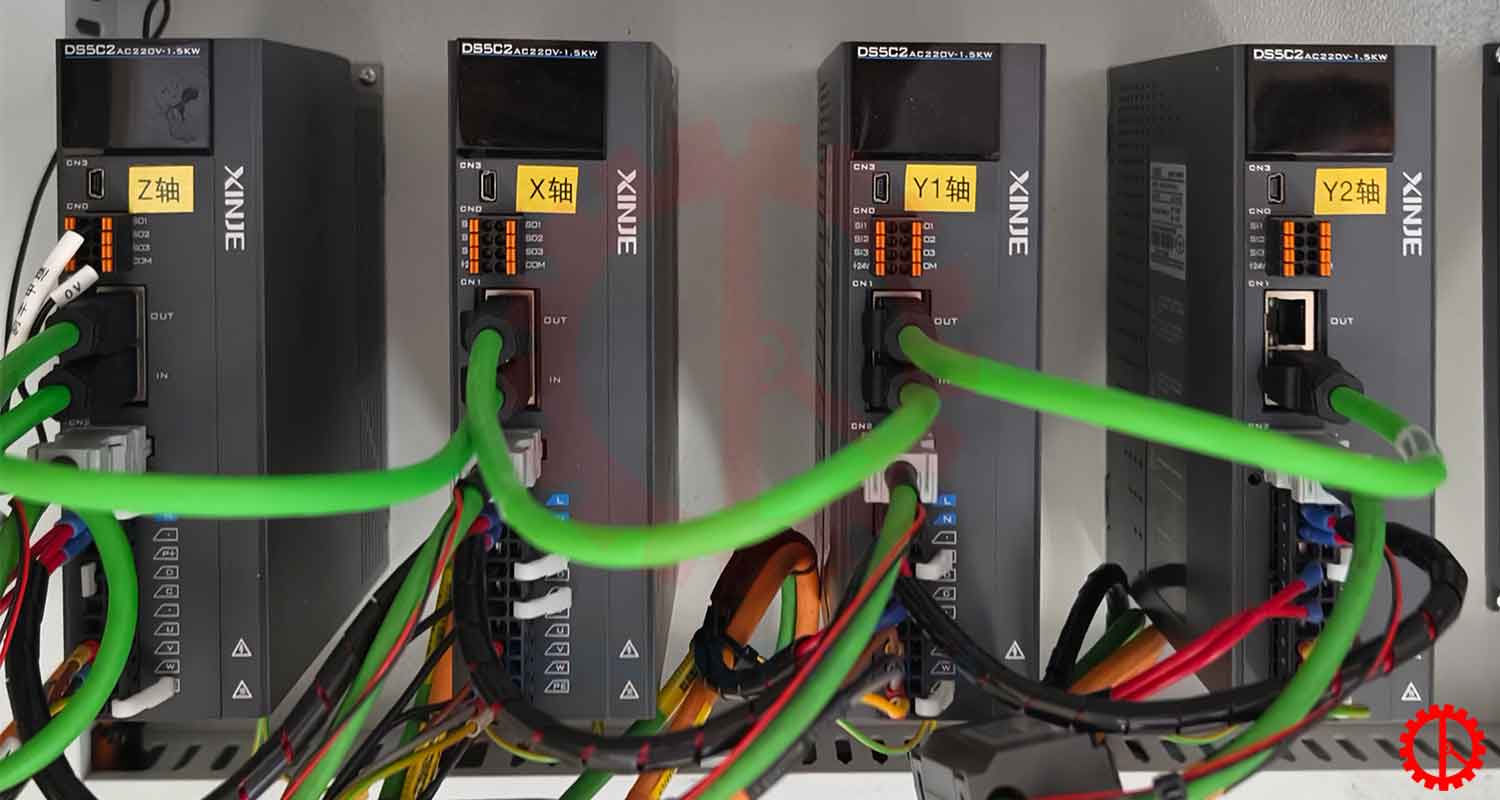

| X axis servo motor | : 1.5 kW |

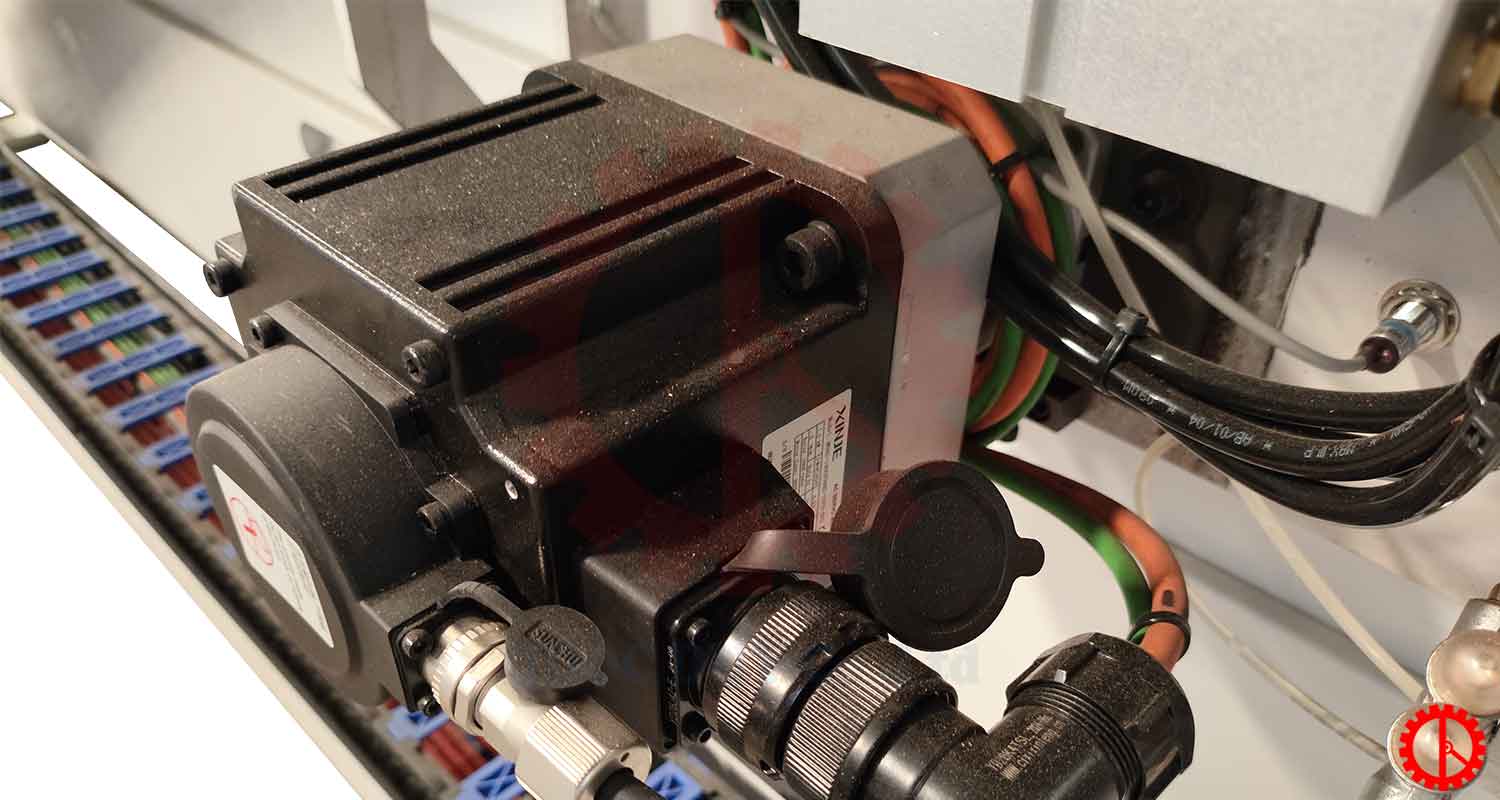

| Y axis servo motor | : 1.5 kW x 2 |

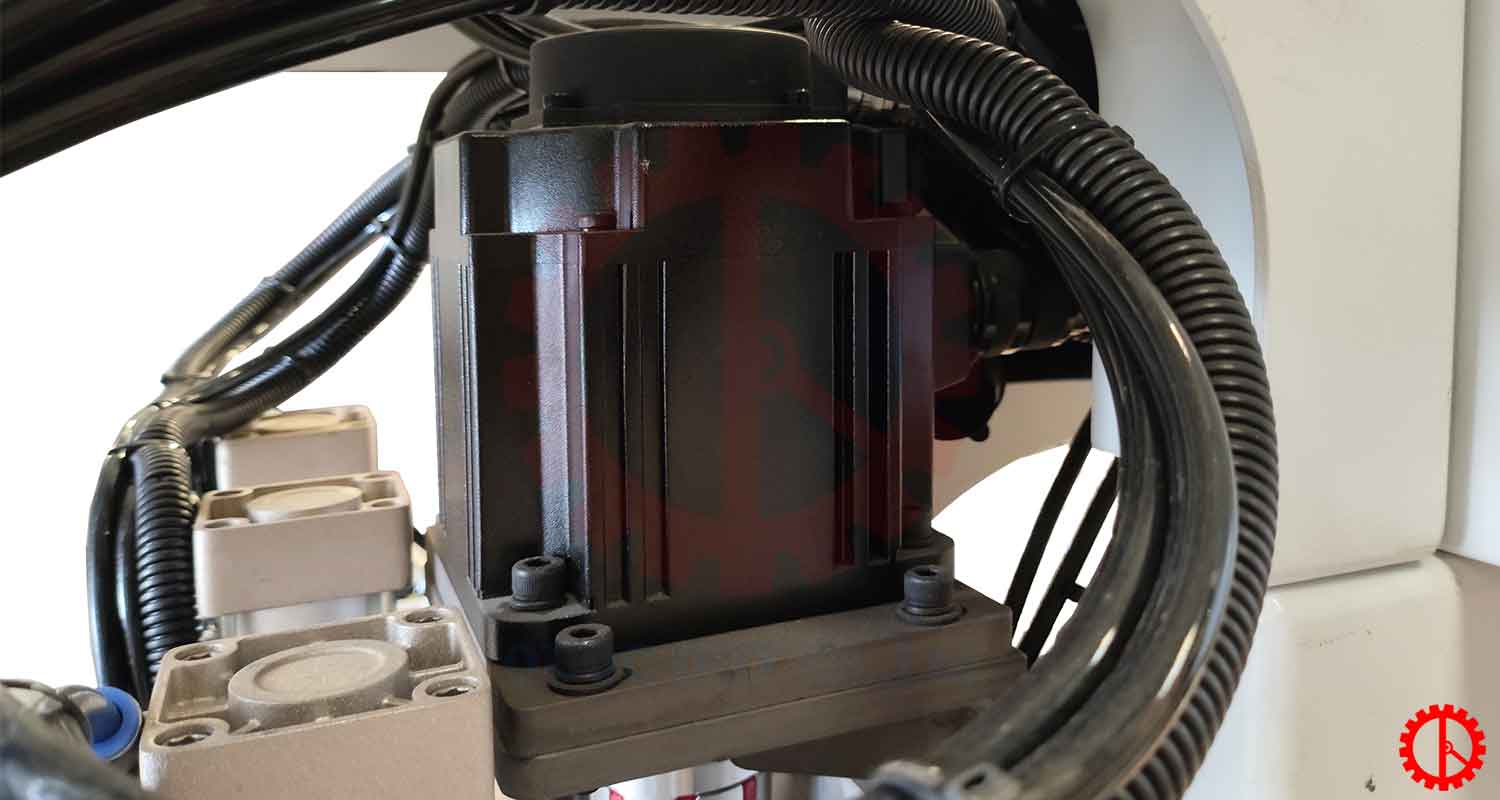

| Z axis servo motor | : 1.5 kW |

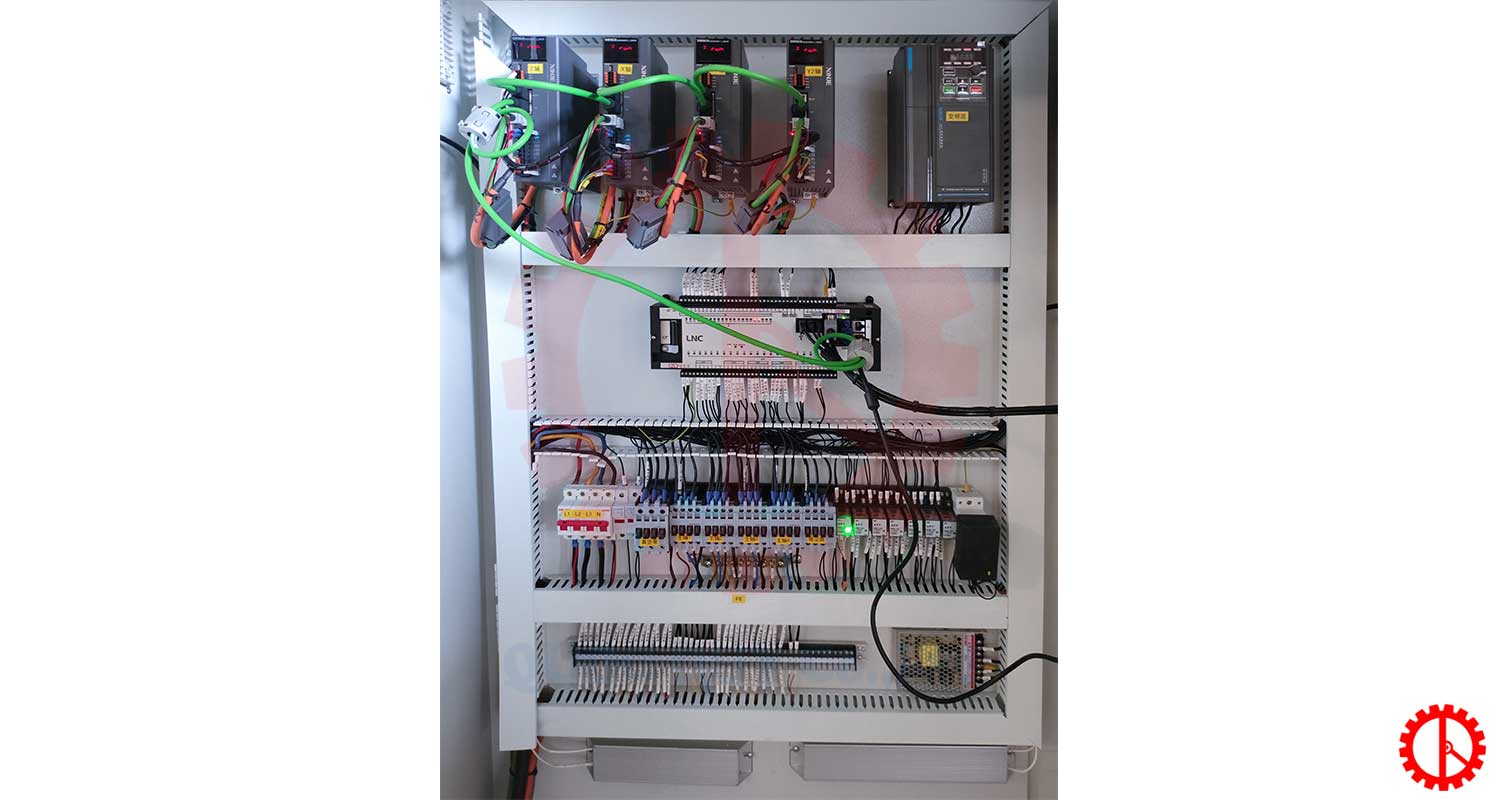

| Control systems | : LNC |

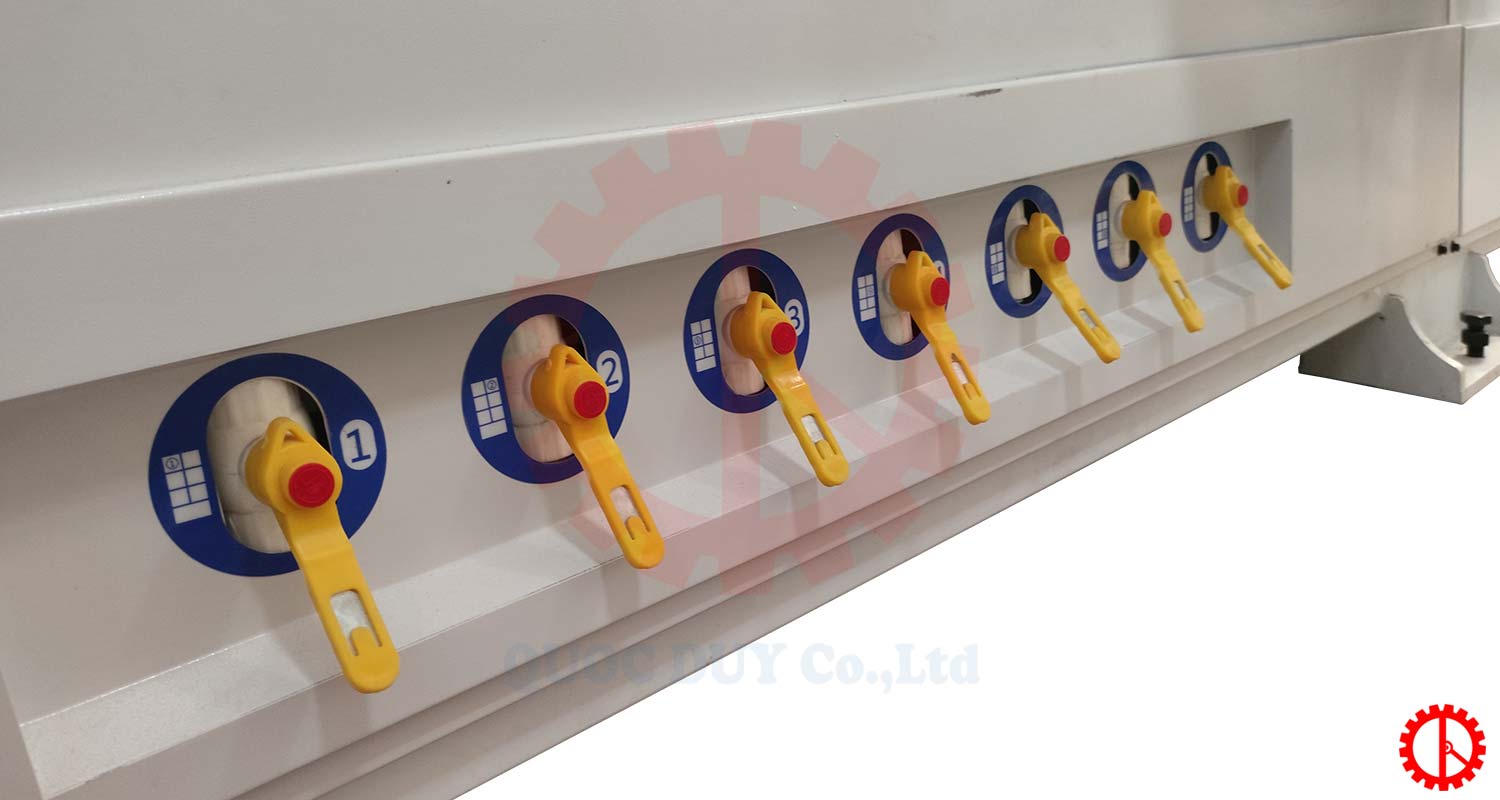

| Vacuum pump | : 7.5 kW |

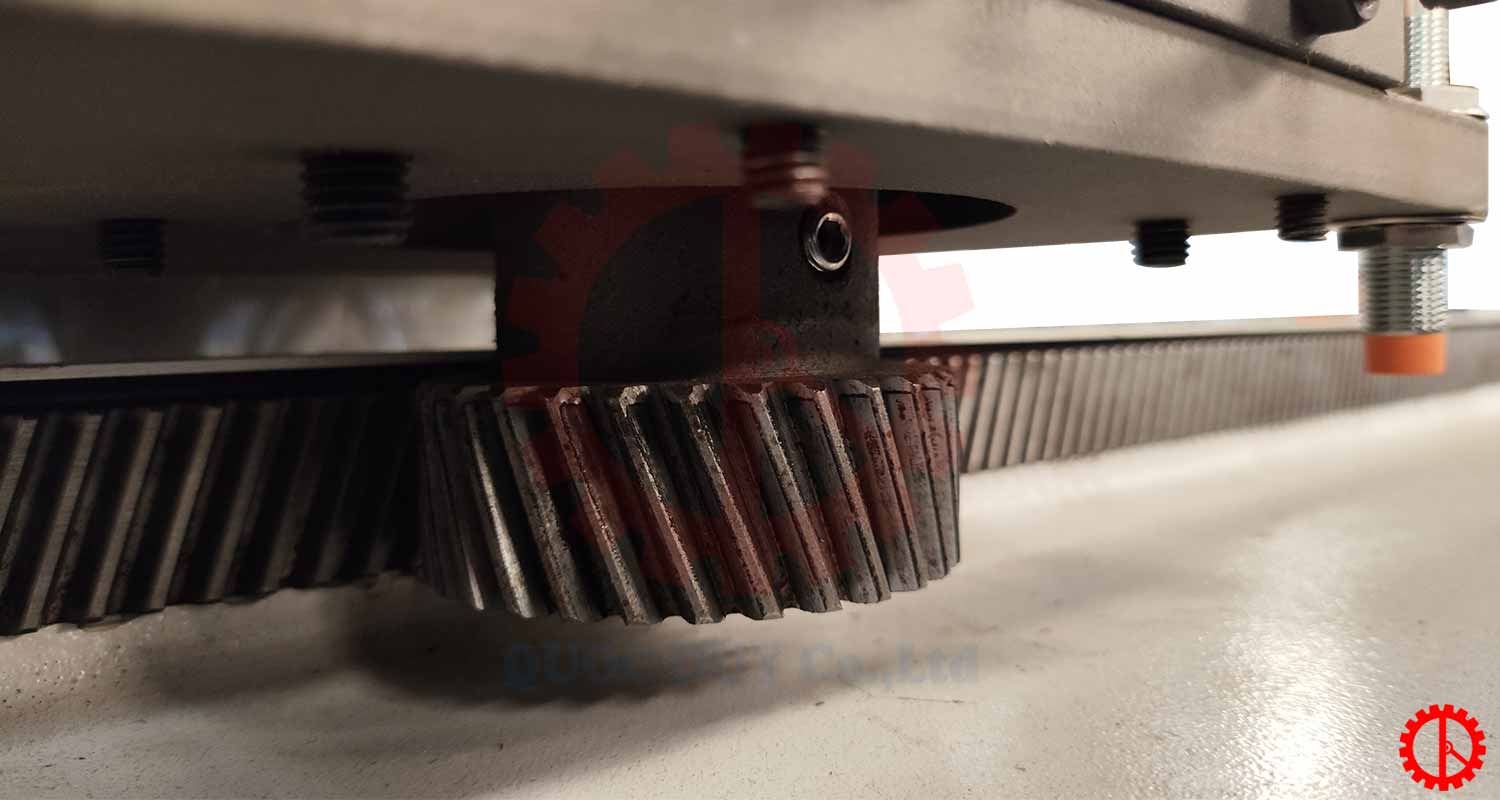

| Transmission | : X Y – rack, Z – lead screw |

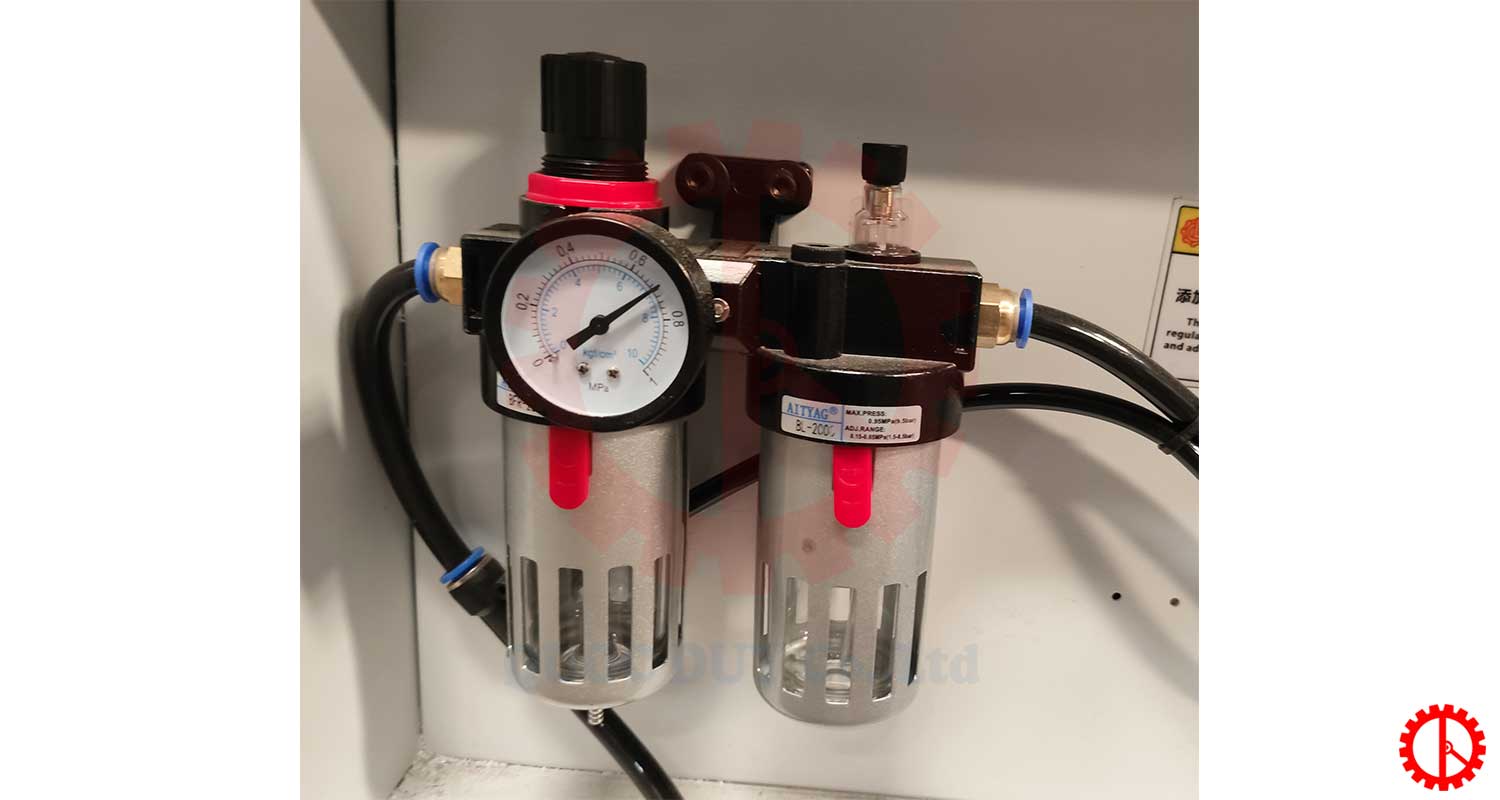

| Air pressure | : 0.5 – 0.8 MPa |
| Working voltage | : 380 V/50 Hz |
| Net weight | : 2300 kg |
| Mahine dimensions | : 4100 x 2600 x 2400 mm |
Note: The technical specifications, design features, and color of the machine may be subject to change without prior notice, while still maintaining its functionality and operational capabilities.
