Features of 3d cnc engraving machine with 12 heads

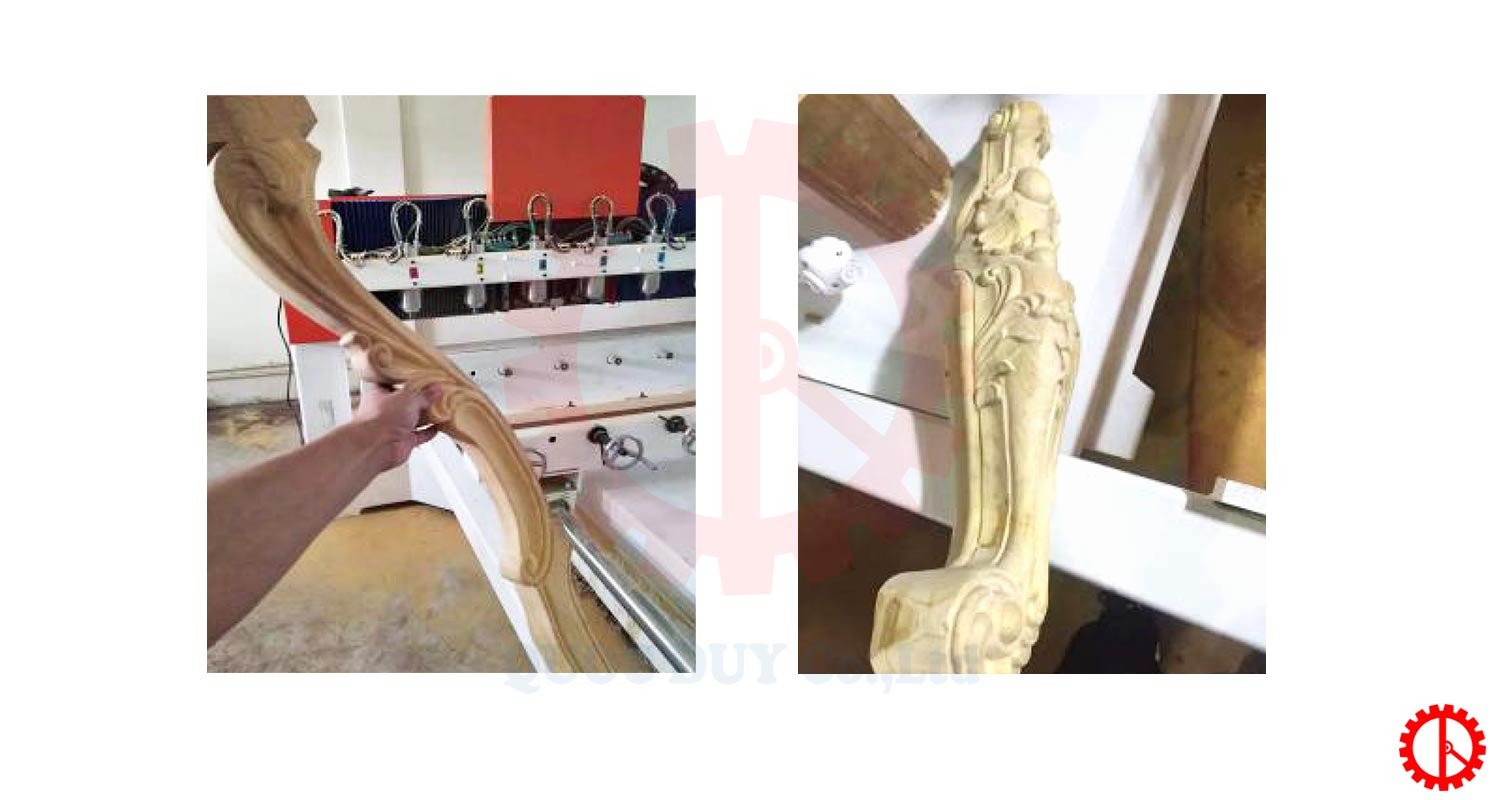

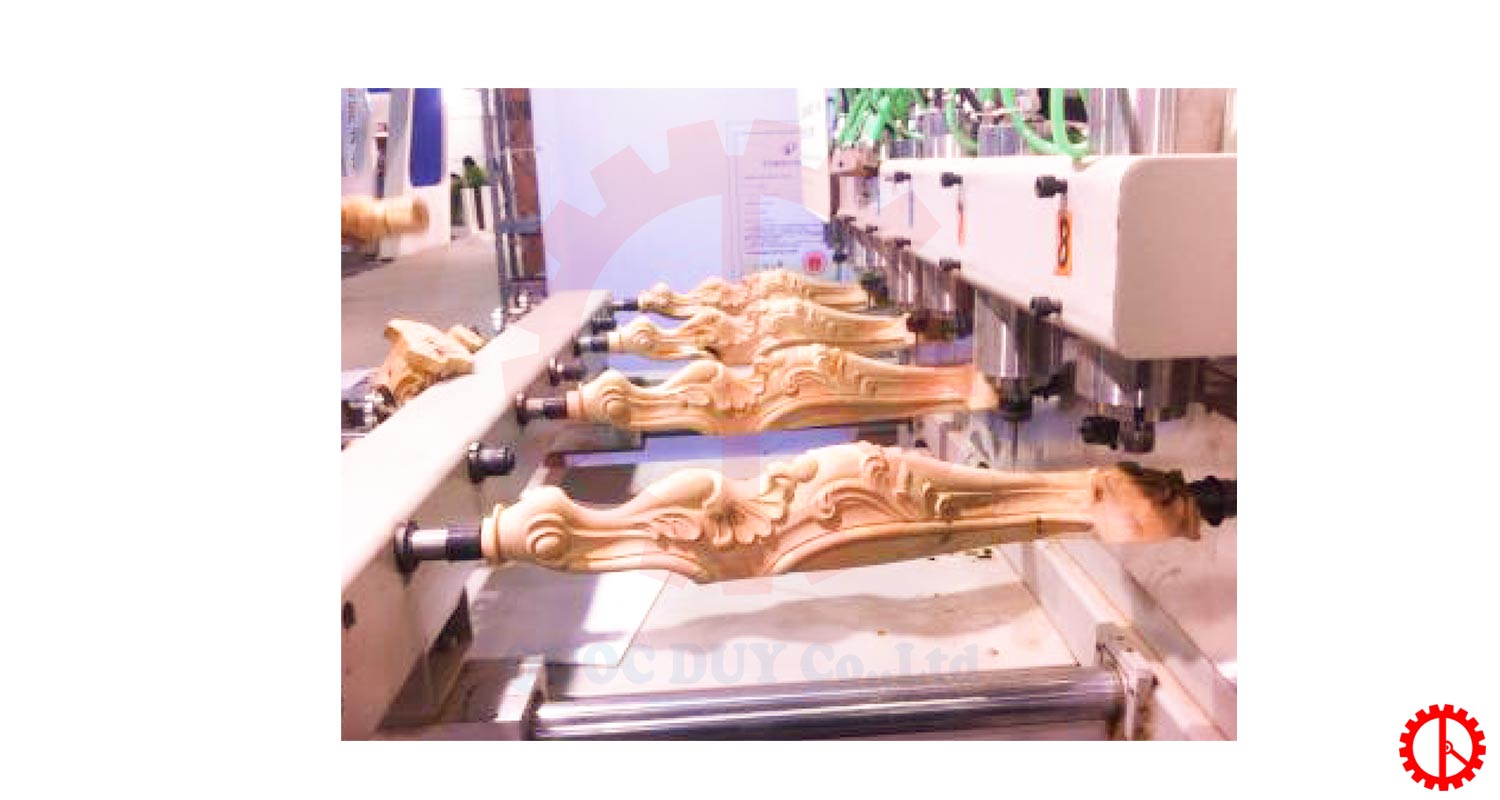

- The multi-functional 12-head CNC wood carving machine is designed for 3D machining and 360° rotary processing of complex profiles, handicraft carvings, and furniture components.
- The machine frame is robustly constructed, ensuring high stability during high-speed operation.
- The working table is precisely designed to provide high accuracy and durability throughout the machining process.
Specifications of 3d cnc engraving machine with 12 heads
| Workpiece size | : 1200 × 210 mm |
| Maximum working table load | : 800 kg |
| Spindle power | : 2.2 kW × 12 units |
| Spindle speed | : 8000–24000 rpm |
| Accuracy | : ±0.05 mm |
| Maximum processing speed | : 15 m/min |
| Total weight | : 3000 kg |
| Power supply | : 380V / 50Hz |
| Machine dimensions | : 3360 × 2000 × 1800 mm |
Note: Technical specifications, design features, and machine color may be subject to change without prior notice; however, such changes will not affect the machine’s functions or operational performance.
