The 1-Head CNC Router With Straight Tool Changer is the optimal solution for high-precision industrial wood processing. Solid structure, intelligent control system for stable and easy operation. Suitable for carpentry and interior workshops, helping to process cabinets, office furniture, solid wood furniture, tables, chairs, doors, etc. effectively. This is the ideal solution for professional production!
Features of 1-Head CNC Router With Straight Tool Changer
Machine features:
- The machine is suitable for processing wardrobe, table, chair, door or solid wood furniture.
- Works effectively on many types of boards such as particle board, plywood, solid wood boards, etc.

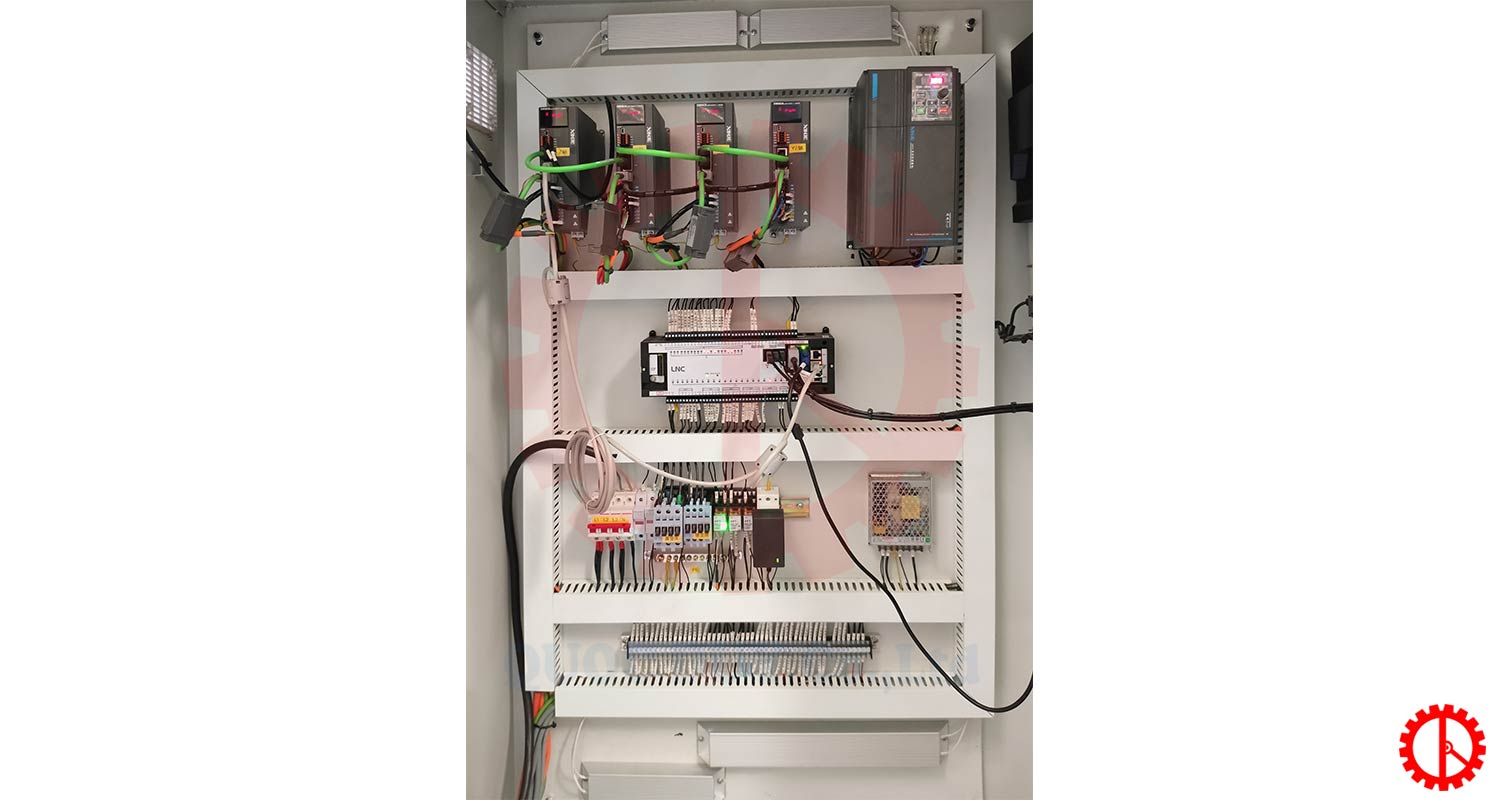

- Equipped with INOVANCE servo motor for high precision, stable operation.
- High motor power helps to process quickly, enhance working productivity.
- Control signal switch: Schneider (Germany)
- Inverter: Inovance
- Servo motor: Inovance
- Control system: LNC (Taiwan)
- Induction reset: Schneider (Germany)
- Lead Screw spindle: TBI (Taiwan)
- Sliding rail: TAYK (Taiwan)
Specifications of 1-Head CNC Router With Straight Tool Changer
| Working Table Dimensions | : 1300 x 2800 mm |
| X-axis Travel | : 1800 mm |
| Y-axis Travel | : 3400 mm |
| Z-axis Travel | : 200 mm |
| Machining Accuracy | : ± 0.15 mm |
| Positioning Accuracy | : ± 0.03 mm |
| Max. Rapid Traverse Speed | : 50 m/min |
| Max. Cutting Speed | : 15 – 20 m/min |
| Spindle Motor | : 9 kW, 24,000 RPM |
| Straight-line Tool Magazine | : 12 tools |
| X-axis Servo Motor | : 1.5 kW |
| Y-axis Servo Motor | : 1.5 kW × 2 |
| Z-axis Servo Motor | : 1.5 kW |
| Vacuum Pump Power | : 7.5 kW |
| Control System | : LNC |
| Board Loader | : Included |
| Working Air Pressure | : 0.5 – 0.8 MPa |
| Voltage | : 380V / 50Hz |
| Transmission Method | : X, Y axes – rack and pinion, Z axis – ball screw |
| NET Weight | : 2300 kg |
| Machine Dimensions | : 4100 x 2600 x 2400 mm |
Note: The technical specifications, design features, and color of the machine may be subject to change without prior notice, while still maintaining its functionality and operational capabilities.
