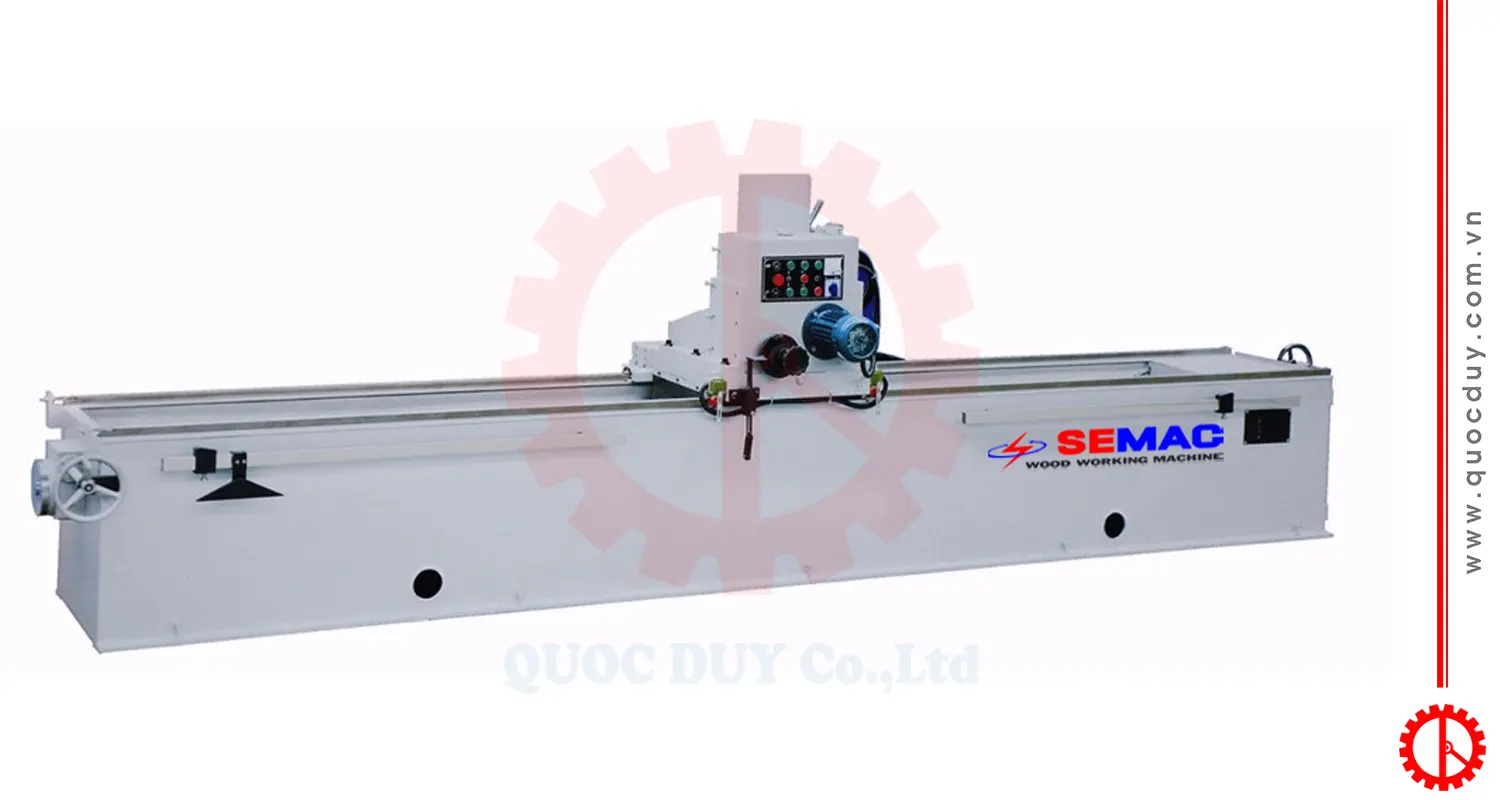

Introduction of straight knife grinder
Features
- This machine mainly grind all type of linear knives, like guillotine knives，slicer knife, peeling machine knife, Granulator knife, cutting paper knife and Shearing Blades.
- This machine body is a design of gantry body, with the high-quality steel weld; stress relieved eliminating the internal stress. The body has high strength and good rigidity. No shrinking in centre of body.
- Job accuracy of machine is 0.01mm
- The worktable is the electromagnetic chuck. It is very convenience to clamp knife. The worktable is easy to adjust the angle by worm gear. The width of the magnet is 180mm
- The vertical movement of the grinding head adopts the ball screw, to ensure the accuracy.
Specifications
| Thông số | MMD 1500 | MMD 2200 | MMD 3500 |
| Max grinding length | : 1500 mm | : 2200 mm | : 3500 mm |
| Working table size | : 1500 x 200 mm | : 2200 x 200 mm | : 3500 x 200 mm |
| Main motor | : 4 KW | : 4 KW | : 4 KW |
| Grinding head up and down | : 1.5 KW | : 1.5 KW | : 1.5 KW |
| Rev.speed of grinding wheel | : 15m/s | : 15m/s | : 15m/s |
| Speed of table longitudinal travel | : 0 – 25 m/phút | : 0 – 25 m/phút | : 0 – 25 m/phút |
| Table angle range | : ± 90 độ | : ± 90 độ | : ± 90 độ |
| Grinding wheel size | : Ø 200x110x32mm | : Ø 200x110x32mm | : Ø 200x110x32mm |
| Cup Style | |||
| Stepless speed change | |||
Contact Infomation
– Email : info@quocduy.com.vn
– Hotline : 0903 600 113
– Website : www.quocduy.com – www.semac.com.vn
You can also come directly to our factory at: 401 To Ngoc Van, Thanh Xuan ward, District 12, Ho Chi Minh City to directly see the operation process of the series woodworking machines
