Sliding table saw for mdf S 32
Introduction of sliding table saw for mdf
Features
1. Apply to processing all kinds of density boards, cutting MDF, OKAL, Arcylic, solid wood and others stucture and similiar hardness with high precision
2. Parts and material will be import with the good quality
3. Movable table guide track is plating chromium steel bars structure, exact and durable
4. Tilting is shown by the electronic display that improves accuracy
5. Machine is made of high quality steel, sliding table structure is made of aluminum alloy

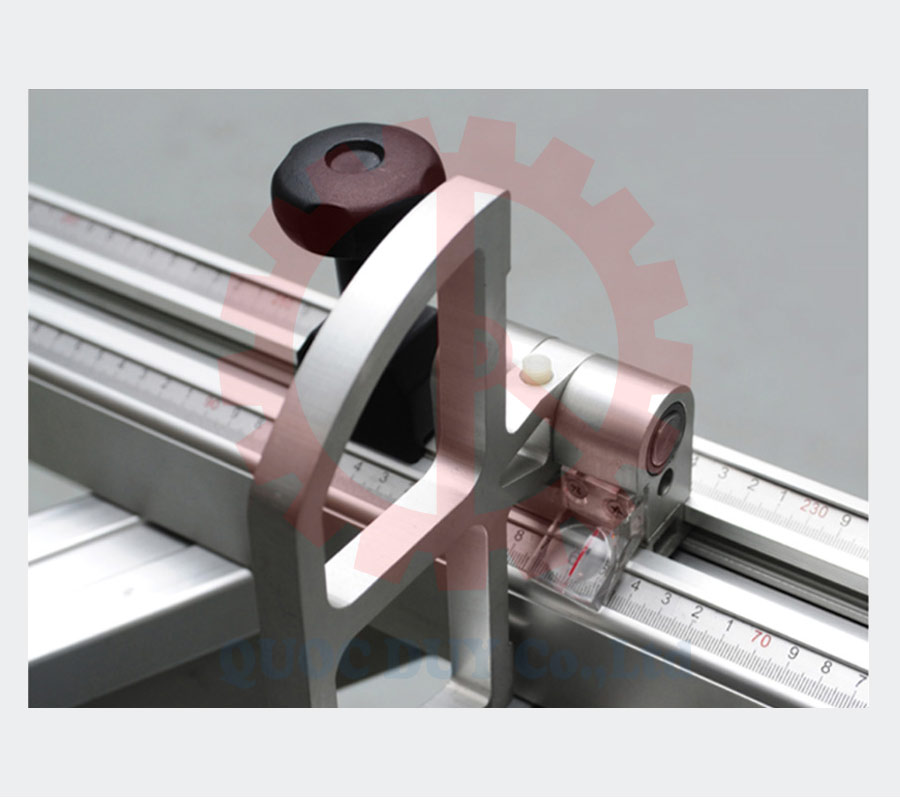

Lock sliding table safely

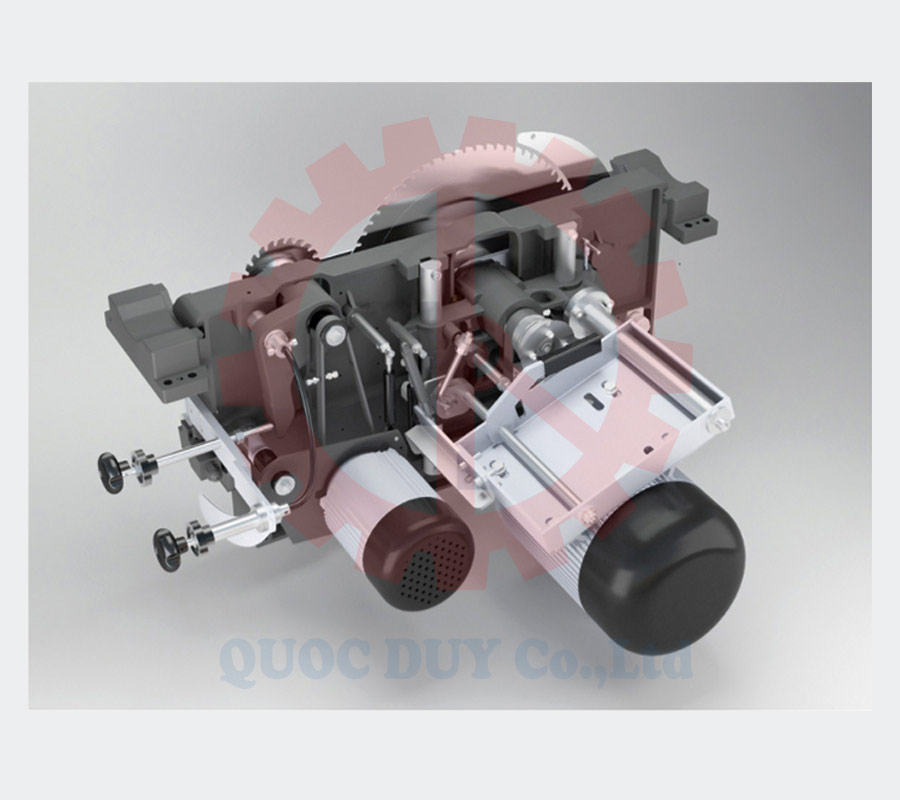

Powerful, durable motor

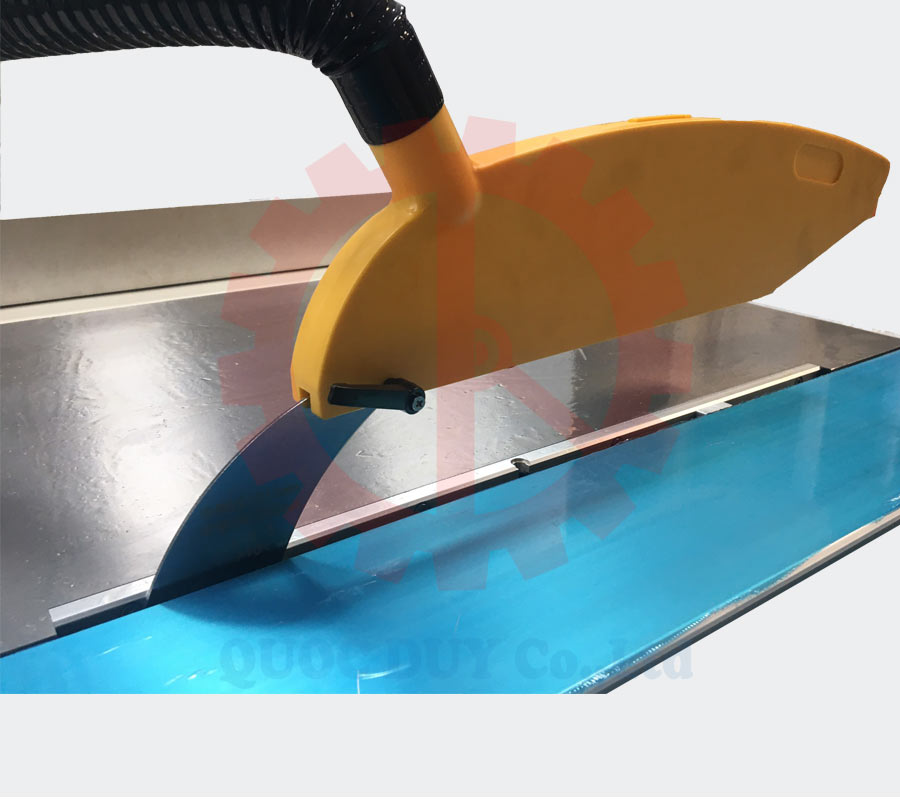

Protection hood

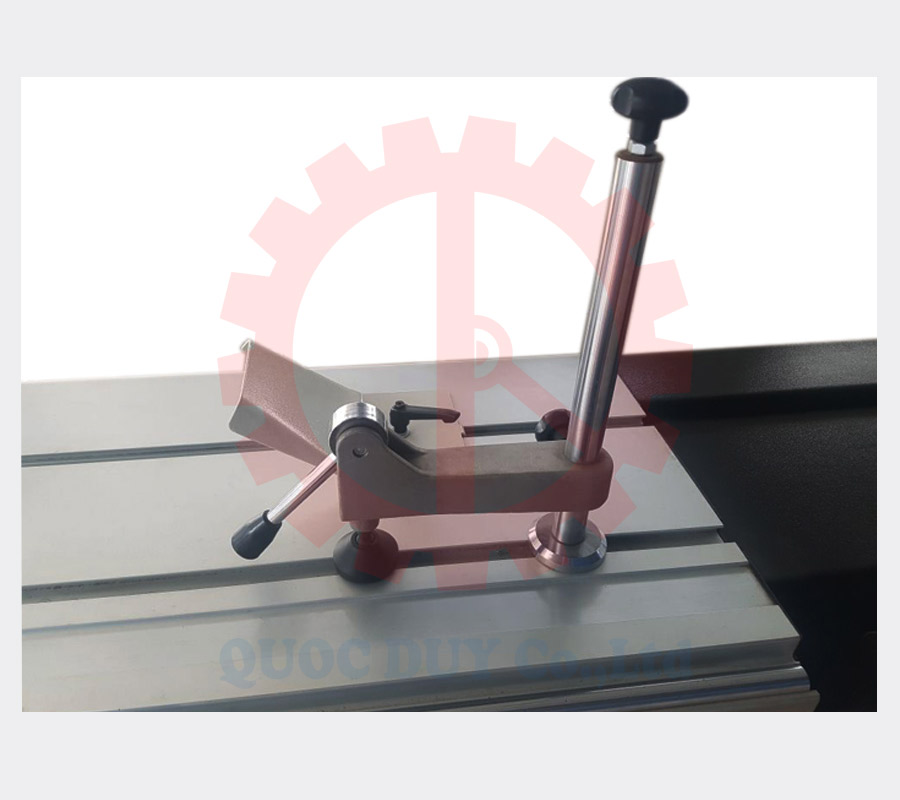

Quick locking device for precise cutting
Specifications
| Sliding table dimension | : 400 x 3200 mm |
| Scoring saw blade | : ɸ 120 mm |
| Scoring blade speed | : 9000 rpm |
| Blade tilting adjustment | : 0 – 45 |
| Max cutting height with blade at 900 | : 120 mm |
| Max cutting height with blade at 450 | : 75 mm |
| Cutting width | : 1250 mm |
| Dust collection system | : ɸ 100 mm |
| Scoring motor power | : 0.75 KW |
| Main motor power | : 5 KW |
| Net weight | : 800 kgs |
| Machine size | : 3200 × 1250 × 1100 mm |
