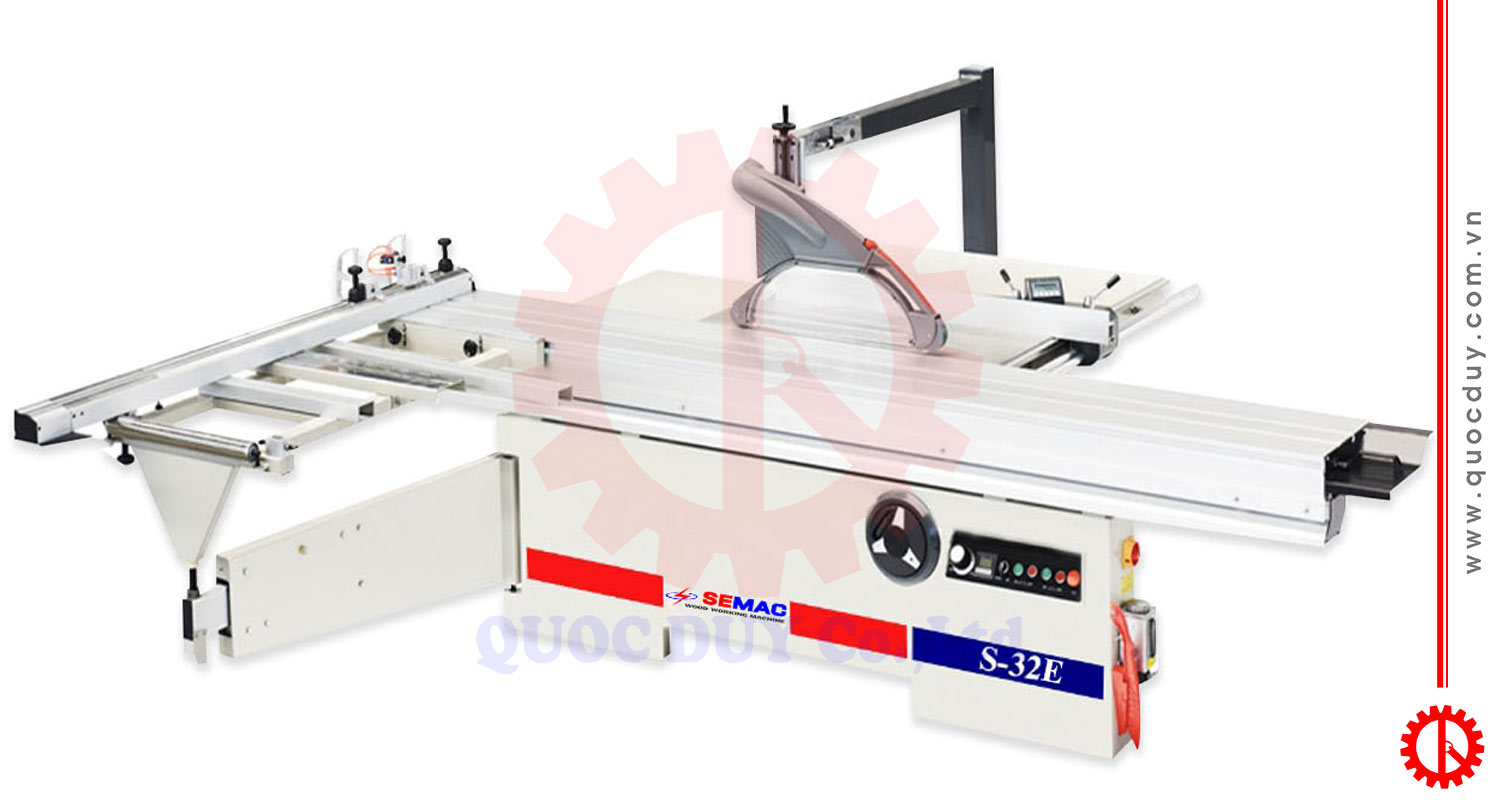

Semi-automatic panel saw S 32E
Introduction of semi-automatic panel saw
Machine Parts making use of imported machining centers, precision in the domestic leading level.
Push Taiwan imported cylindrical guide, higher accuracy and longer life.
The whole machine adopts spray, laser cutting welding body, the use of more stable and reliable.
|Dimension of sliding table||: 3200 x 400 mm|
|Opening cut||: 1250 mm|
|Diameter of saw cutting||: 250-400 mm|
|Cutting height||: 125 mm|
|Cutting height at 45 degrees||: 80 mm|
|Rotation of saw cutting||: 4000/ 6000 mm|
|Diameter of scoring saw||: 120 mm|
|Motor of main saw||: 5.5 kw|
|Motor of scoring saw||: 1.1 kw|
|Control of Saw blade degree||: Digital|
|Package size of machine body||: 2200 x 1150 x 1100 mm|
|Package size of sliding table||: 3350 x 480 x 320 mm|
|Net Weight||: 850 kgs|
